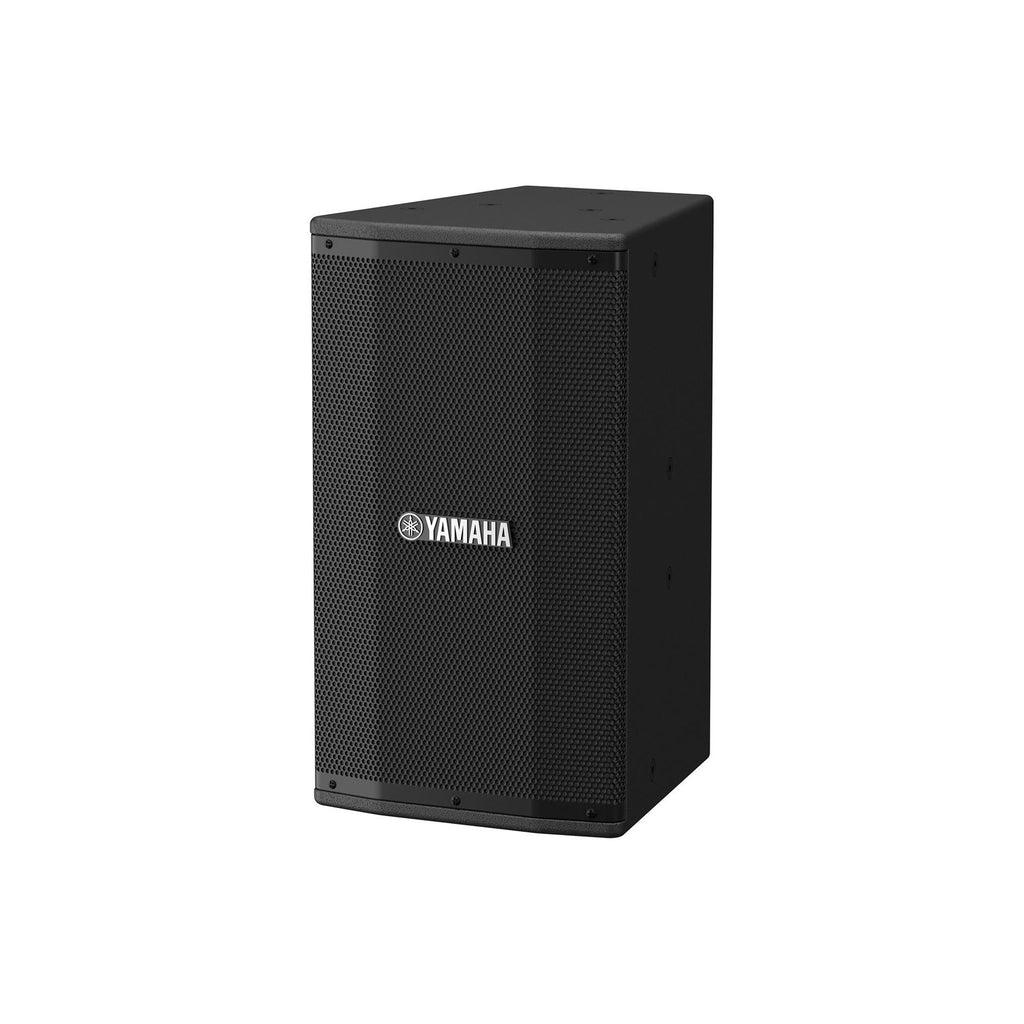

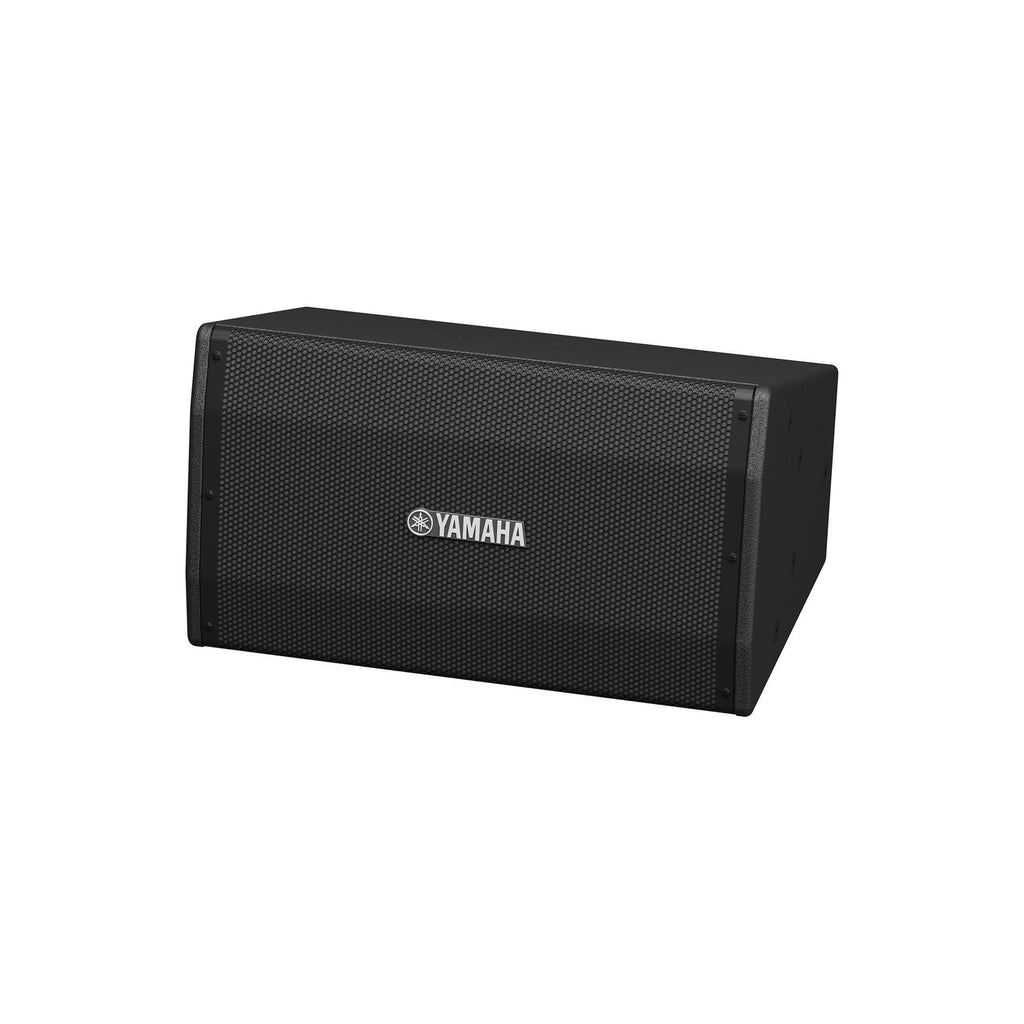

VKE Series is a versatile loudspeaker system with the enclosure design, sound quality, and durability optimised for fixed installation.
VKE Series loudspeakers feature a 15-mm plywood enclosure that delivers the sonic performance demanded in professional audio applications.

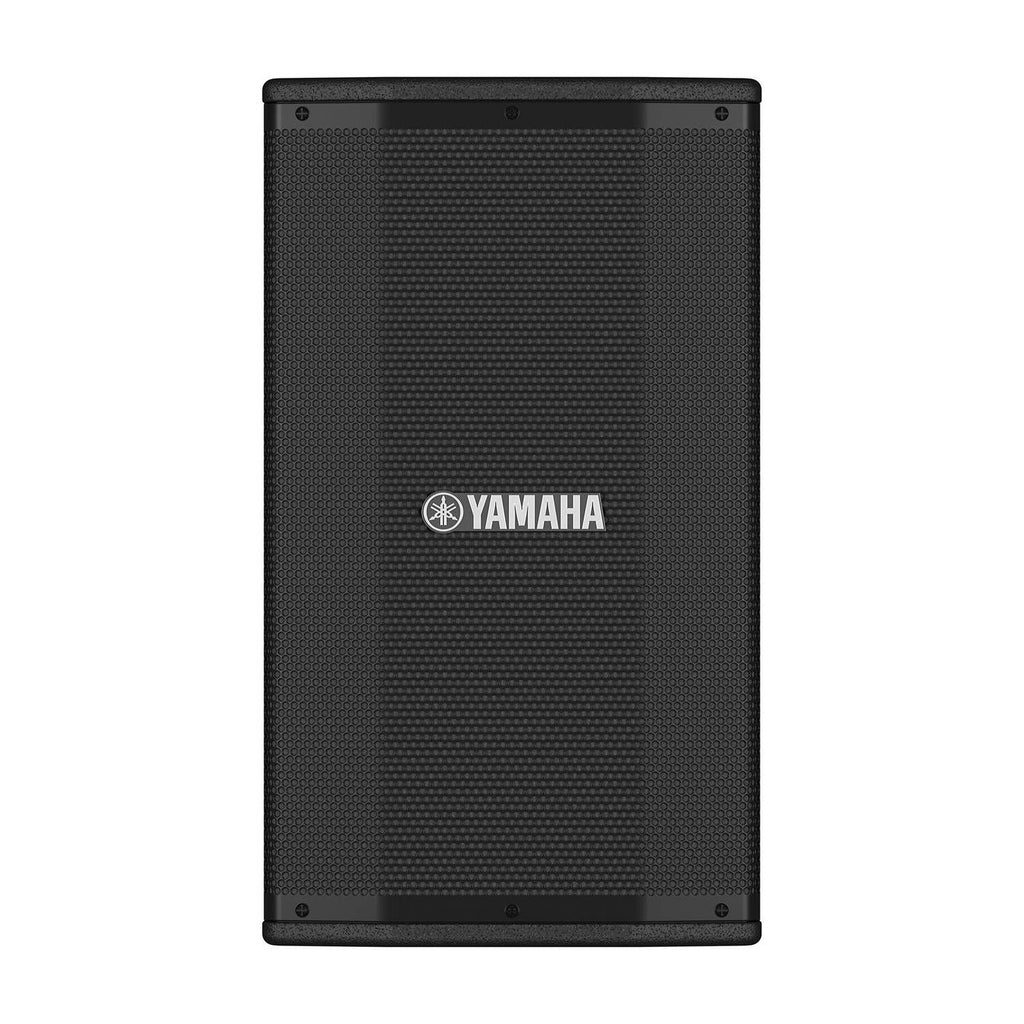

The front grille features a rotatable logo, while the bottom is equipped with a 35-mm pole socket and the rear with a handle, making it suitable for portable as well as installed applications.
With the quality demanded for commercial use, the versatile VKE Series possesses the flexibility needed for a range of applications that require high sound pressure and high durability.
Features
- Reproducible frequency range (-10 dB): 56 Hz - 20 kHz
- Generous allowable input: 1200 W
- Maximum sound pressure suitable for professional audio applications: 126 dB SPL
- Nominal dispersion angle ideal for horizontal hanging installation: 70° horizontal × 100° vertical
- Multiple rigging points (six)
- Equipped with a pole socket (bottom, 35 mm) and a handle (one at top rear) for temporary installation
Specifications
- Speaker type: 2-way Speaker, Bass-reflex
- Component LF: Diameter: 10” corn
- Component HF: 1.4” compression driver
- Nominal impedance: 8 Ω
- Frequency range (-10dB): 56 Hz - 20 kHz (*1)
- Crossover: 2.2 kHz
- Coverage area: H70° x V100°
- NOISE: 300 W
- PGM: 600 W
- PEAK: 1200 W
- Sensitivity (1W; 1m on axis): 95 dB SPL (*1)
- Peak (Calculated): 126 dB SPL (*2)

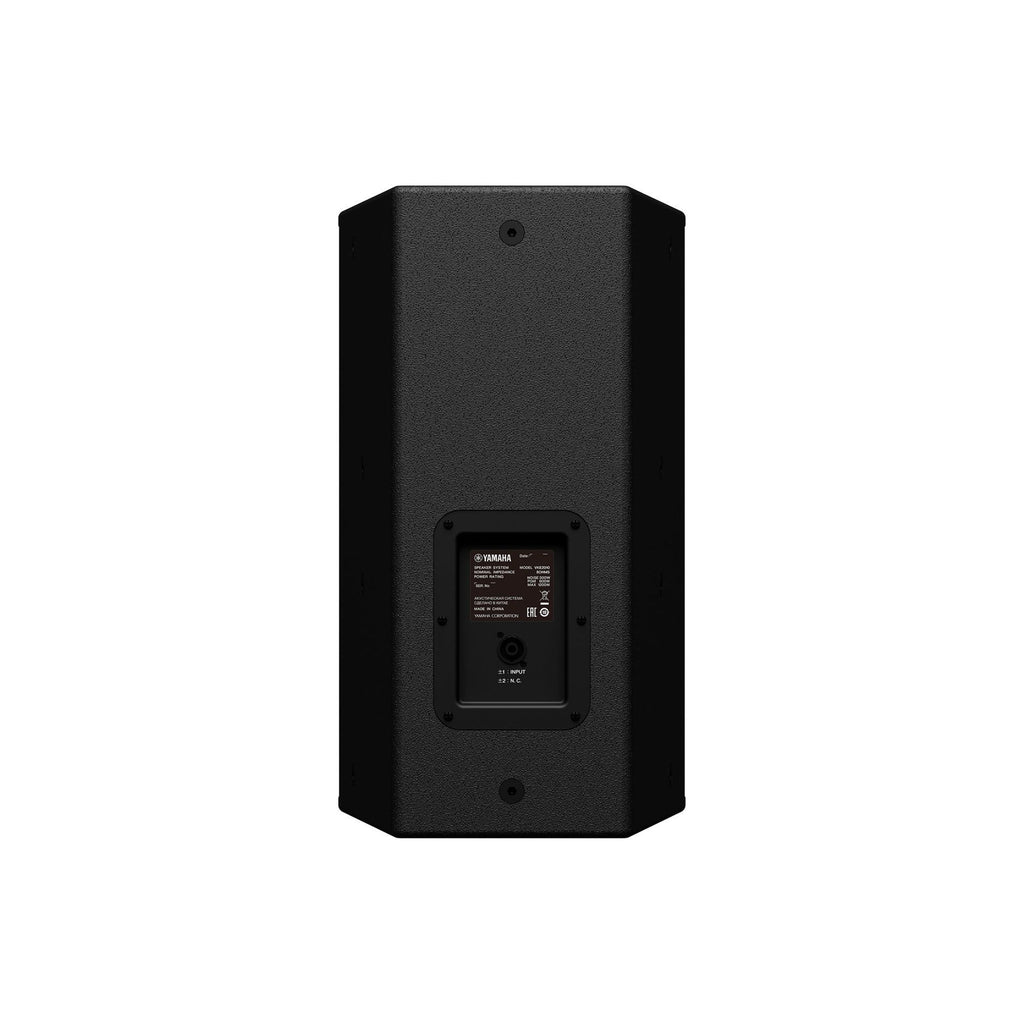

- I/O connectors: Neutrik Speakon NL4MP x1
- Cabinet material: Plywood
- Finish: PU painting, Black
- Rigging: M10 x2 -P100 mm 3 places (Top/Sides)
- Pole socket: Φ35 mm x1 (Bottom)
- Included Accessories: Owner's Manual
- Width: 309 mm
- Height: 535 mm
- Depth: 344 mm
- Net weight: 15.6 kg
