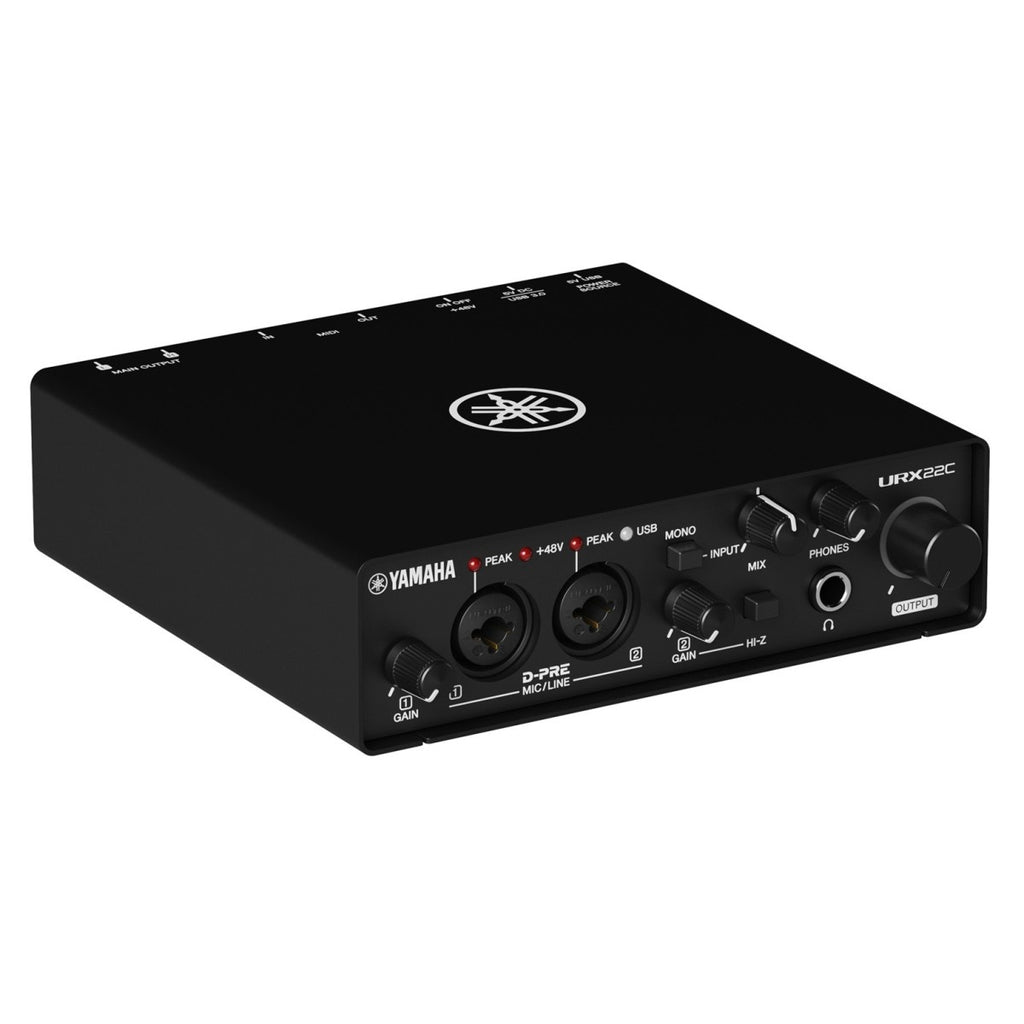

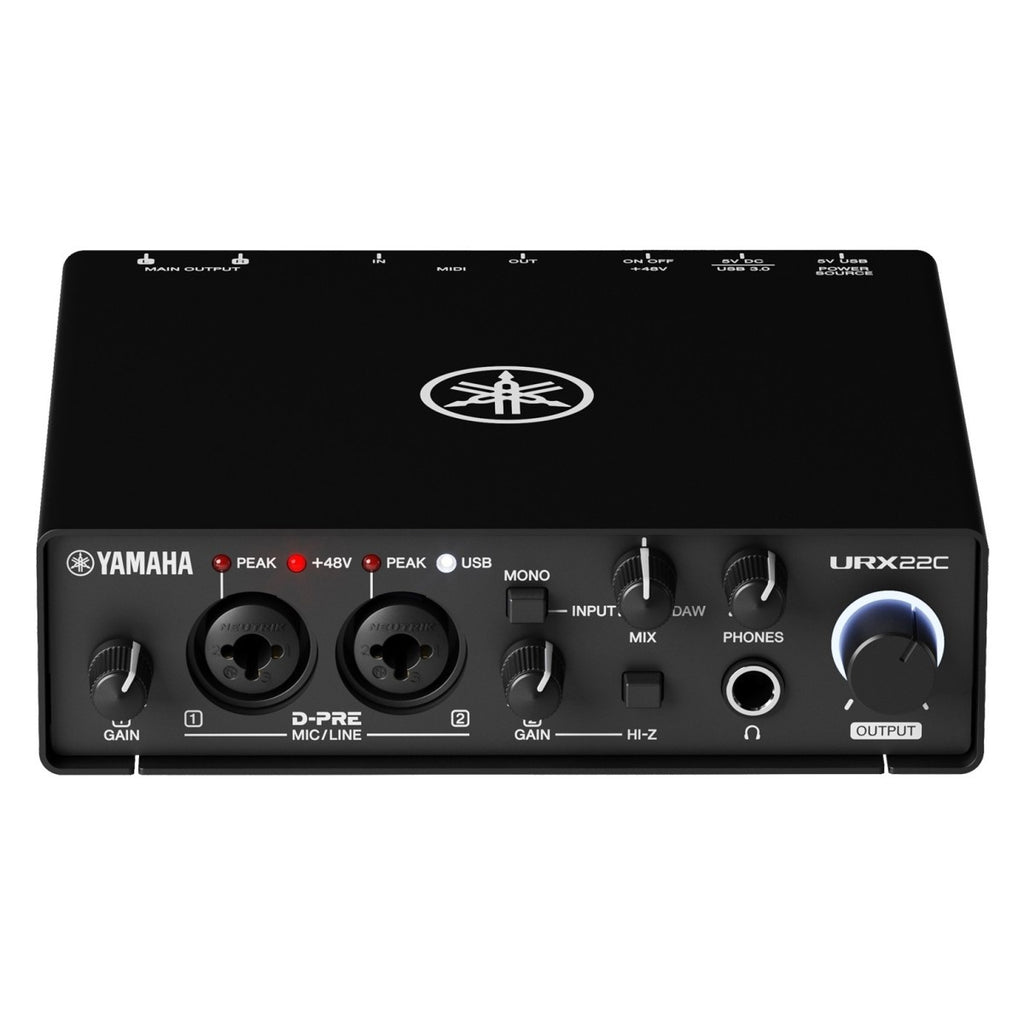

Yamaha URX22C Audio Interface

The URX22C Audio Interface delivers professional-grade sound and unmatched creative flexibility in a compact, portable design. Engineered for recording, production, and streaming, it empowers musicians and creators to achieve studio-quality results from virtually anywhere. Combining intuitive operation with powerful DSP capabilities and seamless integration with Steinberg tools, this interface elevates every performance and production with clarity, precision, and ease.

Features

• USB Type-C Audio/MIDI Interface with 32-bit integer / 192 kHz support

• MIDI input and output

• 2 D-PRE mic preamps with +48 V phantom power and Mono switch

• 2 Mic/Line Combo inputs: XLR / 6.3 mm jack - Hi-Z switch on input 2 for electric guitar

• 2 TRS line outputs, 1 Headphones output

• Input mixing channels: 2 mono + 3 stereo loopback + 1 FX

• Busses: 1 MIX (Stereo) + 1 FX + 1 STEREO

• Three-channel loopback enables flexible streaming and communication setups.

• Effects powered by the internal DSP and Basic FX Suite give your sound a professional finish.

• Latency-free DSP monitoring with FX for enhanced performance

• Sturdy metal housing

• Includes Cubase AI for PC, Cubasis LE DAW app for iPhone/iPad, Steinberg Plus and USB cable

• USB 3.0 power supply (optional power supply for USB 2.0 required)

Specifications

Connectors
Analog Input: 2 Mic/Line Combo inputs *Hi-Z switch on input 2 for electric guitar
Analog Output: 2 TRS
USB to Host: 1 (USB Type-C, 32-bit)
Phones: 1 TRS (15 mW + 15 mW @ 40 Ohm)

Power
Power Requirements: DC 5 V / 0.9 A
Power Consumption: 4.5 W

MIDI
MIDI: 1 IN / 1 OUT

User Interface
Dedicated Software: "dsp-MixFx"
Controls: Input Gain, Mono/Stereo switch, Hi-Z for Input 2, +48V phantom power, Mix Balance, Main Volume, Headphones Volume

Recording & Playback
Tracks: 2-track recording, 2-track playback
Sampling Frequency Rate: 44.1 kHz – 192 kHz
Frequency Response: +0.0 / -0.4 dB (20 Hz to 22 kHz)
Total Harmonic Distortion: [MIC/LINE/Hi-Z] 0.003% at 1 kHz, 22 Hz / 22 kHz BPF; [MAIN OUTPUT] 0.002% at 1 kHz, 22 Hz / 22 kHz BPF
Dynamic Range: [MIC/LINE/Hi-Z] 102 dB, [MAIN OUTPUT] 105 dB
Gain Range: 54 dB
