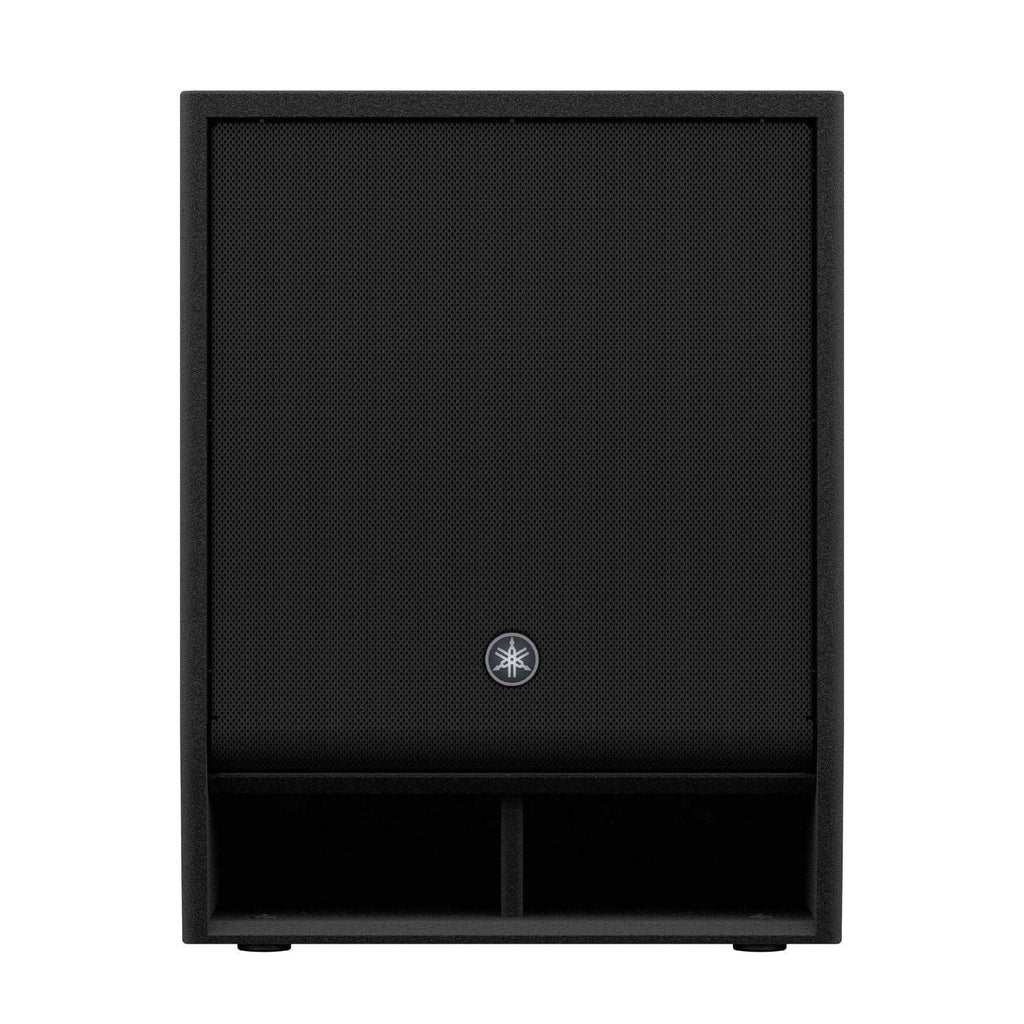

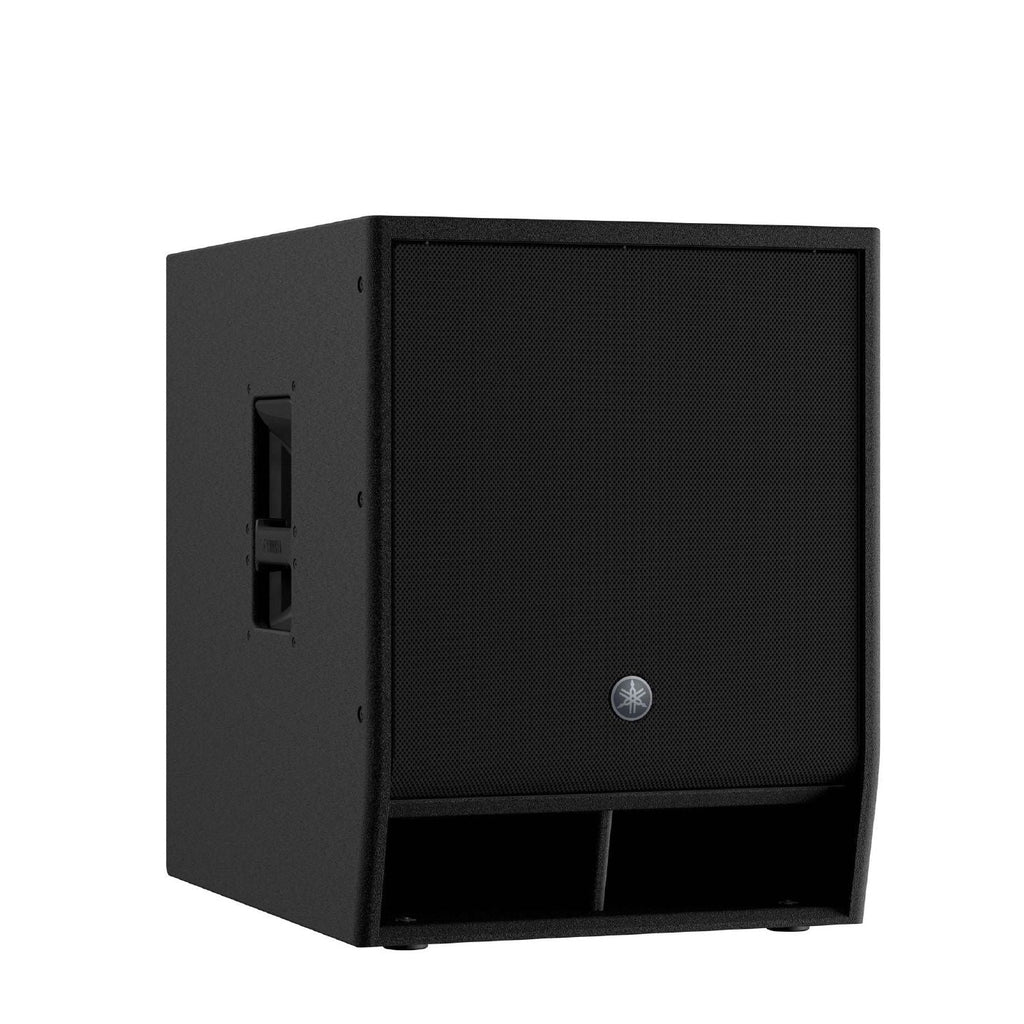

Yamaha DXS15XLF-D 15-inch powered subwoofer speaker with Dante connectivity, showing the front grille and control panel.
1/6
  • Yamaha DXS15XLF-D 15-inch powered subwoofer speaker with Dante connectivity, showing the front grille and control panel.

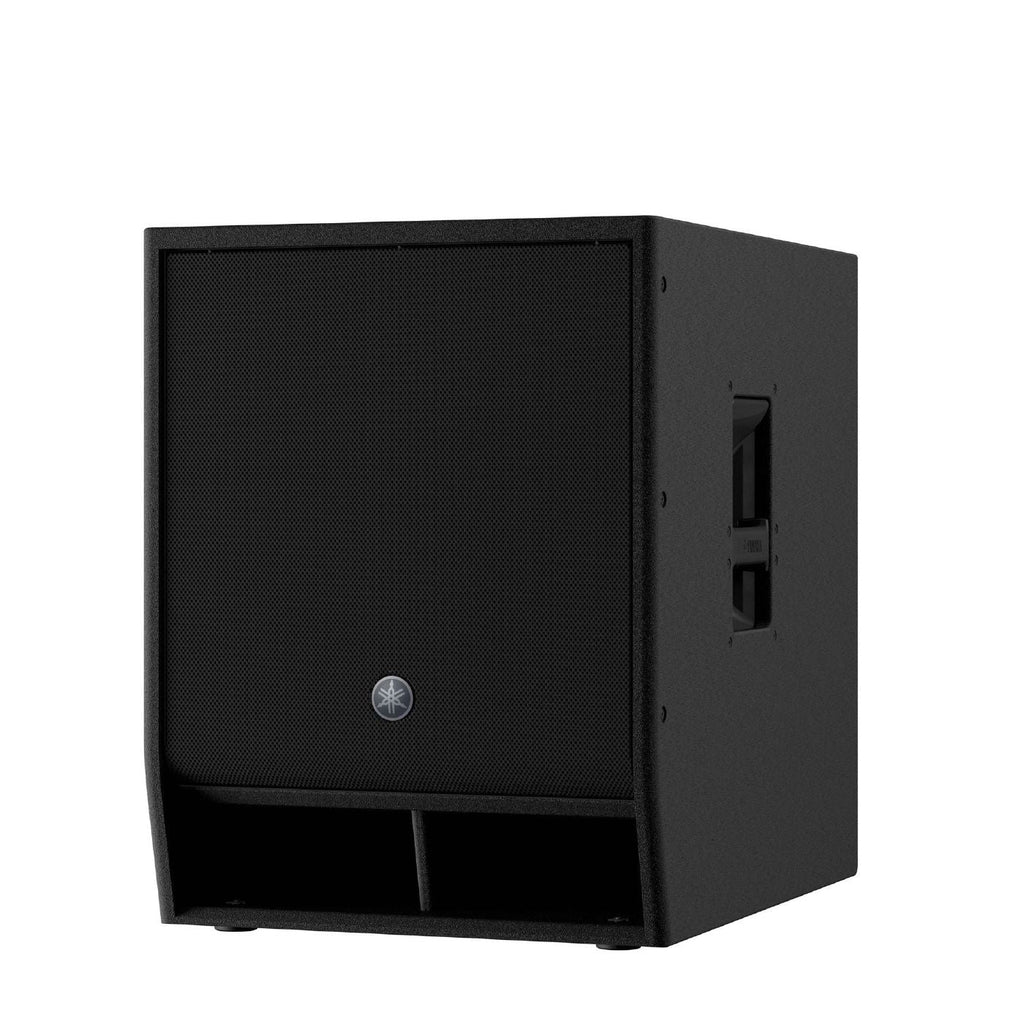

  • Yamaha DXS15XLF-D powered 15-inch subwoofer speaker with Dante connectivity and rugged design for professional sound systems.
  • Yamaha DXS15XLF-D 15-inch powered subwoofer speaker with Dante connectivity, showing the front grille and control panel.
  • Yamaha DXS15XLF-D 15-inch powered subwoofer speaker with Dante connectivity, showing the front grille and control panel.
  • Yamaha DXS15XLF-D 15-inch powered subwoofer speaker with Dante connectivity, showing the front grille and control panel.
  • Yamaha DXS15XLF-D 15-inch powered subwoofer speaker with Dante connectivity, showing the front grille and control panel.
Yamaha DXS15XLF-D 15in Subwoofer Speaker with Dante Connectivity

Yamaha DXS15XLF-D 15in Subwoofer Speaker with Dante Connectivity

$2,539.00 AUD $2,799.00 AUD
Brand: Yamaha
SKU: ZX58110

Rent from
In stock

Mega Music Myaree

Out of stock in store

Mega Music Wangara

Out of stock in store

Mega Music Warehouse

In stock in store

Yamaha DXS15XLF-D 15in Subwoofer Speaker with Dante Connectivity

Mega Music Myaree

Out of stock in store

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Out of stock in store

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236

Mega Music Warehouse

In stock in store
Description

Features

  • Powered 15” subwoofer with 4” Voice Coil
  • Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today’s sound engineering demands
  • High power 1600W Class-D amplifier module
  • 96kHz DSP for true high-definition sound with super low latency
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • Equipped with D-XSUB processing and cardioid mode capability
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
  • Durable Black

Specifications

  • Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range: (-10dB) 44Hz - 20kHz
  • Coverage area: H90ﾟ x V60ﾟ (Rotatable)
  • Components LF: 10" Cone, 3" Voice Coil, Neodymium magnet
  • Components MF: -
  • Components HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover: 1.8kHz (FIR-X)
  • Sampling frequency: rate Internal 96kHz and FIR Filter
  • A/D D/A Converters: 96kHz AD/DA
  • Maximum output level (1m; on axis): 137dB SPL *1
  • SRC: Yes
  • Dynamic 2000W (LF: 1000W, MF/HF: 1000W): *2
  • Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
  • Continuous: 950W (LF: 850W, MF/HF: 100W)
  • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
  • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC: IEC AC inlet x1 (V-Lock)
  • Amplifier class: Class-D
  • Cooling: Fan cooling, Variable speeds
  • Power consumption: 45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Top x1, Side x1
  • Rigging: M10 x8, M8 x2
  • Weight: 315 mm (12.4")
  • Height: 537 mm (21.1") (with rubber feet)
  • Depth: 345 mm (13.6")
  • Net weight: 17.9kg (39.5lbs)
  • Options: U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
  • Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
  • Floor Monitor Angle: 50°
  • Pole socket: Φ35 mm x2 (0° or -7°)

WATCH: Yamaha Powered Loudspeaker DZR Series and Powered Subwoofer DXS XLF Series
