Perhaps the biggest advantage of a digital console is the simplistic operation and accessibility of incredibly powerful tools and functions that would normally require a higher level of engineering experience, as well as a plethora of outboard gear to achieve in an analog rig. The DM3 Series embodies the “less is more” design ethos, utilizing a 9” touchscreen and a Touch & Turn knob for controlling most of the console's features, ensuing in a user experience akin to a smartphone.
Specs & Features
- 8 + 1 fader configuration
- 9-inch multi-touch screen
- Input mixing channels: 16 mono + 1 stereo + 2 FX return
- Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)

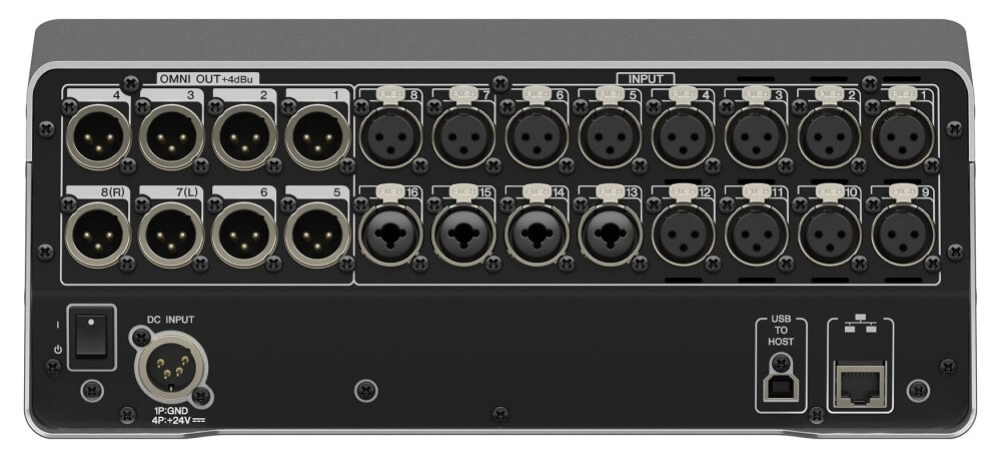

- Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
- USB: 18 inputs, and 18 outputs
- 8 DCA groups with Roll-out
- 18 Effects, and GEQ on Mix 1-6 and Stereo channels
- Sampling rate: 48kHz/96kHz
- Dimensions (W x H x D): 320 mm × 455 mm × 140 mm
- Net weight: 14.3lbs
