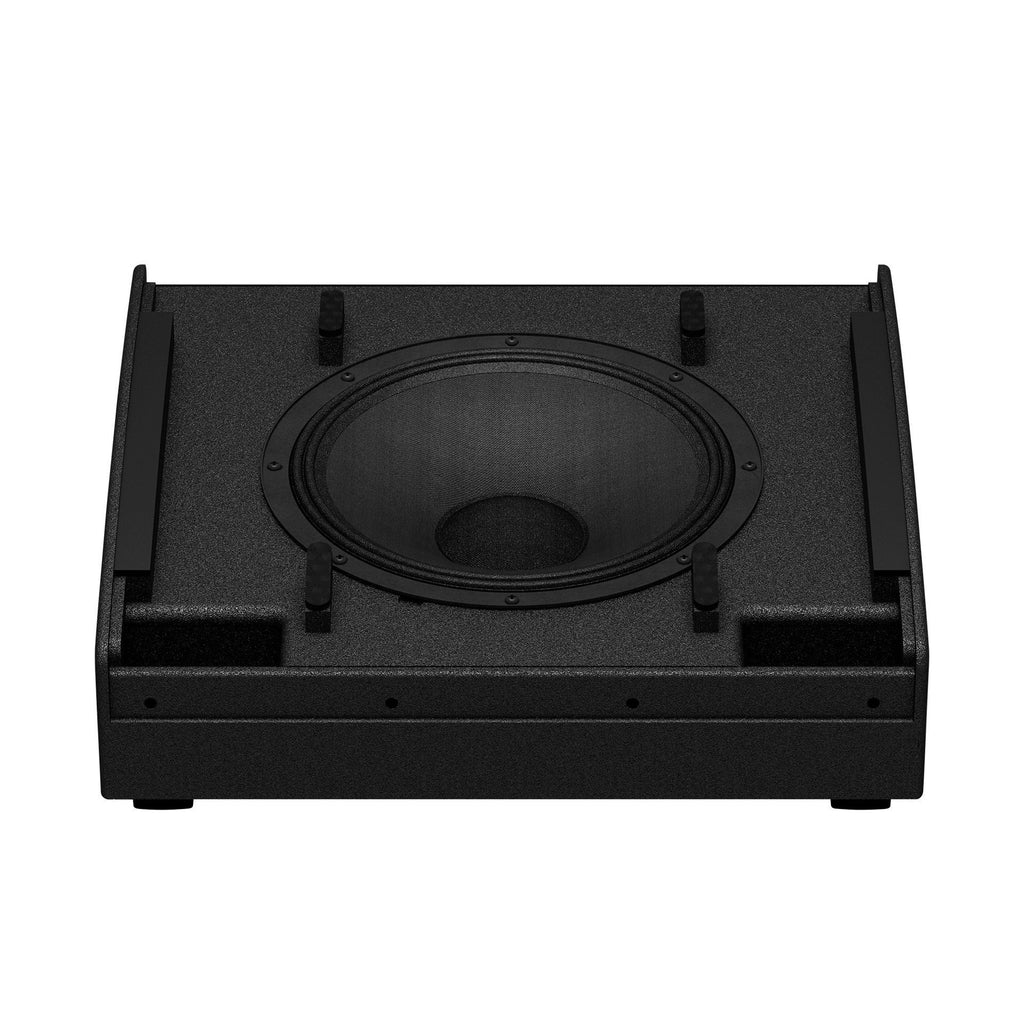

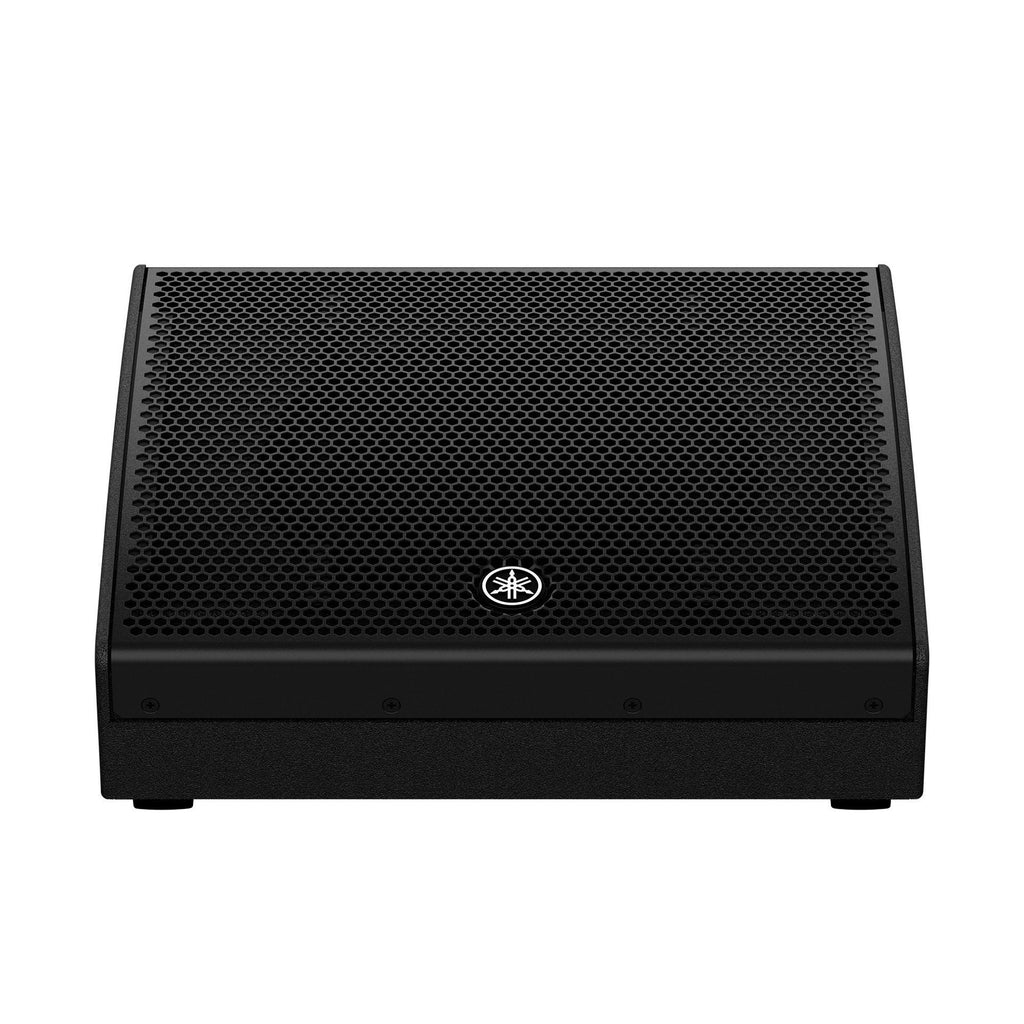

Yamaha DHR12M Powered Loudspeaker

Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability. Features The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications Featuring a plywood cabinet that delivers a clear sound with minimal vibration Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface A pole socket for use on a stand Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion Specifications Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex Frequency range (-10dB): 55 Hz - 20 kHz Coverage area: H90? x V90? Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) Maximum Output Level (Measured peak, IEC noise@1m): 129 dB SPL Components LF: Diameter: 12 cone, Voice Coil: 2.5, Magnet: Ferrite Components HF: Diaphragm: 1.75, Type: 1 throat coaxial compression driver, Magnet: Ferrite Amplifier class: Class-D Power rating Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1 Power rating Continuous: 465 W (LF: 400 W, HF: 65 W) Cooling: Fan cooling, 4 speeds Power consumption: 74 W (1/8power), 18 W (Idle) Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz A/D D/A Converters: 24 bit 48 kHz Sampling Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) Cabinet material: Plywood Finish: Durable Polyurea Painting, Black Handle: Side x1 Pole socket: F35 mm x1 (Bottom) Floor Monitor Angle: 57° Dimensions (WxHxD): 500 mm (19.7), 343 mm (13.5) (with rubber feet), 454 mm (17.9) Net weight: 16.5 kg (36.4 lbs) Watch: Yamaha Powered Loudspeaker DHR Series and Loudspeaker CHR Series
