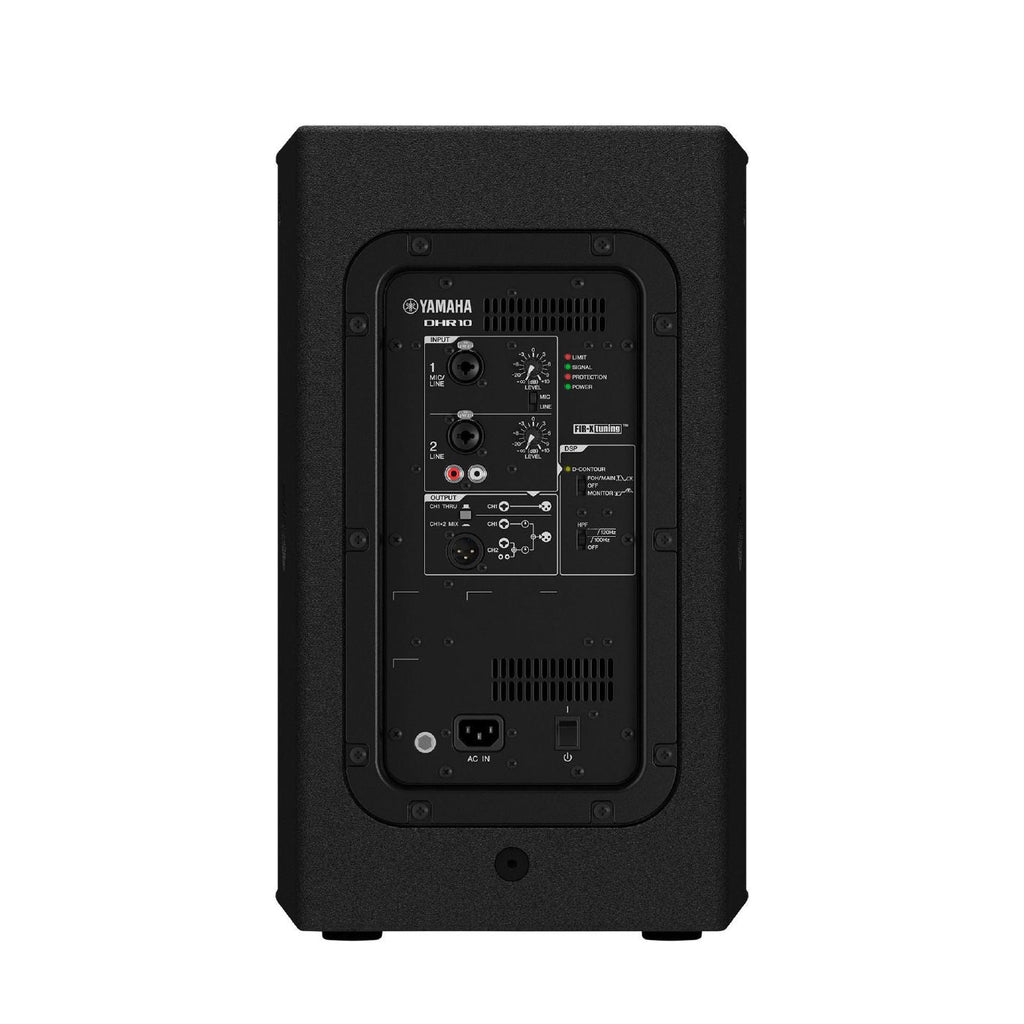

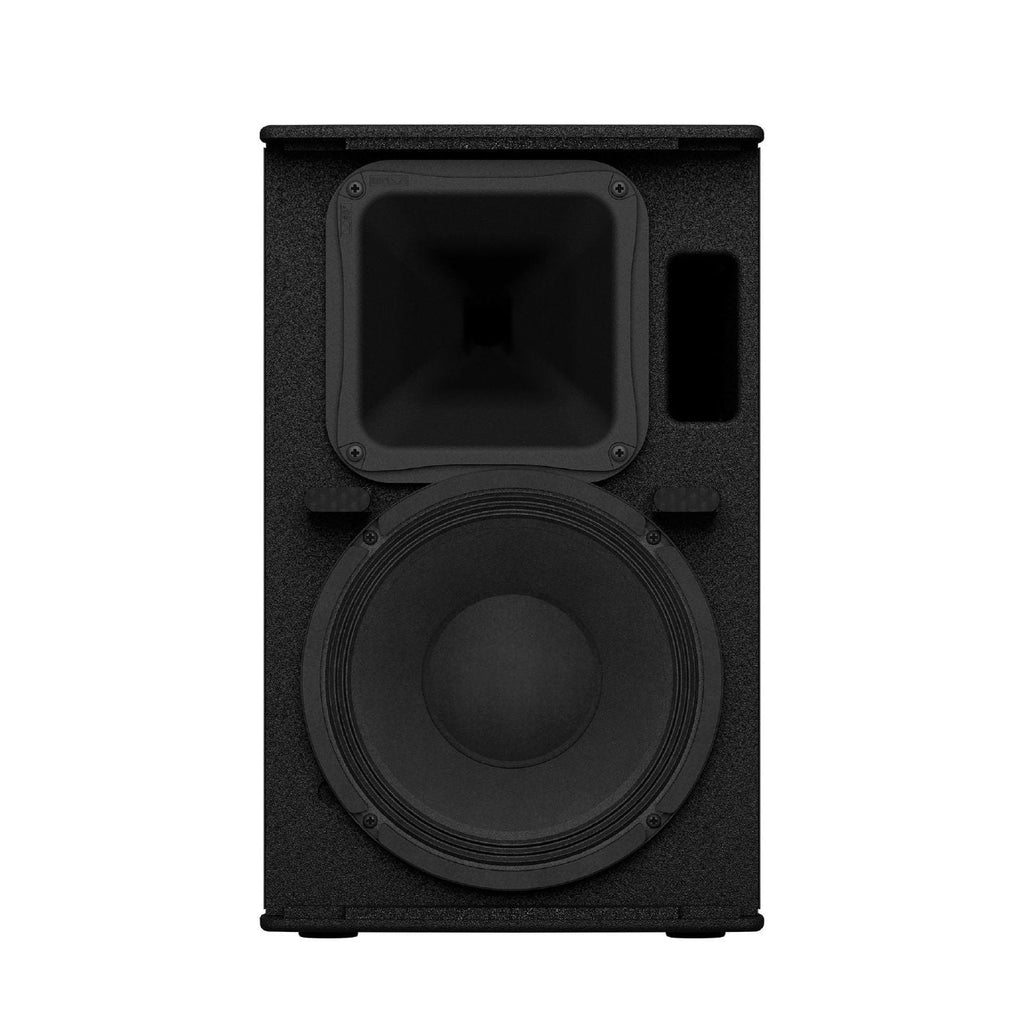

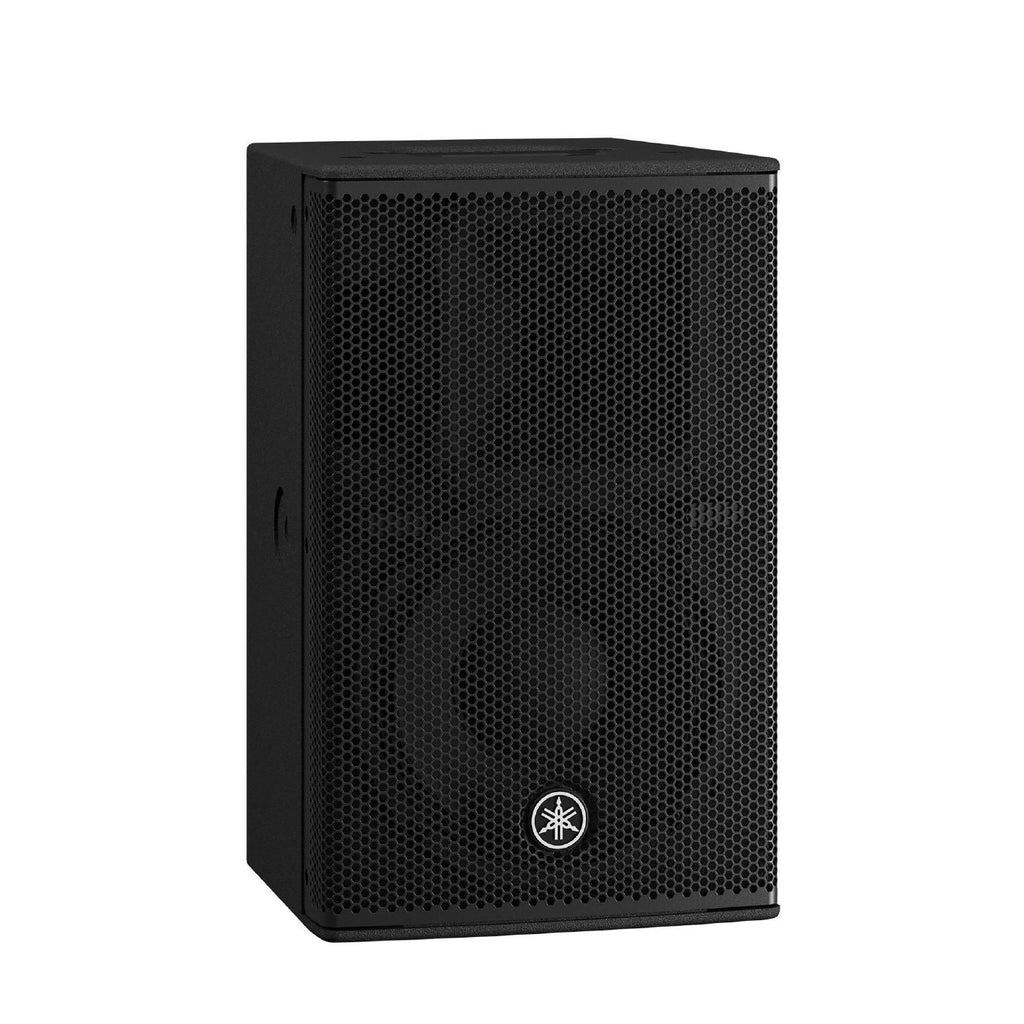

Yamaha DHR10 Powered Loudspeaker

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound? Features Featuring a plywood cabinet that delivers a clear sound with minimal vibration Plywood enclosure with a polyurea coating for a robust, scratch resistant surface Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use A pole socket for use on a stand Rigging points for use with eye bolts Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion Specifications Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex Frequency range (-10dB): 52 Hz - 20 kHz Coverage area: H90? x V60? (Rotatable) Crossover: 1.9 kHz: FIR-X tuning™ (linear phase FIR filter) Maximum Output Level (Measured peak, IEC noise@1m): 128 dB SPL Components LF: Diameter: 10 cone, Voice Coil: 2, Magnet: Ferrite Components HF: Diaphragm: 1.4, Type: 1 throat compression driver, Magnet: Ferrite Amplifier class: Class-D Power rating Dynamic: 700 W (LF: 500 W, HF: 200 W) *1 Power rating Continuous: 325 W (LF: 260 W, HF: 65 W) Cooling: Fan cooling, 4 speeds Power consumption: 60 W (1/8power), 18 W (Idle) Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz A/D D/A Converters: 24 bit 48 kHz Sampling Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) Cabinet material: Plywood Finish: Durable Polyurea Painting, Black Handle: Top x1 Pole socket: F35 mm x1 (Bottom) Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) Floor Monitor Angle: - Dimensions (WxHxD): 305 mm (12.0) x 494 mm (19.5) (with rubber feet) x 300 mm (11.8) Net weight: 15.0 kg (33.1 lbs) Options: U-bracket: UB-DXRDHR10 Watch: Yamaha Powered Loudspeaker DHR Series and Loudspeaker CHR Series
