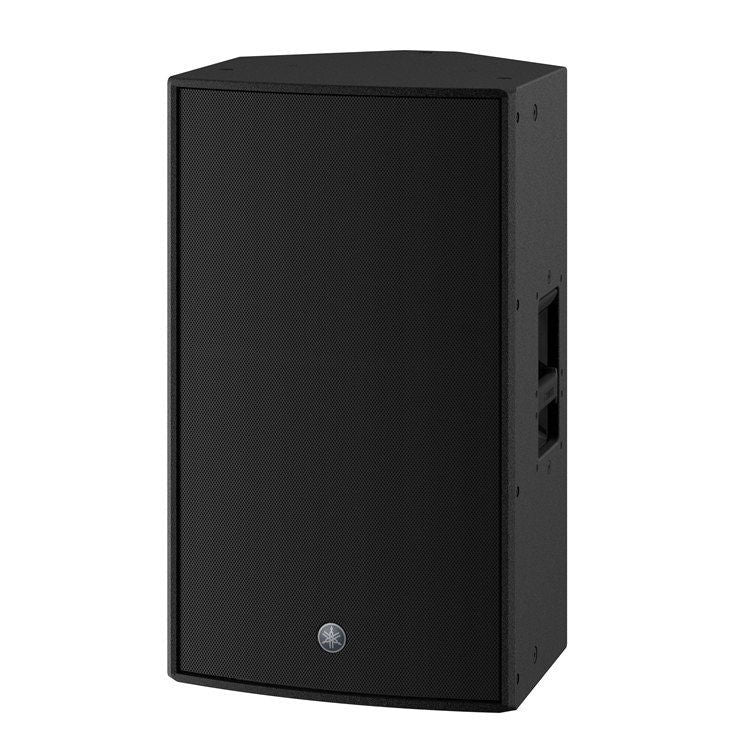

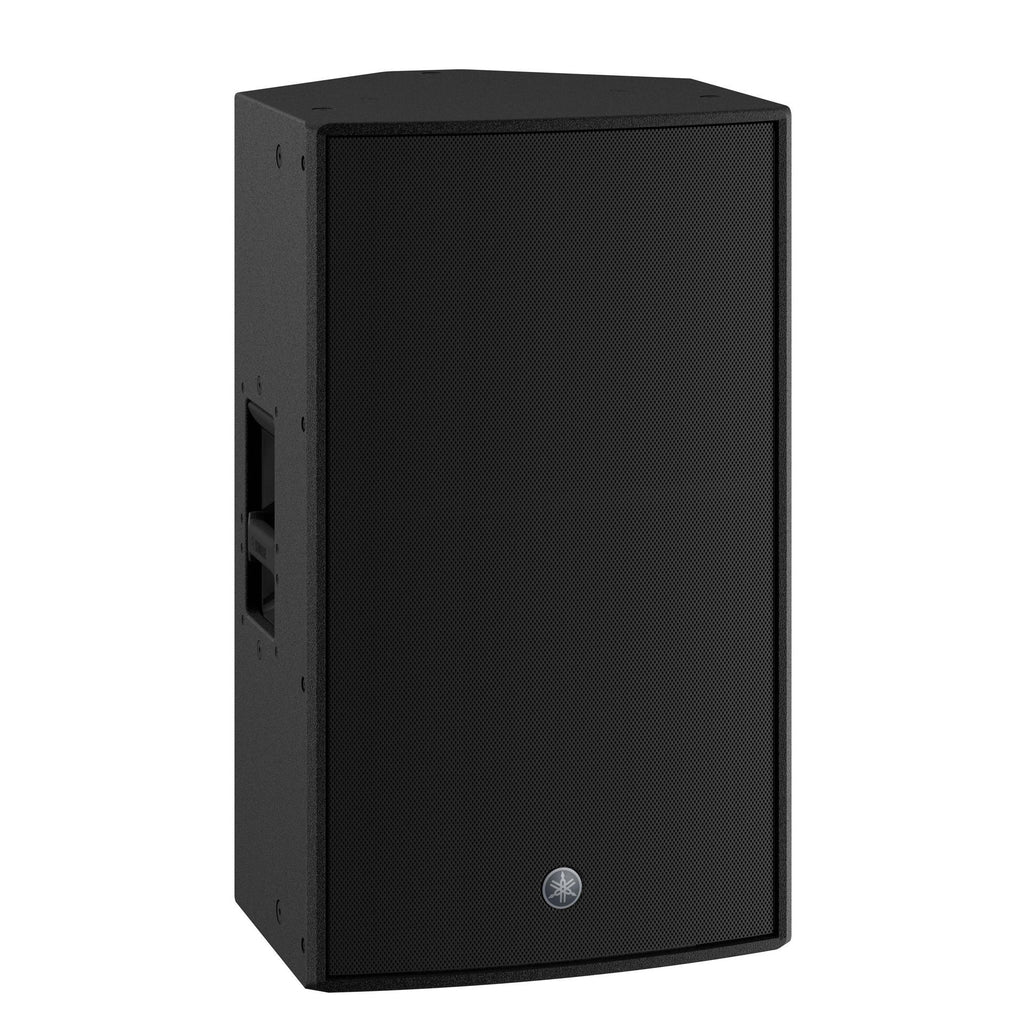

Yamaha CZR 15 Inch Passive Speaker

Features

• 2-way loudspeaker with a 2” HF and a 15" LF
• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 800W(PGM) power handling and Bi-amp capable
• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR15)
• Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
• Durable Black or white finish

Specifications

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB):
  • Passive: 43 Hz - 20 kHz
  • Normal (*1): 34 Hz - 20 kHz
  • FOH (*1): 33 Hz - 20 kHz
• Coverage area: H90ﾟ x V50ﾟ Rotatable Constant Directivity Horn
• Floor Monitor Angle: 50°
• Components:

  • LF: 15" Cone, 3" Voice Coil, Neodymium magnet
  • HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 2.0 kHz
• Power rating:

  • NOISE: Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
  • PGM: Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
  • PEAK: Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
• Nominal impedance: Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
• SPL:

  • Sensitivity (1W; 1m on axis): Passive: 97dB SPL, Bi-amp: LF: 99dB SPL, HF: 108dB SPL
  • Peak (Calculated): Passive: Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL
• I/O connectors: SpeakON NL4MP x 2 (Parallel)
• Handle: Aluminium die-cast, Side x2
• Pole socket: Φ35 mm x2 (0° or -7°)
• Rigging: M10 x 12
• Dimensions:

  • Width: 460 mm (16.1")
  • Height: 761 mm (30.0") (with rubber feet)
  • Depth: 460 mm (18.1")
• Net weight: 21.3 kg (47.0 lbs)
• Options: Bracket: Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
• Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White
