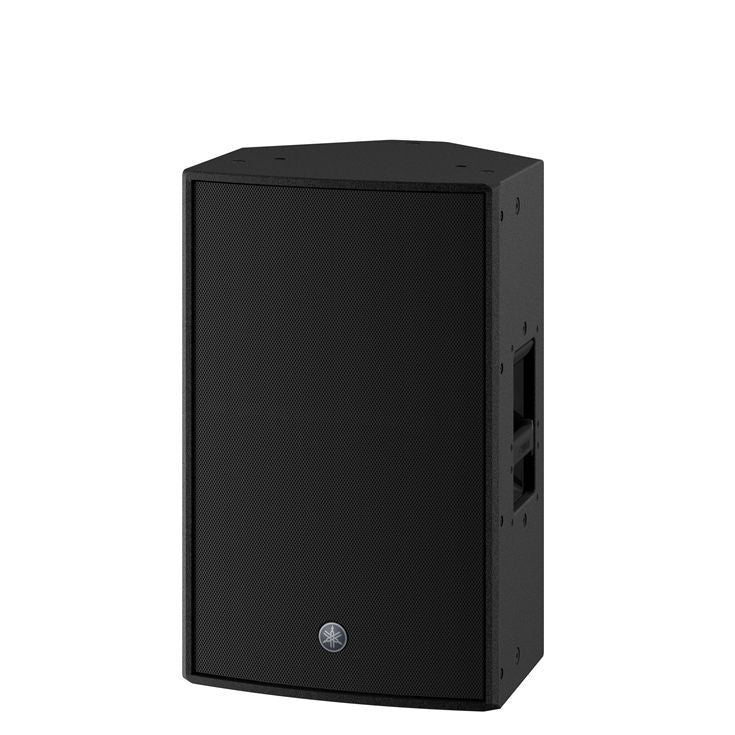

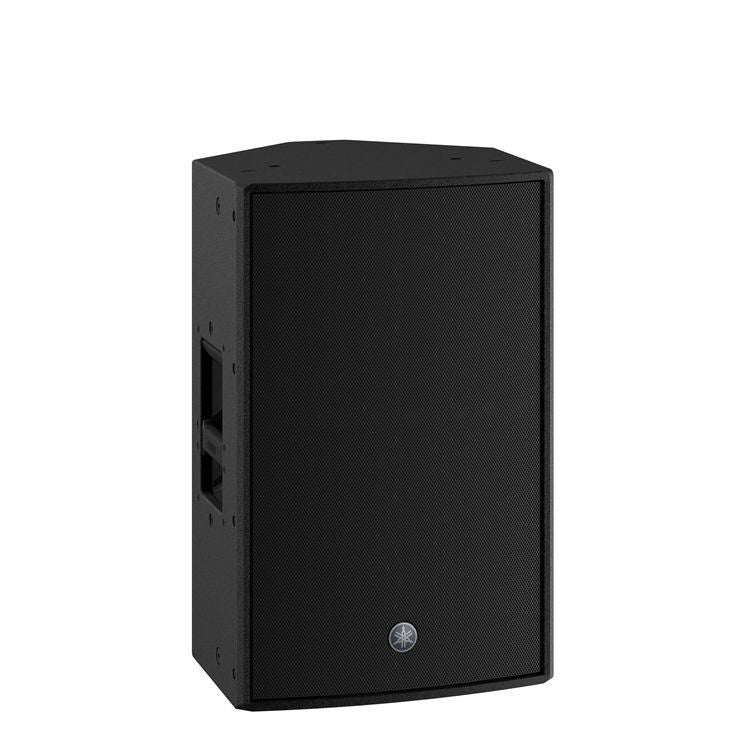

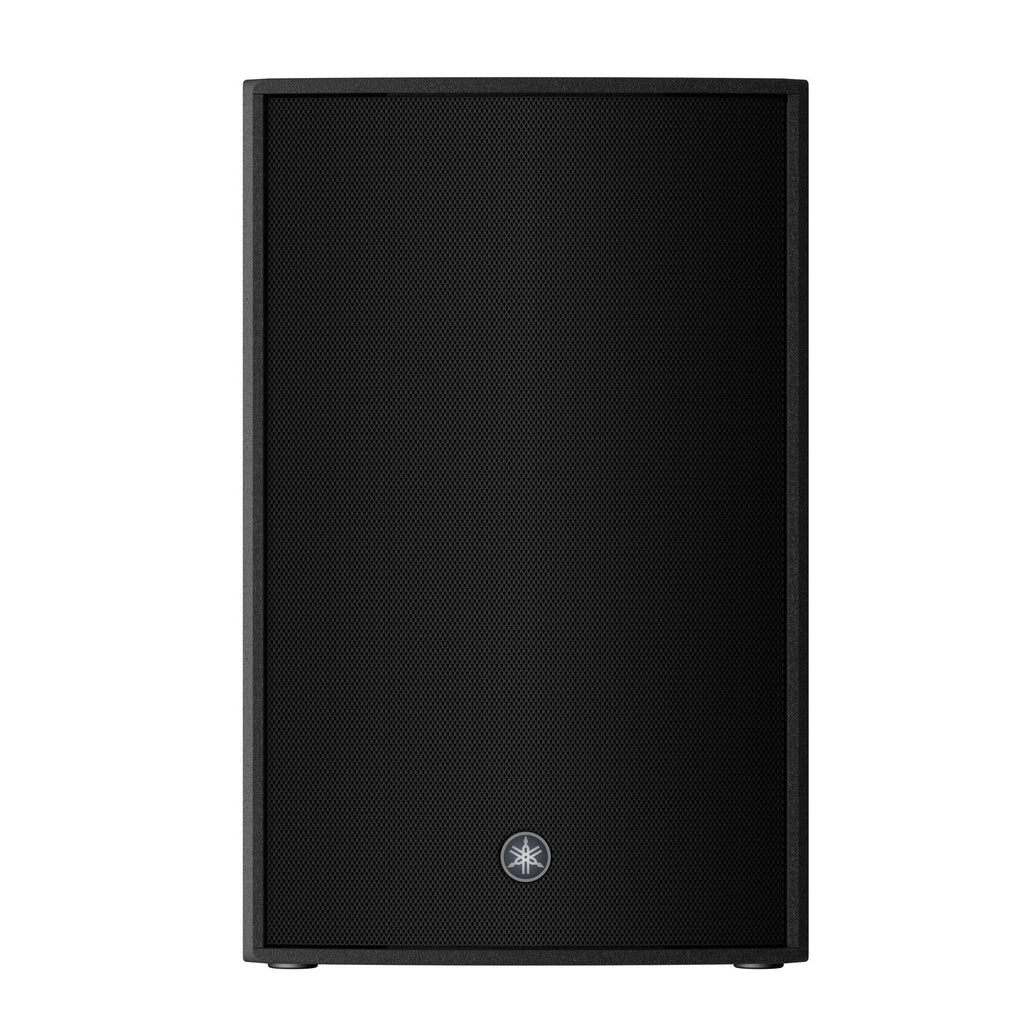

Yamaha CZR 12 Passive Speaker

Features 2-way loudspeaker with a 2” HF and a 12 LF Features Yamaha's own Wide Dispersion CD Waveguide Horn High power 800W(PGM) power handling and Bi-amp capable Floor monitoring setting enables mirroring configuration Lightweight yet very durable plywood cabinet with premium graded Polyurea coating Dual-angle pole socket Optional speaker cover (SPCVR-DZR12) Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement Durable Black or white finish Specifications Speaker type: 2-way Speaker, Bass-reflex Frequency range (-10dB): Passive: 43 Hz - 20 kHz Normal (*1): 42 Hz - 20 kHz FOH (*1): 38 Hz - 20 kHz Coverage area: H90? x V60? Rotatable Constant Directivity Horn Floor Monitor Angle: 50° Components: LF: 12 Cone, 3 Voice Coil, Neodymium magnet HF: 2 Voice Coil, 1 Throat Compression Driver, Titanium diaphragm, Neodymium magnet Crossover: 2.0 kHz Power rating: NOISE: Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W PGM: Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W PEAK: Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W Nominal impedance: Passive: 8O, Bi-amp: LF: 8O, HF: 16O SPL: Sensitivity (1W; 1m on axis): Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL Peak (Calculated): Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL I/O connectors: SpeakON NL4MP x 2 (Parallel) Handle: Aluminium die-cast, Side x2 Pole socket: F35 mm x2 (0° or -7°) Rigging: M10 x 12 Dimensions: Width: 410 mm (16.1) Height: 646 mm (25.4) (with rubber feet) Depth: 394 mm (15.5) Net weight: 18.0 kg (39.7 lbs) Options: Bracket: Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12 Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White WATCH: Yamaha Loudspeaker CZR Series and Subwooer CXS XLF Series
