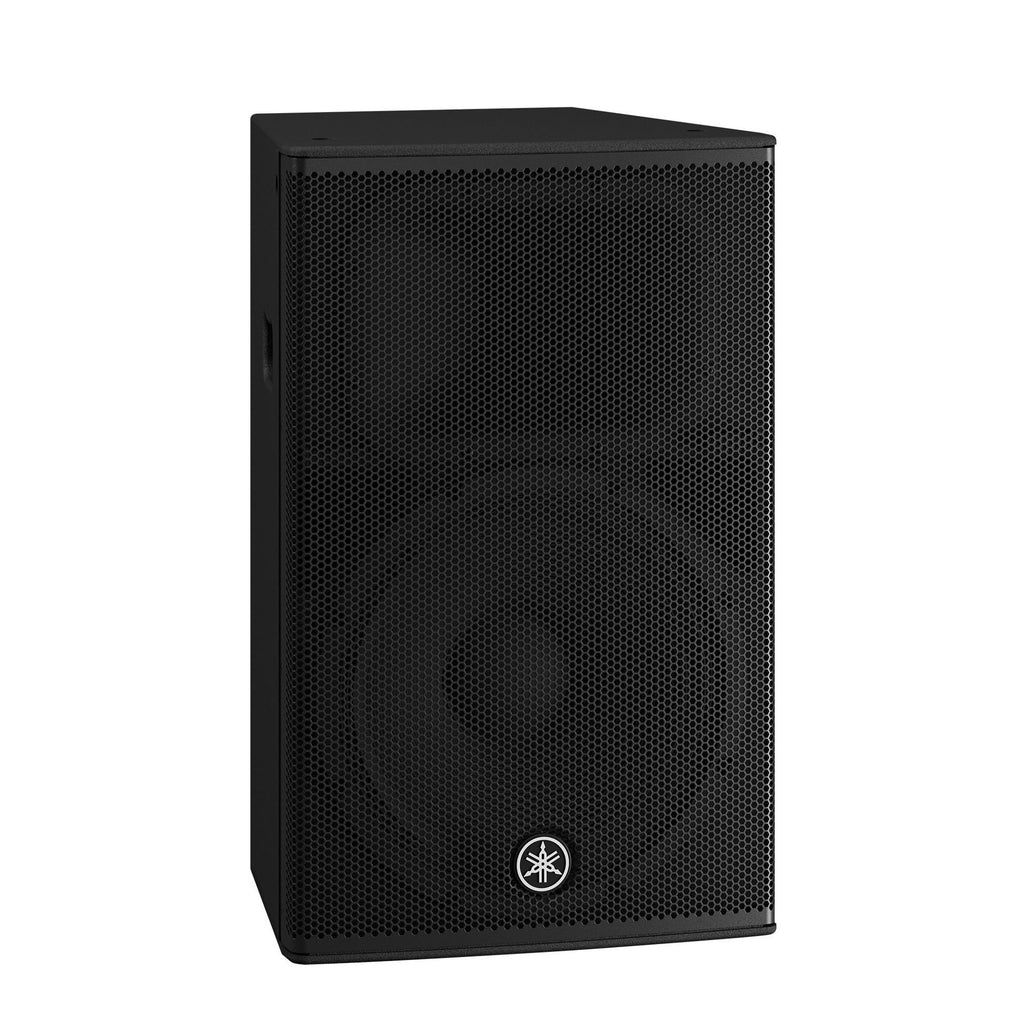

Yamaha CHR15 Passive Loudspeaker

Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.

Features

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact size despite the 15-inch LF driver that provides excellent low frequency response
• Dual-angle pole sockets offer both 0° or a -7° down tilt
• Rigging points for use with eye bolts
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Specifications

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB): 49 Hz - 20 kHz
• Coverage area: H90ﾟ x V60ﾟ
• Crossover: 2.0 kHz
• Nominal impedance: 8 Ω
• Sensitivity (1W; 1m on axis): 95 dB SPL
• Peak (Calculated): 125 dB SPL

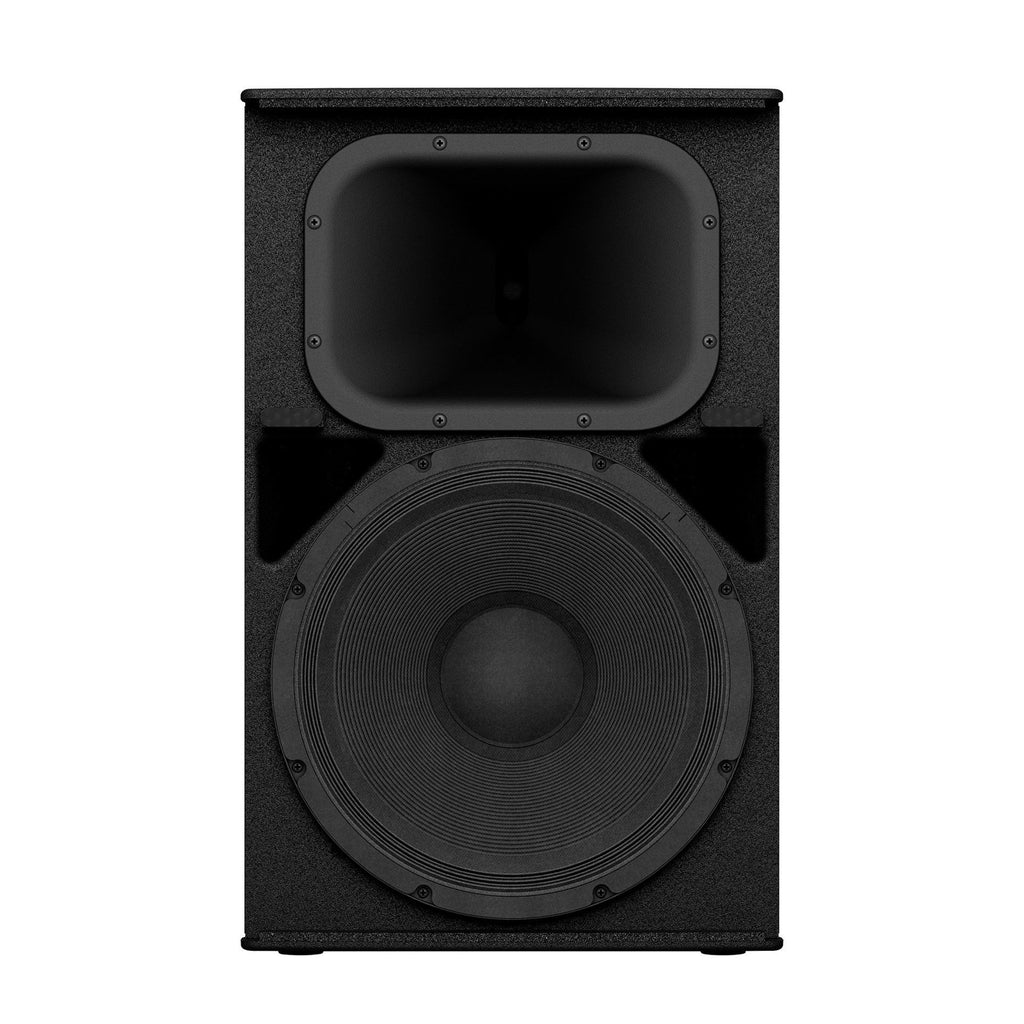

• Components LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
• Components HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
• NOISE: 250 W
• PGM: 500 W
• PEAK: 1,000 W

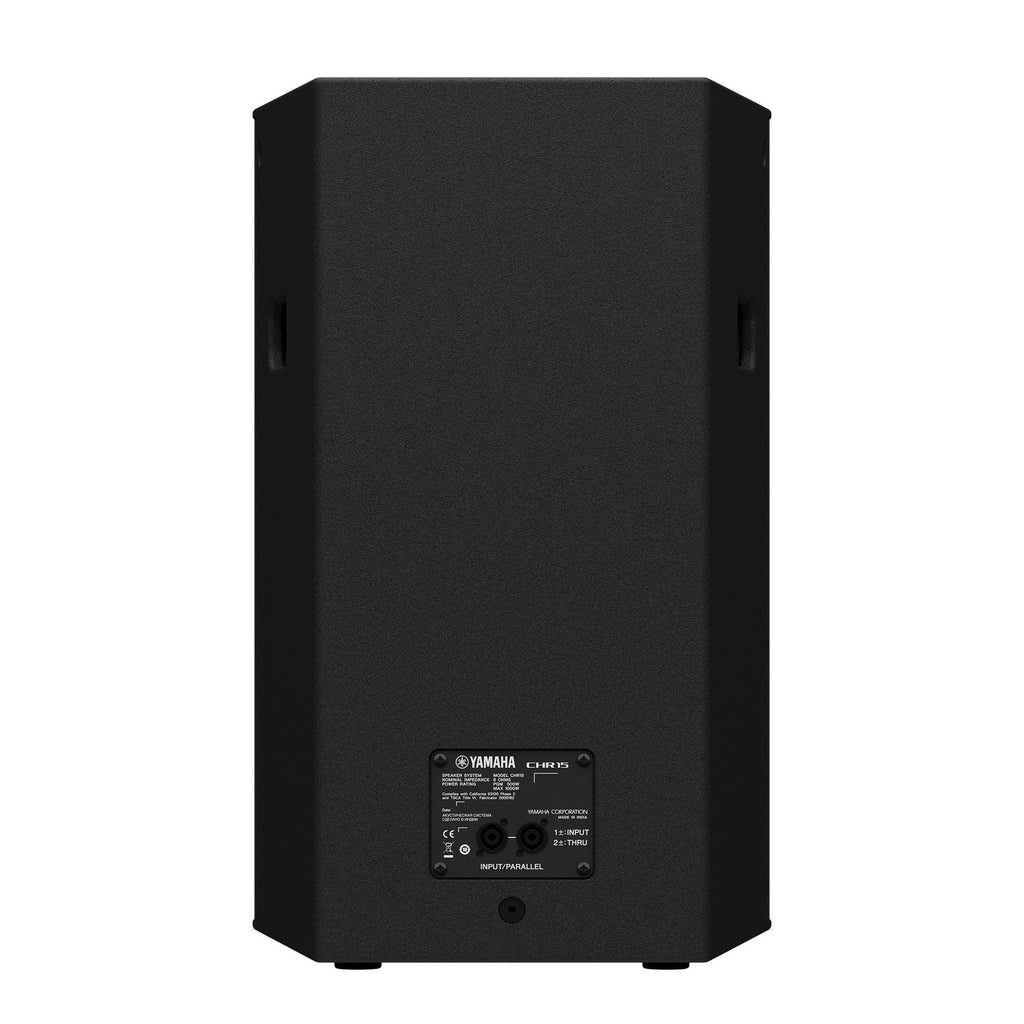

• I/O connectors: SpeakON NL4MP x 2 (Parallel)
• Cabinet material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Side x2
• Pole socket: Φ35 mm x2 (Bottom, 0° or -7°)
• Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Floor Monitor Angle: -
• Dimensions WxHxD: 432 mm (17.0") x 692 mm (27.2") (with rubber feet) x 405 mm (15.9")
• Net Weight: 22.0 kg (48.5 lbs)
