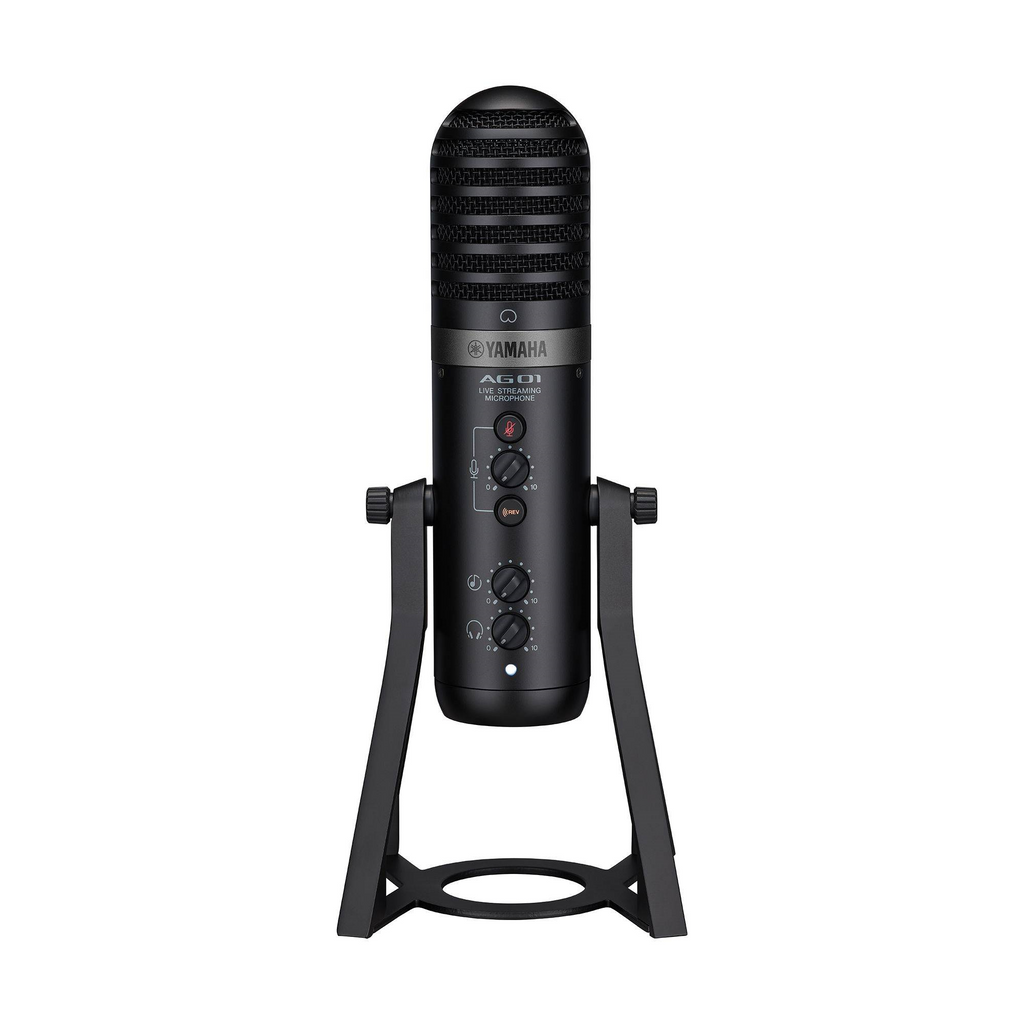

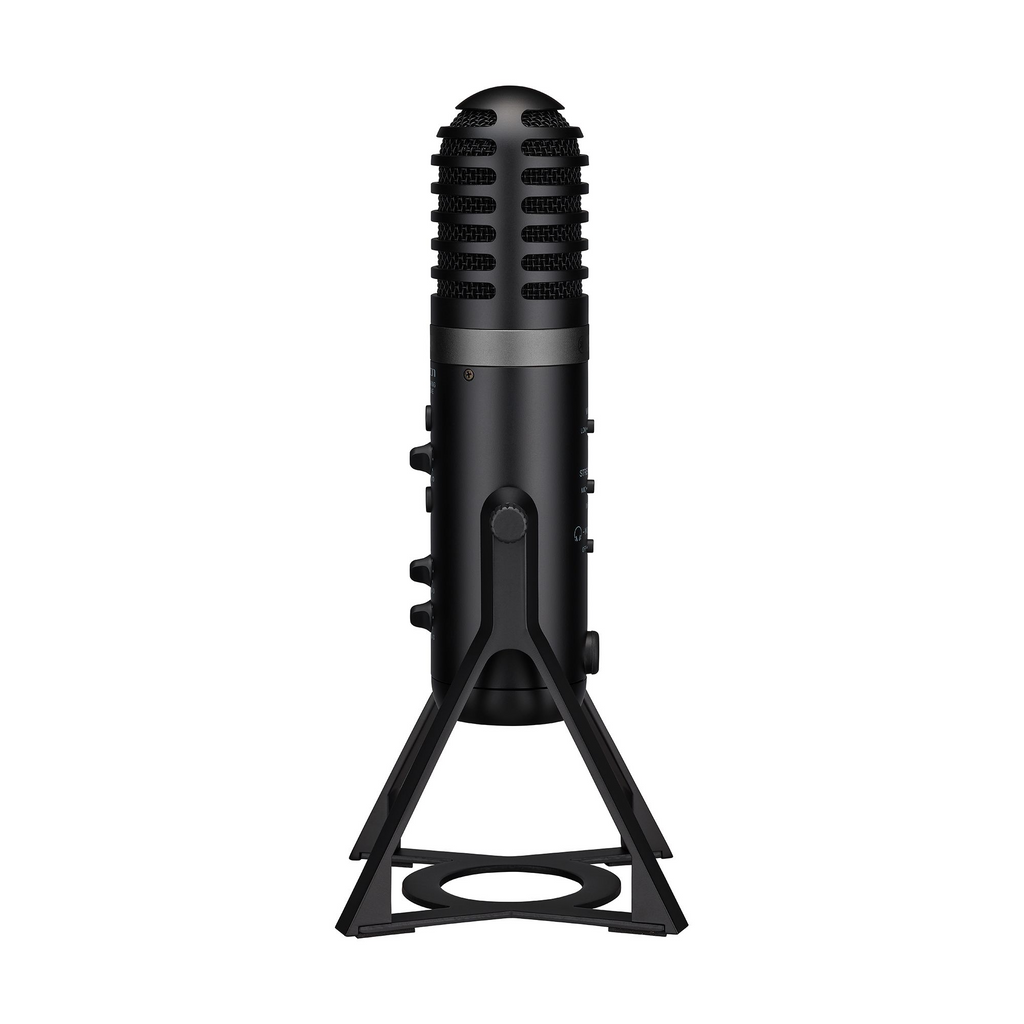

Yamaha AG01B USB Microphone - Black

Configuring a streaming setup from scratch can be a daunting task, particularly for users with little or no music production experience. The minimalist design of the AG01 takes this into account by combining a high-quality condenser microphone with DSP effects, a LOOPBACK function, flexible input connectivity, and a simple, intuitive mixer for stress-free streaming operation.

Simply connect to your computer or iOS/Android device along with the headphones of your choice, then set your levels and you’ve got a fully operational streaming station that can be up and running within minutes. If you’re an aspiring live streamer that requires a compact yet comprehensive, high quality all-in-one solution, the AG01 is ready when you are.

Features

• Studio-quality USB condenser microphone
• Modern and retro design with two models in black and white
• High resolution (24-bit, 192 kHz) 2-track audio recording and playback
• 4-pole mini input/output (TRRS) to support new streaming applications
• Flexible LOOPBACK function ideal for live streaming or live recording
• Mute button for convenience during Live Streaming
• Easy control and pro sound with COMP/EQ and 1-TOUCH REVERB
• AG Controller (Windows/Mac/iOS) for precise parameter control
• Windows/Mac support by USB-C connection
• iOS connectivity via Apple Camera Adapter (requires external USB power supply)
• Android supported by 4-pole mini input/output (TRRS)
• USB-C power input (5 V DC, 900 mA)
• 3/8″ screw hole for mic stand (with protective cap)
• Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available

Specifications

• Colour: Black
• Microphone Unit: Back electret condenser type
• Polar Pattern: Cardioid
• Address Type: Side
• Frequency Response: 30 Hz - 20 kHz
• Max Input SPL: 110 dB (THD ≦1.0% at 1 kHz)
• Sensitivity: -34 dB ± 3 dB (0 dB=1 V/Pa, at 1 kHz)
• Connector: USB Type-C
• Microphone: 1 (Mono condenser microphone)
• AUX: 1 - Stereo mini
• Smartphone: 1 - 4-pole mini input/output (TRRS)
• USB: 1
• PHONES: 1 - Stereo mini
• Smartphone: 1 - 4-pole mini input/output (TRRS)
• USB: 1
• Bus: 1 Stereo

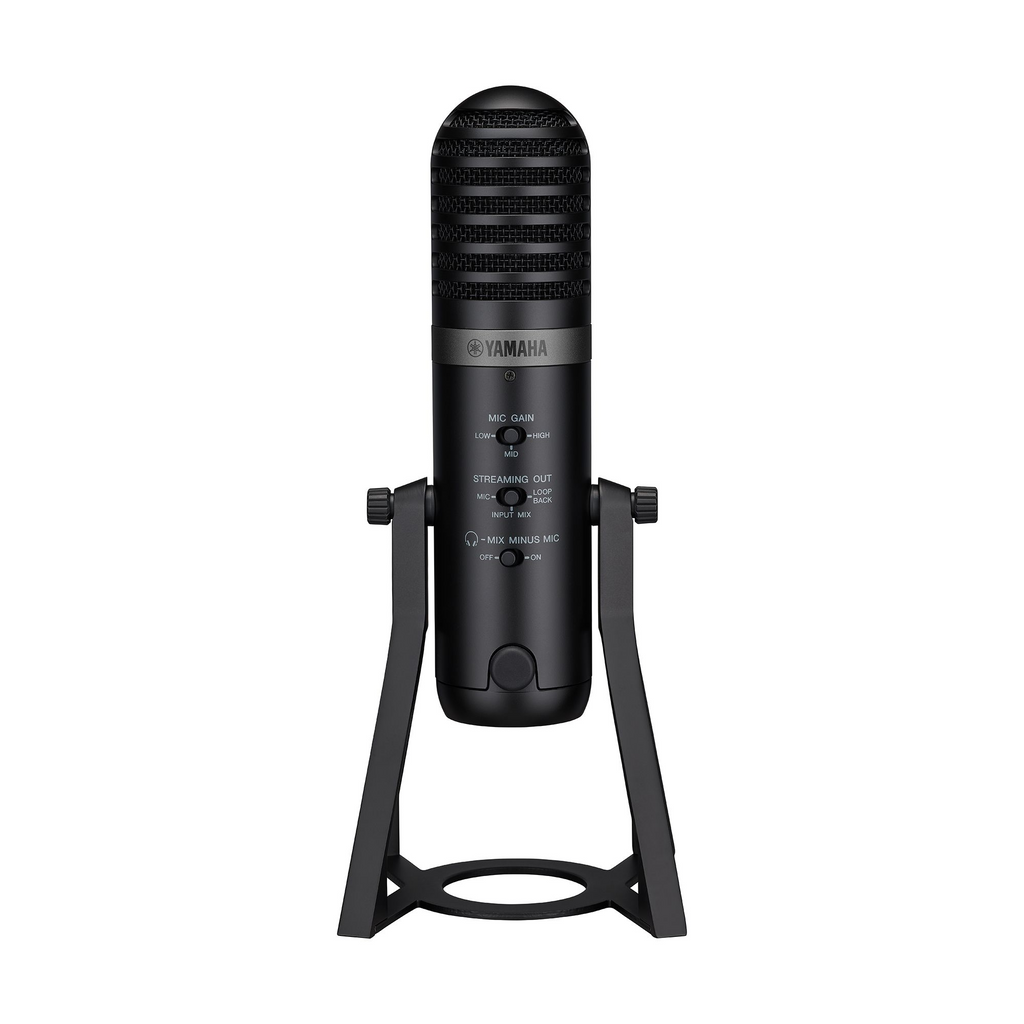

• Functions: MIC GAIN (HIGH / MID / LOW), MUTE button x 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• DSP: COMP/EQ, REVERB (SPX Reverb) *Detail is Controlled on AG Controller
• USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
• USB DC Power input: 1 - Type-C, 5 V DC, 900 mA
• Power requirements: 5 V DC, 900 mA
• Power consumption: Max. 4.5 W
• Dimensions WxHxD: 116 mm (4.6") x 281 mm (11.1") x 118 mm (4.6")
• Net weight: 1.2 kg (2.6 lbs)
• Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
• Others: Operating Temperature: 0 to + 40 ℃

Watch: Yamaha Live Streaming USB Microphone: AG01
