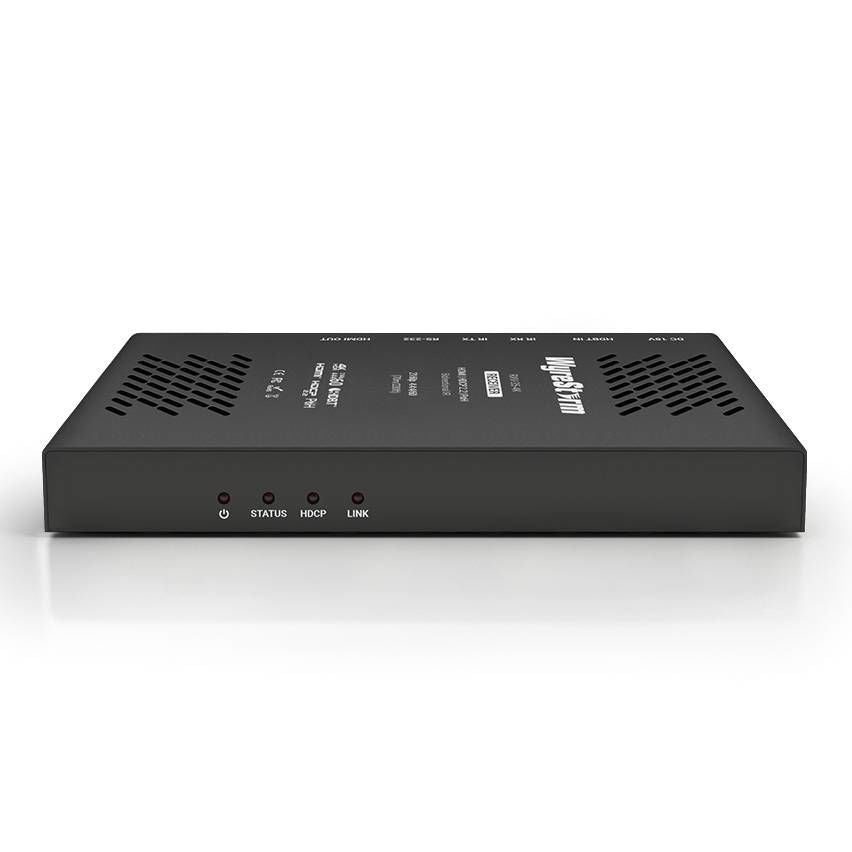

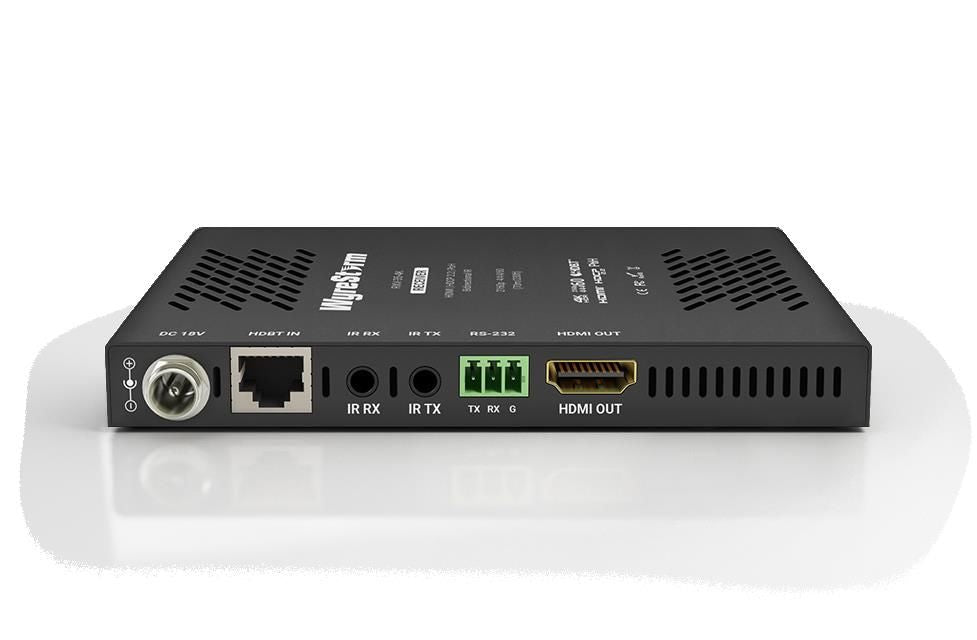

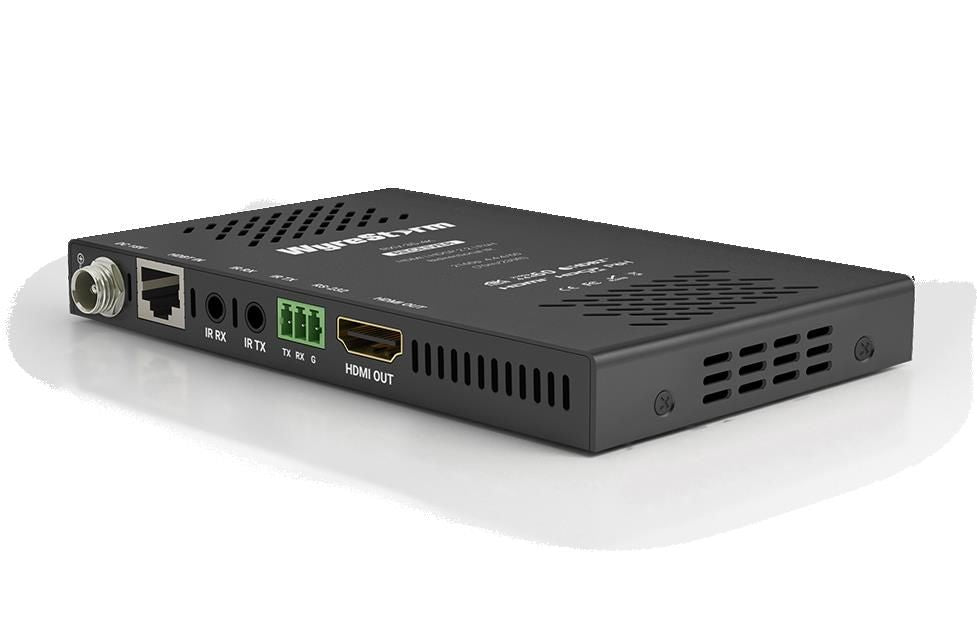

HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-35-4K is the perfect companion for WyreStorm's MXV line-up of matrices when distances of under 35 meters are required. This is the perfect solution for the TX-H2X-VLC modular card, found in the H2XC line. Features Uses WyreStorm's proprietary compression technology for lossless transmission of 4K HDR content, without latency Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable 4K UHD signals up to 35m/131ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 70m/230ft (1200p 60Hz 16-bit) Supports HDMI2.0 video standard up to 18Gbps Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision supported up to 30Hz) Class B HDBaseT supporting the transmission of video, multichannel audio, bidirectional control and PoH Powered remotely via PoH from MXV matrix HDCP 2.2 compatibility Bidirectional IR supported with both IR TX & RX ports RS-232 port for routed 2-way serial communication LED indication for HDCP presence within signal and transmission link between devices Ventilated steel chassis Conforms to IEEE-568B standards Compact design for convenient and unobtrusive installation Wall mounting brackets and IR accessories included Specifications Audio and Video Inputs: 1x HDBaseT™ In: 8-pin RJ-45 Female Outputs: 1x HDMI Out: 19-pin type A Output Video Encoding: HDBaseT™ Class B Encoding Data Rate: 9.2Gbps End to End Latency: 10µs (micro seconds) Audio Formats: Analog: 2ch analog S/PDIF: 2ch LPCM | Dolby Digital/CTS up to 5.1ch HDMI: 2ch LPCM | Multichannel up to DTS-X and Dolby Atmos Video Resolutions (Max) Video Resolutions 3840x2160p @30Hz 8bit 4:4:4 4096x2160p @60Hz 8bit 4:4:4 HDMI 7m/23ft Input 15m/49ft Output Cat6 35m/115ft 35m/115ft Cat6a/7 40m/131ft 40m/131ft Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 Maximum Pixel Clock: HDMI: 600MHz | HDBaseT™: 297MHz Communication and Control HDMI: HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI-D supported with adapter (not included) HDBaseT™: HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH to Receiver | Bidirectional IR CEC: CEC power triggering for connected screens - Requires CEC compatibility IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™ RS-232: 1x RS-232: 3-pin Terminal Block - 3.5mm Power Power Supply: 18V DC (Optional) PoH: 1-way Matrix to Receiver Max Power Consumption: 12.42W Environmental Operating Temperature: 0°C to 45°C (32°F to 113°F) StorageTemperature: -20°C to 70°C (-4°F to 158°F) Maximum BTU: 43 BTU/hr Dimensions and Weight Rack Units | Wall Box: <1U Height With | Without Feet: 15.2mm/0.6in Width With | Without Brackets: 136mm/5.38in Depth With | Without Handles: 74.2mm/2.93in Weight: 0.24kg/0.53lbs Regulatory Safety and Emission: CE | FCC | RoHS | RCM Call us for more information!
