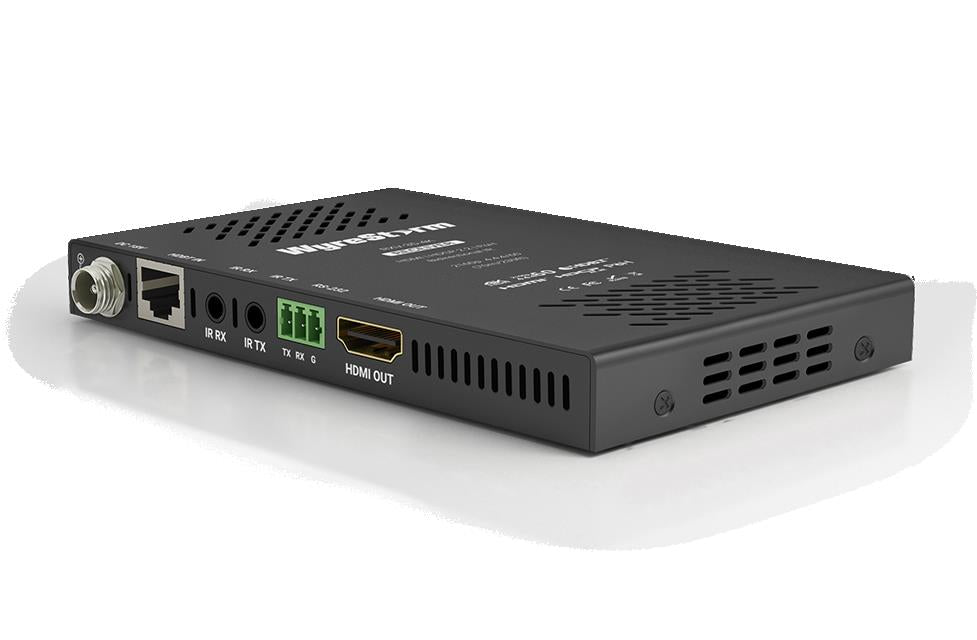

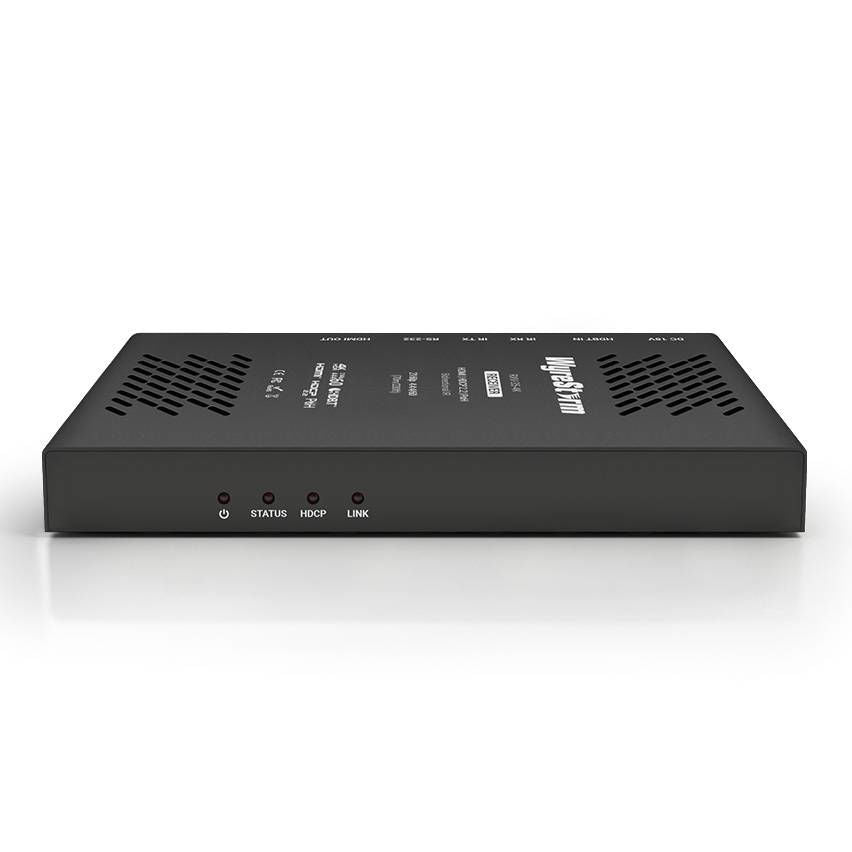

Wyrestorm RXV354K HDBaseT receiver for 4K and 1080P video, showing front panel with indicator lights and ports.
  • Wyrestorm RXV354K HDBaseT receiver for 4K and 1080P video, showing front panel with indicator lights and ports.

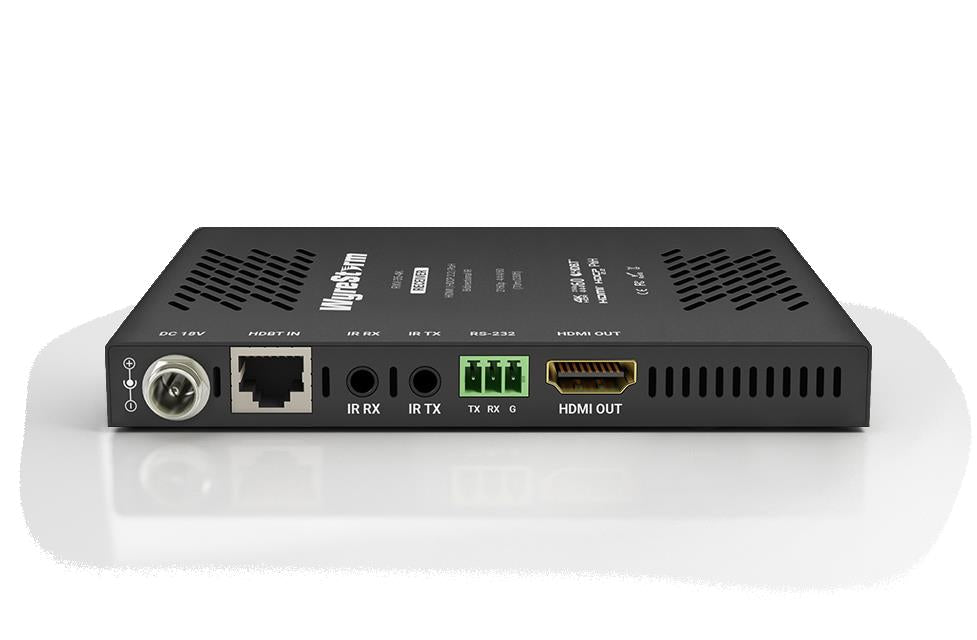

  • Wyrestorm RXV354K HDBaseT receiver for 4K and 1080P video, displaying ports and connection indicators.
  • Wyrestorm RXV354K HDBaseT receiver with 4K support, 35m range, and 1080p, designed for professional AV and PA systems.
  • Wyrestorm RXV354K HDBaseT receiver with 4K support, 35m range, suitable for AV and PA system integration.
  • Wyrestorm RXV354K HDBaseT receiver for 4K and 1080P video, showing front panel with ports and connection indicators.
  • Wyrestorm RXV354K HDBaseT receiver for 4K and 1080P video, showing front panel with connection ports and display indicators.
Wyrestorm RXV354K Hdbaset Receiver 4K:35M 1080P 70M

Brand: Wyrestorm

Wyrestorm RXV354K Hdbaset Receiver 4K:35M 1080P 70M

SKU: WY-RXV354K
$299.00
Available to Order
Price Match

  • Rent from

  • $24.92/mth for 12 months interest free

    Fees apply

  • $74.75 Pay in 4 interest-free

    Late fees apply

  • $74.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-35-4K is the perfect companion for WyreStorm's MXV line-up of matrices when distances of under 35 meters are required. This is the perfect solution for the TX-H2X-VLC modular card, found in the H2XC line.

Features

  • Uses WyreStorm's proprietary compression technology for lossless transmission of 4K HDR content, without latency
  • Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
  • 4K UHD signals up to 35m/131ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 70m/230ft (1200p 60Hz 16-bit)
  • Supports HDMI2.0 video standard up to 18Gbps
  • Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision supported up to 30Hz)
  • Class B HDBaseT supporting the transmission of video, multichannel audio, bidirectional control and PoH
  • Powered remotely via PoH from MXV matrix
  • HDCP 2.2 compatibility
  • Bidirectional IR supported with both IR TX & RX ports
  • RS-232 port for routed 2-way serial communication
  • LED indication for HDCP presence within signal and transmission link between devices
  • Ventilated steel chassis
  • Conforms to IEEE-568B standards
  • Compact design for convenient and unobtrusive installation
  • Wall mounting brackets and IR accessories included

Specifications

Audio and Video

  • Inputs: 1x HDBaseT™ In: 8-pin RJ-45 Female
  • Outputs: 1x HDMI Out: 19-pin type A
  • Output Video Encoding: HDBaseT™ Class B
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency: 10μs (micro seconds)
  • Audio Formats:
    • Analog: 2ch analog
    • S/PDIF: 2ch LPCM | Dolby Digital/CTS up to 5.1ch
    • HDMI: 2ch LPCM | Multichannel up to DTS-X and Dolby Atmos
  • Video Resolutions (Max) Video Resolutions
    • 3840x2160p @30Hz 8bit 4:4:4
    • 4096x2160p @60Hz 8bit 4:4:4
  • HDMI
    • 7m/23ft Input
    • 15m/49ft Output
  • Cat6
    • 35m/115ft
    • 35m/115ft
  • Cat6a/7
    • 40m/131ft
    • 40m/131ft
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: HDMI: 600MHz | HDBaseT™: 297MHz

Communication and Control

  • HDMI: HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI-D supported with adapter (not included)
  • HDBaseT™: HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH to Receiver | Bidirectional IR
  • CEC: CEC power triggering for connected screens - Requires CEC compatibility
  • IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™
  • RS-232: 1x RS-232: 3-pin Terminal Block - 3.5mm

Power

  • Power Supply: 18V DC (Optional)
  • PoH: 1-way Matrix to Receiver
  • Max Power Consumption: 12.42W

Environmental

  • Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • StorageTemperature: -20°C to 70°C (-4°F to 158°F)
  • Maximum BTU: 43 BTU/hr

Dimensions and Weight

  • Rack Units | Wall Box: <1U
  • Height With | Without Feet: 15.2mm/0.6in
  • Width With | Without Brackets: 136mm/5.38in
  • Depth With | Without Handles: 74.2mm/2.93in
  • Weight: 0.24kg/0.53lbs

Regulatory

  • Safety and Emission: CE | FCC | RoHS | RCM
