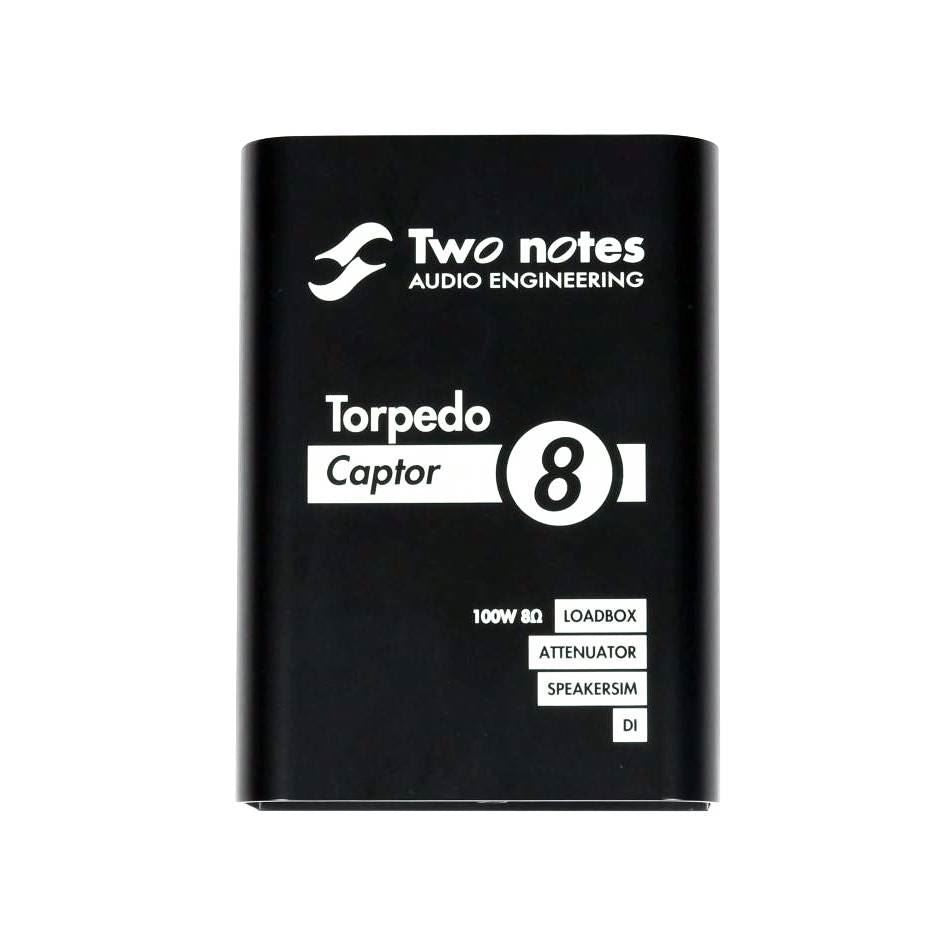

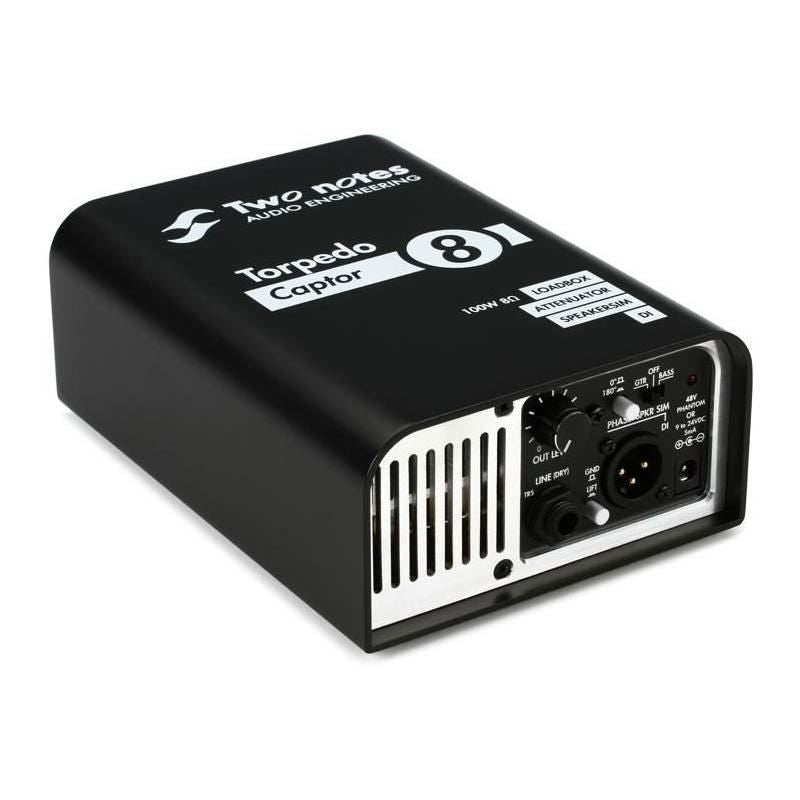

Two Notes Torpedo Captor Compact Loadbox And Amp DI - 8 Ohm

The Torpedo Captor is the little brother of the award-winning Torpedo Reload. The Torpedo Captor is an easy to use reactive load box perfect for unleashing your favorite tube amp in a variety of modern applications and venues.

If you just require attenuation from your amp to your cab, Captor has you covered. And if you want an easy and modern way to record your tube amp, Captor is simply “load” and record.

Specifications

Reactive load box

• Input impedance: 4, 8 or 16 Ohms
• Admissible power: 100W RMS
• Cooled by fan, thermal security: the amp and musician work in security.

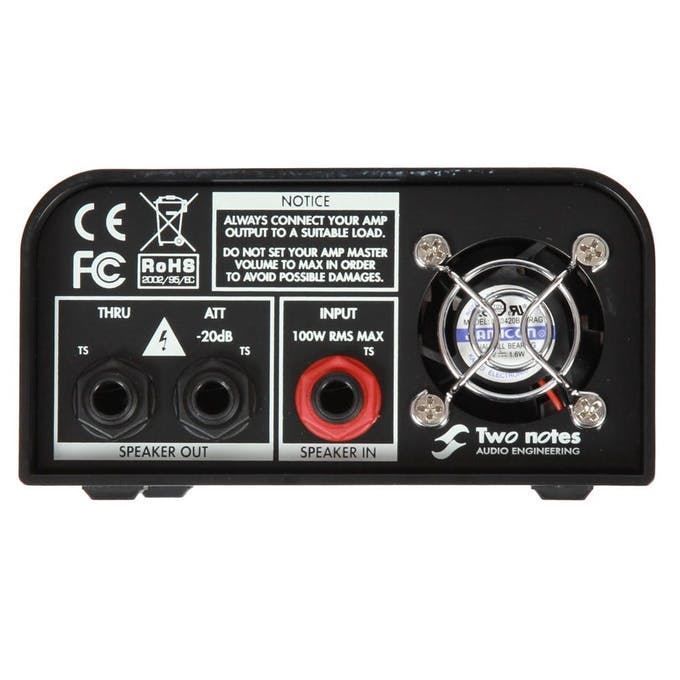

Input / Output

• Speaker Input: 1/4? Jack unbalanced (TS, Tip/Sleeve)
• Speaker Att: 1/4? Jack unbalanced (TS) – Attenuation: -20dB.
• Speaker Thru: 1/4? Jack unbalanced (TS) – Directly connected to Speaker Input. Disconnects the load box when used.
• Line Output: 1/4? Jack balanced (TRS) – Impedance: approx 1 kOhms – Without speaker simulation
• DI Output: XLR balanced – Impedance: 600 Ohms – With or without speaker simulation

Speaker sim

• Guitar or Bass, analog, based on acclaimed Torpedo virtual cabinets

Power

• Power is required only for the XLR DI output and speaker simulation.
• Phantom power or DC jack, 2.1×5.5mm, negative center.
• Current : 5mA

Dimensions & weight

• 175 x 126 x 62 mm
• 1 kg

WATCH: Introduction to the Torpedo Captor from Two notes
