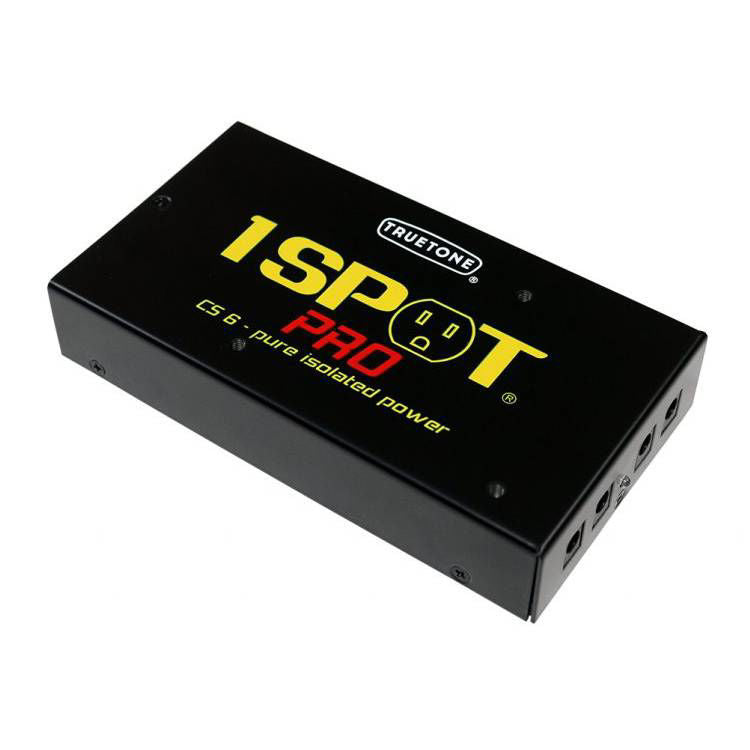

Utilizing the energy efficient technology found in all 1 SPOT’s, the CS6 is the first low-profile power brick to be able to put out up to 1600mA of pure, silent power. Just like its bigger brothers in the 1 SPOT Pro line, the CS6 has a variety of DC voltages available to power just about any pedal on the market.
Each output is completely isolated, regulated and filtered, eliminating crosstalk and noise. With no big transformer to hinder their performance, proximity noise is not an issue with any 1 SPOT Pro.
The low-profile design of the 1 SPOT Pro CS6 allows it to be mounted under flat pedalboards like the Pedaltrain® Nano and Metro series. However, the compact design is also perfect for mounting on top of pedalboards, serving the dual role of a power supply and pedal riser.
Features
- 1 Spot Technology
- Multiple Voltage
- Worldwide Voltage Input
- Rugged Steel Housing
- Pure Isolation
- Energy Efficient
Specifications
- Total Outputs: 6
- Maximum Total Current Output: 1600mA
- Total 9Vdc Outputs: 6
- 9/12Vdc Outputs (switchable): 2
- 9/18Vdc Outputs (switchable): 2
- Mounts under Pedaltrain Mini/Metro (flat boards): Yes
- Mounts under Pedaltrain Jr., PT2 and Pro boards: Yes
- Dimensions: 6.3" x 3.46" x 1.2"
- Weight: 1.3 lbs.
* The low-profile CS6 can mount under almost any pedalboard without using brackets.
