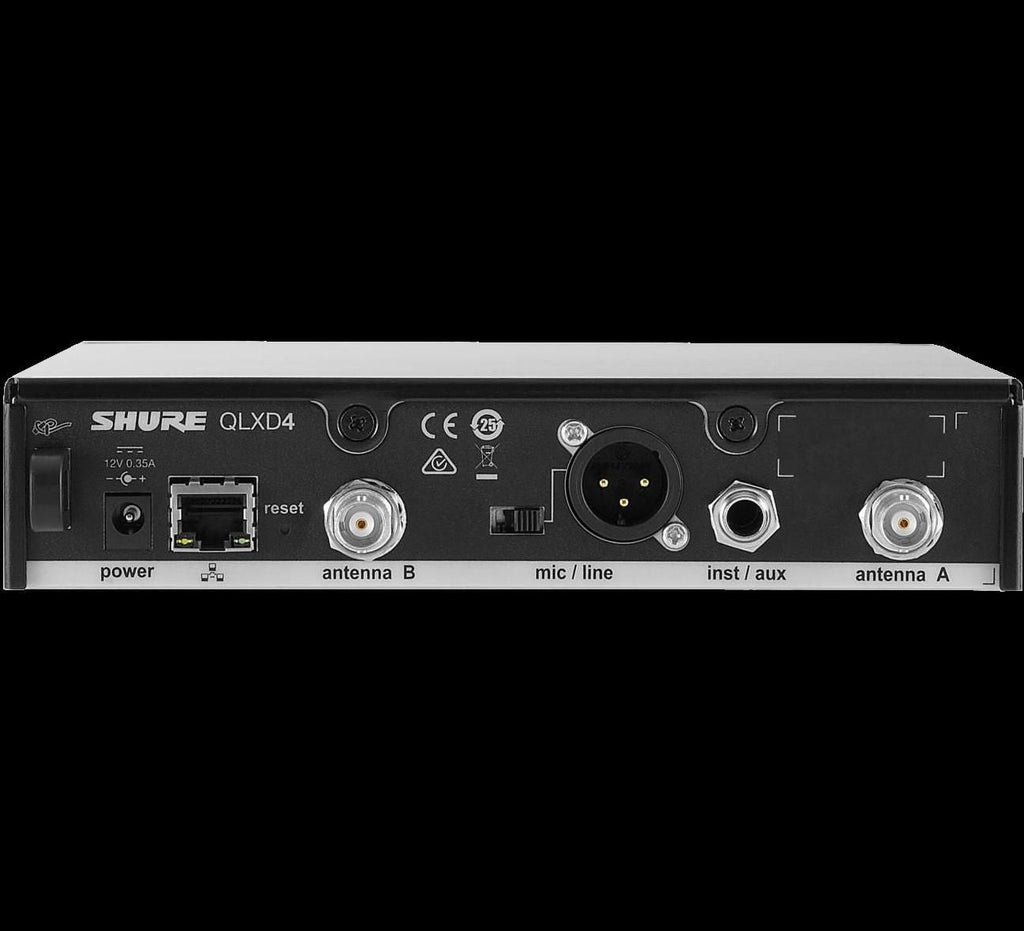

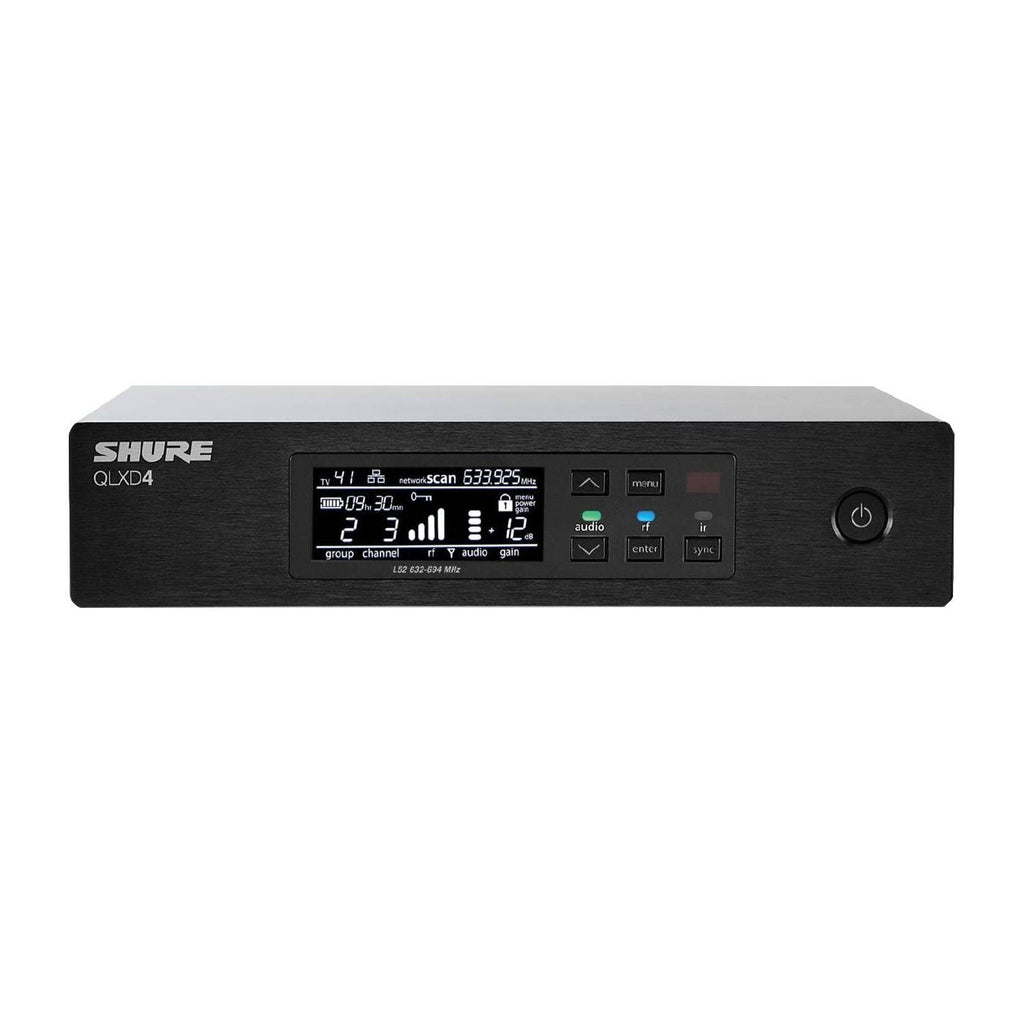

Shure QLXD4H53 Wireless Digital Receiver (H53 = 534-598MHz)

Features

• Automatic Channel Scan quickly finds clear frequencies; Networked Channel Scan then shares open frequencies between multiple receivers over Ethernet, with one touch syncing
• Digital Predictive Switching Diversity ensures a stable RF connection
• Highly efficient RF spectrum usage – up to 22 transmitters per 8 MHz channel
• Secure AES 256 bit encryption of all wireless transmissions
• Shure Wireless Workbench® software allows remote control from PC or Mac
• ShurePlus™ Channels mobile app allows remote control from iOS devices
• Half rack format with detachable ½ wave antennas
• Up to 60 dB of adjustable audio gain
• Up to 72 MHz tuning bandwidth (region dependent)
• More than 60 pre set compatible channels per frequency band (region dependent)
• High contrast LCD menu and controls with lockout feature, plus Audio and RF LED meters with peak indicator
• Mic / line switchable XLR output, and 6.3 mm instrument output
• Durable aluminium construction with brushed finish

Specifications

• Weight: 777 g
  Height x Width x Depth: 41.0 × 197.0 × 151.0 mm
• Transmission: Digital in VHF, UHF, 900MHz ISM, 1.5GHz, 1.8GHz
• Type of Power Supply: External
• Receiver Housings: Metal
• Bias via BNC: No
• Encryption: 256 Bit AES
• High Density Mode: No
• Interference Detection: No
• Remote Control: Yes
• Number of compatible systems per frequency band: Up to 64
• DANTE-Enabled Products: No
• Scan Features: Channel Scan, Group Scan
• Sync Features: IR Sync
• Detachable Antennas: Yes
• Network ability: Dhcp, Link Local, Static
• Software control: Shure Plus™ Channels, Wireless Workbench, Shure Update Utility
• Logic: No
• Cascade: No
• Rack Hardware: Included Rack Mounts Brackets
• Receiver Displays: Multi-function LCD
• Receiver type: Single
• Included antenna: External 1/2 Wave
• Battery Status: Leveled battery life indication
• Line Mic Switch: Yes
• Image Rejection: 70 dB, typical
• RF Sensitivity: -97 dBm, for 12dB SINAD, typical
• Phantom Power Protection: Yes
• Spurious Rejection: 80 dB, typical
• Antenna Input Impedance: 50 Ω
