Seymour Duncan Powerstage 200 Guitar Power Amplifier

PowerStage?200 is a compact 200-watt “pedal-sized” guitar amp designed for players looking for a powerful grab-and-go pedal amp for any gig, rehearsal, or studio session.

The PS200 was created specifically for players who get their tone from modeling devices,?stompboxes, or a combination of the two. It has all the features you need—reliability, clean power, switchable EQ, speaker simulation, Aux In, and headphone connectivity.

Like the PowerStage 170 and 700, the PowerStage?200 retains the hallmark characteristics of the PowerStage family—providing a platform that brings out the best qualities of your tone. Compact, clean, organic, and reliable power sits at the core of PowerStage family—once again, the PS200 delivers on that promise.

Loud enough to match your drummer and fill a venue of just about any size, the PowerStage 200 provides clean, reliable amplification, and tons of headroom to let your pedals or modeler shine.

Features

• 200 Watts
• Cab sim

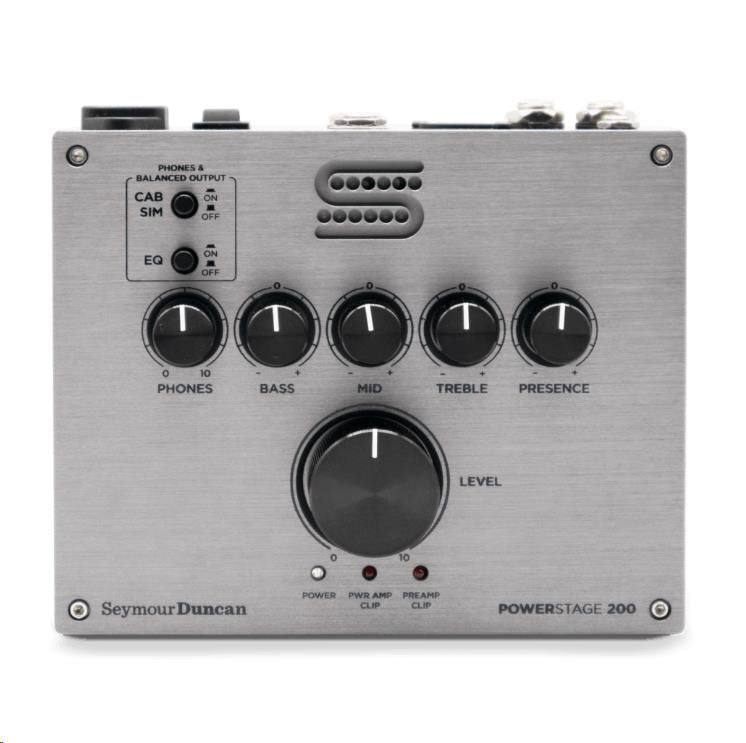

• 3 band EQ with presence control
• Independent bypass switches for cab sim and EQ

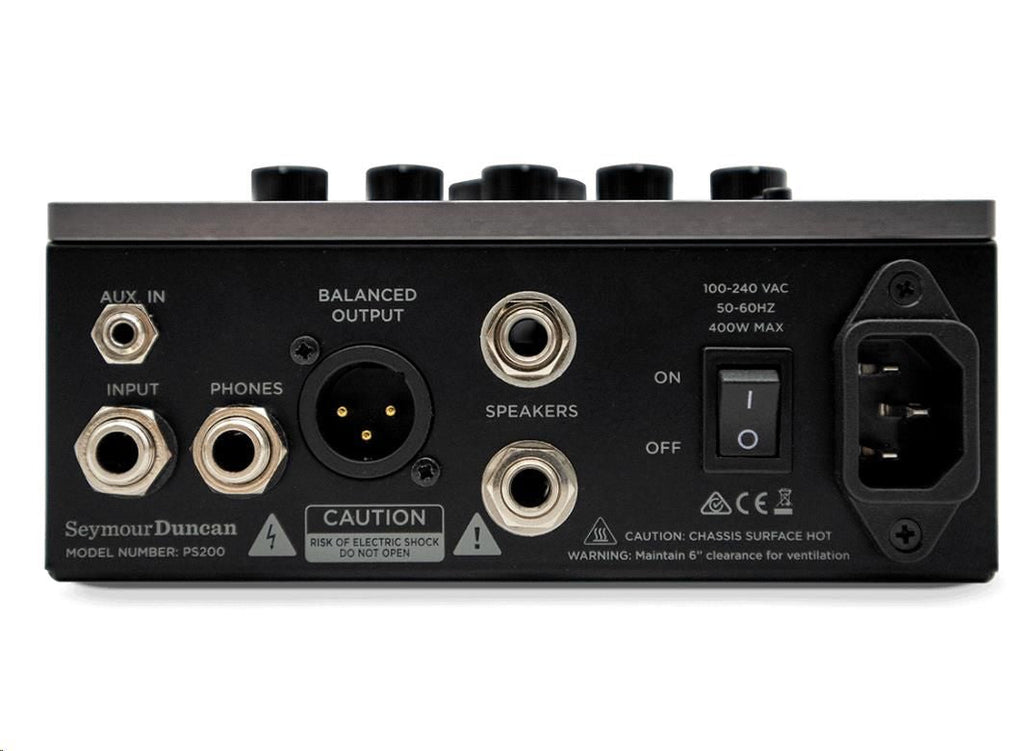

• 2 speaker outputs
• DI (XLR) Output
• Aux In
• Internal power supply
• Pre-amp and power amp clip lights to dial in your levels

Specifications

• Maximum Output Power:
  • 4? load – 210W @ 1% THD+N, 1kHz
  • 4? load – 255W @ 10% THD+N, 1kHz
  • 8? load – 117W @ 1% THD+N, 1kHz
• Continuous Output Power without thermal shutdown:
  • @ 120VAC/60Hz – 140W
  • @ 230VAC/50Hz – 130W
• Nominal Mains voltage: 100 to 240 VAC, 50/60 Hz
• Maximum Input Power: 400W Max
• Total Power Efficiency: Po = 200W - 78%

• Speaker Outputs:
  • THD + N @ 1kHz, full rated power - =1%
  • THD + N @ 1kHz, 10V out, 4? load – 0.003%
  • Output referenced idle noise – =92µV, A-weighted
  • Dynamic Range, A-weighted – 109dB
  • Bandwidth – 5 Hz to 50 kHz ± 3 dB, 20 Hz to 20kHz @ nominal power
• EQ Parameters:
  • Bass +/- 10 dB @ 87 Hz
  • Midrange +/- 10 dB @ 645 Hz
  • Treble +/- 8.5 dB @ 4.4 kHz
  • Presence +/- 6.8 dB @ 11.6 kHz

• Ambient Operating Temperature – 0° to 50°C
• Relative Humidity – 85%, non-condensing
• Altitude, operating – 2000m (6500 ft.)
• Weight – 2.87 lbs
