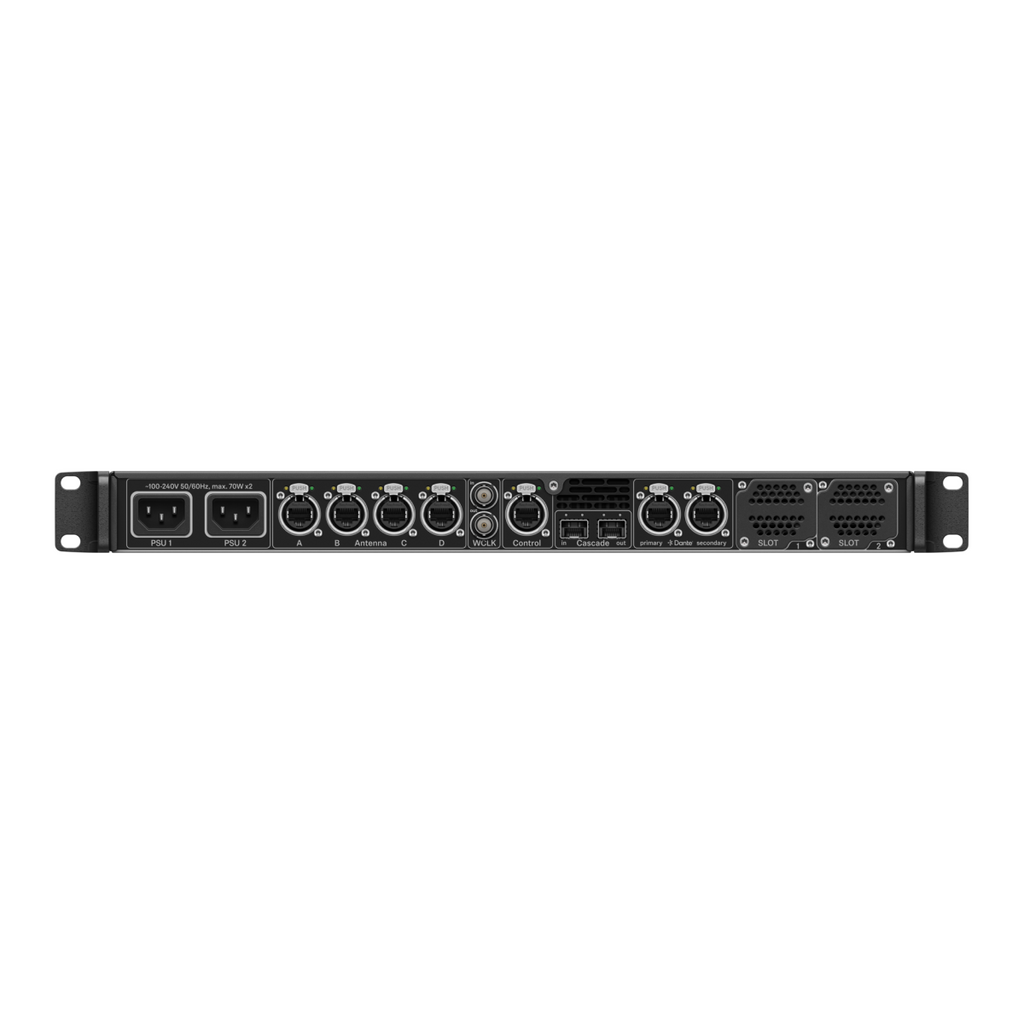

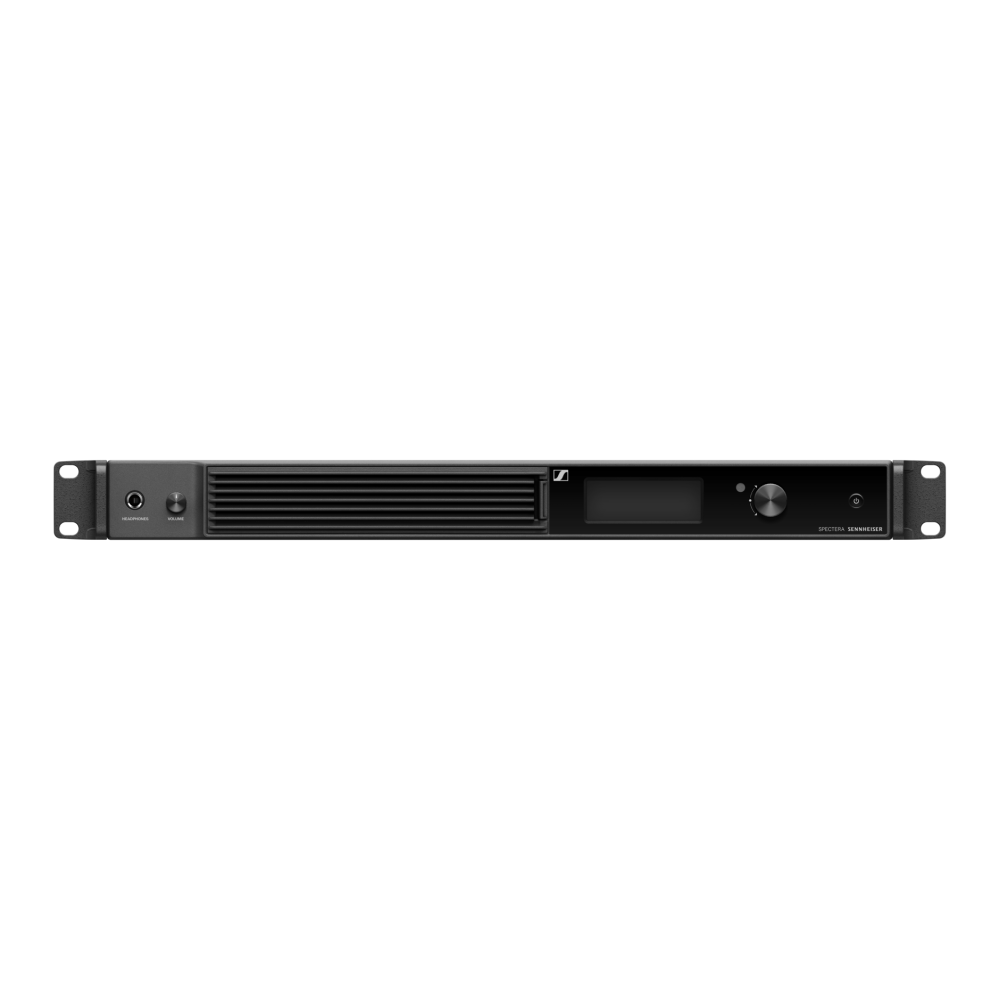

Sennheiser Spectera Base Station

It features redundant Dante and optional redundant Madi to ensure seamless integration into your audio network. Additional antennas can be added for redundancy, increased zone coverage, or additional spectrum capacity. The Spectera Base Station supports 48 kHz and 96 kHz sample rates and features separate sample rate converters on all audio interface and word clock I/O. The Base Station must be activated with one license per region. Features 19’’ 1 RU Base Station with redundant power supplies Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage Redundant Dante® audio interface Two optional slots for redundant MADI (OM or BNC) Sample rates of 48 kHz and 96 kHz Individual sample rate converters for all audio interfaces Wordclock I/O BNC Synchronized clock for all audio over RF allows 3D recordings and playback Adjustable RF power from 10 – 100 mW (country specific) RJ45 network interface for full remote control with secured interface 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM Secure transmission of confidential content using AES 256 encryption Future expansion via Cascade port Selective headphone output with volume control on front panel OLED display, jog wheel navigation, and rugged metal housing Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately) Specifications What's in the box 1x Spectera Base Station 3x Mains Cable (EU, UK, ans US plug)
