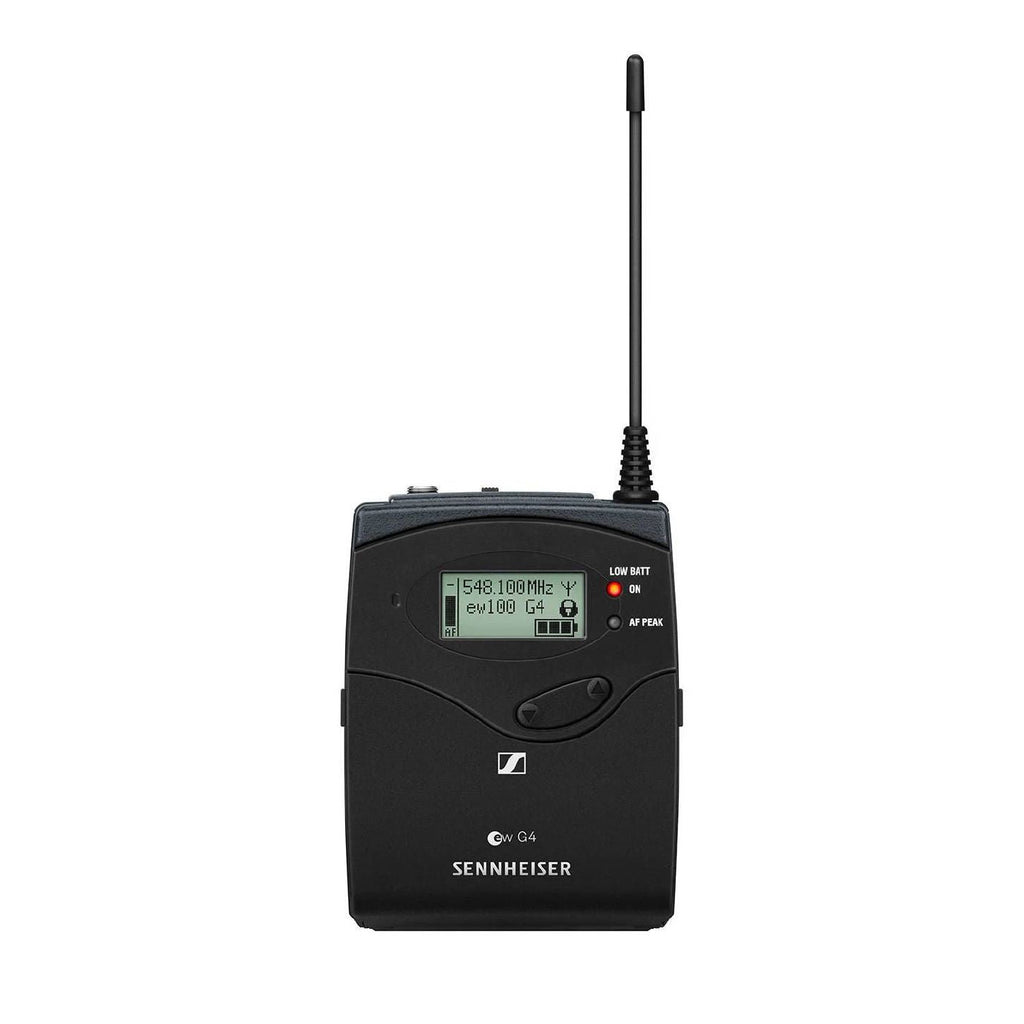

Sennheiser SK100 G4-AS Bodypack Transmitter with 1/8'' Audio Input Socket (520-558MHz)

Features

• Robust bodypack transmitter for daily use on stage.
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Frequency range: AS: 520 - 558 MHz
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Signal-to-noise ratio: 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption:
  at nominal voltage: typ. 180 mA
  with transmitter switched off: 25 μA
• Input impedance: 40 kΩ, unbalanced / 1 MΩ
• Dimensions: Approx. 82 x 64 x 24 mm
• Weight: (incl. batteries) approx. 160 g

What's in the box

• SK 100 G4 bodypack transmitter
• 2 AA batteries
• quick guide
• safety guide
• manufacturer declaration sheet
