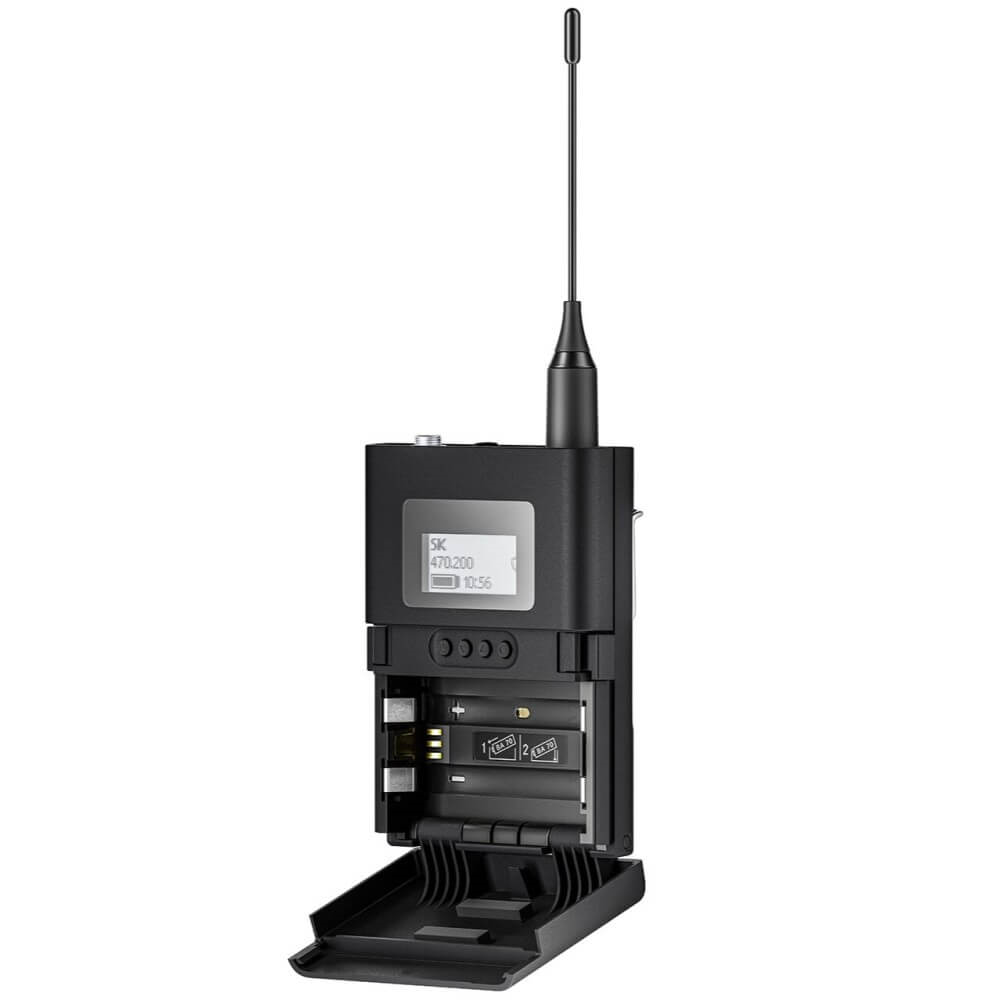

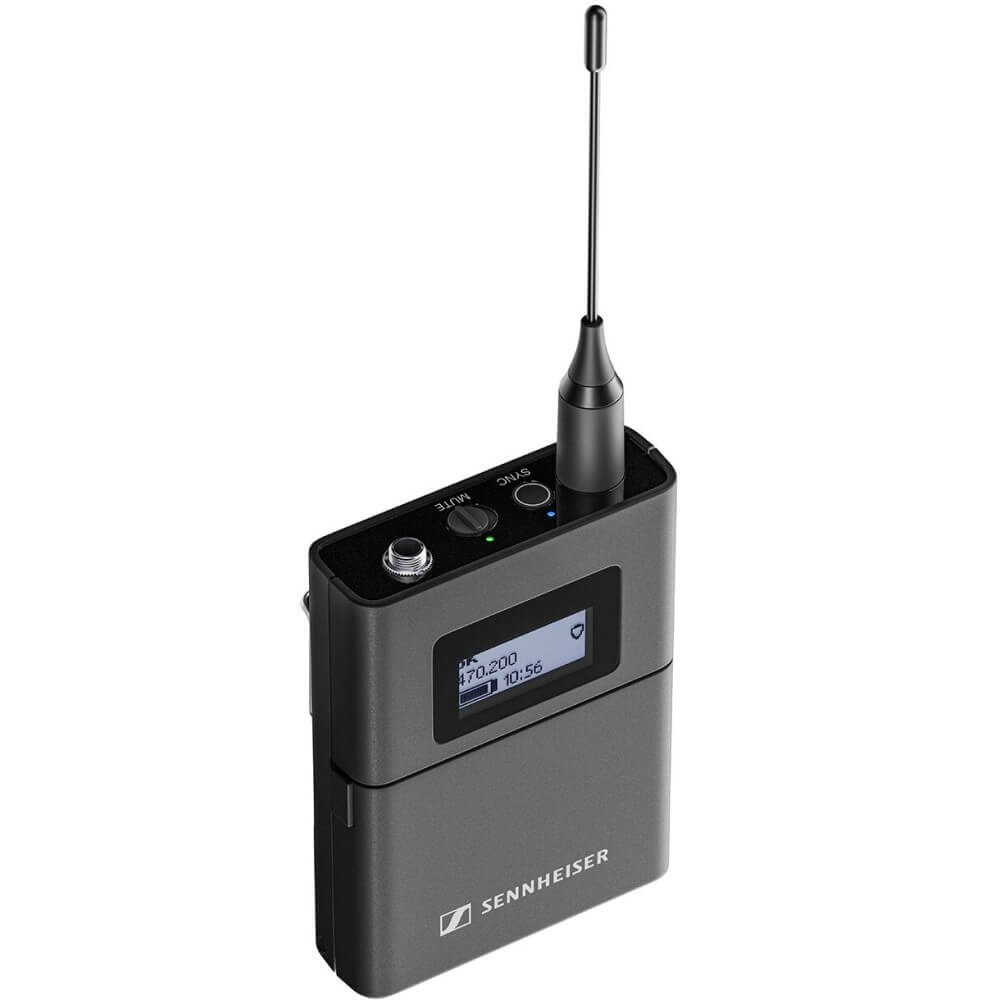

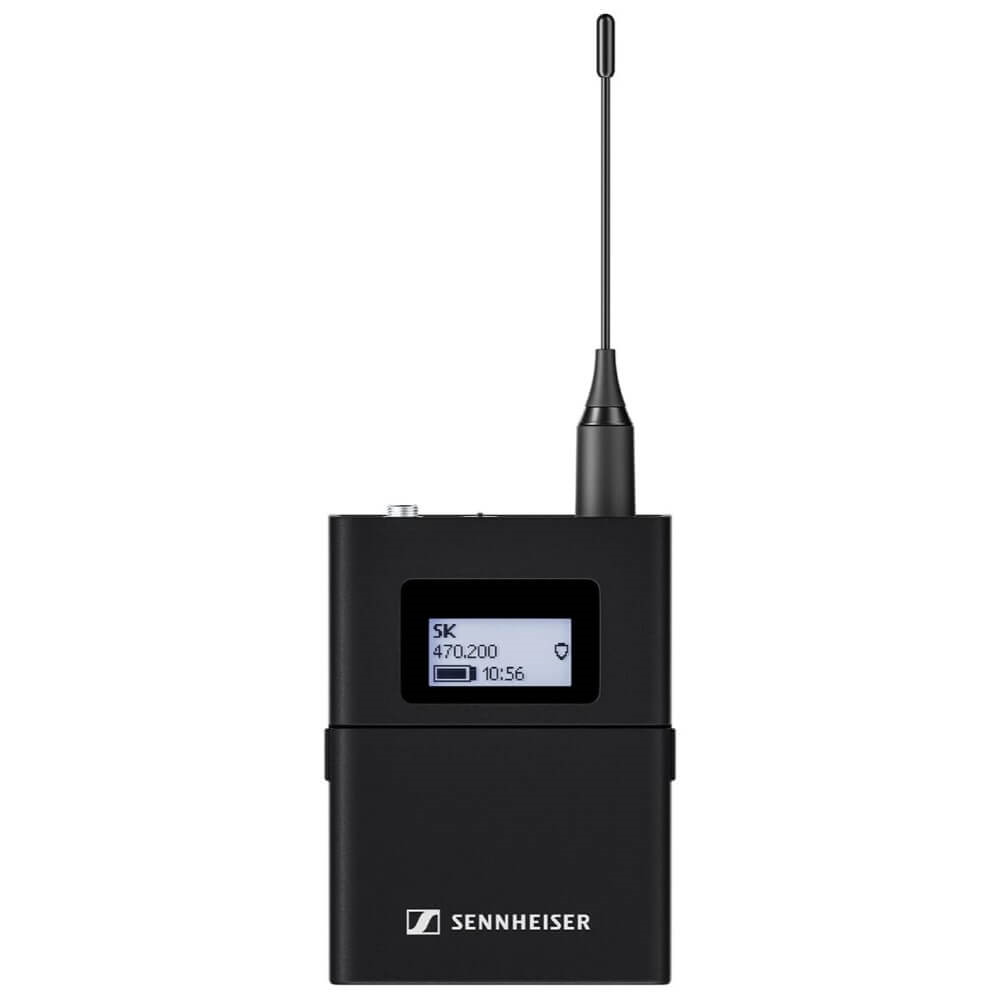

Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter - R1-9 (520 - 607.8MHz)

The Sennheiser EW-DX allows you to streamline your professional workflow, using refined technologies to provide a digital UHF system that is easily scalable. Boasting an advanced feature set and hardware options, Sennheiser EW systems are network-ready, and are designed to integrate seamlessly into classrooms, corporate campuses, and live sound productions. Get a quick assessment of your environment with AutoScan, which uses equidistant channel spacing to deploy frequencies, and use tools such as Sennheiser's Control Cockpit, Wireless Systems Manager, and Smart Assist App for remote monitoring of your system.

• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Charging contacts for in-device charging with CHG 70N charger (sold separately)
• Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
• Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
• Function buttons - control all the transmitter settings directly from bodypack including button lock function
• Programmable mute switch - RF mute, AF mute or disabled
• Digital audio trim
• Mic input trim control
• Test tone generator
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Instrument input with cable emulation to simulate cable characteristics
• Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection
• Metal housing
• Worldwide usage (specific frequencies subject to local RF regulations)

With the highest dynamic range of any wireless system currently available on the market, the Evolution Wireless Digital sets a new standard with it's advanced features that streamline your setup and ensure the most reliable connection possible. Take total control and maximize efficiency with the Sennheiser Smart Assist App and automatically coordinate frequencies effortlessly. With superior bandwidth and the lowest latency of any currently available digital wireless system, the Evolution Wireless Digital is the ultimate tool for those who put quality and performance above anything else.

• Audio Link Frequency Range: R1-9 (520MHz - 607.8MHz)
• Bluetooth Low Energy (BLE) Frequency Range: 2405MHz - 2480MHz
• Audio Frequency Response: 20Hz - 20kHz (-3dB) @ 3dBFS
• THD: -60dB for 1kHz @ -3dBFS Input Level
• Dynamic Range: 134dB
• System Latency: 1.9ms
• RF Technology: Intelligent Switching Diversity

• Input Voltage: 2 - 4.35V
• Input Current: 300mA
• Power Supply: 2x AA Batteries 1.5V (Alkaline Manganese), or BA 70 Rechargeable Battery Pack (Not Included)
• Occupied Bandwidth: 200kHz
• What's in the Box?
  • 1x EW-DX SK Bodypack Transmitter
  • Belt Clip
  • 2x AA Batteries
• Dimensions
  • 63mm (L) x 80mm (W) x 20mm (H)
  • 120g
