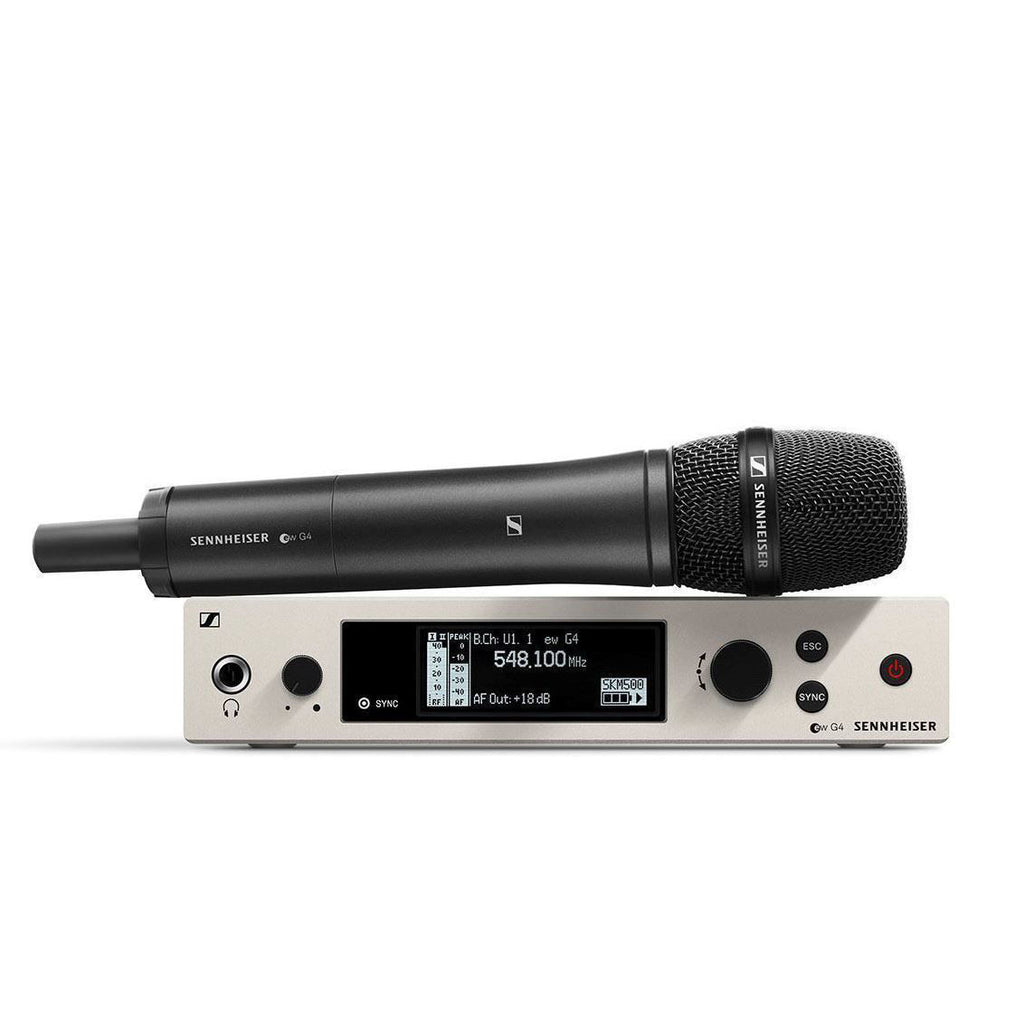

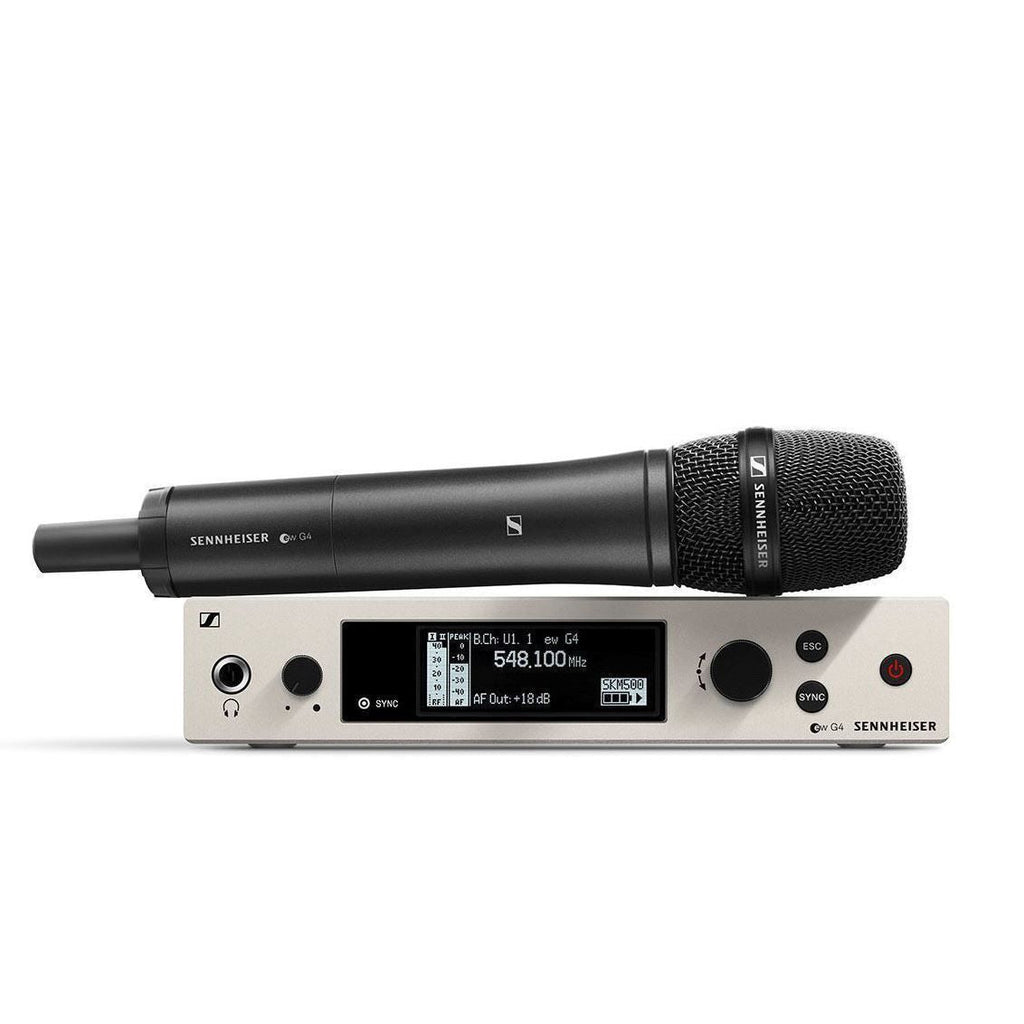

Sennheiser EW 500 G4-935 Evolution G4 Wireless Handheld Microphone Set AS

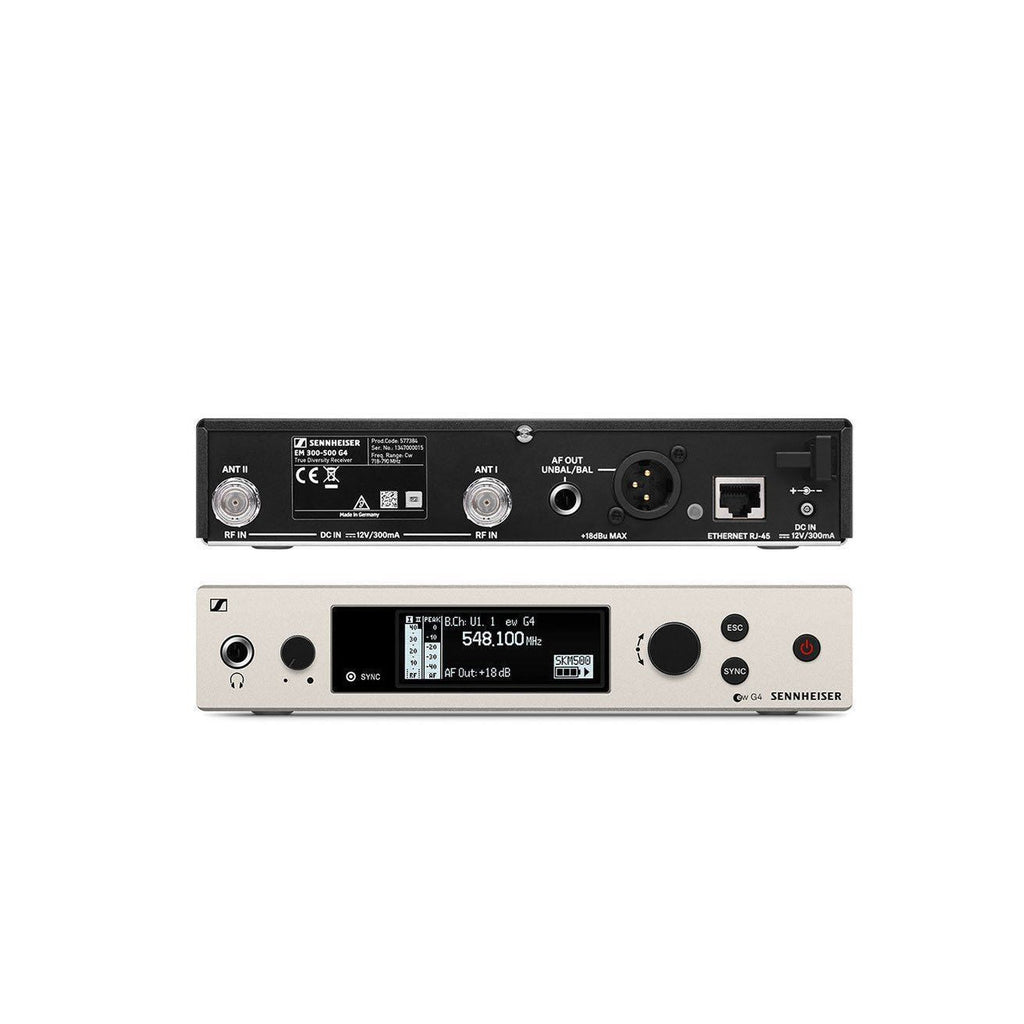

The Sennheiser Evolution G4 500 Series is the professional choice in wireless systems and is designed to perform under the demands of world-class stages and situations. The pro‘s choice. Renowned sound engineers rely on EW 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups. The pinnacle of the Evolution series, available with Sennheiser’s renowned e 900 capsules - e935, e945, and e965 on a lightweight black aluminum handheld transmitter, ready to take the world’s biggest live stages. Features True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control Easy and flexible wireless synchronization between transmitter and receiver via infrared Up to 32 compatible channels Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations Specifications Component: EM 300-500 G4 Wireless Receiver Frequency range: AS: 520 - 558 MHz Dimensions: Approx. 202 x 212 x 43 mm Compander: Sennheiser HDX THD total harmonic distortion: = 0.9 % Weight: Approx. 980 g Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu Signal-to-noise ratio: = 115 dBA Switching bandwidth: up to 88 MHz Peak deviation: ±48 kHz Nominal deviation: ±24 kHz Modulation: Wideband FM Power supply: 12 V DC Antenna connector: 2 BNC sockets Current consumption: 350 mA Adjacent channel rejection: Typically = 75 dB Intermodulation attenuation: Typically = 70 dB Receiving frequency: Max. 3520 receiving frequencies adjustable in 25 kHz steps 20 frequency banks each with up to 32 factory-preset channels no intermodulation 6 frequency banks with up to 32 programmable channels RF sensitivity: < 2.5 µV for 52 dBA eff S/N Squelch: 5 to 25 dBµV in steps of 2 dB Equalizer: Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) Temperature Range: -10 °C to +55 °C Receiver Principle: True diversity Blocking: = 75 dB Component: SKM 500 G4 Handheld Wireless Transmitter Dimensionns: Approx. Ø 50 x 265 mm Compander: Sennheiser HDX THD total harmonic distortion: = 0.9 % Weight: (incl. batteries) approx. 450 g Signal-to-noise ratio: = 115 dBA RF output power (switchable): Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW Switching bandwidth: up to 88 MHz Peak deviation: ±48 kHz Nominal deviation: ±24 kHz Operating time: Typically 8 h Modulation: Wideband FM Power supply: 2 AA batteries 1.5 V or BA 2015 accupack Current consumption: at nominal voltage: typ. 180 mA Powering: 3 V battery / 2.4 V rechargeable battery Transmission frequency: Max. 3520 frequencies adjustable in 25 kHz steps 20 frequency banks each with up to 32 factory-preset channels no intermodulation 6 frequency banks with up to 32 programmable channels AF frequency response: 80 – 18000 Hz Temperature Range: -10 °C to +55 °C Frequency stability: = ±15 ppm Component: SKM 500 G4 Handheld Wireless Transmitter Dimensions: Approx. Ø 50 x 265 mm Compander: Sennheiser HDX THD total harmonic distortion: = 0.9 % Weight: (incl. batteries) approx. 450 g Signal-to-noise ratio: = 115 dBA RF output power (switchable): Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW Switching bandwidth: up to 88 MHz Peak deviation: ±48 kHz Nominal deviation: ±24 kHz Operating time: Typically 8 h Modulation: Wideband FM Power supply: 2 AA batteries 1.5 V or BA 2015 accupack Current consumption: at nominal voltage: typ. 180 mA Powering: 3 V battery / 2.4 V rechargeable battery Transmission frequency: Max. 3520 frequencies adjustable in 25 kHz steps 20 frequency banks each with up to 32 factory-preset channels no intermodulation 6 frequency banks with up to 32 programmable channels AF frequency response: 80 – 18000 Hz Temperature Range: -10 °C to +55 °C Frequency stability: = ±15 ppm What's in the box? EM 300-500 G4 true diversity receiver SKM 500 G4 handheld transmitter MMD 935-1 microphone head MZQ 1 microphone clamp 2 AA batteries power supply GA 3 rackmount set 2 rod antennas quick guide safety guide manufacturer declaration sheet
