The Concert 88x Handheld system is an excellent choice for singers, educators and presenters making the leap to the freedom of wireless.
Features

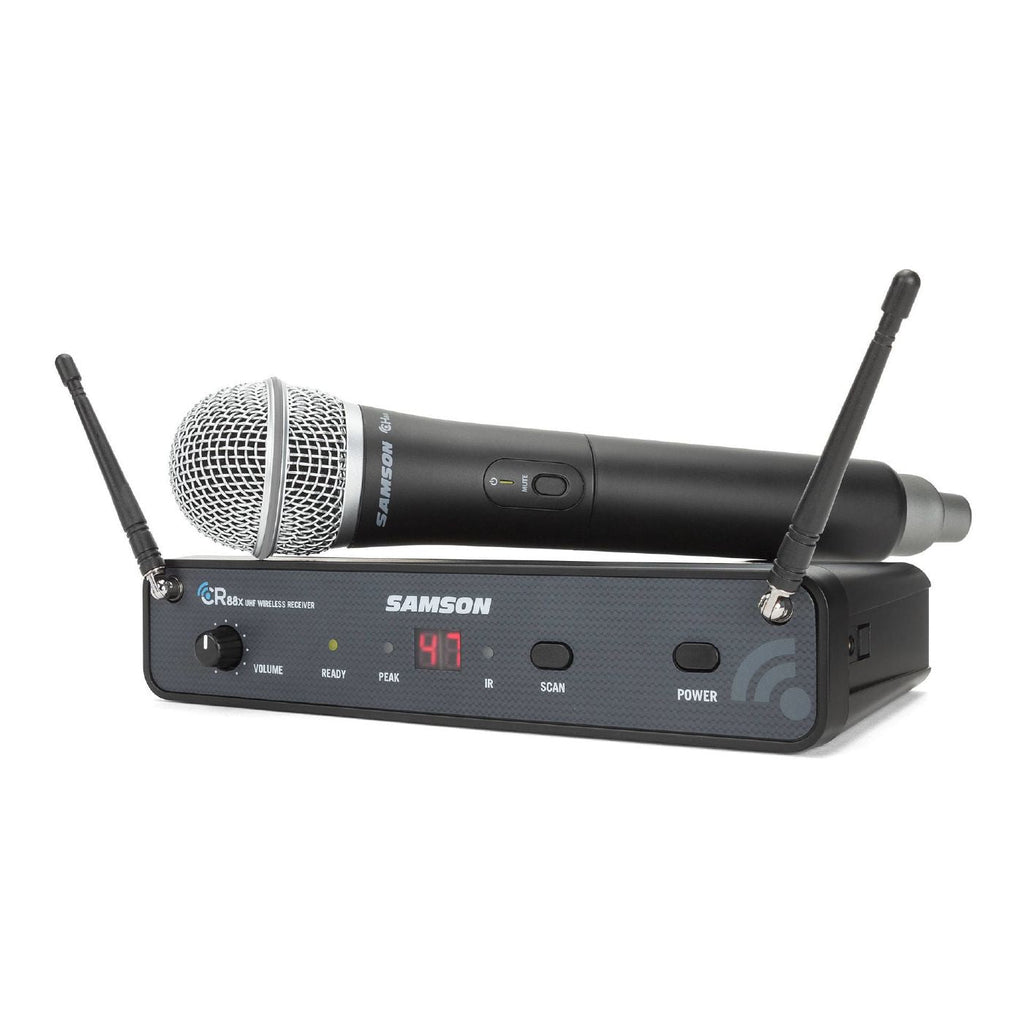

Concert 88x Handheld System
- High-performance professional UHF wireless system
- 100 operating channels across 25 MHz bandwidth
- Up to 8 systems can be used simultaneously per frequency band (region dependent)
- 300' operating range (line-of-site)
- Rackmount kit included

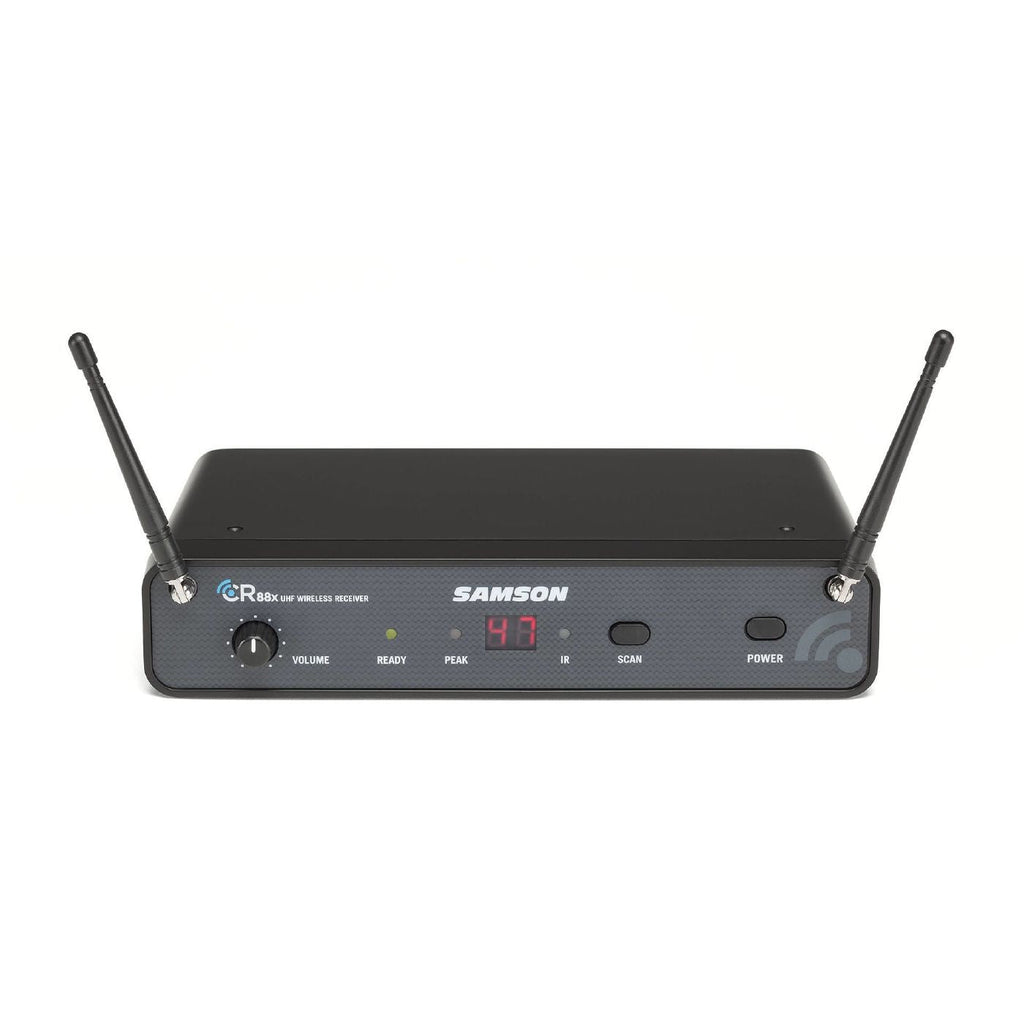

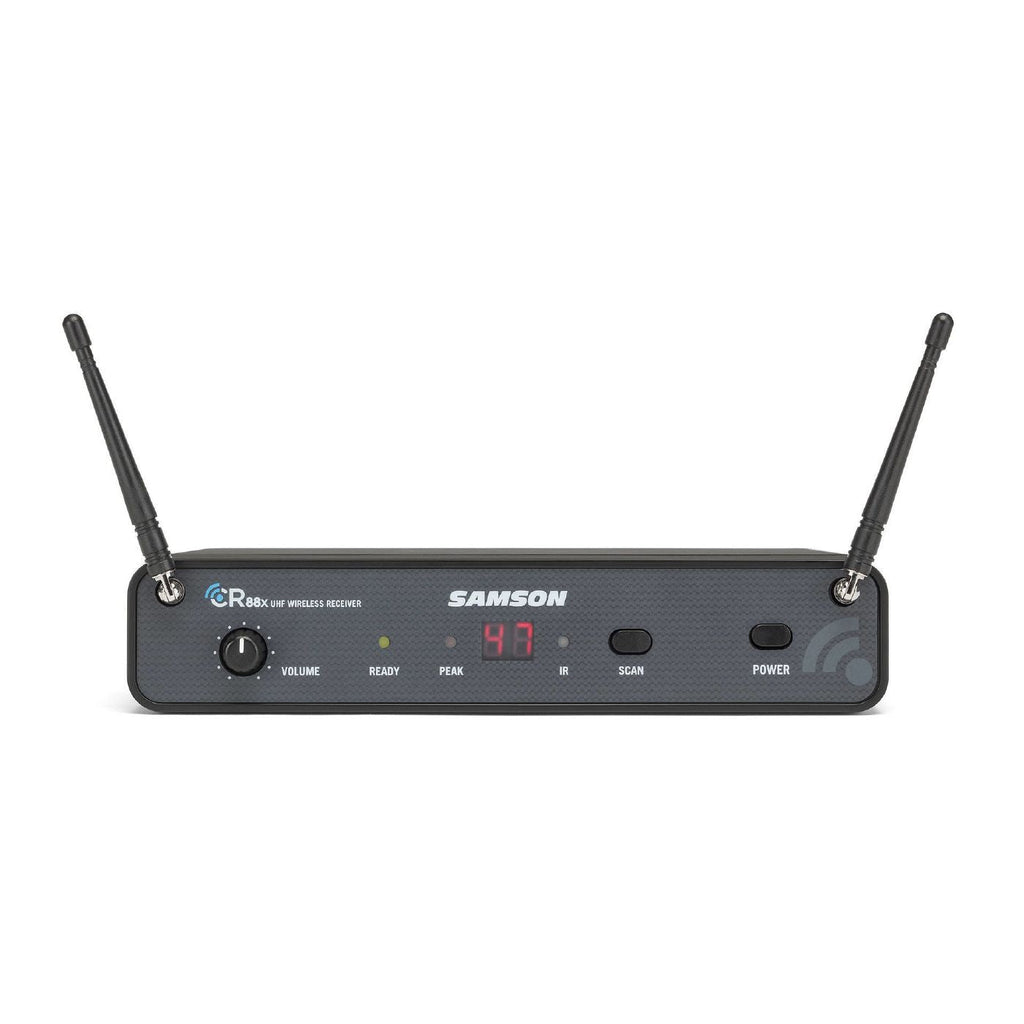

CR88x Wireless Receiver
- One-touch automatic frequency scan finds the best operating channel
- Two digit LED display
- Infrared link locks the receiver and transmitter to the same channel
- True diversity design minimizes dropouts
- Tone key prevents unwanted noise when transmitter is off or out of range
- Balanced XLR and unbalanced 1/4" outputs
CH88 Handheld Transmitter
- Unified microphone body and transmitter module
- Adjustable input gain
- Silent mute button
- Power/Mute status indicator
- Up to eight hours of continuous use from two AA batteries
Q7 Dynamic Microphone Capsule
- Dynamic vocal microphone with tailored mid-range presence
- Neodymium dynamic mic element for wide dynamic range
- Supercardioid pickup pattern with excellent off-axis rejection
Specifications
- Operating Band and Frequency: D - 542–566 MHz
System
- Working Range: 300' (100m) line of sight
- Audio Frequency Response: 50 Hz - 15 kHz
- T.H.D. (Overall): <1% (@AF 1 kHz, RF 46 dBu)
- Dynamic Range: >100 dB A-weighted
- Signal to Noise: >90 dB
- Operating Temperature: –10°C (14°F) to +60°C (+140°F)
- Tone Key Frequency: 35 kHz
CB88 Beltpack Transmitter
- Input Connector: Mini-XLR (P3)
- Input Impedance: 1M O
- Input Gain Range: 38 dB
- RF Power: 10 mW EIRP
- Power Requirements: Two AA (LR6) alkaline batteries
- Battery Life: 8 hours
- Dimensions (HxLxD): 3.75" x 2.44" x 0.75" | 96mm x 62mm x 18.5mm
- Weight: 0.2 lb / 93 g
CH88 Handheld Transmitter
- Microphone Element: Dynamic
- Input Gain Range: 28 dB
- RF Power: 10 mW EIRP
- Power Requirements: Two AA (LR6) alkaline batteries
- Battery Life: 8 hours
- Dimensions (HxØ): 10.23" x 2.1" | 260mm x 54mm
- Weight: 0.48 lb / 218 g
CR88x Receiver
- Audio Output Level - Unbalanced: +14 dBu
- Audio Output Level - Balanced: +9 dBu
- Audio Output Impedance - Unbalanced: 810 Ohms
- Audio Output Impedance - Balanced: 240 Ohms
- Sensitivity: -100 dBm / 30 dB sinad
- Image Rejection: >50 dB
- Operating Voltage: 15 VDC 200mA
- Dimensions (LxWxH): 8.25" x 4.9" x 1.75" | 210mm x 125mm x 44mm
- Weight: 0.88 lb / 400 g
