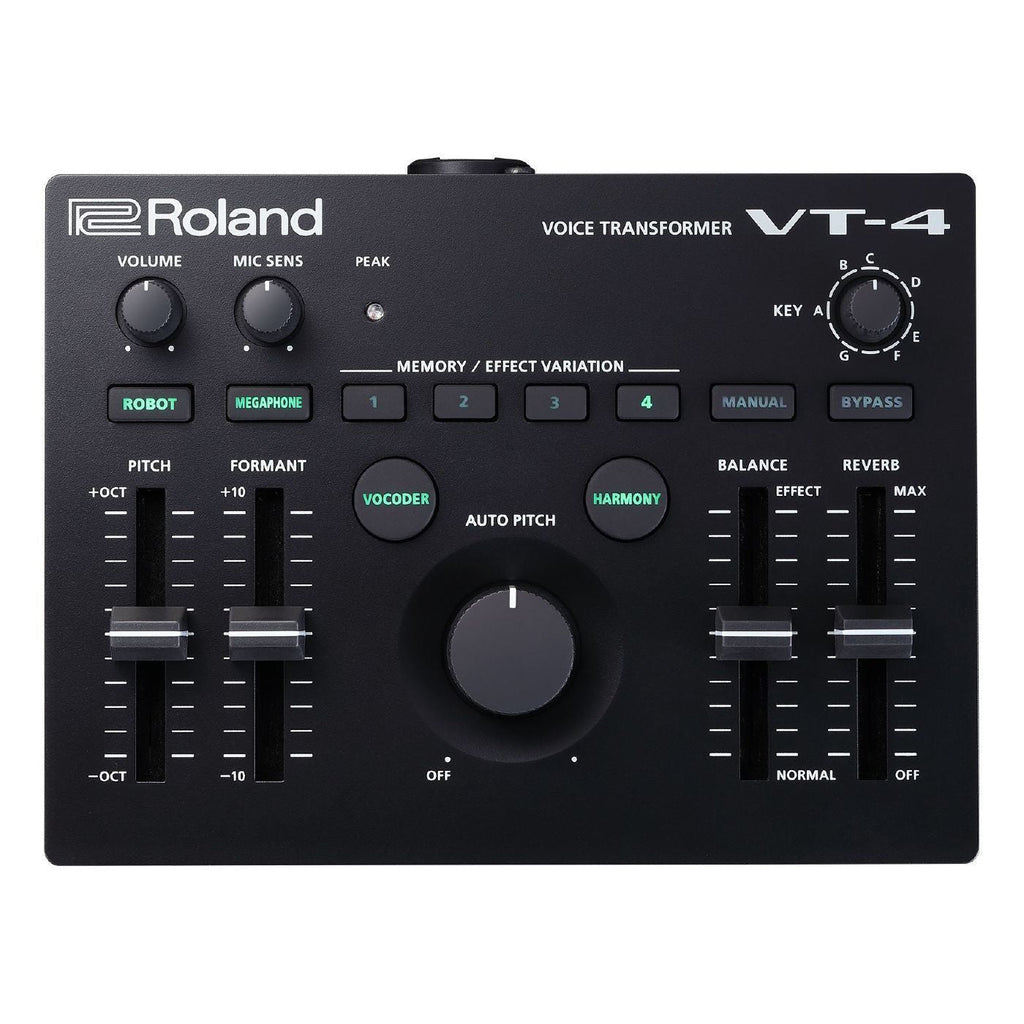

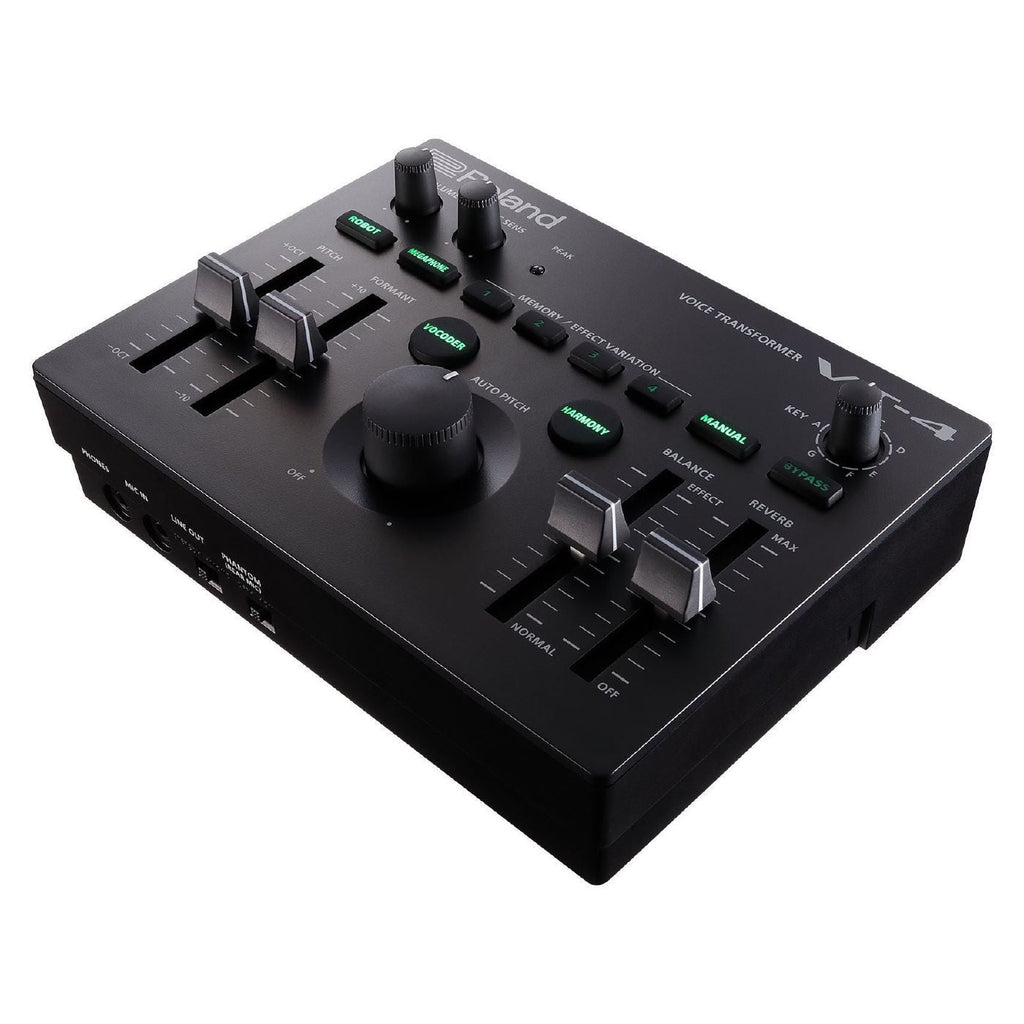

Roland VT4 Voice Transformer

Specifications

• Nominal Input Level MIC IN: -40 to -12 dBu (variable)
• Input Impedance:

  • MIC IN (Rear): 4.4 k ohms
  • MIC IN (Front): 2.2 k ohms
• Nominal Output Level: LINE OUT: -10 dBu
• Output Impedance

  • LINE OUT: 1 k ohm
  • PHONES: 24 ohms
• Memory: Scene memory: 8
• Effect Type:
  • ROBOT
    [1] NORMAL
    [2] OCTAVE-1
    [3] OCTAVE+1
    [4] FEEDBACK
  • MEGAPHONE
    [1] MEGAPHONE
    [2] RADIO
    [3] BBD CHORUS
    [4] STROBO
  • VOCODER
    [1] ADVANCED
    [2] VP
    [3] TALK BOX
    [4] SPELL TOY
  • HARMONY
    [1] +5
    [2] +3
    [3] +3, -4
    [4] +3, +5
  • REVERB
    [1] REVERB
    [2] ECHO
    [3] TEMPO DELAY
    [4] DUB ECHO
• Connectors:

  • MIC IN jack (rear): Combo type (XLR, 1/4-inch TRS phone), balanced (phantom power: +48 V, 10 mA Max.)
  • MIC IN jack (front): Stereo miniature phone type (plug-in power)
  • PHONES jack: Stereo miniature phone type
  • LINE OUT jacks (L/MONO, R/BYPASS): 1/4-inch phone type
  • USB port: USB type B
  • MIDI IN jack
• USB: Audio
• Signal Processing:

  • PC interface: 24 bits
  • AD/DA conversion: 24 bits
• Sampling Frequency: AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

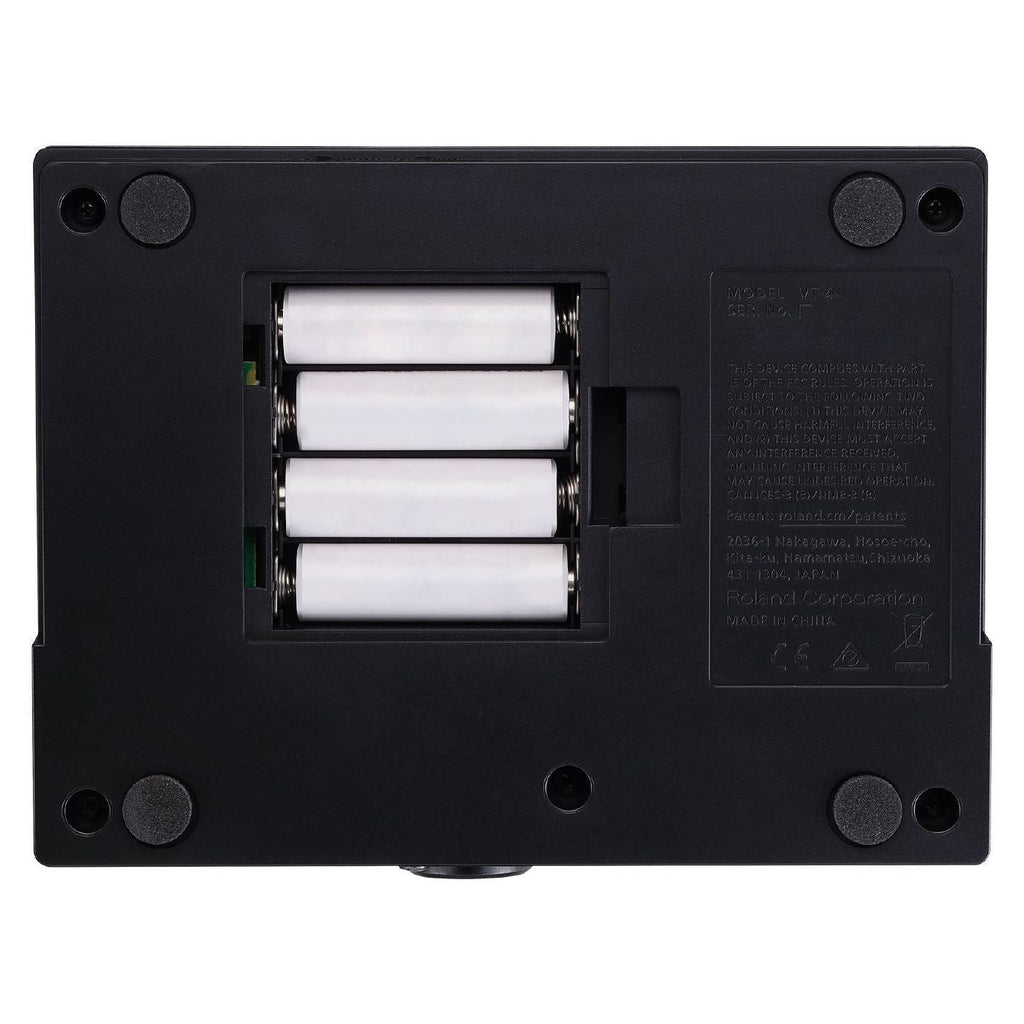

• Power Supply:

  • Rechargeable Ni-MH battery (AA, HR6) x 4
  • Alkaline battery (AA, LR6) x 4
  • Obtained via USB port (USB bus power)
• Current Draw: 500 mA
• Expected battery life under continuous use:

  • Alkaline battery (phantom power: Off): Approx. 6 hours
  • Alkaline battery (phantom power: On): Approx. 4 hours
  • Rechargeable Ni-MH battery (phantom power: Off): Approx. 7 hours
  • Rechargeable Ni-MH battery (phantom power: On): Approx. 5.5 hours
    * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
• Dimensions:

  • 174 (W) x 133 (D) x 58 (H) mm
  • 6-7/8 (W) x 5-1/4 (D) x 2-5/16 (H) inches
• Weight (including batteries): 554 g; 1 lb 4 oz
• Accessories:

  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Alkaline battery (AA, LR6) x 4
