Introduced over 20 years ago, the SPD-20 is still treasured by percussionists around the world for its wide-ranging versatility and authentic percussion sounds. Filled with user-requested features and the latest Roland percussion technologies, the OCTAPAD SPD-20 PRO takes performance to the next level while fully retaining the core appeal of the classic SPD-20.
The OCTAPAD SPD-20 PRO offers the famous eight-pad layout, legendary sounds, and rugged durability of the original SPD-20, newly enhanced with more responsive playability, additional sounds and functions, and an updated user interface. Compact and portable, the OCTAPAD SPD-20 PRO delivers everything you need to authentically cover percussion in all music genres and settings, from small groups to large-scale ensembles.
Features
- The original SPD-20 sound set, augmented with all-new percussion sounds for a wider sonic palette
- Includes a broad selection of world percussion, with more than 900 instruments to choose from
- 200 customizable percussion kits, including 100 ready-to-play presets
- Eight cushioned rubber pads provide even and accurate triggering, improved dynamic response, and excellent isolation between pads
- Four external dual-trigger inputs and a dedicated hi-hat control input allow connection of additional pads and pedals, including a kick pad and hi-hat controller pedal to create a mini drum kit
- Dedicated buttons for adjusting sound-editing parameters while performing
- LCD + LED screens with backlights for easy visibility on dark stages
- USB memory port for backing up settings and kit data
- Designed in Japan
Specifications
- Pads: 8 Built-in Pads * Four external trigger inputs are provided, allowing you to connect Pads.
- Instruments: 900 instruments or greater
- Kits: 200 (Preset: 100)
- Kit Chain: 16 chains (16 steps per chain)
- Layer: 2 layers per pad; 2 layers x 2(Head/Rim) per external Trigger
- Instrument /Pad Parameters: Volume; Curve; Coarse Tune; Fine Tune; Pedal Bend; Decay; Output; Layer EQ; Pad comp; Pad Mute Group; Pad Link
- Kit Effects: Ambience (5 Types); Kit EQ; Kit Comp; MFX : 3 systems, 38 types
- Display: 16 characters 2 line (backlit LCD); 7 segments, 3 characters (LED)

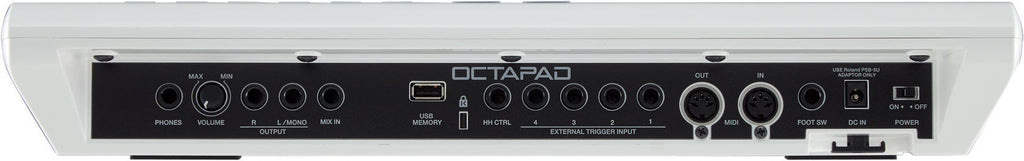

- Connectors:
- PHONES Jack: Stereo 1/4-inch phone type
- OUTPUT(L/MONO, R) Jacks: 1/4-inch phone type
- MIX IN Jack: Stereo 1/4-inch phone type
- EXTERNAL TRIGGER INPUT Jack : 1/4-inch TRS phone type x 4
- HH CTRL Jack: 1/4-inch phone type
- FOOT SW Jack: 1/4-inch TRS phone type
- MIDI (IN, OUT) Connectors
- USB MEMORY port: USB A type
- Power Supply: AC adaptor (DC 12 V)
- Current Draw: 500 mA
- Dimensions: 450(W) x 350 (D) x 72 (H) mm; 17-3/4 (W) x 13-13/16 (D) x 2-7/8 (H) inches
- Weight: 3.7 kg / 8 lbs 3 oz (excluding AC Adaptor)
- Accessories: Owner's Manual; AC Adaptor
- Options (sold separately):
- Pads (PD series, PDX series, BT series)
- Cymbals (CY series)
- Kick Triggers (KD series, KT Series)
- Hi-Hats (VH-11/10)
- Hi-Hat Control Pedal (FD series)
- Pad Stand (PDS series)
- All-Purpose Clamp (APC series)
- Acoustic Drum Trigger (RT series)
- Footswitch (FS series, excluding Latch-type)
- Personal Drum Monitor (PM series)
