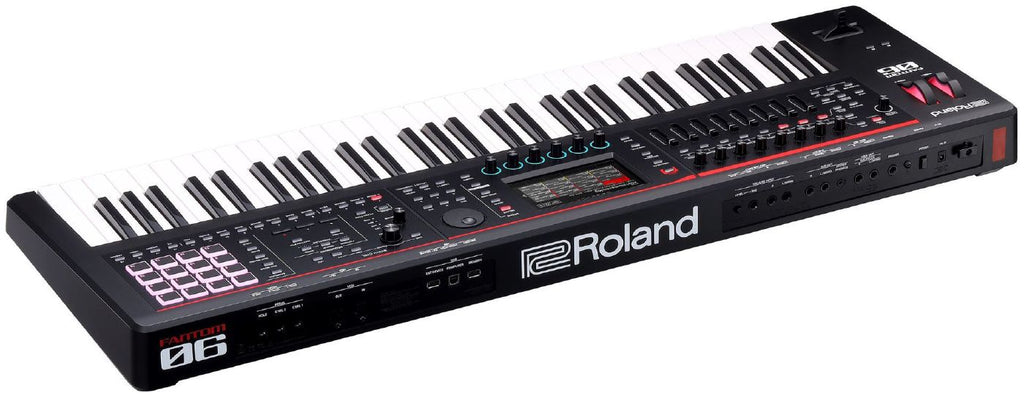

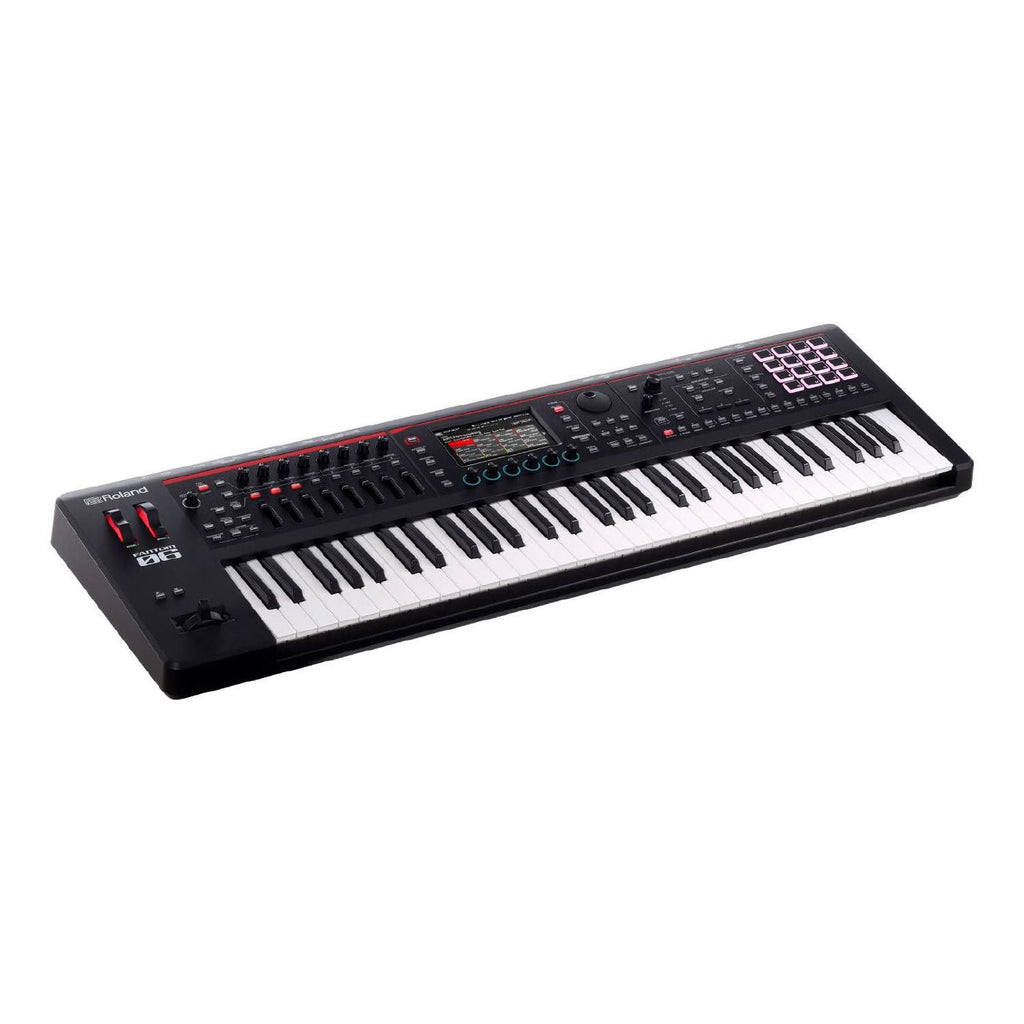

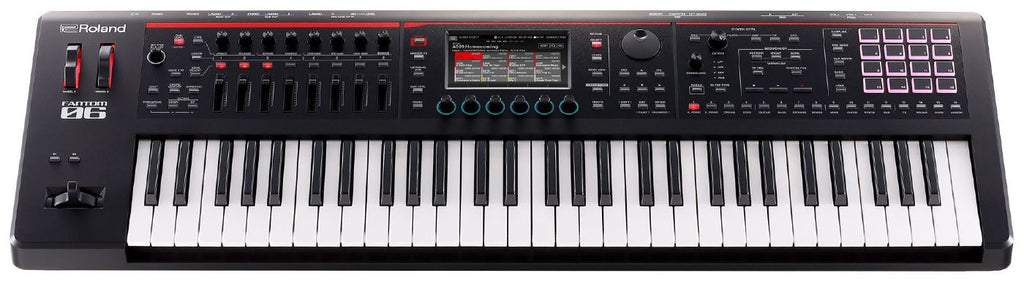

Play and produce with Roland’s best sounds and unleash your musical vision with a color touchscreen, hands-on controls, and deep computer integration derived from the flagship models.
FANTOM-06 has everything you need to create and perform at the highest level. And with its interactive design and expansive I/O, it blends into every workflow with ease.
Equipped with Roland’s most innovative technologies, FANTOM-06 puts a huge selection of electronic and acoustic sounds at your command. And with a growing range of expansion options from Roland Cloud, you’ll never run out of creative fuel.
Equipped with Roland’s most innovative technologies, FANTOM-06 puts a huge selection of electronic and acoustic sounds at your command. And with a growing range of expansion options from Roland Cloud, you’ll never run out of creative fuel.
Features
- Sounds and features inherited from the flagship FANTOM series
- Seamless workflow with no confusing modes
- Light and durable molded body design for easy transport
- Play and produce with thousands of electronic and acoustic sounds powered by Roland's advanced ZEN-Core and SuperNATURAL technologies
- New SuperNATURAL pianos with authentic acoustic grand sound and response
- Virtual ToneWheel Organ with harmonic bar control and quick-fire playability
- Deep onboard sampling features
- Scenes contain settings for all 16 layers plus effects and patterns
- Clip-based sequencing with instant pattern recording and triggering
- TR-REC sequencer inspired by classic Roland drum machines
- Color touchscreen, high-resolution knobs, sliders, RGB performance pads, and dedicated synth control section
- Pitch/mod lever and illuminated pitch and mod wheels
- Massive DSP power for plenty of polyphony and smooth sound transitions
- 4x32 USB audio interface and native integration with Logic Pro, MainStage, and Ableton Live
- Mic input and powerful onboard vocoder
- Support for Model Expansions, Sound Packs, Sample Packs, and more from Roland Cloud
- Comes with 15 Wave Expansions and 10 Sound Packs, available for download from Roland Cloud
- Compatible with FANTOM Scenes that use ZEN-Core, SuperNATURAL, and Virtual ToneWheel Organ sounds
- Newly designed 61-note keyboard with synth action
Specifications
- Keyboard: FANTOM-06: 61 keys (with velocity)
- Sound Generator
- TONE
- ZEN-Core
- SuperNATURAL Acoustic
- SuperNATURAL Acoustic Piano (EXSN01/03 Preload)
- SuperNATURAL Electric Piano (EXSN02 Preload)
- VTW Organ (Only ZONE2)
Various MODEL sound generators (Require adding EXM Series)
* ZEN-Core Tones and Model Tones can import and export.
* Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.
- Expansion
- EXZ Series
- EXSN Series
- EXM Series
- Parts: 16 zones (Internal + External)
- Tones:
- 3,500 tones or greater
- 90 Drum kits or greater
- Tone Remain: 8 zones
- Tone Search/Scene Search: Rating, Character
- Effects
- Multi-Effects: 16 systems, 90 types
- Part EQ: 16 systems
- Drum Part COMP: 6 systems
- Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
- TFX: 1 system, 90 types
- Input MFX: 1 system, 90 types
- Chorus: 9 types
- Reverb: 7 types
- Master Compressor
- Input Reverb: 7 types
- Input EQ: 1 system
- Vocoder
- Band: 13, 20, 32
- Type: Mono, Stereo
- Preset Setting: 10
- User Setting: 20
- Scene Chain
- Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
- Set: 100
- Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set
- Pattern Sequencer
- MIDI Tracks: 16
- Group:16
- Pattern: 8 (per each track)
- Pattern Length: 64 measures
- Recording Method: Realtime recording, Step recording, TR-REC
- Editing Method: Piano roll edit (Touch Edit/Automation support), Microscope
- Song: 1 (per Scene)
- File format: Original, SMF export/import supported
* PAD Sampler trigger data can be recorded.
- -SMF Player
- Format: SMF (Format 0/1)
- MIDI tracks: 16
- Tempo range: 5-300 BPM
- Transpose function: -5-+6 semitone
- Track Mute: Yes
- Track Solo: Yes
- A/B loop function: Yes
* The pattern sequencer and SMF player can be used in each scene.
- They cannot be used at the same time.
- Sampler
- Keyboard Multisample
- Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported.
- Number of Samples: 2,048
- Number of Multisamples: 128
- Sampling Time: The maximum is 2 minutes 44 second (1 Sample).
* A total of approximately 256 MB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.
- PAD Sampler
- Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
- Maximum Polyphony: 8
- Number of Samples: 16 pads x 4 banks
- Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.
- Internal Storage space for files: Size: 2 GB
- Other
- Rhythm Pattern: Yes
- Arpeggiator: Yes
- Chord Memory: Yes
- Motional Pad: Yes
- PAD Mode: Sample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group Play
- AIRA LINK: * When connect to MX-1
- Controllers
- Pitch Bend/Modulation lever *1
- Assignable Switch x 2 (S1/S2)
- Control knob x 8
- Slider x 8
- Wheel x 2 *1
- Function knob x 6
- Sound Modified knob x 2 *1
- 4 x 4 Pad
*1: 1,024 step editing support
It can be use with Cutoff, Resonance.
- Display: Graphic Type, 5.5" (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)

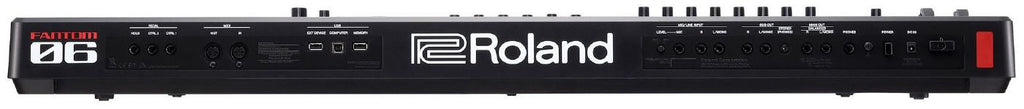

- Connectors
- Headphones jack: Stereo 1/4-inch phone type
- MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
- SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
- SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
- Mic Input jacks: 1/4 inch TRS type
- Line Input jacks: (L/MONO,R) (1/4 inch phone type)
- FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
- MIDI connectors (IN, OUT)
- USB MEMORY port
- USB COMPUTER port (AUDIO/MIDI)
- External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
- Audio Interface
- Max 24 bit/96 KHz
- Record 16 Stereo Channel
- Playback 2 Stereo Channel
- External Memory: USB Flash drive (sold separately)
- Power Supply: AC Adaptor
- Power Consumption: 1,300 mAh
- Dimensions: FANTOM-06: 1,006 (W) x 323 (D) x 95 (H) mm
- FANTOM-07: 1,218 (W) x 323 (D) x 95 (H) mm
- FANTOM-08: 1,393 (W) x 354 (D) x 138 (H) mm
- Weight FANTOM-06: 6.0 kg
- FANTOM-07: 7.0 kg
- FANTOM-08: 14.8 kg
- Accessories
- Owner’s Manual
- AC adaptor
- Options (sold separately)
- Keyboard Stand:
- FANTOM-06:KS-10Z, KS-12, KS-20X
- FANTOM-07:KS-10Z, KS-12, KS-20X
- FANTOM-08:KS-G8B, KS-10Z, KS-12, KS-20X
- Pedal Switch: DP series, RPU-3
- Expression Pedal: EV-5
- USB Flash drive
