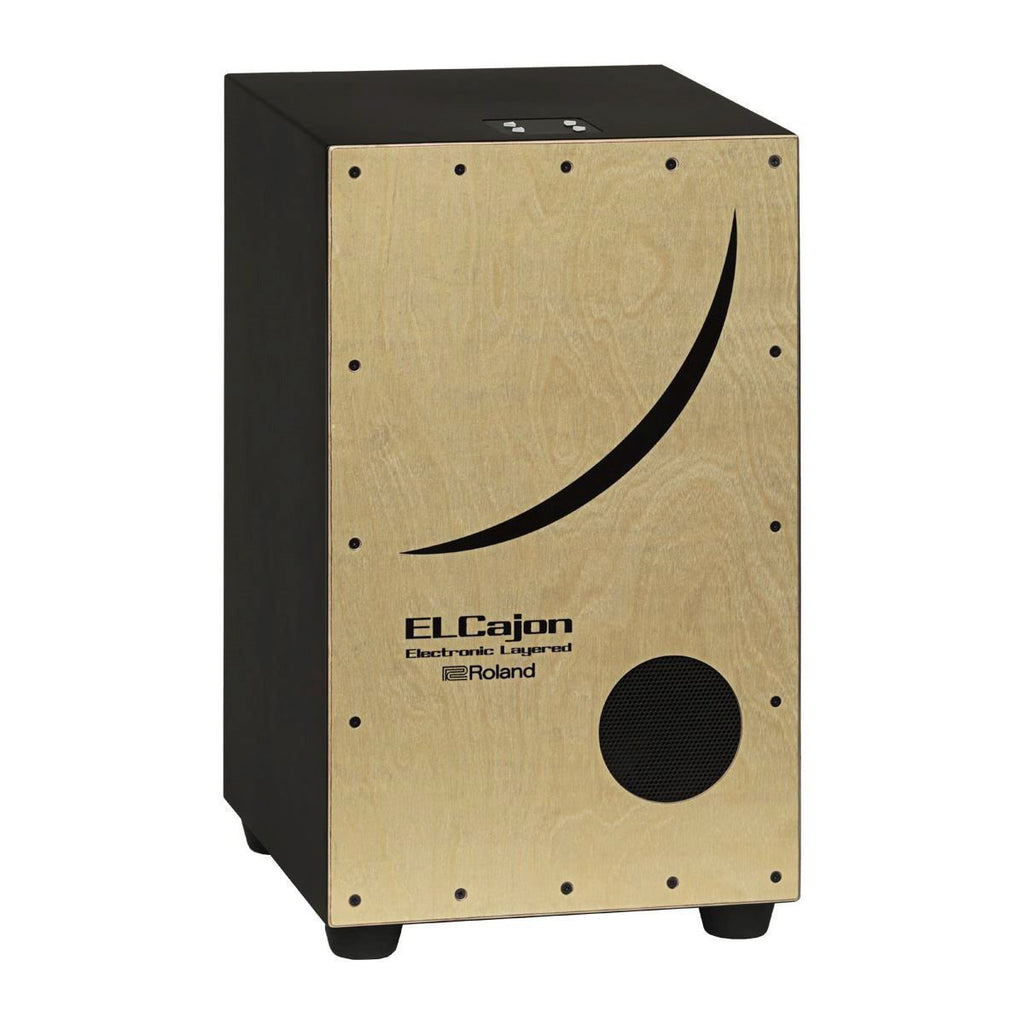

Roland ELCajon EC-10 Electronic Layered Cajon (EL Cajon EC10)

Roland's innovative EL (electronic layered) Cajon EC-10 is an authentic, quality acoustic cajon that sounds great on its own, but also allows layering of electronic sounds. It has Roland’s renowned electronic percussion technology built in, letting you blend a range of complementary sounds with the cajon's own acoustic sounds - from acoustic snare sounds, electronic drums and sound effects to traditional percussion like tambourine and shaker and much more. With battery power and onboard amplification, the EC-10 is completely self-contained.

SPECIFICATIONS

Playing Plate: Sapele Plywood

Resonance Box: MDF (Medium Density Fibreboard)

Speaker: Coaxial 16 cm (6.5 inches)

Rated Power Output: 3W

Nominal Input Level: MIX IN: -10 dBu

Layered Sound Kit Variation: 30 (Cajon: 10, Percussion: 10, SFX: 10)

Layered Sound Contents: 2 (Head, Edge)

Rear Panel Controls: POWER switch, VOLUME knob, TRIGGER BALANCE knob

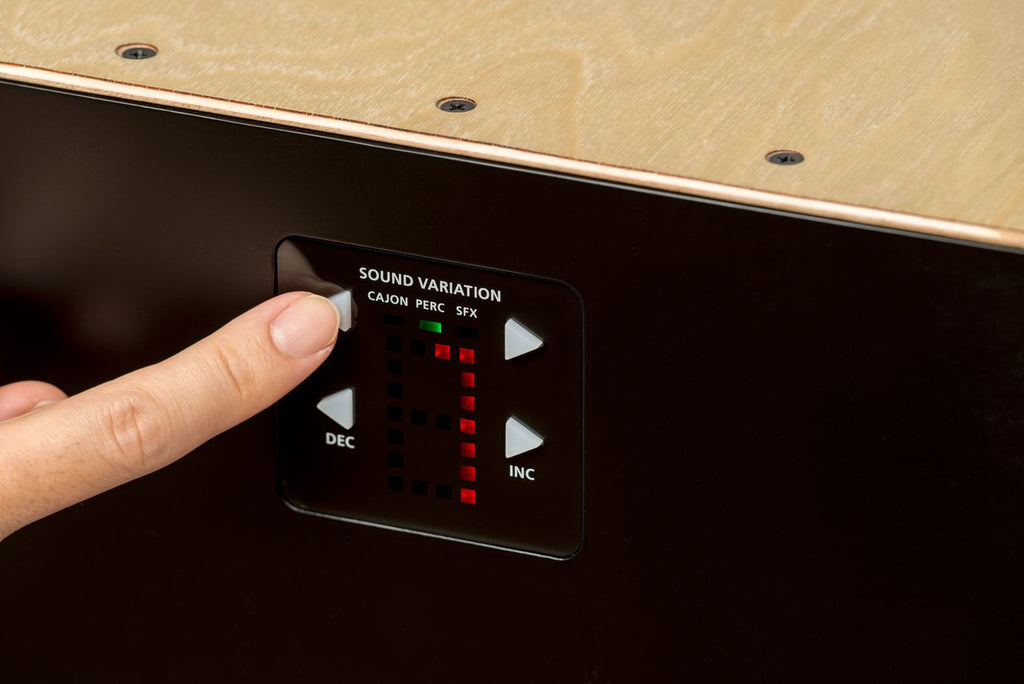

Top Panel Controls: Sound Group Select button x2, Kit Number Select button x2

Indicators: Sound Group, Kit Number

Connectors: ELECTRONIC SOUND OUT jack: 1/4-inch phone type, MIX IN jack: Stereo miniature phone type, AC ADAPTOR jack

Power Supply: AC adaptor (DC 5.7 V), Alkaline battery (AA, LR6) x6

Current Draw: 250 mA

Expected battery life under continuous use: Normal use: Approx. 12 hours, Maximum load use: Approx. 6 hours
*These can vary depending on the specifications of the batteries, capacity of the batteries and the conditions of use.

Accessories: Owner's manual, Leaflet "USING THE UNIT SAFELY", AC adaptor

Size: 295 x 298 x 495 mm
Weight: 6.0 KG

*0 dBu = 0.775 Vrms
