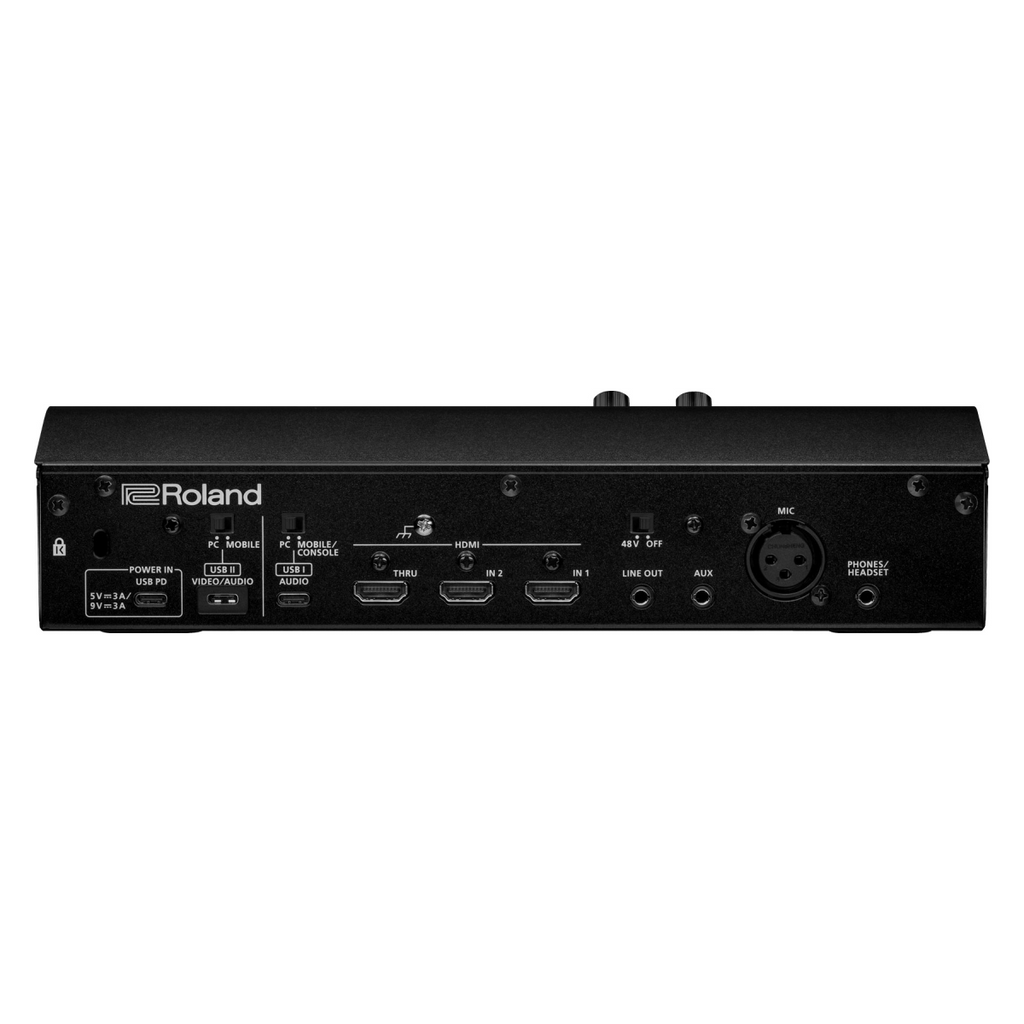

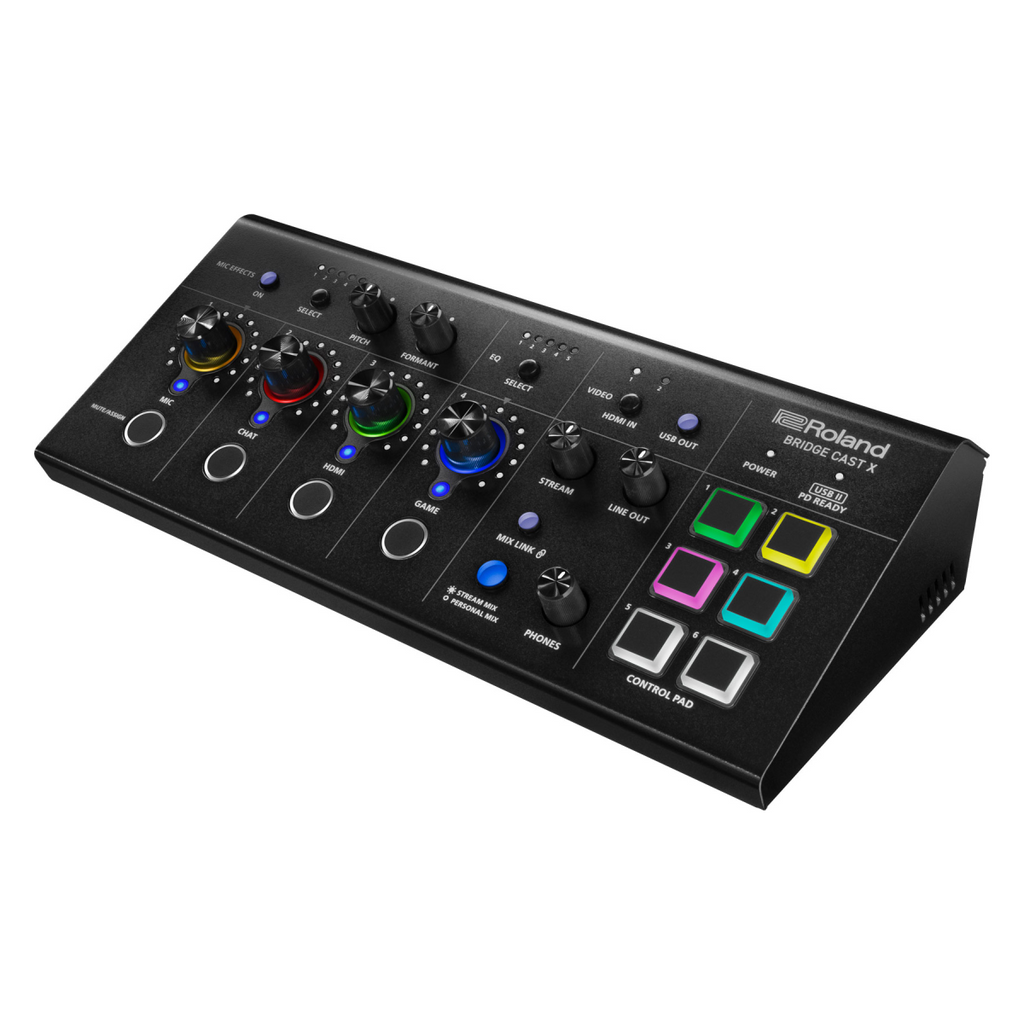

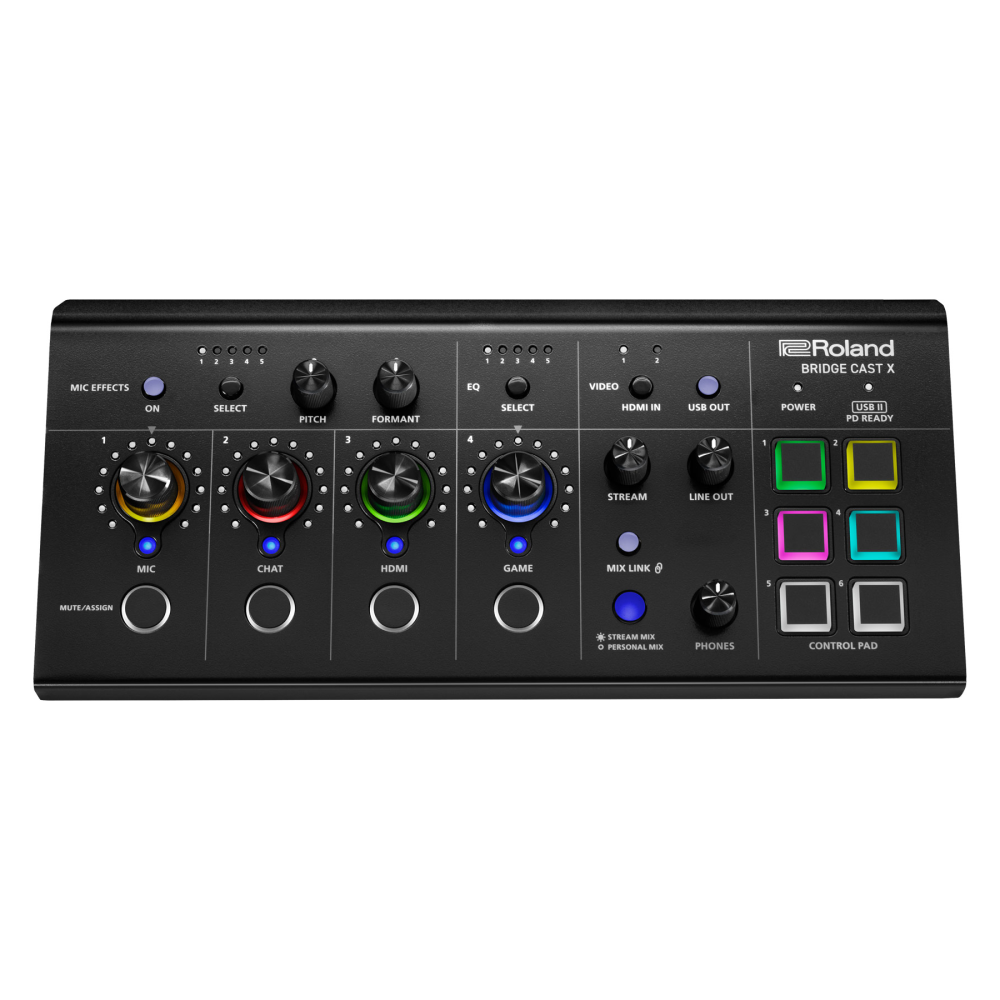

Roland BRIDGE CAST X Dual Bus Streaming Mixer and Video Capture

Features Professional AV streaming interface for online gamers, podcasters, and vloggers Connect multiple devices at once and switch up your streaming setup without having to repatch cables Two USB-C ports for computers and mobile devices Two HDMI inputs for gaming consoles, cameras, and more HDMI Thru for connecting to an external video monitor Powerful 32-bit hardware DSP allows you to dedicate all your sources to gaming and streaming Create independent mixes for you and the online audience with dual audio busses High-quality XLR microphone preamp with phantom power for broadcast-grade mics Headphones jack with a professional high-sensitivity output and support for a headset or inline mic Hands-on knobs and buttons for quick sound control Six assignable control pads for sound FX, Game EQ presets, OBS shortcuts, and more Solid, streamlined design with adjustable knob LED colors Voice Changer effects derived from the Roland VT series High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb Enhance your gaming performance with five customizable Game EQ presets Delay function to synchronize audio with video when needed Aux input for playing audio from a smartphone or external device Customize settings and save hardware configurations with the BRIDGE CAST app Add royalty-free background music and sound effects to your streams with BGM CAST, available through the BRIDGE CAST app and Roland Cloud Specifications Video: 1280 x 720/50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F) 1920 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F) 2560 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F) 3840 x 2160/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F) 1280 x 720/60Hz (VESA DMT) 1920 x 1080/60Hz (VESA DMT) 2560 x 1440/60Hz (VESA CVT Reduced Blanking) 2560 x 1080/60Hz (VESA CVT Reduced Blanking) 3440 x 1440/60Hz (VESA CVT Reduced Blanking) 1920 x 1080/240Hz 2560 x 1080/144Hz 2560 x 1440/144Hz 3440 x 1440/100Hz * The listed refresh rate (Hz) is the maximum value of each resolution. * HDR (High Dynamic Range) Supported HDMI IN/THRU Formats (When using USB video output) 1280 x 720/50p, 59.94p, 60p (CTA-861-F) 1920 x 1080/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F) 3840 x 2160/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F) USB Video Output Format YUY2 (Uncompressed), Motion JPEG (Compressed) USB Video Output Resolution 1920 x 1080, 1280 x 720, 640 x 480 * Maximum frame rate is 60 fps. Input Channel Audio - MIC AUX HDMI (*1) USB CHAT (*2) USB GAME (*2) USB MUSIC (*2) USB SYSTEM (*2) CONSOLE/MOBILE (*3, *4) (*1) Linear PCM 48 kHz, 2ch, 5.1ch, 7.1ch (*2) When the USB port connection setting is PC (*3) When the USB I port connection setting is CONSOLE/MOBILE (*4) When the USB II port connection setting is MOBILE Output Channel LINE OUT PHONES AUX (*5) USB MIC (*5) USB STREAM (*6) USB PERSONAL (*6) USB CONSOLE/MOBILE (*7, *8) (*5) Microphone audio is output from the CTIA MIC jack (*6) When the USB port connection setting is PC (*7) When the USB I port connection setting is CONSOLE/MOBILE (*8) When the USB II port connection setting is MOBILE Audio Mixing Bus 2 (STREAM MIX, PERSONAL MIX) Sampling Frequency Windows: 44.1 kHz, 48 kHz, 96 kHz macOS/iOS/Other: 48 kHz Signal Processing AD/DA: 24 bits Internal Processing: 32-bit Floating point Effects MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut CHAT: De-esser, Compressor HDMI: Equalizer, Virtual Surround GAME: Equalizer, Virtual Surround STREAM: Delay Audio File Player Number of tracks: 2 Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono) Maximum Time: 5 seconds/track Input Level MIC: -87-- -12 dBu (Maximum: 0 dBu) HEADSET MIC: -56-- -12 dBu (Maximum: 0 dBu) AUX: -10 dBu (Maximum: +2 dBu) Input Impedance MIC: 8 k ohms HEADSET MIC: 1.3 k ohms AUX: 10 k ohms Output Level LINE OUT: -4 dBu (Maximum: +8 dBu) PHONES/HEADSET: +1 dBu (Maximum: +13 dBu) PHONES/HEADSET: 78 mW + 78 mW (32 ohms) PHONES/HEADSET: 35 mW + 35 mW (250 ohms) Output Impedance LINE OUT: 1.1 k ohm PHONES/HEADSET: 10 ohms AUX (MIC): 940 ohms Others Connectors - MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max) PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power) AUX jack: Stereo miniature phone type (TRRS) LINE OUT jack: Stereo miniature phone type (TRS) HDMI IN 1--2, THRU jack: HDMI type A (*9, *10) USB I port: USB Type-C(R) (*11) USB II port: USB Type-C(R) (*12, *13) USB POWER IN port: USB Type-C(R) (*14) (*9) HDCP Supported (*10) Multi-format Supported (*11) Audio/MIDI/HID Supported (*12) Video/Audio/MIDI/HID Supported (*13) Capable of supplying power to USB PD (Power Delivery) compatible smartphones (When 9V/3A is supplied to USB POWER IN jack) (*14) Requires a USB PD compatible AC adapter capable of supplying 5V/3A or 9V/3A Power USB bus power (*15) USB PD compatible AC adaptor (sold separately) (*15) Bus-powered operation when connected to USB II port with a PC capable of supplying 5V/3A power Current Draw 5 V DC, 3 A 9 V DC, 3 A (*16) (*16) When supplying power to a smartphone connected to USB II port Operating System Microsoft Windows 10, Windows 11 Apple macOS 12 or later Apple iOS 16 or later * Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the BRIDGE CAST X, Roland cannot guarantee that a given computer can be used satisfactorily with the BRIDGE CAST X based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.
