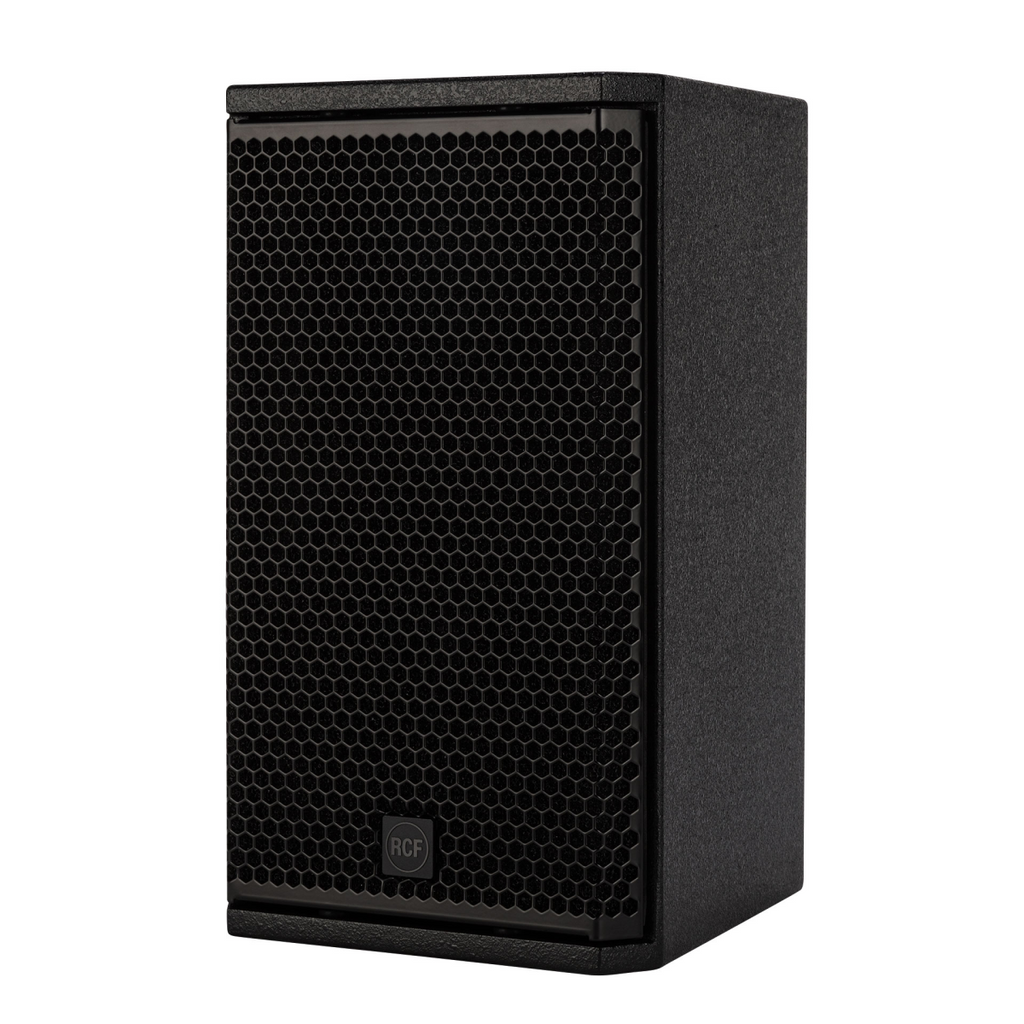

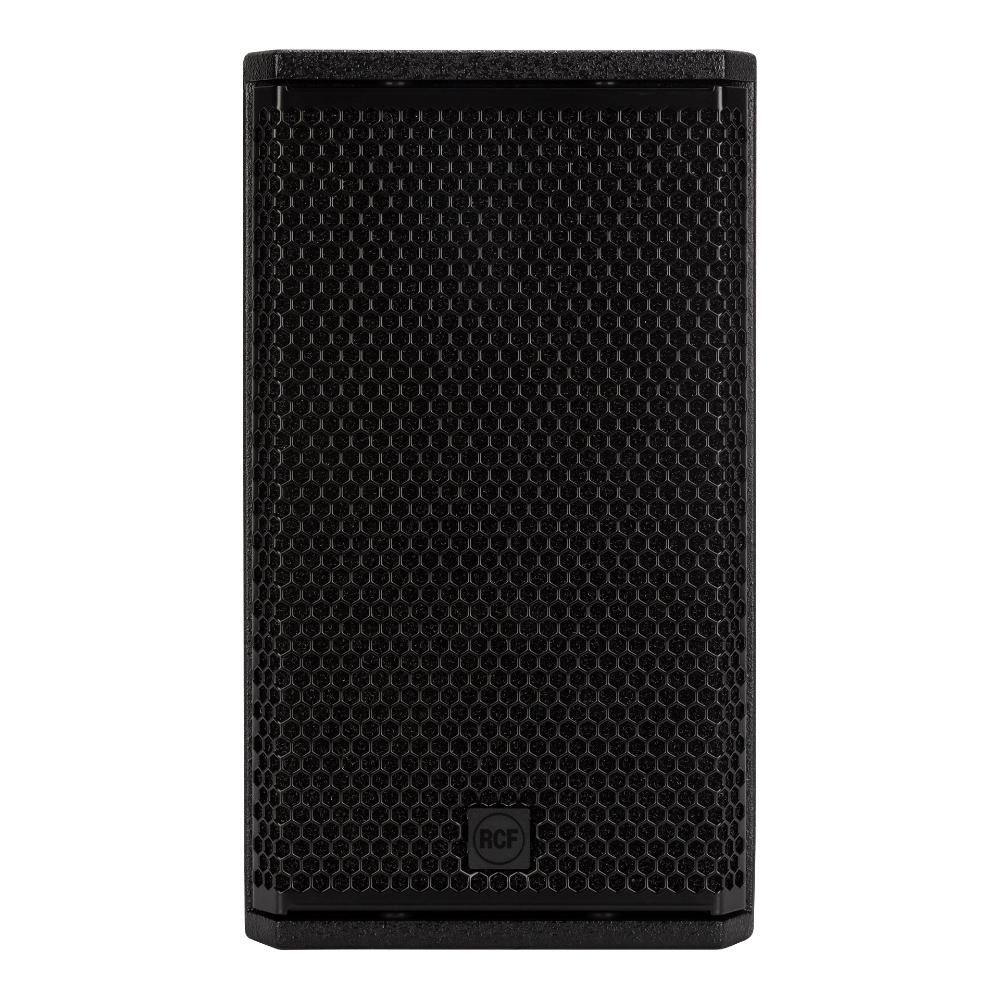

RCF Compact M 06 6 Passive Installation Speaker

The M 06 features high sensitivity typical of professional audio enclosures thanks to the use of oversized magnets and high fidelity sound quality with a smooth, wide frequency response thanks to the wave-guided neodymium dome tweeter. The sound pressure levels of low distortion audio that the M 06 can deliver far exceed expectations for such a compact solution. Thanks to its elegant and compact design with careful craftsmanship, the M 06 is suitable for almost any environment, even with architectural limitations. Optional mounting accessories allow the M 06 to be mounted on a wall or ceiling. Features 100 W RMS power handling 116 dB max SPL 60 ÷ 20000 Hz frequency range 120° x 80° constant directivity coverage angle 1 x 6 high power woofer 1 x 1 voice coil neodymium dome tweeter High quality plywood cabinet Steel front grille with clothing Installation points available on rear, top and bottom panels 4 pole EUROBLOCK connector (audio input and parallel link output) Specifications Acoustical Specifications Frequency Response (-10dB): 60 Hz ÷ 20000 Hz Max SPL @ 1m: 116 dB Horizontal coverage angle: 120° Vertical coverage angle: 80° Directivity index Q: 7 System Sensitivity: 90 dB Power Section Amplification: Full Range Nominal Impedance: 8 ohm Power Handling: 100 W Peak Power Handling: 400 W PEAK Protections: Dynamic active mosfet Crossover Frequencies: 2200 Hz Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, DMA 82 Transducers Dome Tweeter: 1 x 1.3'' neo, 1.0'' v.c Woofer: 1 x 6.0'', 1.5'' v.c Input/Ouput Section Input connectors: Euroblock Output connectors: Euroblock Standard Compliance Safety agency: CE compliant Physical Specifications Hardware: 4 x M6, 2 x M8 Color: Black - RAL 9005, White - RAL 9003 Product Size Height: 365 mm / 14.37 inches Width: 211 mm / 8.31 inches Depth: 232 mm / 9.13 inches Weight: 5.5 kg / 12.13 lbs
