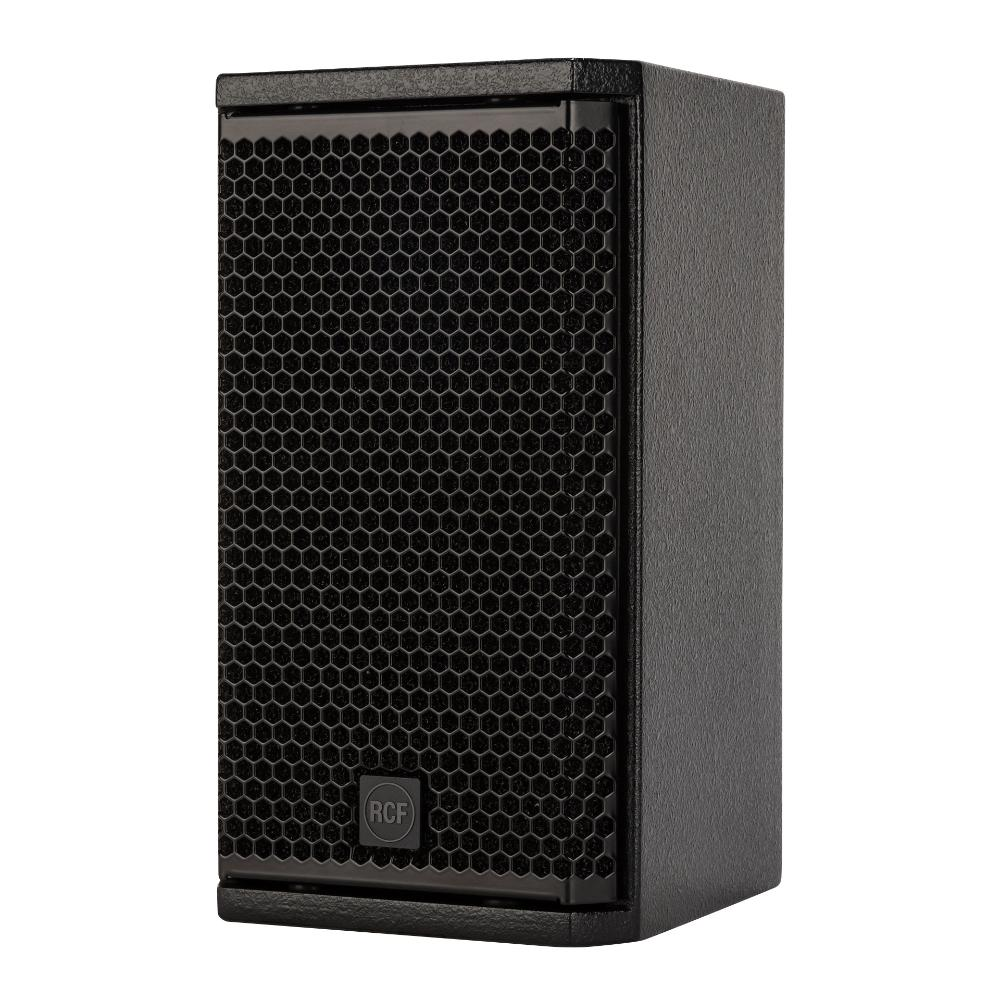

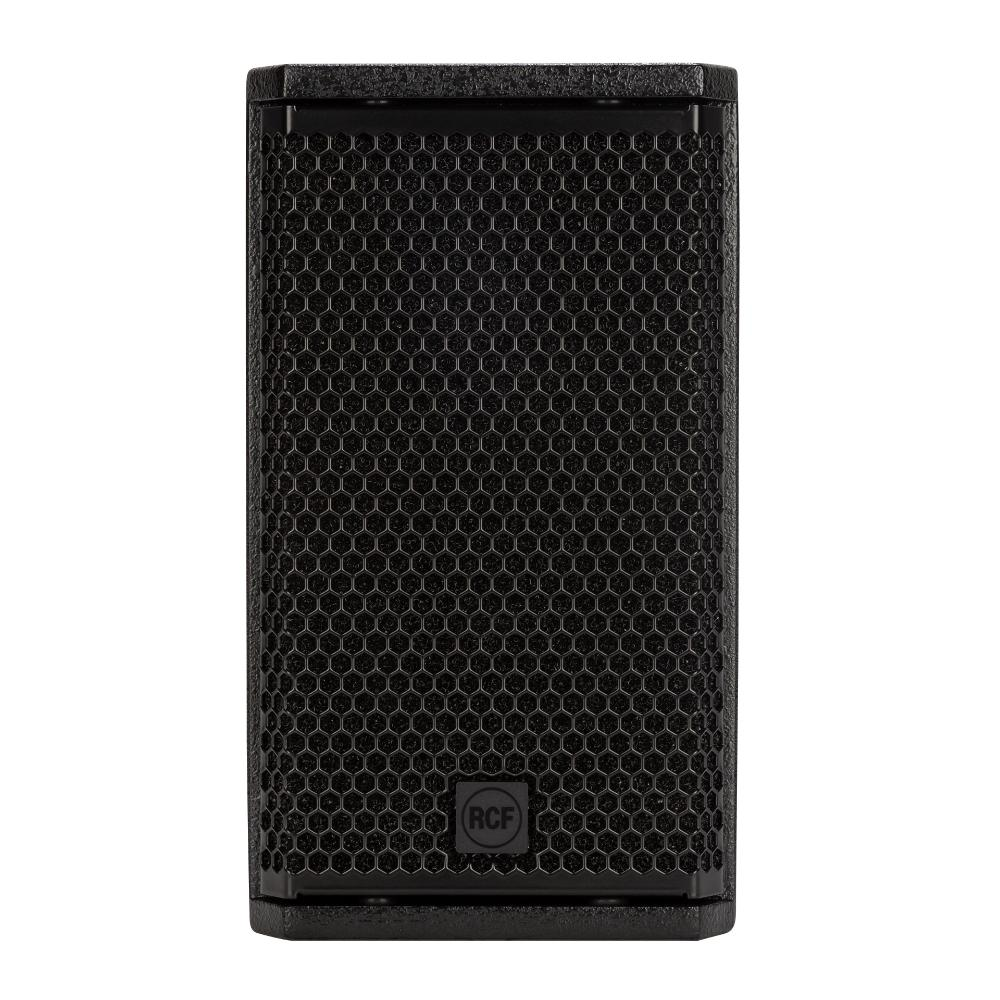

RCF Compact M 05 5 Passive Installation Speaker

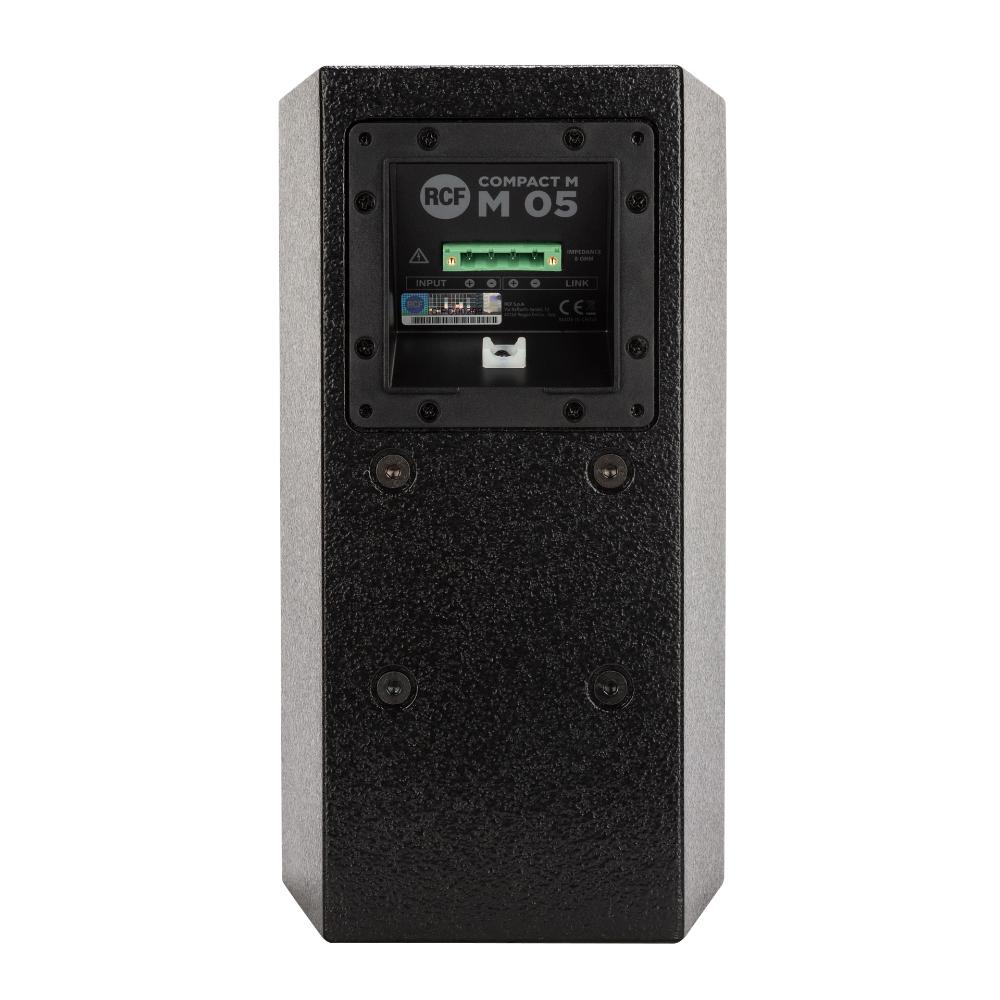

The M 05 features high fidelity sound quality with the high sensitivity typical of professional audio enclosures thanks to the use of oversized magnets and a smooth, wide frequency response thanks to the wave-guide neodymium dome tweeter. The sound pressure levels of low distortion audio that the M 05 can deliver far exceed expectations for such a compact solution. The elegant and compact design with careful craftsmanship makes the M 05 suitable for almost any environment, even with architectural limitations. Optional mounting accessories allow you to mount the M 05 on a wall or ceiling. Features 80 W RMS power handling 115 dB max SPL 70 ÷ 20000 Hz frequency range 120° x 80° constant directivity coverage angle 1 x 5 high power woofer 1 x 1 voice coil neodymium dome tweeter High quality plywood cabinet Steel front grille with clothing Installation points available on rear, top and bottom panels 4 pole EUROBLOCK connector (audio input and parallel link output) Specifications Acoustical Specifications  Frequency Response (-10dB):70 Hz ÷ 20000 Hz Max SPL @ 1m: 115 dB Horizontal coverage angle: 120° Vertical coverage angle: 80° Directivity index Q: 7 System Sensitivity: 89 dB Power Section Amplification: Full Range Nominal Impedance: 8 ohm Power Handling: 80 W Peak Power Handling: 320 W PEAK Crossover Frequencies: 2200 Hz Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, DMA 82 Transducers Dome Tweeter: 1 x 1.3'' neo, 1.0'' v.c Woofer: 1 x 5.0'', 1.2'' v.c Input/Output Section Input connectors: Euroblock Output connectors: Euroblock Standard Compliance Safety agency: CE compliant Physical Specifications Hardware: 4 x M6, 2 x M8 Color: Black - RAL 9005 Product Size Height: 443 mm / 17.44 inches Width: 630 mm / 24.8 inches Depth: 500 mm / 19.69 inches Weight: 27.5 kg / 60.63 lbs
