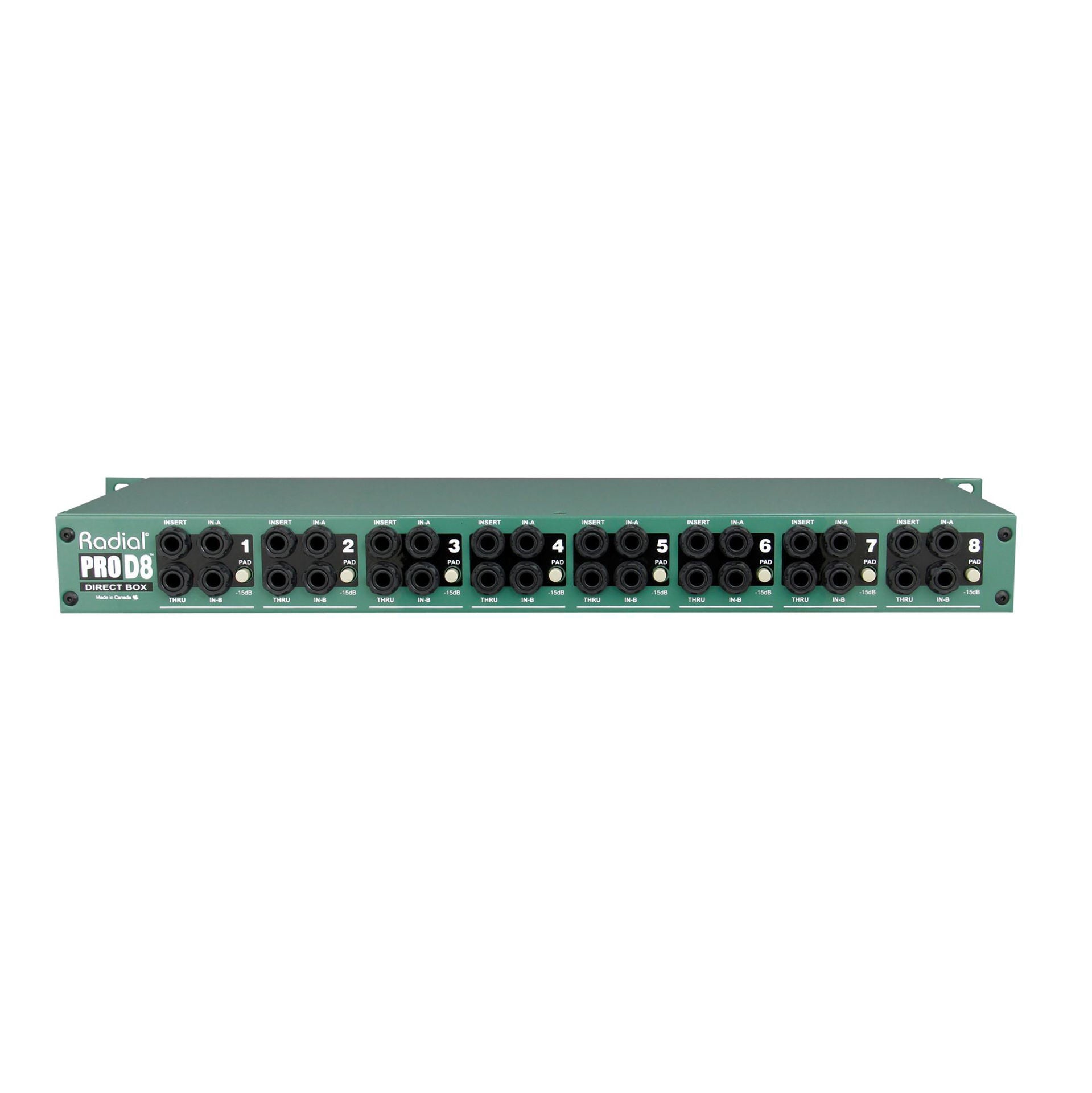

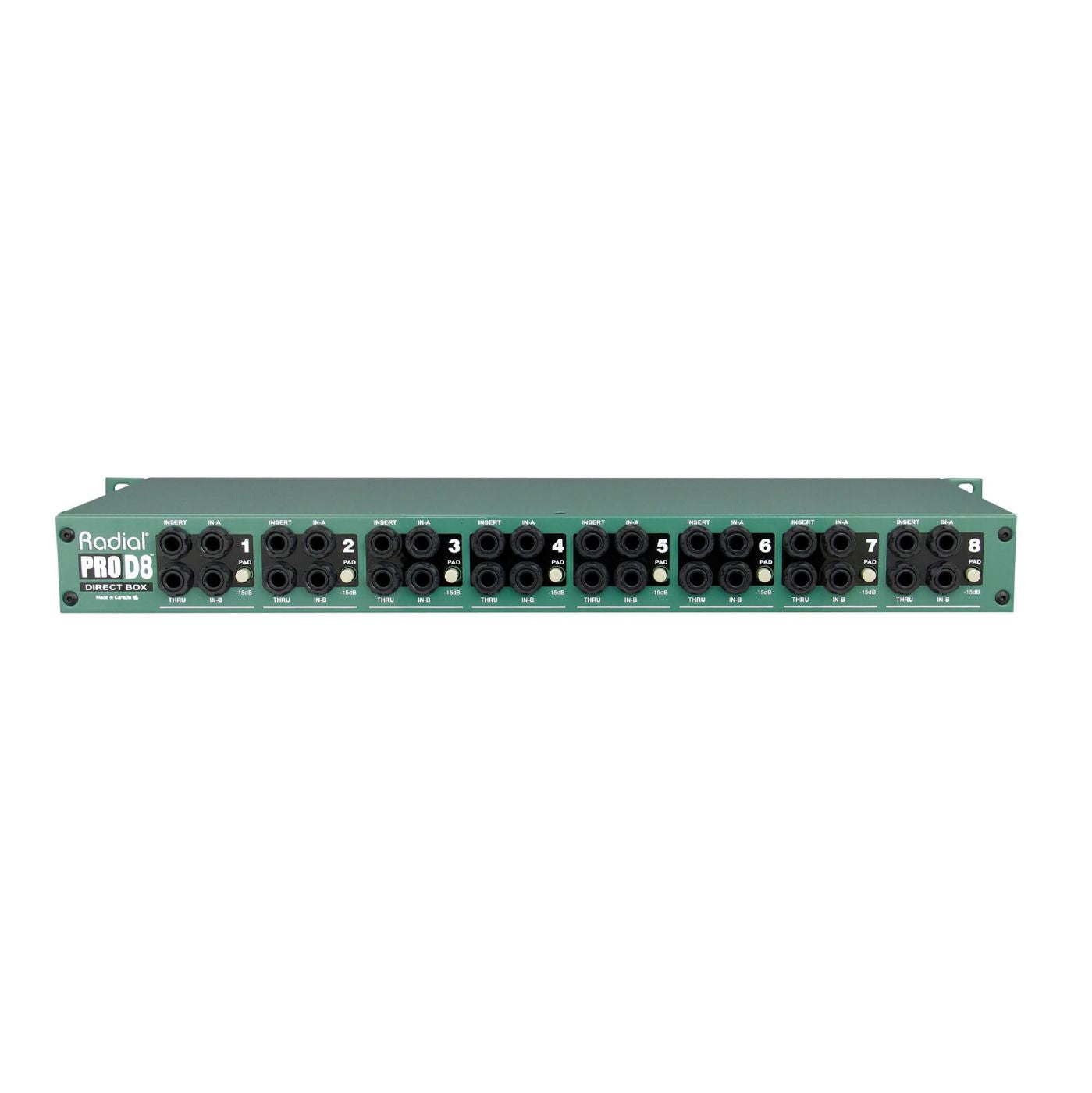

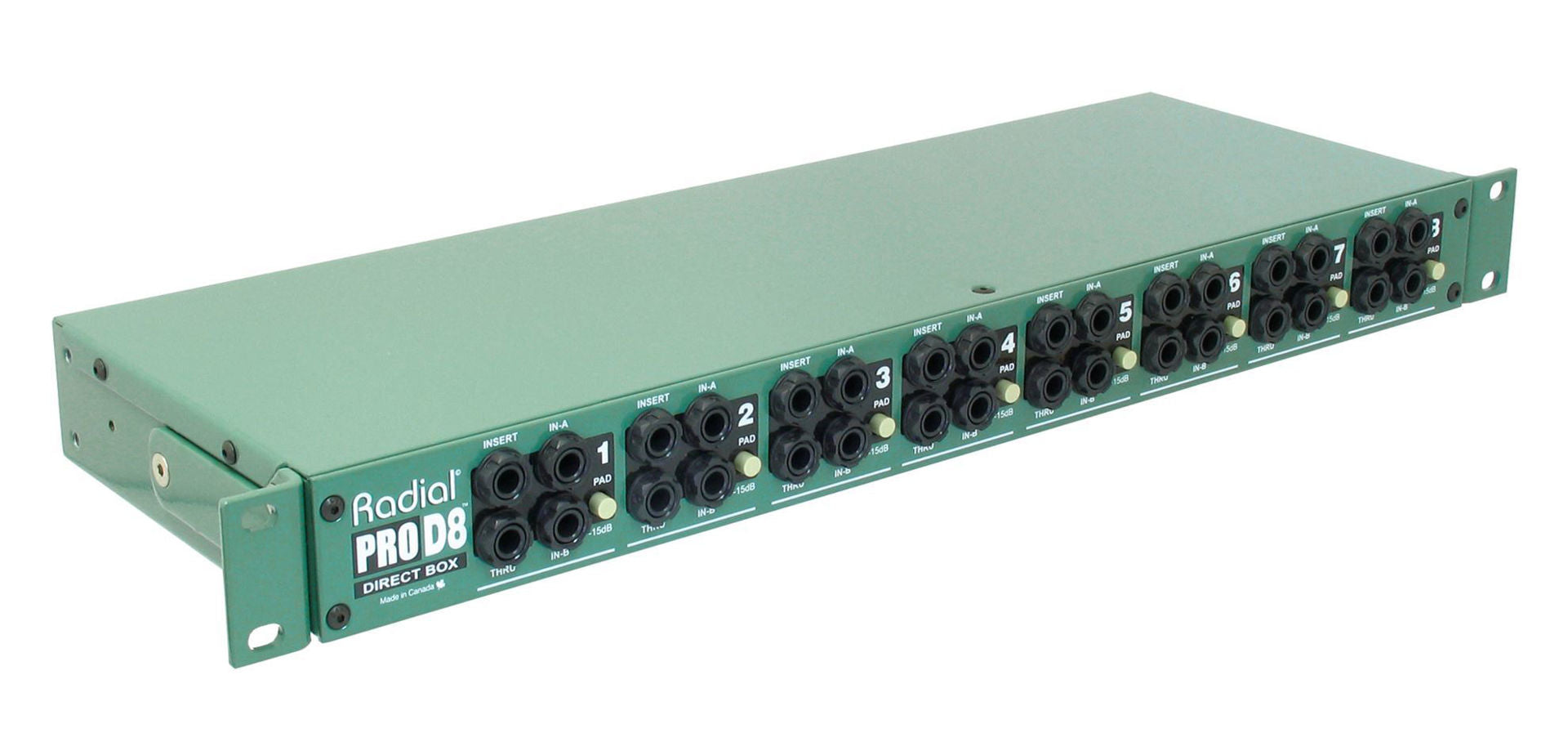

Radial ProD8 8 channel passive instrument direct box with multiple input/output connections on a professional interface.
1/6
  • Radial ProD8 8 channel passive instrument direct box with multiple input/output connections on a professional interface.
  • Radial ProD8 8 Channel Passive Instrument Direct Box with multiple input jacks and robust metal housing.
  • Radial ProD8 8-channel passive instrument direct box on a wooden surface with input/output connections visible.
  • Radial ProD8 8 Channel Passive Instrument Direct Box with multiple input channels and sturdy design for live audio settings.
  • Radial ProD8 8 channel passive instrument direct box with multiple inputs and sturdy design for live sound applications.
  • Radial ProD8 8 Channel Passive Instrument Direct Box with multiple input jacks and robust metal housing.
Radial ProD8 8 Channel Passive Instrument Direct Box
enquire

Radial ProD8 8 Channel Passive Instrument Direct Box

$1,769.00 AUD $2,199.00 AUD
Brand: Radial Engineering
SKU: RA-PROD8

Rent from

Enquire now
Enquire now

Mega Music Myaree

Out of stock in store

Mega Music Wangara

Out of stock in store

Mega Music Warehouse

Out of stock in store

Radial ProD8 8 Channel Passive Instrument Direct Box

Mega Music Myaree

Out of stock in store

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Out of stock in store

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236

Mega Music Warehouse

Out of stock in store
Description

Features

  • High density 8-channel rackmount DI for keyboards
  • Reversible rack ears to optimize patching setup
  • Withstands extreme dynamics from high-output sources
  • Redundant inputs let you incorporate a backup system

Specifications

  • Audio circuit type: Passive, transformer based
  • Transformer: Eclipse ET-DB2, 12:1 ratio
  • Number of channels: 8
  • Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
  • Dynamic range: 128dB
  • Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
  • Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
  • Input Impedance: 140k Ohms, unbalanced
  • Output Impedance: 150 Ohms, balanced
  • Maximum Input: +18dB @ 20Hz
  • Input Connectors: 1/4"
  • Output Connectors: XLR
  • Construction: 14 gauge steel chassis & outer shell
  • Size (L x W x D): 19" x 6.25" x 1.75" (48.3cm x 15.875cm x 4.45cm)
  • Weight: 7.2lb (3.26 kg)
  • Shipping size (L x W x D): 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)
  • Shipping weight: 8.30lb (3.76 kg)
  • Power: Passive, no power required
  • Conditions: For use in dry locations only between 5°C and 40°C
