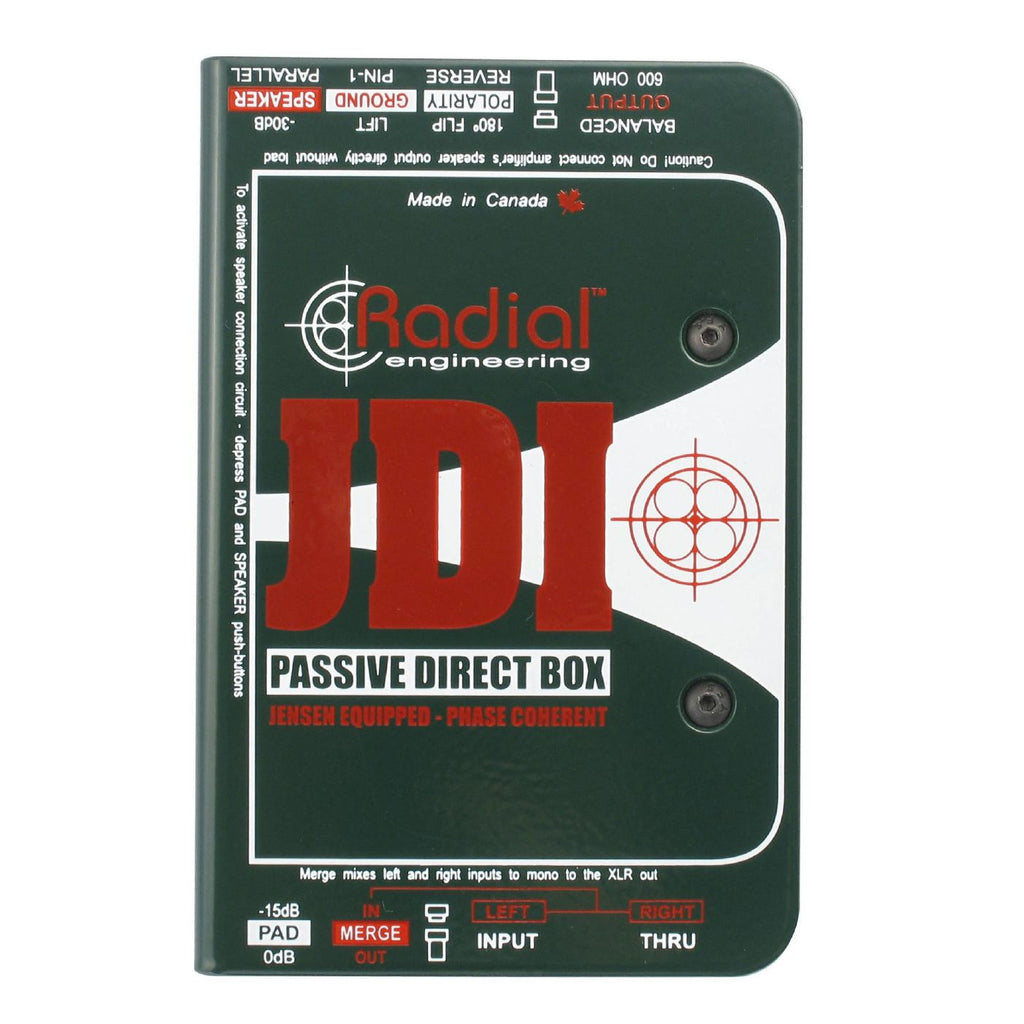

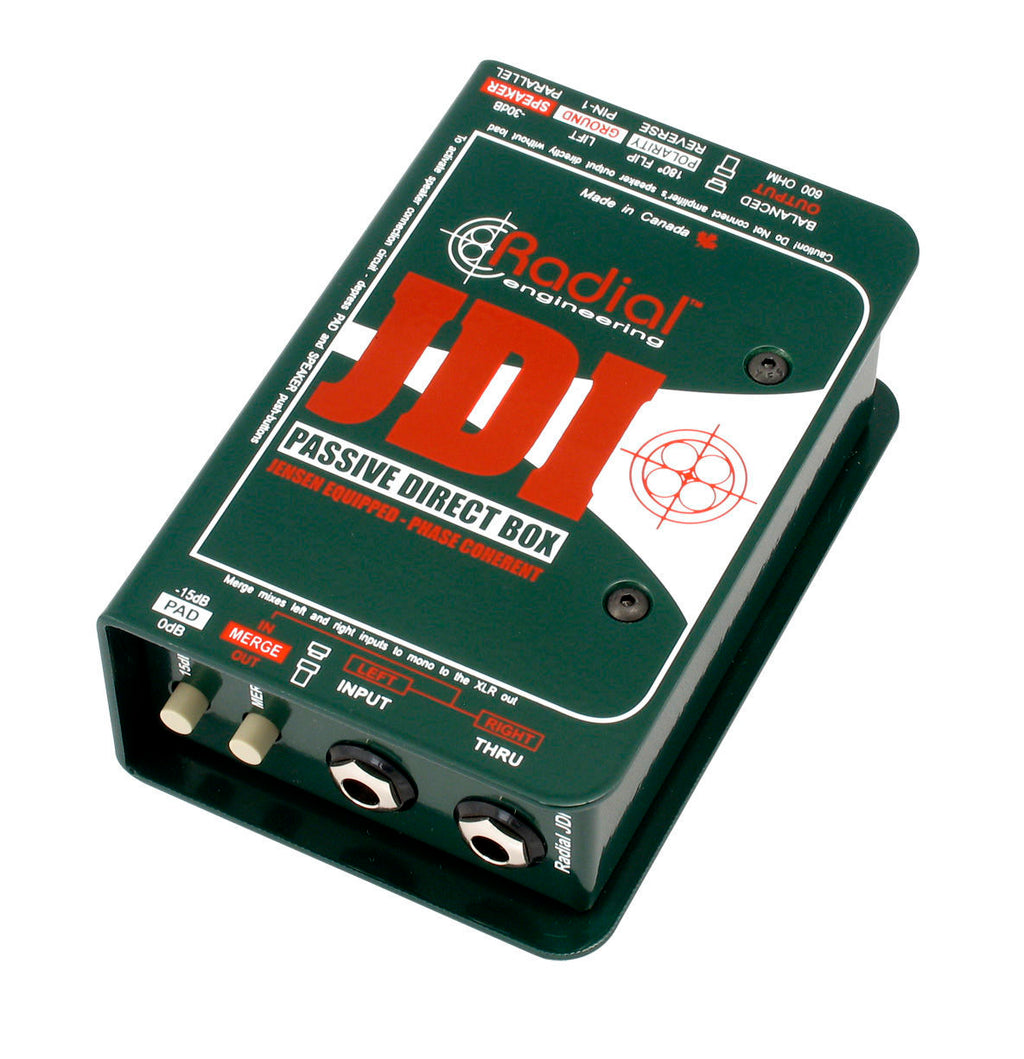

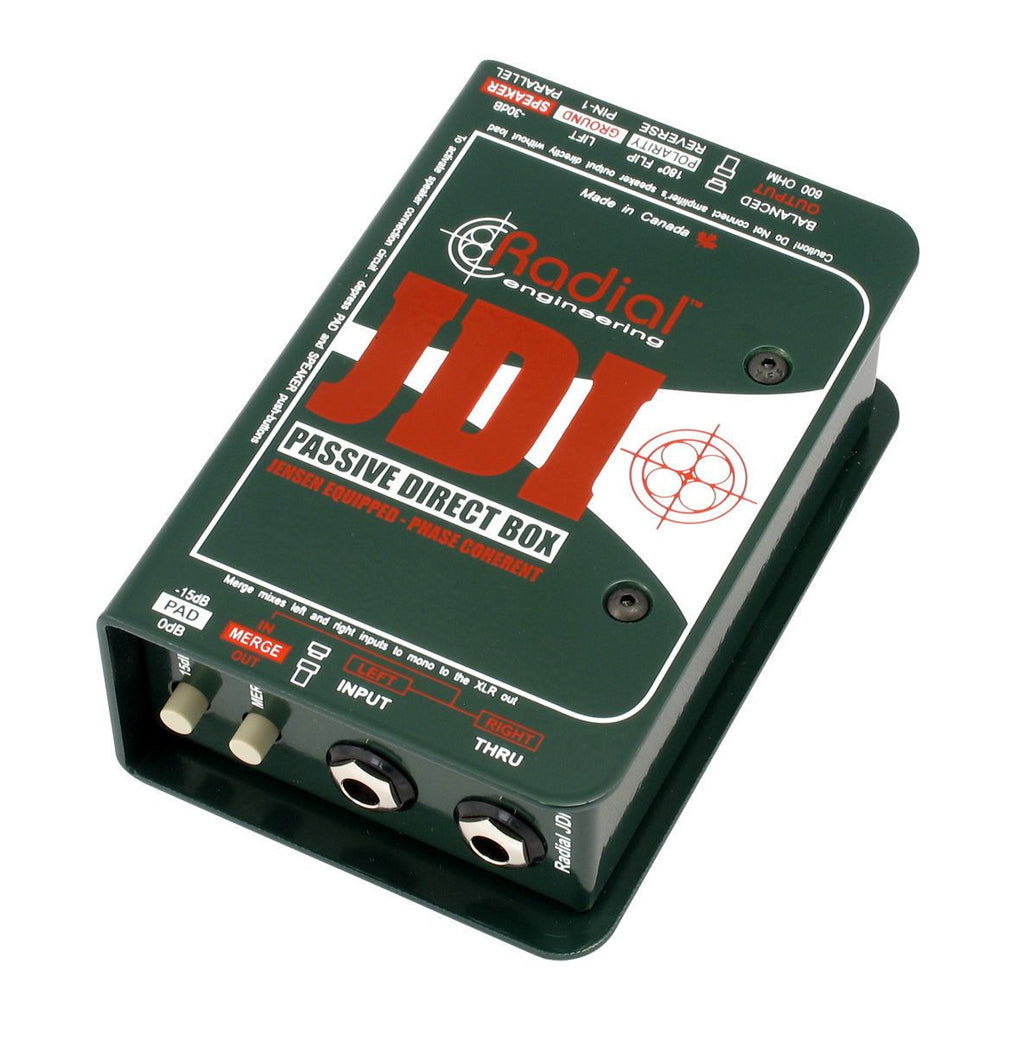

Radial JDI 1 Channel Passive DI Box with Jensen Transformer

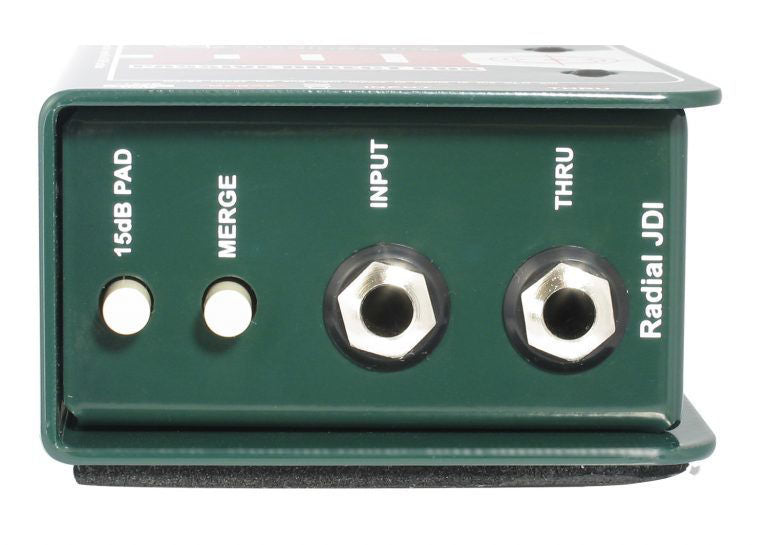

The Radial JDI is a passive direct box designed to handle extreme signal levels without distortion of any kind. At the heart, the Radial JDI employs the world class Jensen JT-DB-EPC audio transformer delivering a smooth, warm sounding Bessel curve, reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI delivers the natural, pure sound of the instrument without artifact. By its no-power passive design, the Radial JDI performs both high-to-low impedance conversion and signal balancing over a magnetic bridge that passes signal while rejecting stray DC voltage. This makes the JDI particularly adept at eliminating hum and buzz caused by ground loops. Features 15dB PAD switch - a -15dB pad can be introduced to reduce the input voltage and ensure a clean, distortionfree signal. MERGE switch - left-right mix function turns the input and thru-put connectors into a pair of left-right inputs with a mono output at the XLR. INPUT - 1/4 jack, 130k Ohm instrument input. THRU - 1/4 jack, thru-put to send instrument signal through to the instrument amplifier. Protective bookend cover overhangs the chassis providing protection for switches and connectors. Welded I-beam construction for maximum strength and durability and a baked enamel finish offer years of trouble free performance. Full bottom no-slip pad - reduces slipping in use and provides mechanical and electrical isolation. Double sided PC board - military grade circuit board features a full ground plane for maximum protection against stray magnetic fields and RF noise. XLR output connector - wired to the AES standard with pin-1 ground and pin-2 hot, provides a balanced 150 Ohm mic level signal. POLARITY switch - 180º polarity reverse toggles the XLR pin-2 and pin-3 to interface with older equipment. Also used when combining two sources such as a mic and a DI. GROUND switch - lifts the XLR pin-1 ground at the output to eliminate hum and noise caused by ground loops. SPEAKER switch - a pad circuit that allows you to tap the signal from a speaker cabinet. Features a band-pass filter to emulate a 12 driver. Note: Only use in parallel with a speaker cabinet or load box. Specifications Type: Passive Jensen Transformer equipped Input impedance: Unbalanced 140k Ohms typical Output impedance: Balanced 150 Ohms typical Frequency response: 20Hz to 20kHz (+/- 0.2dB) Linear performance: < -0.22 dBr deviation @20kHz Total harmonic distortion: 0.05% @ 20Hz, 0.006% @ 1kHz Phase distortion: 3º at 20Hz, 0.3º at 100Hz Maximum input level: +21dBu @ 20Hz (1% THD) Size: 3.5 wide, 2 high, 5.5 deep Weight: 1kg / 2.2lbs Construction: Welded 14-gauge steel Finish: Baked enamel finish WATCH: The Radial JDI explained
