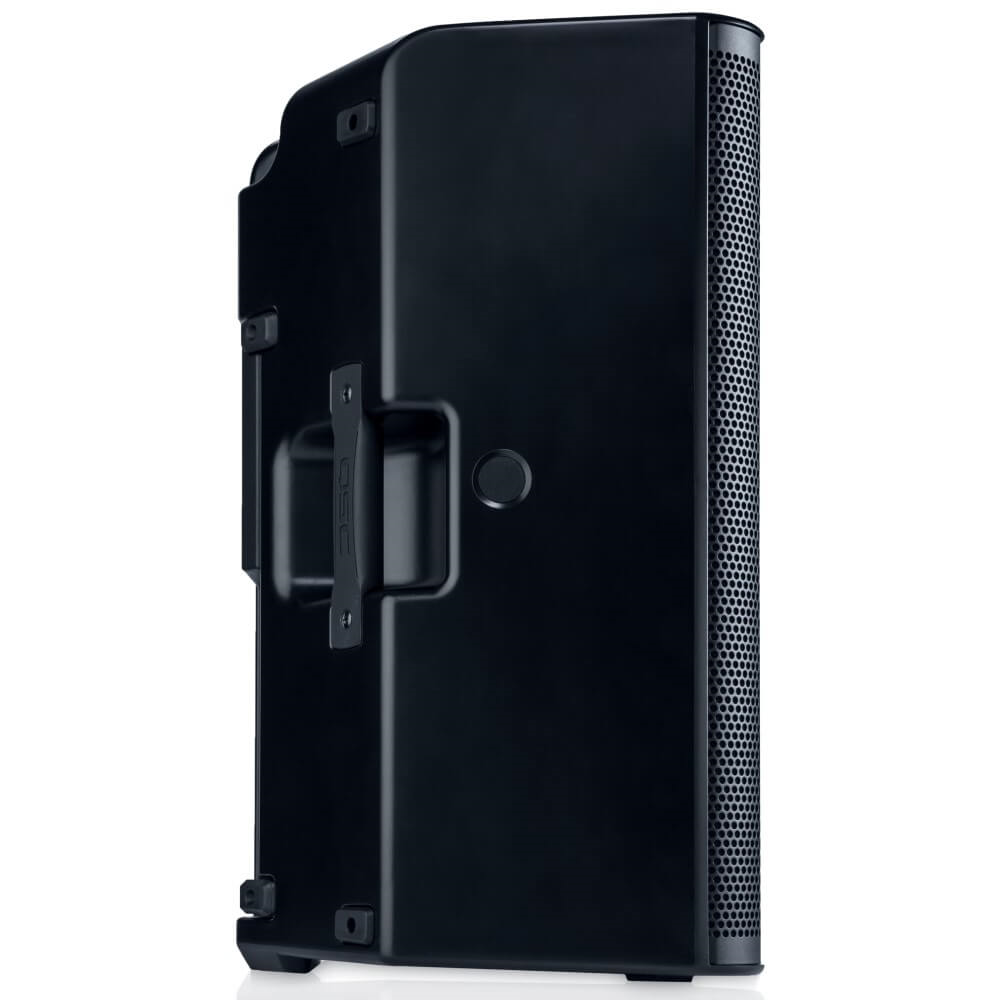

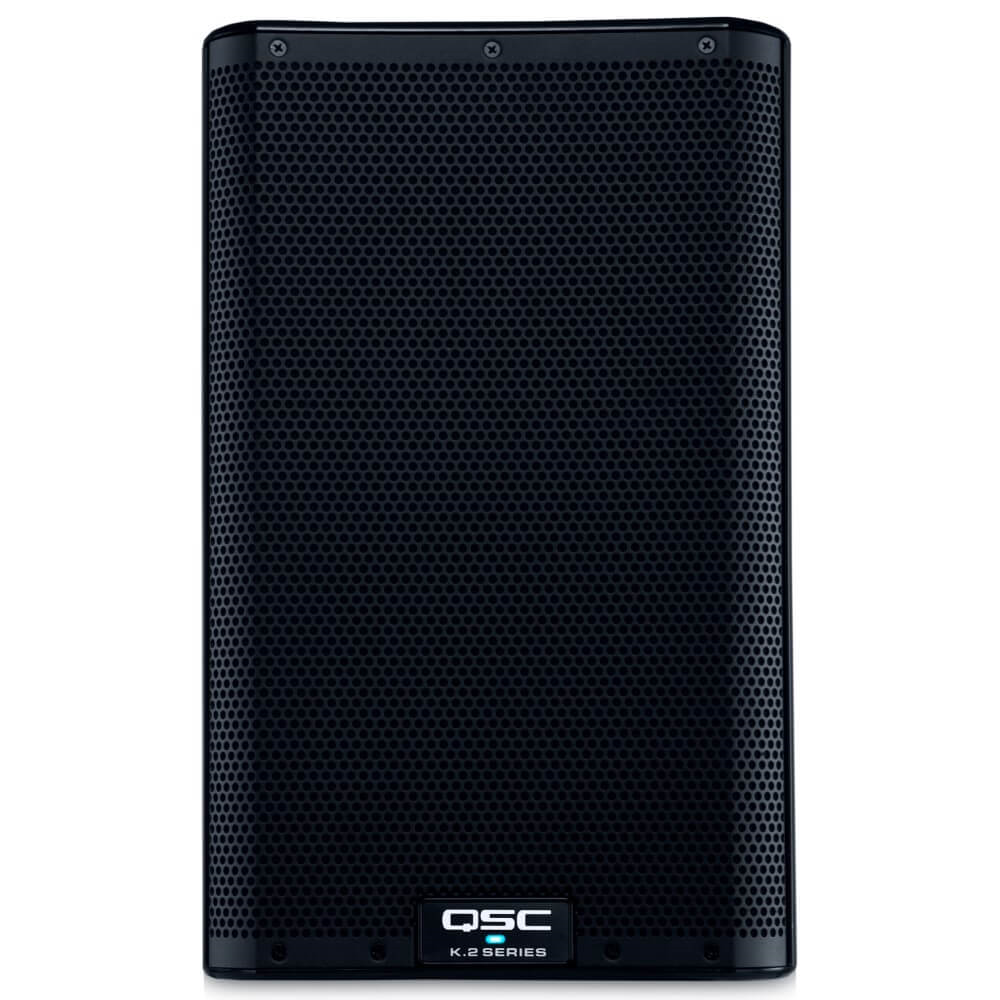

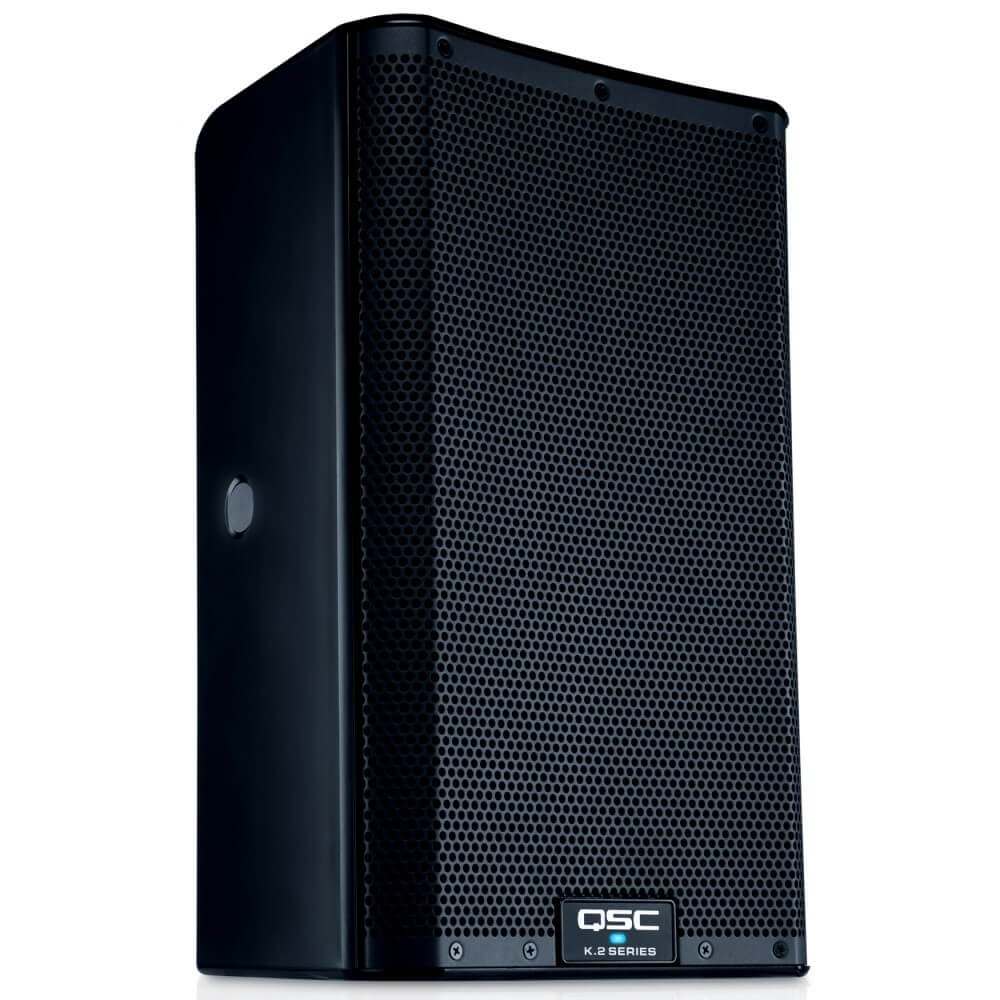

QSC K8.2 2000W 8 Two-Way Active PA Loudspeaker

Featuring a 2000W power amplifier, meticulously matched to high-performance woofers and compression drivers, the QSC K.2 Series loudspeakers set the new standard in powered loudspeakers. Featuring cutting-edge DMT (Directivity-Matched Transition), these speakers deliver smooth, balanced coverage across the entire listening area, and the advanced integrated DSP provides Intrinsic Correction voicing and advanced system management, to give you the most out of your speakers.

• Best in class audio performance
• 2000 Watt Class-D amplifier module
• Intrinsic Correction™ tuning and loudspeaker management
• Directivity Matched Transition^® (DMT) design provides excellent power response and consistent performance across the listening area
• Refined, professional appearance looks great in any application
• Rugged ABS enclosure for long life and lasting durability
• Deployment in either main PA or floor monitor position
• Factory Presets and savable/recallable Scenes for commonly-used application
• Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
• Dual pole cup mounts (standard and 7.5 degree down-tilt)
• M10 fittings for flown applications
• Optional security panel prevents unauthorized tampering of controls
• Complete EASE and CAD information available online
• 6-Year Warranty (with product registration)

Versatile Function and Installation

Incredibly versatile, the K.2 Series includes a collection of preset contours for common applications, like Stage Monitor, Dance Music, Musical Instrument Amplification, Hand-Held Microphone, and more, while also providing user-defined Scenes to store your favorite settings like input type, delay, EQ, crossover, and selected contour. Each model in the series can be flown, wall - or truss-mounted, or mounted on a traditional speaker pole, either straight-firing, or with a 7.5° down-tilt. The QSC K.2 Series loudspeakers are robust, lightweight, and incredibly sleek - the ultimate live sound companion.

Advanced Power and DSP

Engineered with near-silent fan cooling, the 2000W power module provides plenty of peak and continuous power to drive the loudspeaker's premium drivers, making the K.2 Series speakers the perfect solution for settings where you need to minimize background noise. Meticulously designed, subtle, and complex internal dynamics processing protects the drivers from damage, and preventing distortion in the audio signal.

Presets and Scenes

Select from a library of factory preset EQ contours, like Live, Dance, Monitor, and more. User-definable scenes can be saved and recalled, storing information like user EQ, Delay, and input configuration settings.

I/O

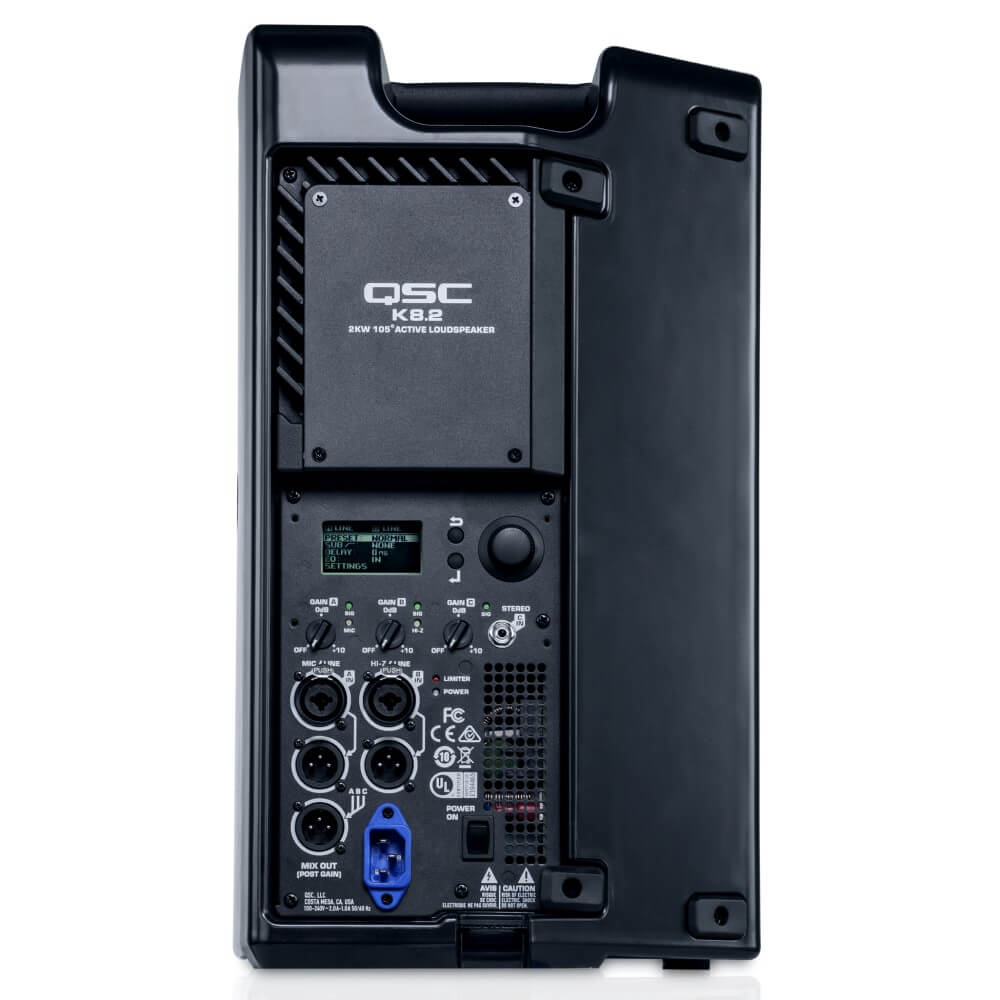

Featuring a pair of balanced combo XLR and ¼" TRS connectors with dedicated gain control, the K.2 Series loudspeaker's inputs include selectable MIC/LINE level input settings for the XLR connectors, and HI-Z/LINE input settings for the TRS connectors - providing flexible input to suit a variety of devices and instruments. Each input is directly connected to a pair of male XLR throughput connectors, allowing you to daisy-chain signals to another audio device. Additionally, this speaker also features a convenient line-level output with the mixed signal from all inputs.

Coverage

QSC's cutting-edge Directivity Matched Transition (DMT) design matches the coverage angle of the woofer at the crossover frequency with the horn pattern, delivering a consistent response across the entire coverage area. Also featuring Intrinsic Correction techniques, the K.2 Series speakers delivers smooth and balanced power response from the loudspeaker - resulting in an outstandingly precise loudspeaker that performs perfectly in a variety of spaces with little to no EQ adjustments.

Flexible Design

Constructed inside robust ABS enclosures, with a professional, yet discreet aesthetics, the K.2 Series loudspeakers will easily find a home in any application or environment. Capable of functioning as either main PA or as a floor monitor, the ergonomic handles and rugged steel grille with fabric lining give these speakers a sleek and sophisticated look, while maximizing performance and protection. When installing on a pole, the featured dual cups enable mounting at either 0° or 7.5° downward tilt, allowing for even greater coverage of the listening area, while minimizing problems caused by rear wall reflections. The integrated M10 fittings with a single pullback are included to accommodate M10 eyebolts for suspended installations.

• Configuration: Multi-Purpose, 2-Way Active Loudspeaker
• Transducers
  • LF Transducer: 8" Cone
  • HF Transducer: 1.4" Titanium Diaphragm Compression Driver
• Audio
  • Frequency Response (-6dB): 59Hz - 20kHz
  • Frequency Range (-10dB): 55Hz - 20kHz
  • Nominal Coverage Angle: 105° Axisymetric
  • Max. SPL (@ 1M Peak): 128dB
  • Max. SPL (@ 1M Continuous): 122dB
  • Amplifier: Class D, 1800W (HF), 225W (LF)
  • Cooling: Low-Noise, Variable Speed Fan
• Controls
  • Power
  • 3x Level
  • Rotary Encoder
  • 2x Selection Buttons
• Display: Monochrome LCD Display - 1.75" x 1"
• Connectors
  • 2x Locking XLRF/¼" Combo Connectors (MIC/LINE Input and HI-Z/Line Input)
  • 1x 3.5mm TRS (Stereo Input)
  • 2x XLRM (Loop-Through Output)
  • 1x XLRM (Mix Output)
  • 1x Locking IEC Connector
• Power
  • Power Input: Universal Power Supply 100V - 240V AC, 50-60Hz
  • Power Consumption: 240V AC, 1.1.A
• Enclosure
  • Enclosure Material: Impact Resistance ABS
  • Attachment Points: 2x M10 Threaded Inserts plus Pull-Back
  • Grille: 18 Gauge Powder Coated Steel, Internal Cloth Lining
• Dimensions
  • 449mm (H) x 280mm (W) x 269mm (D)
  • 12.2kg
