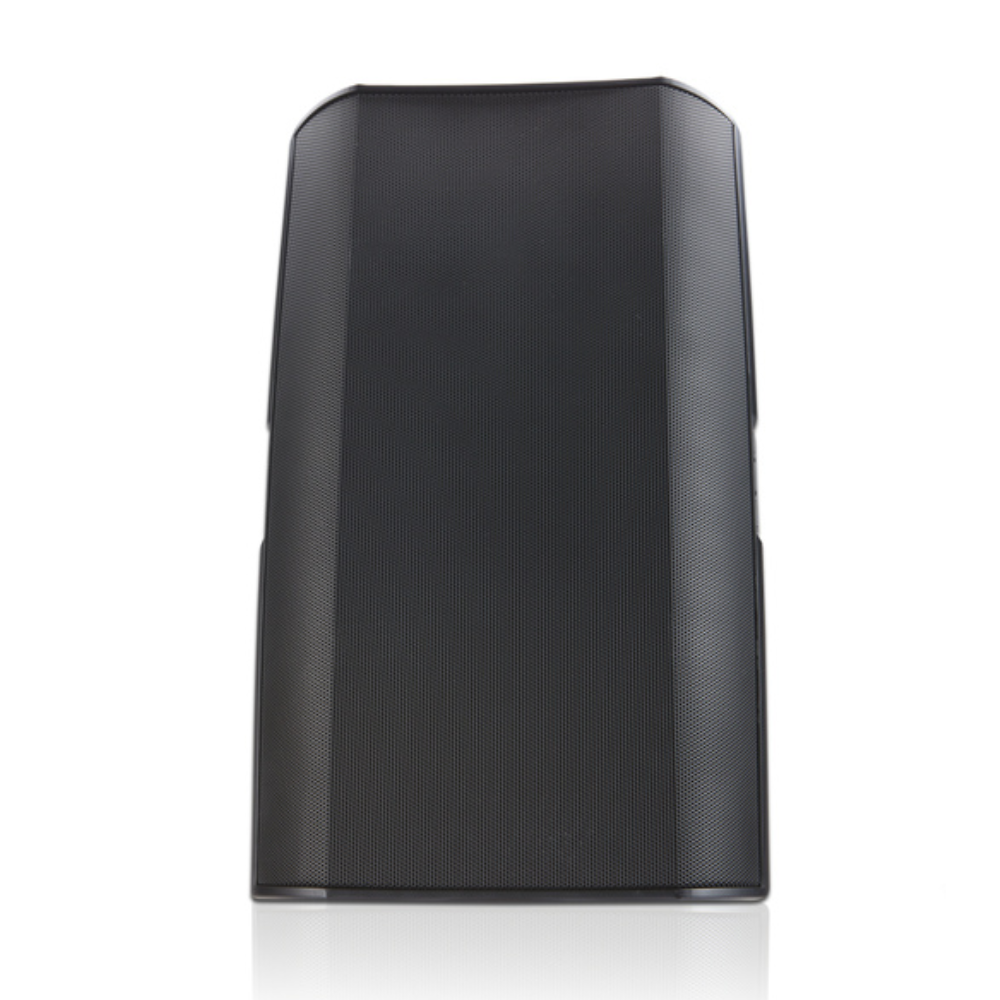

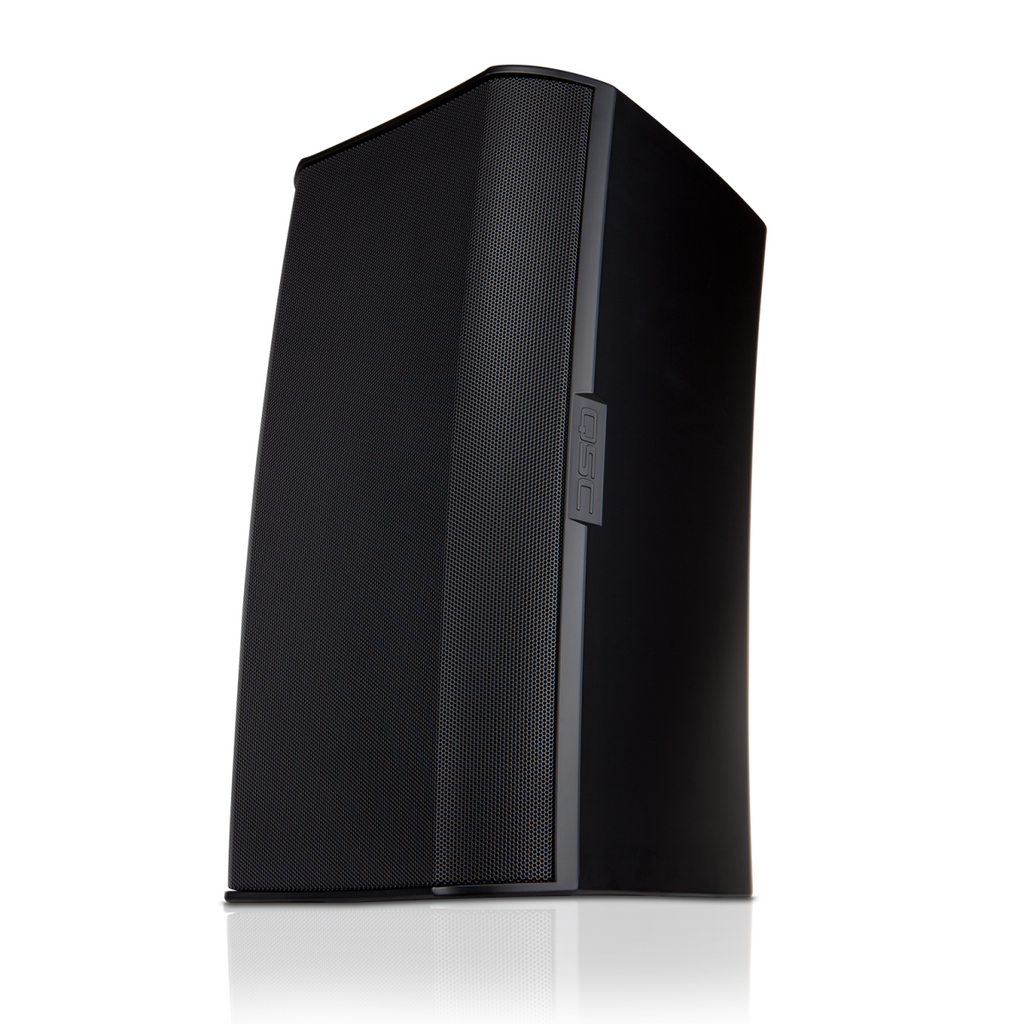

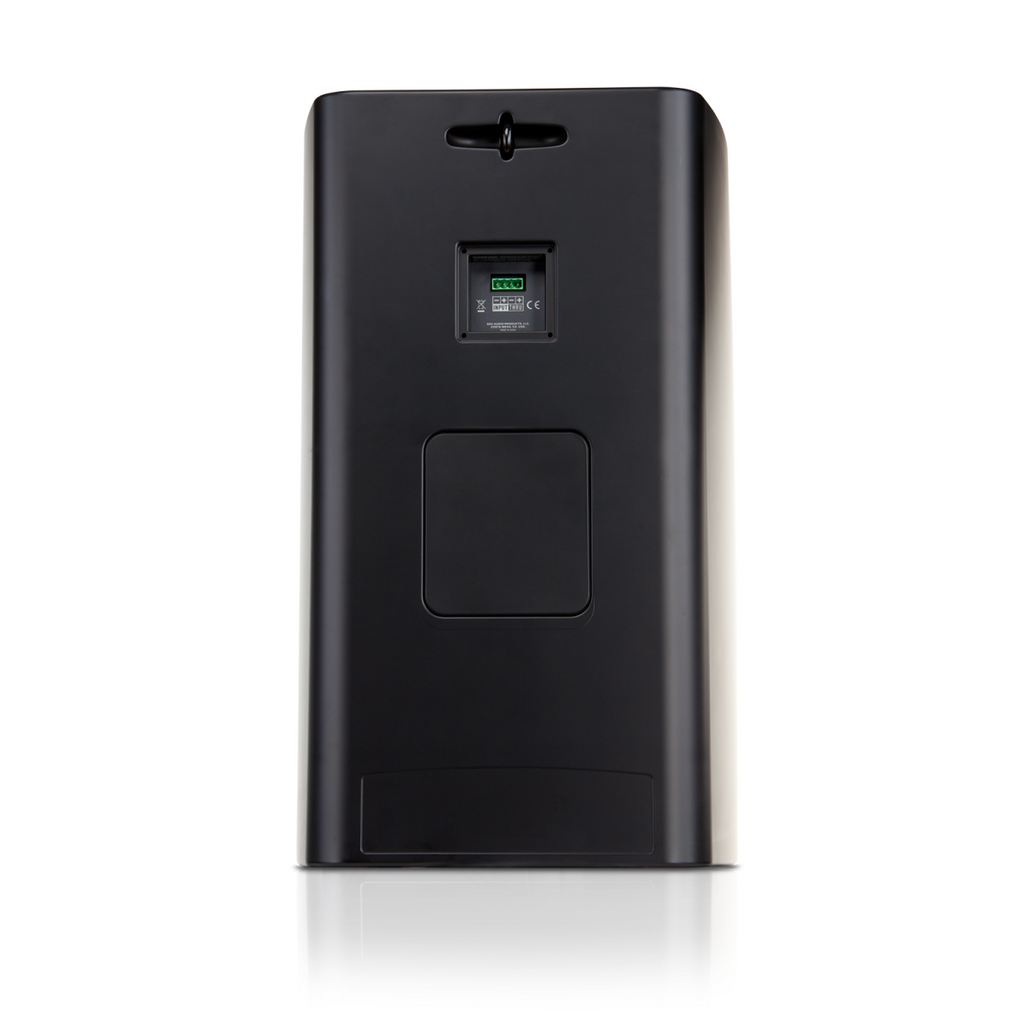

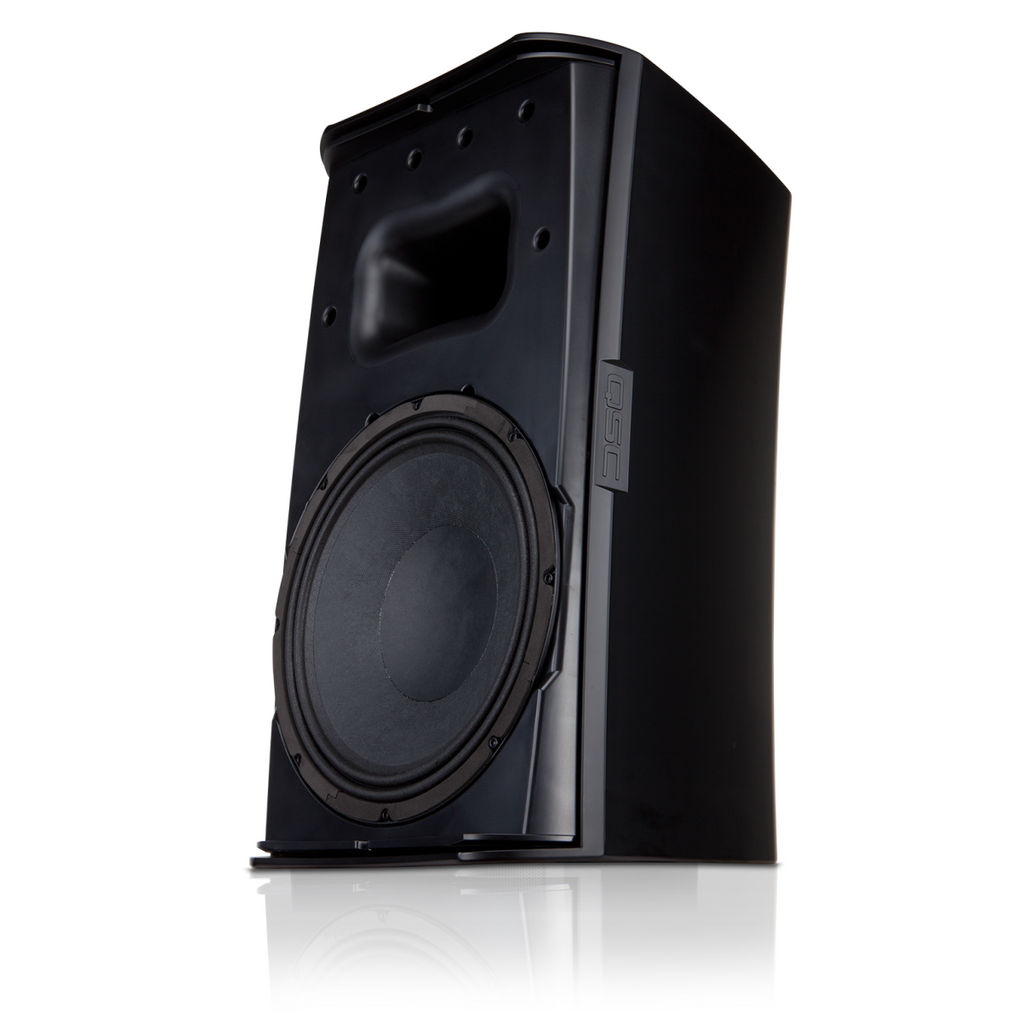

Each loudspeaker (except AD-S12 and AD-S112sw) is housed in a durable ABS enclosure and features a 70/100V transformer for use in distributed audio lines. The unique X-Mount™ brackets and Euro plugs included with every AcousticDesign loudspeaker are designed for maximum flexibility and quick installation. Featuring a knurled ball-mount and discreet angle deployment marks allow installers to quickly and safely adjust the speaker's deployment angles quickly and securly. The Euro-style connector allow for pre-wiring of the system, which, combined with quick snap-on deployment of the speakers into the mounts, allows installation to be completed in a fraction of the time of competing models. Features 12-inch weather treated woofer TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow Maximum peak SPL 121 dB Suggested filter points: 32 Hz high-pass, 24 dB/octave Butterworth; 100 Hz low-pass, 24 dB/octave Butterworth Included YMS12 yoke mount maximizes boundary plane coupling while reducing vibration transmission Optional M10 Kit-C for additional installation versatility Lightweight ABS enclosures offer long-term durability and lasting good looks Sealed input panel cover and powder coated aluminum grilles for added weather resistance Meets IEC60529 IP-54 for dust and splash resistance Complete EASE, CF2, CAD, and BIM information available online Includes Yoke Bracket in Black Specifications System Details Effective frequency range1: 30 - 135 Hz Rated noise power / voltage2: 300 watts / 50 volts (rms) Broadband Sensitivity3: 90 dB SPL Maximum continuous SPL4: 115 dB Maximum peak SPL4: 121 dB Rated impedance: 8 ohms Recommended amplifier power (loudspeaker program power): 600 watts Transformer taps: n/a LF transducer: 12-inch weather resistant paper cone woofer, 2.5-inch / 64mm voice coil Input connector type: Euroblock connector with parallel output terminals Enclosure material: Painted ABS polymer Grille material: Powder coated aluminum Yoke material: Powder coated galvanized steel (included) *1 Free-field, -10 dB from on-axis sensitivity *2 IEC60268-1 noise signal for 2 hours *3 On-Axis, free-field sensitivity, 2.83V, 1 m *4 Calculated from rated noise voltage and sensitivity Enclosure Details Ingress protection: IP-54 Operating environment: Designed for indoor and outdoor use Testing The AD Series loudspeakers qualified for outdoor use using the following tests: - Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. - Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days - High and low temperature: tested to QSC internal standards between -20° & 50° C Product Dimensions: (HWD) mm: 594 x 354 x 323 Net weight: 13.2 kg
