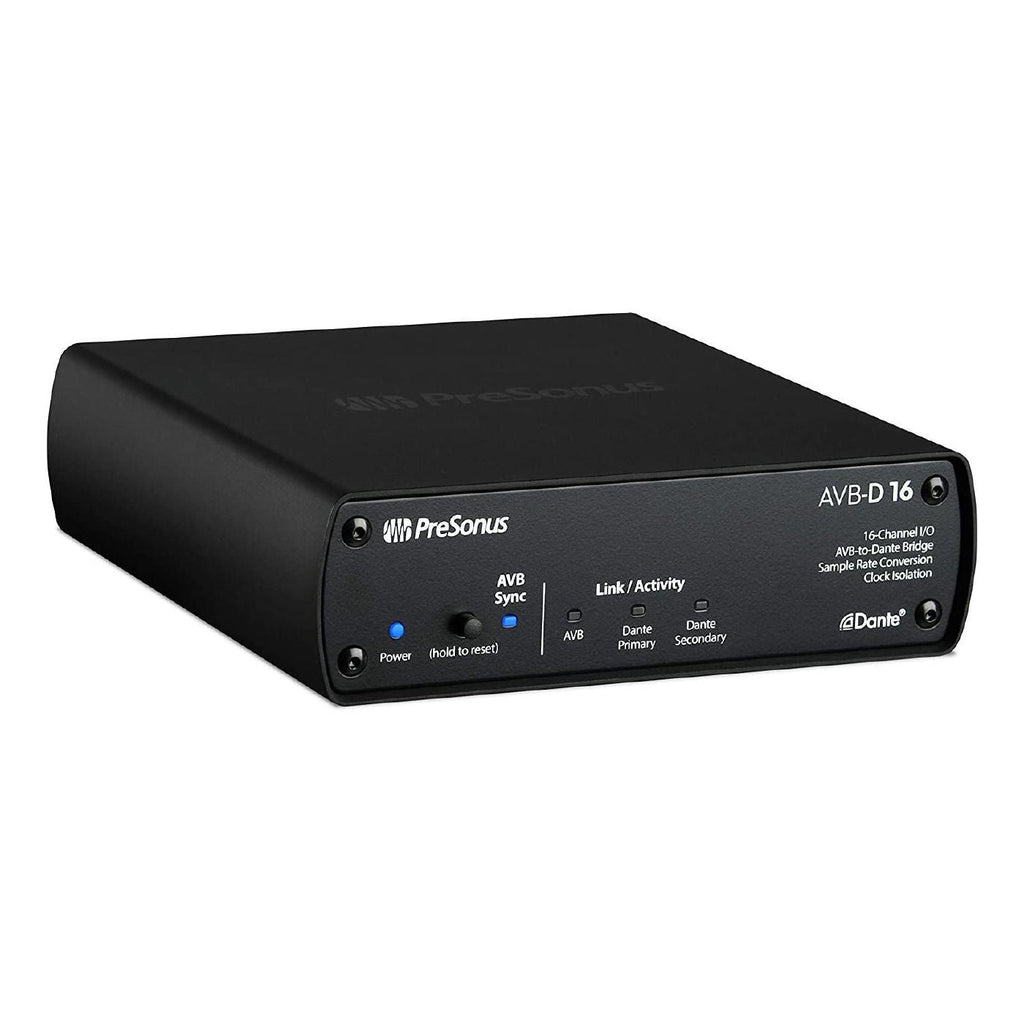

PreSonus AVB-D16 16x16 AVB-To-Dante Bridge (AVBD16)

Now you can send and receive up to 16 audio channels between an AVB and Dante network with one simple device, making it the perfect solution to connect your StudioLive Series III AVB ecosystem to your favorite Dante-equipped products like the PreSonus CDL-12 constant directivity loudspeaker. Built-in Asynchronous Sample Rate Conversion ensures that the AVB-D16 provides precision clock isolation between your AVB and Dante networks for pristine, clear audio with no dropouts or artifacts.

Features

• 16 x 16 AVB
• 16 x 16 Dante™
• Asynchronous Sample Rate Conversation
• Precision clock isolation

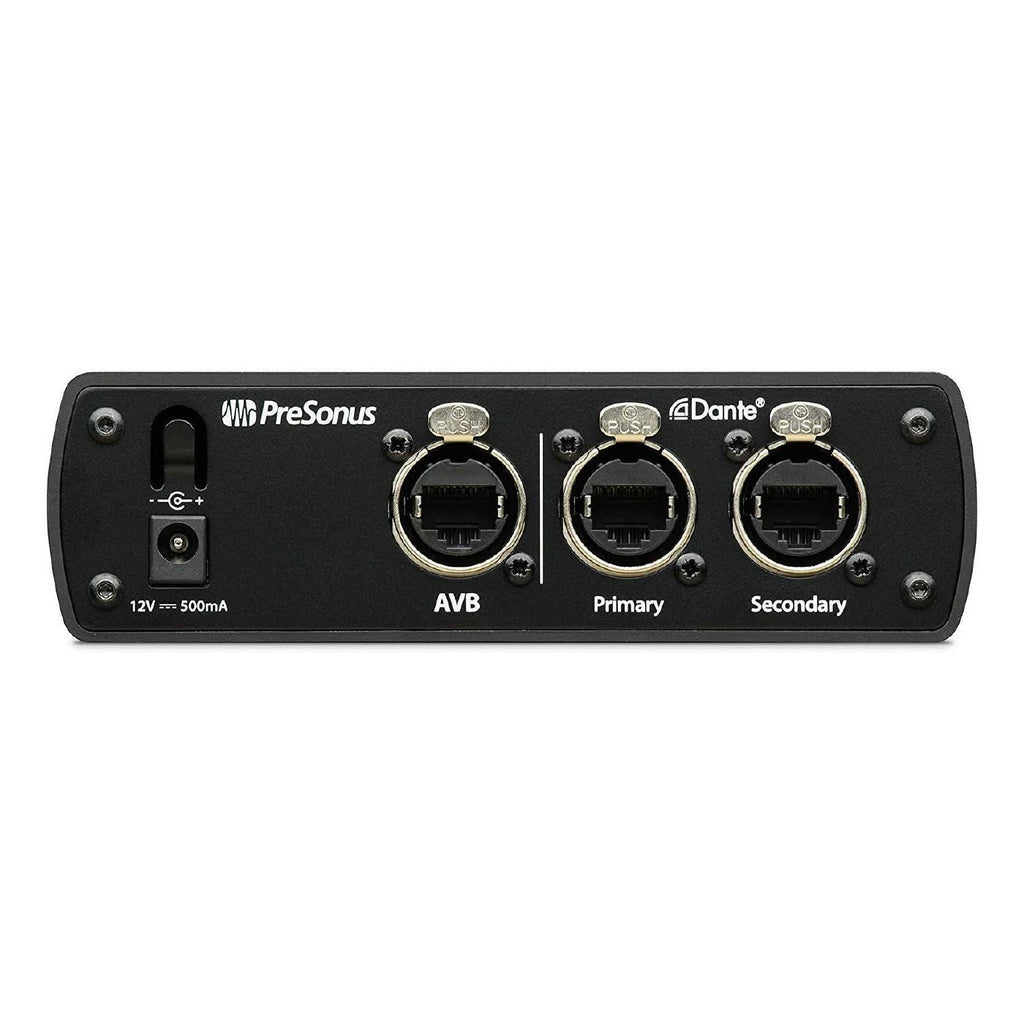

• 1 AVB port on locking etherCON™
• 2 Dante ports on etherCON™
• Use multiple AVB-D16 AVB-to-Dante bridges to add more channels

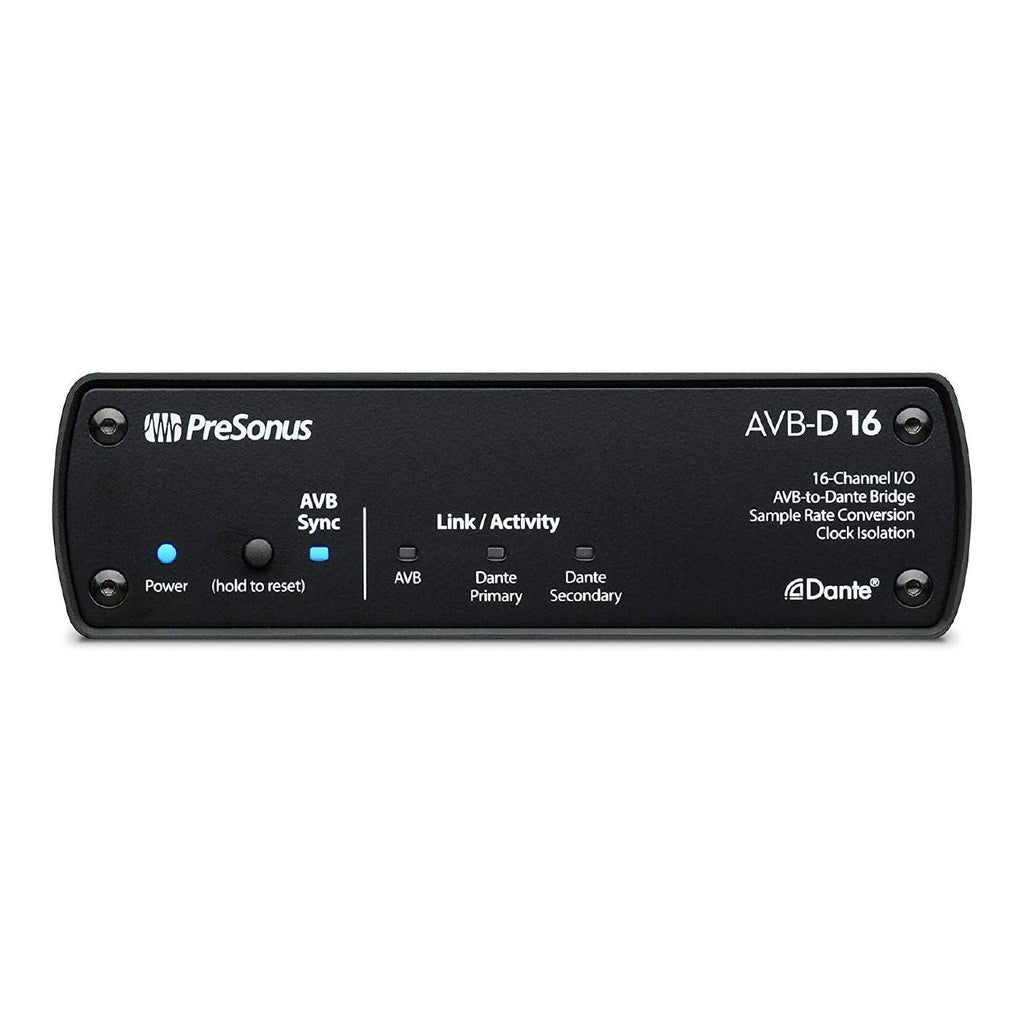

• Network Link/Activity indicators
• Support for 44.1kHz and 48kHz (AVB and Dante)
• Support for 88.2kHz and 96kHz (Dante)
• Rugged metal chassis

Specifications

Digital Audio

• AVB Audio Network Port: etherCON™
• AVB Audio Sample Rates: 44.1 kHz, 48 kHz
• Dante™ Audio Network Port: etherCON™
• Dante Audio Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Power

• Input Voltage Range: 100-230 VAC (+/- 10%)

Dimensions

• Height: 1.68” (43 mm)
• Depth: 5.9” (145 mm)
• Width: 5.7” (145 mm)
• Weight: 1.63 lb. (0.74 kg)
