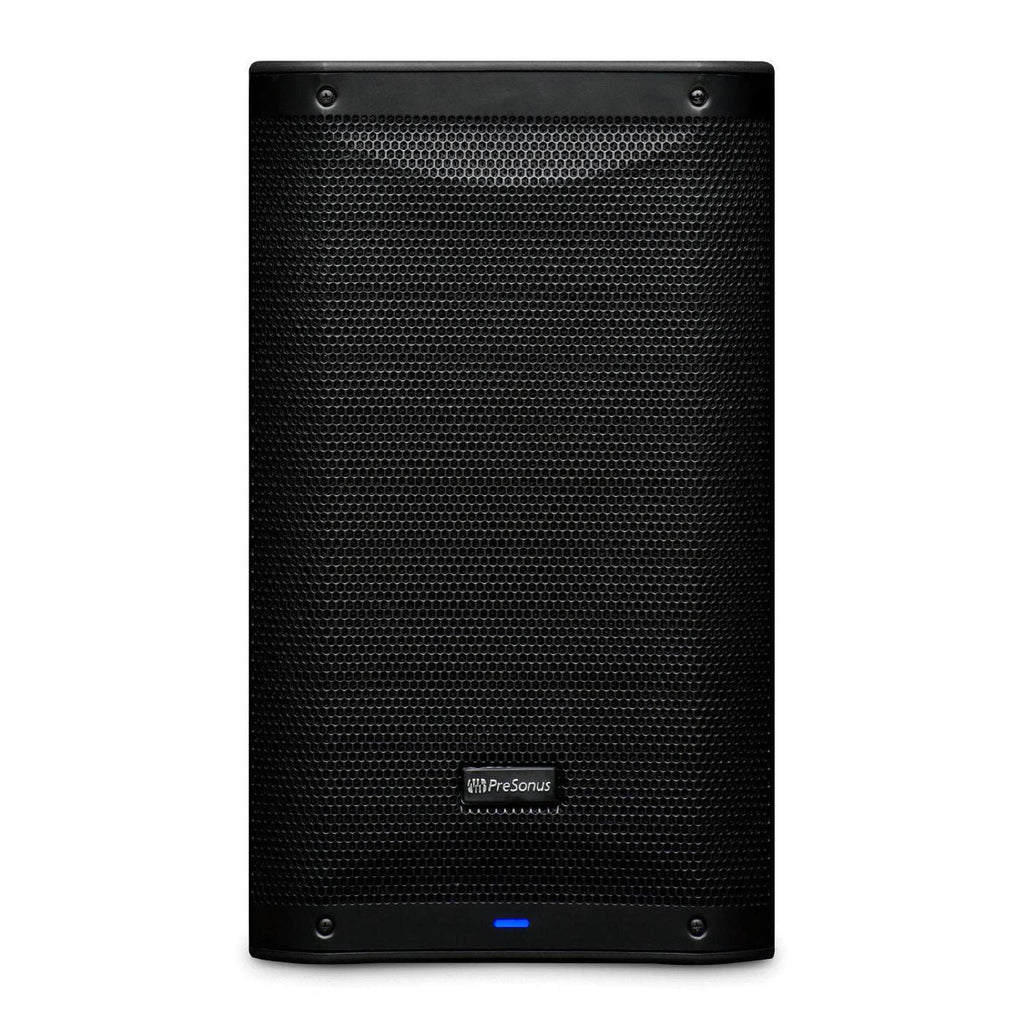

Presonus AIR10 Active 10 inch Loudspeaker - 1200 Watts

Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR10 gives you all the power and tools you need for both mobile and installed sound.

Each type of power amplifier has advantages and disadvantages. By employing different amplifier types for each driver, AIR10 loudspeakers use the respective strengths of Class D and Class A/B amplifiers to provide optimal response throughout the speaker’s frequency range.

A 500W (continuous), Class D amplifier powers the 10-inch low-frequency driver, providing efficient, clean low end when you need it. A 200W (continuous), Class AB amplifier powers the 1-inch high-frequency driver, delivering natural sounding high-frequency reproduction. The combination provides up to 121 dB SPL between 66 Hz and 20 kHz.

Features

• Hybrid “best of both worlds” 1,200W (peak) power amp configuration:
  • Low-frequency driver: 900W, Class D amplifier
  • High-frequency driver: 300W, Class A/B amplifier
• Maximum SPL 121 dB peak
• Onboard DSP presets for front-of-house, DJ, and monitor applications.

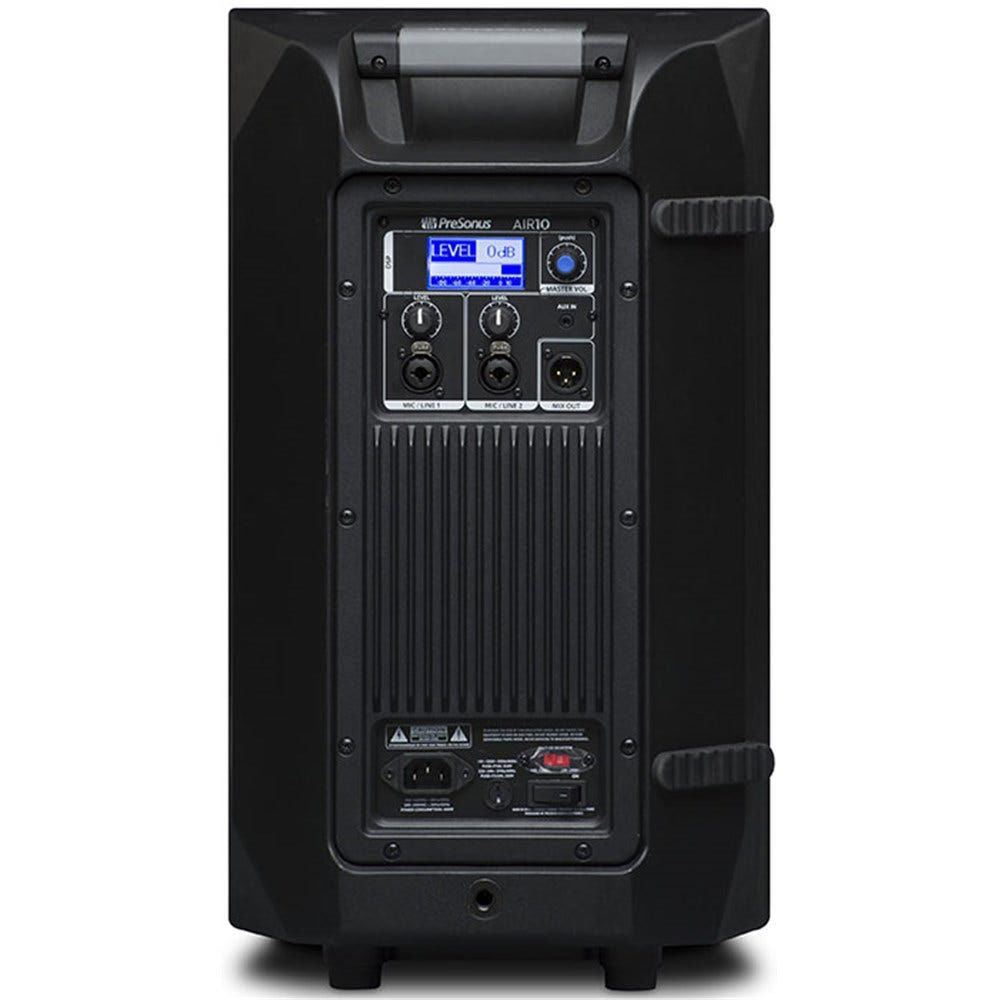

• Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output

Specifications

• Type: Active 2-way
• LF Driver: 10” (2” Voice Coil)
• HF Driver: 1” Compression
• LF Amplifier: Type Class D
• HF Amplifier: Type Class AB
• Total System Power: 1200W Peak (600W RMS)
• LF Driver Power: 900W Peak (450W RMS)
• HF Driver Power: 300W Peak (150W RMS)
• Frequency Range: 66 Hz – 20 kHz (+/- 3 dB)
• Maximum Peak SPL: 121 dB
• Nominal Dispersion (HxV): 90˚ x 60˚
• Inputs: 2 x XLR/TRS mic/line combo; 1 x 1/8” TRS stereo
• Outputs: 1 x XLR Mix Out
• DSP Features: LCD screen with EQ and multiple presets
• Enclosure: H-PP Molded
• Flypoints: 2 top, 1 back
• Mounting: Dual-position pole mount (0˚, 7.5˚)
• Handles: 1 (top)
• Dimensions (H x W x D): 20.3” x 11.8” x 11.5” (516 mm x 300 mm x 291 mm)
• Weight: 28.7 lbs (13 kg)
