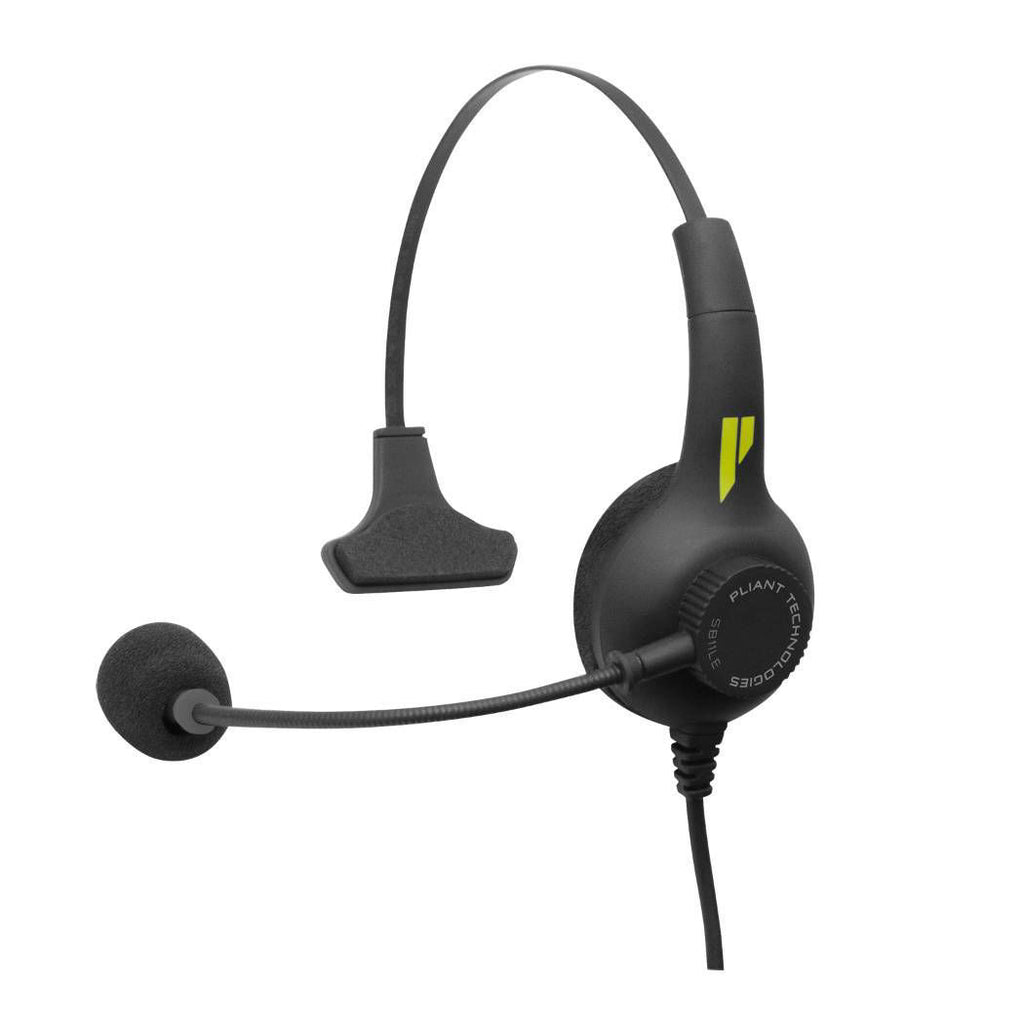

Pliant SmartBoom LITE Single Ear Pliant Headset with Dual 3.5mm Connector

SmartBoom LITE headsets put the latest communication innovations into the hands of professionals. Designed into a smaller form factor, these lightweight headsets are useful for challenging applications where comfort, dependability, and intelligibility are crucial.

In addition to the innovative SmartBoom microphone mute function, SmartBoom LITE headsets incorporate a closed-back, single on-ear design featuring a new ear cushion for added on-ear stability and comfort. The headset also features a flexible boom that includes an electret noise-canceling unidirectional microphone optimized for clear voice communications.

The PHS-SB11LE-DMG model is only for use with MicroCom Systems.

Features

• For use with all MicroCom beltpacks
• Single-ear lightweight design with enhanced acoustic isolation
• Closed back supra-aural (on ear) design
• Flexible, ambidextrous swiveling mic boom
• SmartBoom® flip up microphone mute
• Electret noise-cancelling cardioid microphone optimized for voice communications
• Comfort fit adjustable headband
• Replaceable ear cushion pad
• Non-reflective rubberized matte black finish

Specifications

Microphone

• Microphone Type: Electret Condenser
• Frequency Response: 20–16,000 Hz
• Mic Sensitivity: -45 ± 2 dBV/Pa at 1 kHz
• Pattern: Unidirectional
• Output Impedance: 1–1.9 kΩ
• Bias Voltage: 1.5V~2.2V

Speaker (Headphone)

• Speaker Type: Dynamic
• Frequency Response: 100–20,000 Hz
• Sensitivity: at 1 kHz 316 mV 110 dB ± 3 dB SPL
• Nominal Impedance: 96 Ω ± 15% at 1 kHz
• Max Input Power: 500 mW

Cables

• Termination at Ear: Fixed
• Length: 1.52 m (5.00 ft.)
• Outside Diameter: 4.00 mm (0.15 in.)

Physical Features

• Mic Boom Length: 215.90 mm (8.50 in.)
• Weight: (with cable) 144 g (5.1 oz.)

Connector Options

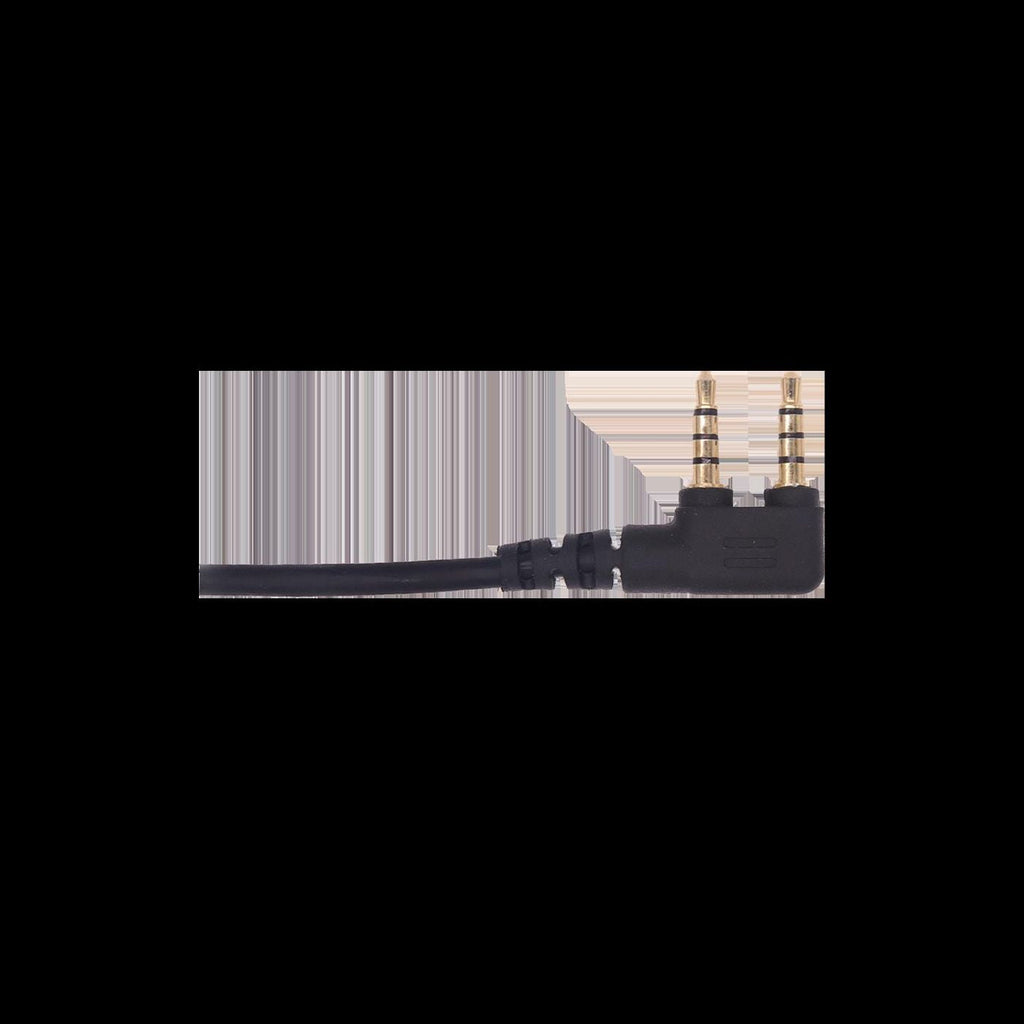

• PHS-SB11LE-DMG Dual Mini (3.5 mm TRRS)

What's in the box?

• Headset
• Data Sheet
• (1) Ear Sock
• Cable Clip
• (1) Windscreen
