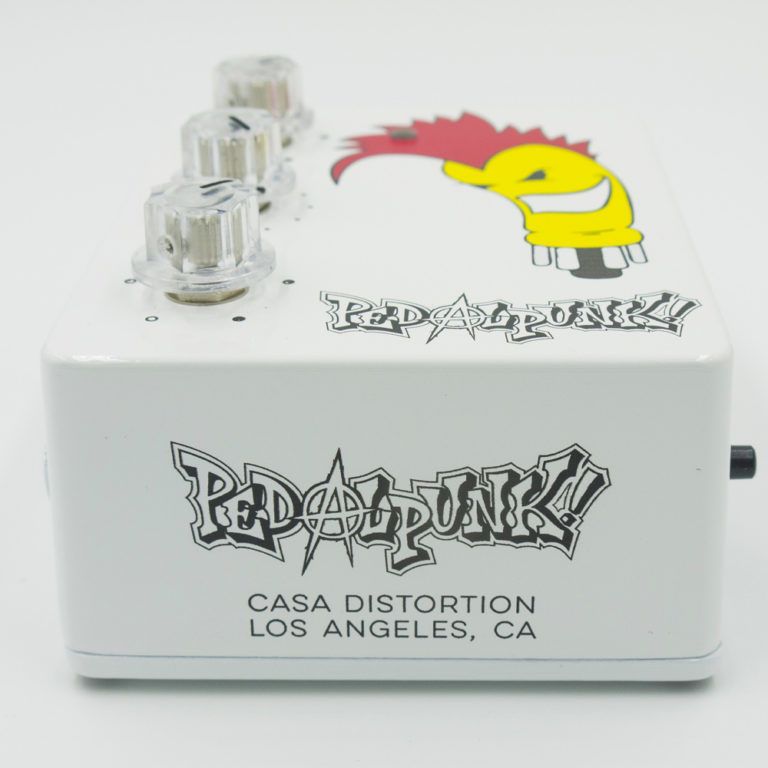

Pedal Punk Guitar Effects Pedal

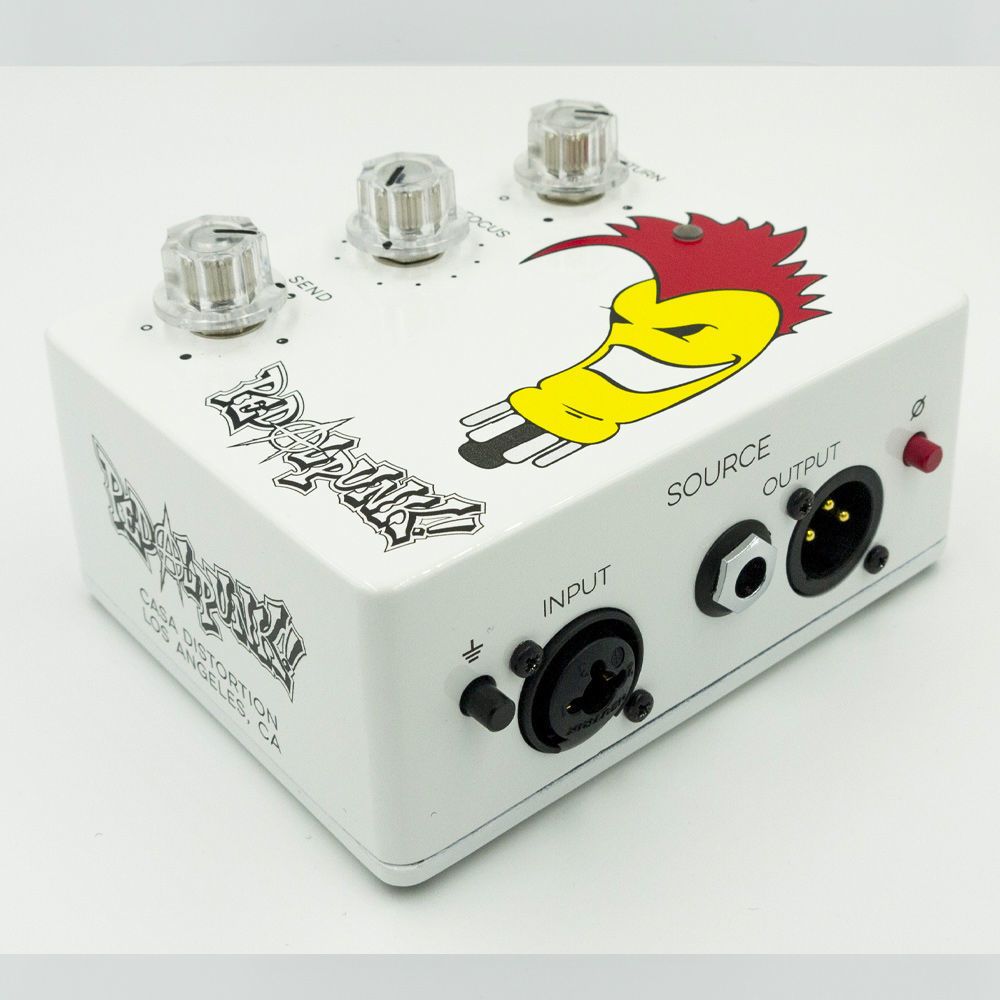

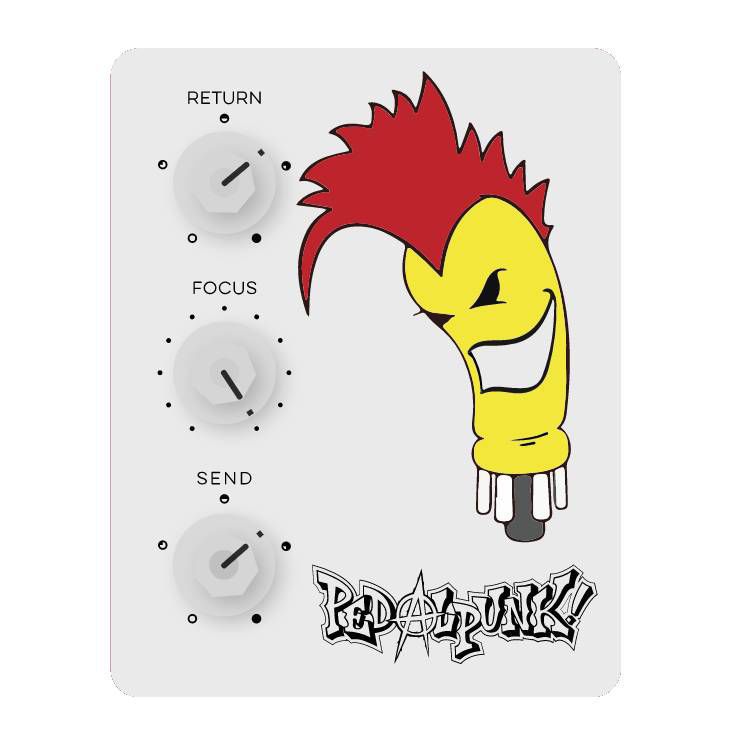

A completely analogue interface, the PEDALpUNK! allows musicians to integrate effects pedals with their DAW without any loss in audio quality, while creating balanced connections of unbalanced signals. Features Return Knob Returns processed signal from pedals plugged into the unbalanced return jack to both balanced output XLR and RS jacksHigher Settings will Overdrive the unit adding desirable sonic grit + attitude to your sound Focus Knob Adjusts input impedance of the signal at the send jack to your pedalsInput impedance is nominal when this knob is fully clockwiseFocus' effect becomes more apparent when used with non-buffered, true-bypass fuzz and distortion pedalsUseful when multiple PedalPunks are used in stereo, dual or multi-mono configuration Send Knob Send the signal appearing at the balanced input XLR/TRs combo jack to the unbalanced send jack which is connected to your pedalsHigher setting will overdrive PedalPunk's custom-wound input transformers, adding harmonic distortion + Attitude to your sound 9vDC Jack Use only the supplied 9vDC center-pin negative adapter Source Input Equipped with a single gold-plated neutrik XLR + 1/4 TRS combo connector for maintaining absolute fidelity when connecting to your balanced audio equipmentConnect the audio to be processed here Source OutputChoose between gold-plated neutrik XLR or bronze 1/4 TIRS cable from either of these jacks directly into your recording software's audio interface ReturnConnect output of your last pedal here SendConnect input of your first pedal here Watch:Introduction to PEDALpUNK!
