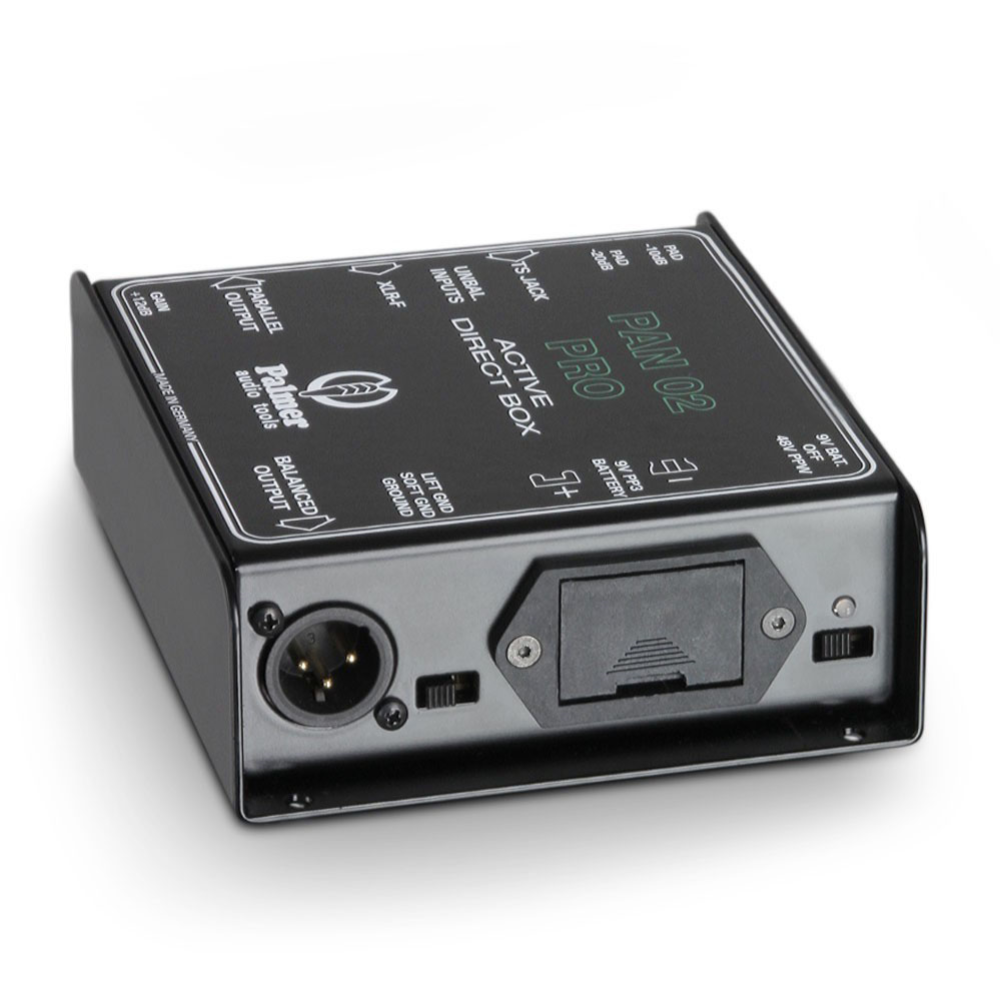

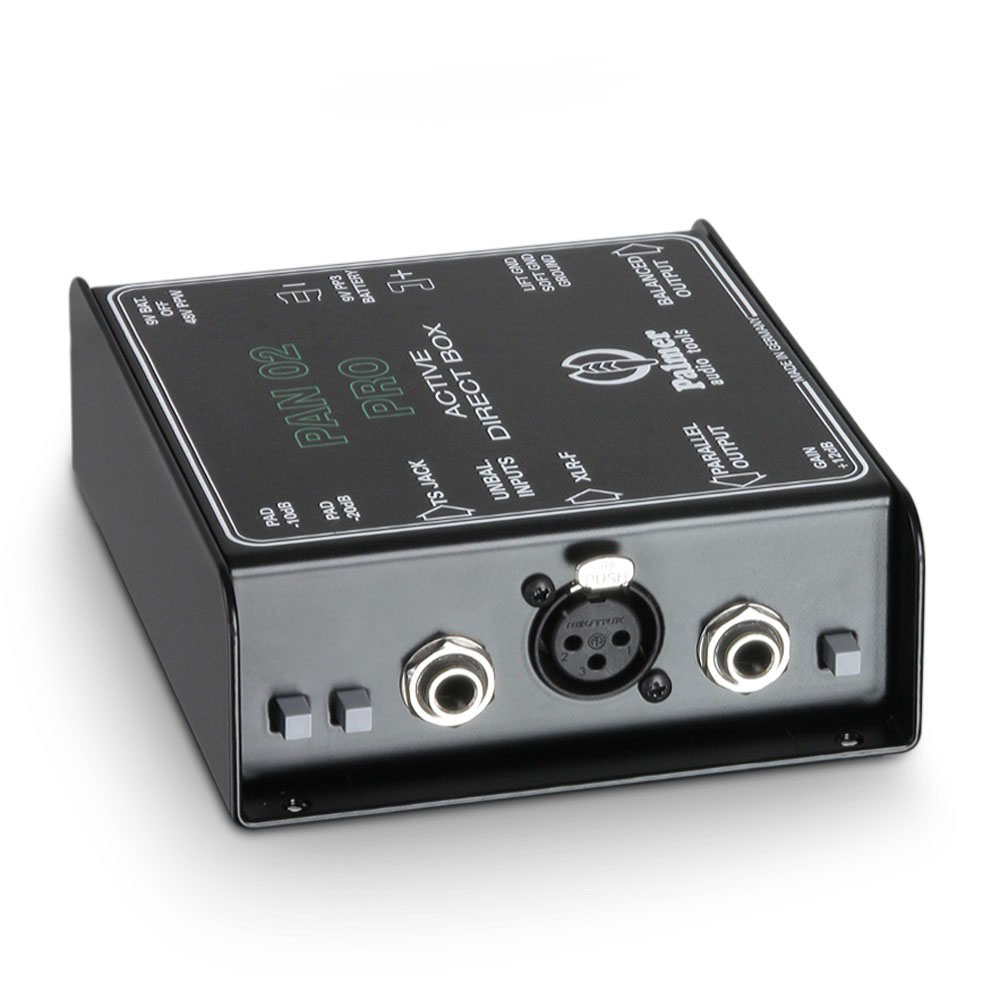

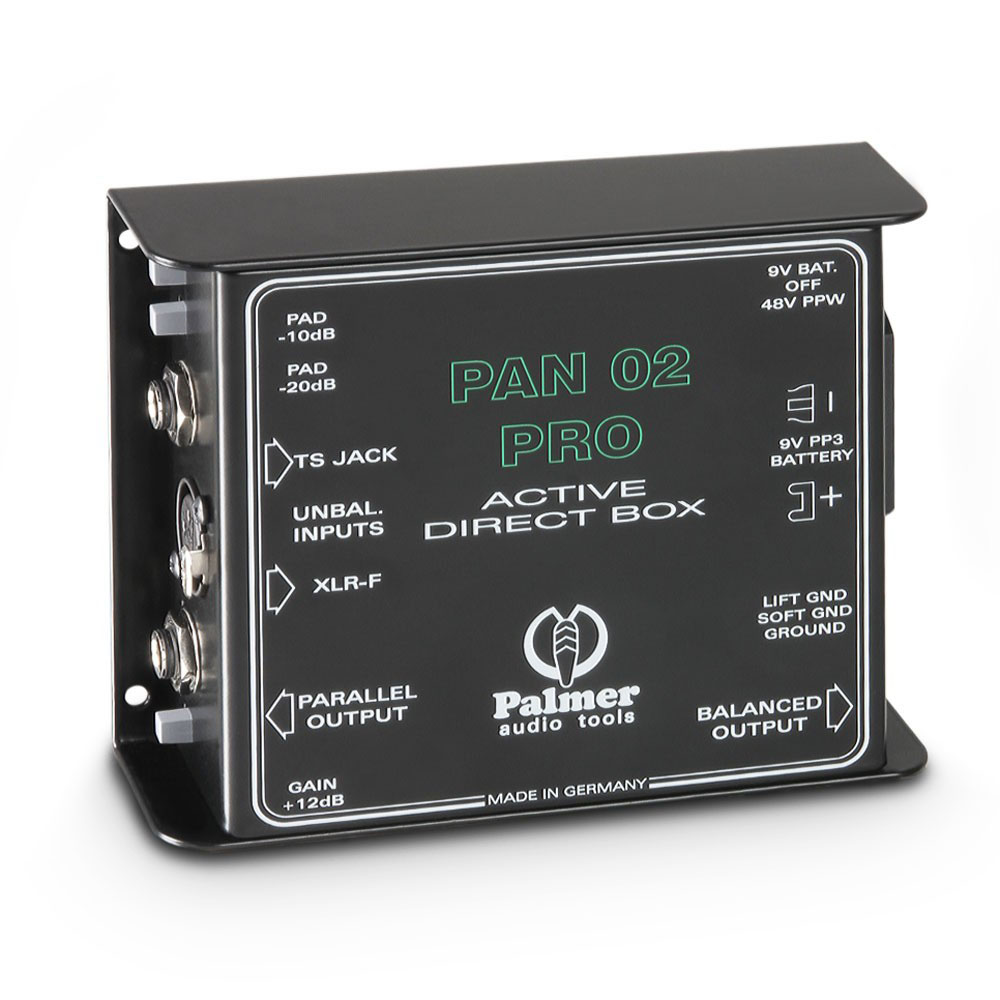

Palmer PAN02 PRO Professional Active DI Box

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a “lift” position allowing adjustments between a “soft and hard grounding” . Key Features Professional active DI box Switchable parallel mix input/link output 3-way attenuator (-10, -20, -30dB) + off (odB) Switchable gain +12dB Max. Output voltage +20 dB Rugged 2mm steel casing Soft ground lift Designed and made in Germany Technical Data Product type:  DI Boxes Type:  Active Channels:  1 Inputs:  2 (6.3 mm jack & XLR, + 45 dBu max. input level) Input impedance:  -10 & -20 dB: 70 k Ohm(s) , -30 dB: 40 k Ohm(s) , 0dB & 12 dB: 1 M Ohm(s) Input pad:  0 dB, -10 dB, -20 dB, -30 dB Outputs:  1 (6.3 mm jack & XLR, + 20 dBu max. output level) THRU outputs/channel:  1 Output impedance:  600 Ohm(s) Frequency response:  20 – 20000 Hz Transformer balanced:  Yes Ratio:  3.16:1, 10:1, 31.6:1, 1:4 Controls:  Attenuator , battery/+ 48 V Power , Boost , ground lift Operating voltage:  +48 V phantom power , 9 V block Cabinet material:  Sheet steel Cabinet surface:  Powder coated
