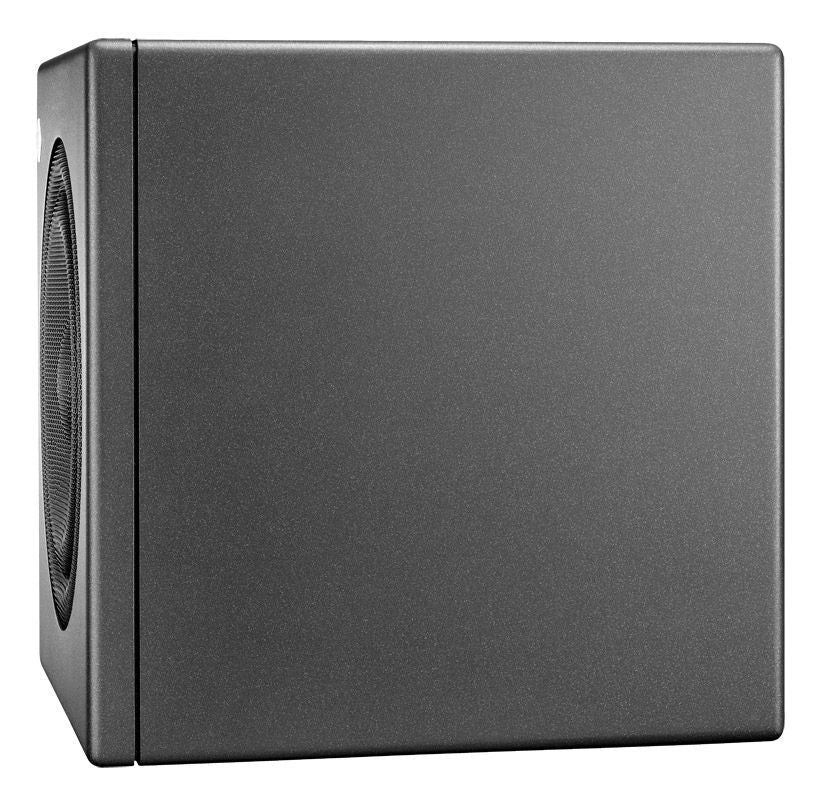

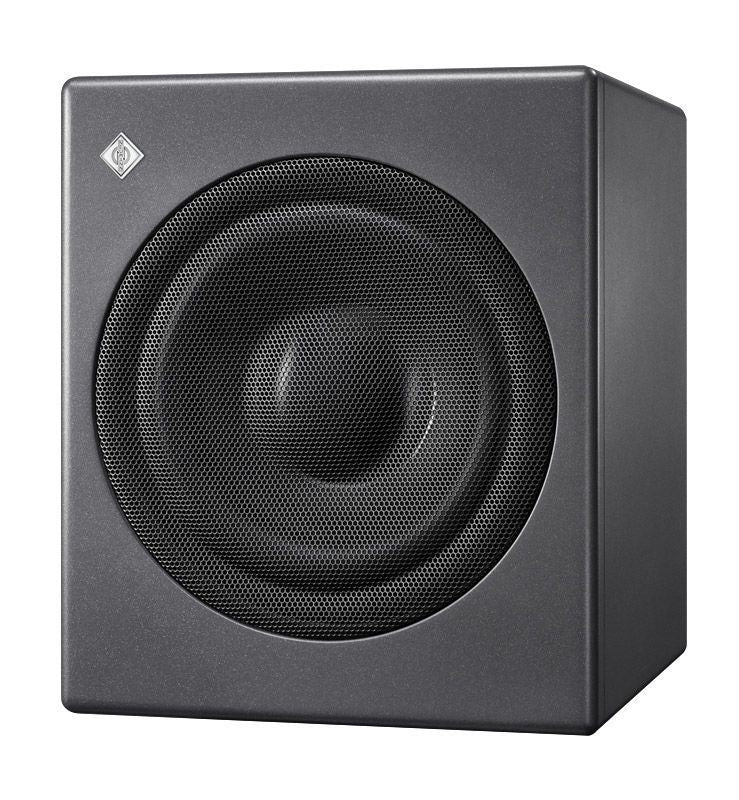

The newly designed 10” long-throw driver has a strong linear working magnet system with ELFF™ technology (Extremely Linear Force Factor™). As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. The ultra-compact cabinet is a closed design which brings the fastest possible transient response.
The two analog XLR inputs are balanced as are the two analog XLR outputs. The 192 kHz / 24-bit digital input can accept AES3 and S/P-DIF signals. There is a bypassable standby function and the switch-off time can be adjusted in the Neumann.Control iPad® app.
Features
- Deep bass in a small space
- The perfect complement to KH 80 DSP, KH 120 and KH 310
- Optional tools to align and operate a complete Neumann stereo system
Specifications
- THD+N: analog, digital: < -100 dB; < -90 dB
- Free field frequency response ±6 dB: 16 … 800 Hz
- Free field frequency response ±3 dB: 18 … 750 Hz
- Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) NPS
- Sine wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>70 Hz)
- Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 105.0 dB SPL
- Analog input(s): 2 x XLR: analog electronically balanced
- Analog input impedance: >13k Ohms
- Max. input level: < +24 dBu
- Common mode rejection ratio (CMRR): > 56 dB @ 15 kHz
- Crosstalk (1 kHz), level matching: < -90 dB; ±0.1 dB
- Volume control: via Neumann.Control software
- Volume control range; resolution: 0 … - dB; 0.1 dB
- Analog dynamic range; THD+N: 119 dB(A); <0.003% (-90 dB)
- Signal routing modes: Right; External Bass Management; 2 x LFE
- Analog output(s): 2 x XLR; analog electronically balanced
- Input gain control (sensitivity): +2 ... -12 dB
- Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL
- Digital input(s): BNC (75 Ω): AES3; S/P-DIF
- Digital output(s): BNC (75 Ω): AES3
- Digital converter: resolution; design: 16 … 24-bit DAC; Δ
- Digital converter: sampling rate: 22.05; 24; 32; 44.1; 48; 64; 88.2; 96; 176.4; 192 kHz
- Dynamic range A-D-A: >120 dB(A)
- Dynamic range D-A: >123 dB(A)
- Digital sensitivity: -18 dBFS = 100 dB SPL at 1 m
- Latency: 1.5 ms (A-D-A linear phase); 1.2 ms (D-A linear phase)
- Delay: User adjustable delay range: 0 ... 100 ms and 2 x 0 ... 20.8 ms
- Delay: Resolution: time; distance: 0.1 ms; 3.44 cm (1 3/8”)
- Delay: Max. frames Audio-video synchronisation (lip sync): 2.5 (40 ms) frames; 3 (33 ms) frames
- Delay: Time-of-flight maximum distance: 2 x 7.16 m (23' 5")
- Controller design: Digital; active
- Crossover frequency: 80 Hz
- Crossover slope: 24 dB/oct; 4th order
- Phase: 0; 45; 90; 135 und 0/180 deg
- Equalization: via Neumann.Control software: 8 x full parametric IIR + low / high shelf global balance
- FIR phase correction: For connected analog loudspeakers: Linear phase (170 Hz ... 16 kHz; +/- 45°)
- Protection circuitry: Driver (thermo limiter); Electronics (temperature limiter); Amplifier (peak limiter, temperature limiter, temperature protection and overcurrent protection); Power supply (temperature limiter and overcurrent protection)
- Infrasonic filter: frequency; slope: 17.5 Hz; 12 dB/oct.
- Remote control: Neumann.Control software via an RJ45 connector carrying standard IP data
- Display: On; Normal Operation: Green LED
- Display: Identification: Amber LED
- Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Red LED
- Display: Bass Management on: Green LED
- Output power woofer amplifier (THD+N with limiter deactivated: 10%): 256 W
- Mains Power Supply: input voltage; frequency: 100-240V; 50/60 Hz
- Power consumption (230 V / 100 V): Standby: <300 mW
- Power consumption (230 V / 100 V): Idle: 18 W
- Power consumption (230 V / 100 V): Full output: 410 W
- In-rush current (Peak): 30 A @230 VAC
- Standby: Disabled; 90 mins (default); user defined in software
- Cabinet material: Wood cabinet, aluminum electronics panel
- Cabinet surface finish; color (front / back): Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
- Operating conditions: +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
- Transport/storage conditions: -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing

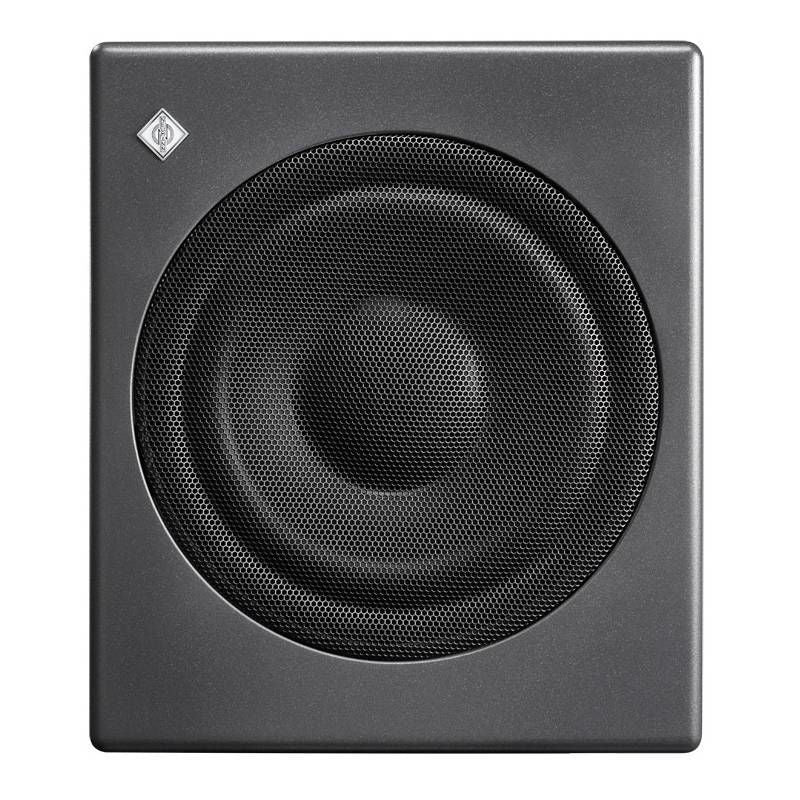

- Woofer: 265 mm (10") with protecting black metal grille
- Product dimensions (height x width x depth): 383 x 330 x 383 mm (15 1/8" x 13" x 15 1/8")
- External net volume: 48.4 liters
- Product weight:19.5 kg (43 lbs)
