Neumann KH 870 G Active Studio Subwoofer with 7.1 High Definition Bass Management

Answering the demands of customers, the Neumann KH 870 offers a bypassable 7.1?High Definition Bass Manager, with the flexibility to integrate with all standard consumer formats from mono through to the latest 7.1 HD systems.

With versatile interconnectivity for the modern studio, the KH 870 boasts eight channels of analog I/O, and the four-mode LFE-channel processing ensures compatibility across all formats and industries. Flexible acoustic controls and fourth-order crossovers enable seamless integration into existing systems. In-built volume control and a hardware remote control enables streamlined system control independent of the source, and remote controlled electronics alleviate unnecessary cabling. From mono, to 3D, the KH 870 is perfect in a range of system configurations.

• 7.1 High Definition Bass Management (remote)
• Very deep bass response (18 Hz)
• High maximum SPL (116.7 dB, 400 W)

Improving Lateral Consistency

To ensure the most accurate sound reproduction possible, the KH 870 employs the latest amplifier technology and acoustical components - rugged drivers, a robust cabinet, and meticulously engineered ports to achieve a tight, articulate low-end response - free of distortion - even at extreme playback levels. Using the sum output, the lateral consistency in the listening area is acoustically improved thanks to Plane Wave Bass Array (PWBA) techniques. The bass extends down to 18Hz.

Flexible Mounting Options

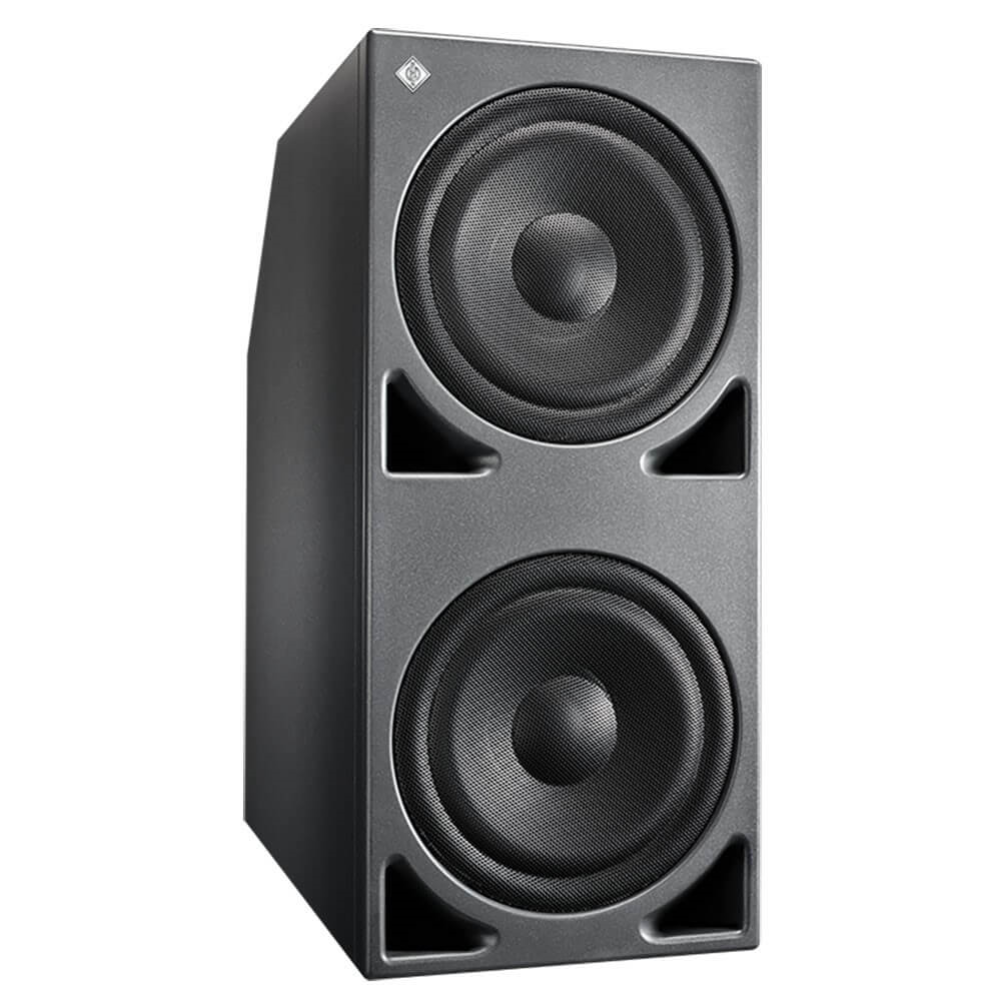

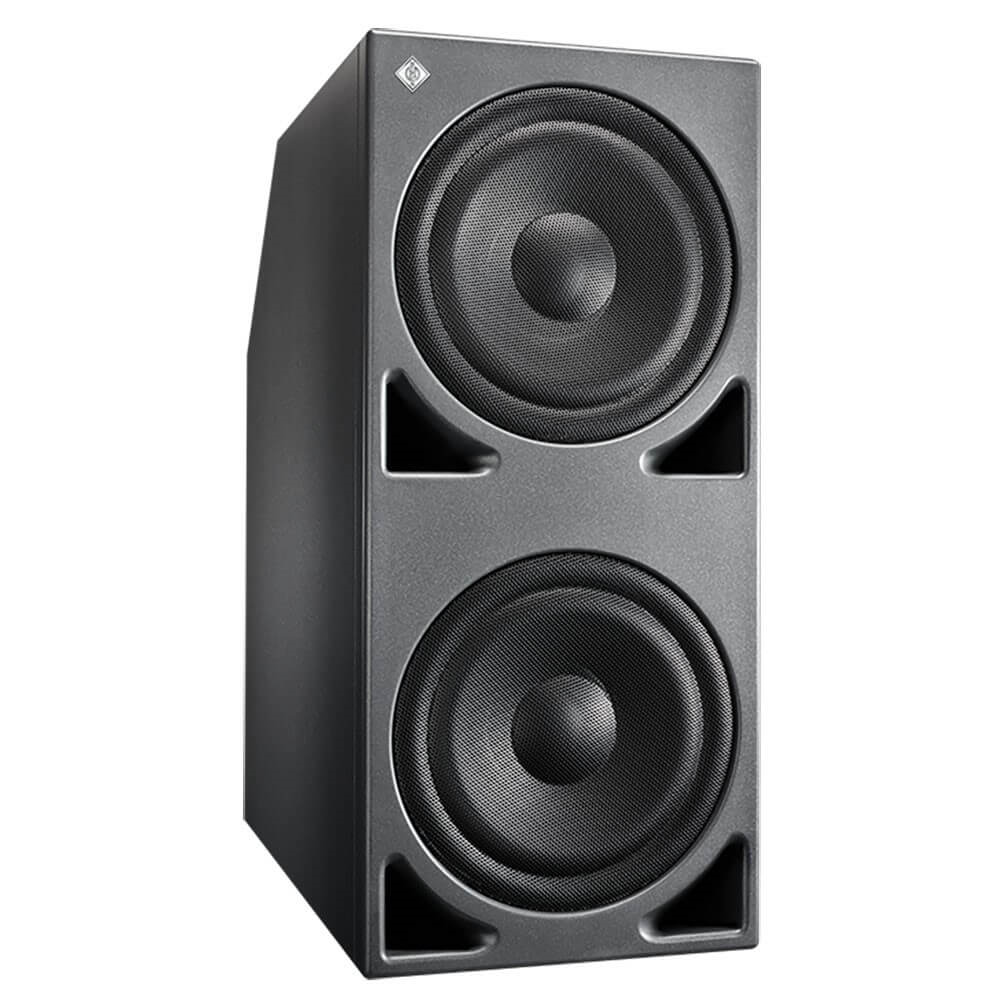

Designed to compliment Neumann's extensive collection of monitors, the KH 870 can be used alone, or daisy-chained to increase the SPL of larger systems. For use in music, broadcast, and post production studios for recording, mixing, and mastering applications. Thanks to the front-mounted port, this subwoofer can be placed next to a wall, or flush-mounted into a wall, and can be mixed freely in multichannel systems with other Neumann loudspeakers.

• Frequency Response
  • ±6dB: 17Hz - 600Hz
  • ±3dB: 18Hz - 300Hz
• Self Generated Noise: <20dB(A) SPL
• THD <0.5%: 95dB SPL (>40Hz)
• Bass Capability - Max. SPL: 116.7dB SPL
• Max. Long Term SPL: 118dB SPL
• Max. Output Level (dB SPL): 110.7dB
• EQ
  • Low Cut: 30Hz, 0 -12dB
  • Parametric EQ - Gain: +4 - 12dB
  • Parametric EQ - Frequency: Bypass, 20Hz - 120Hz
  • Parametric EQ - Q: 1 - 8
• Phase
  • 0°
  • 45°
  • 90°
  • 135°
  • 0/180°
• Bass Extension: 17Hz, -6dB

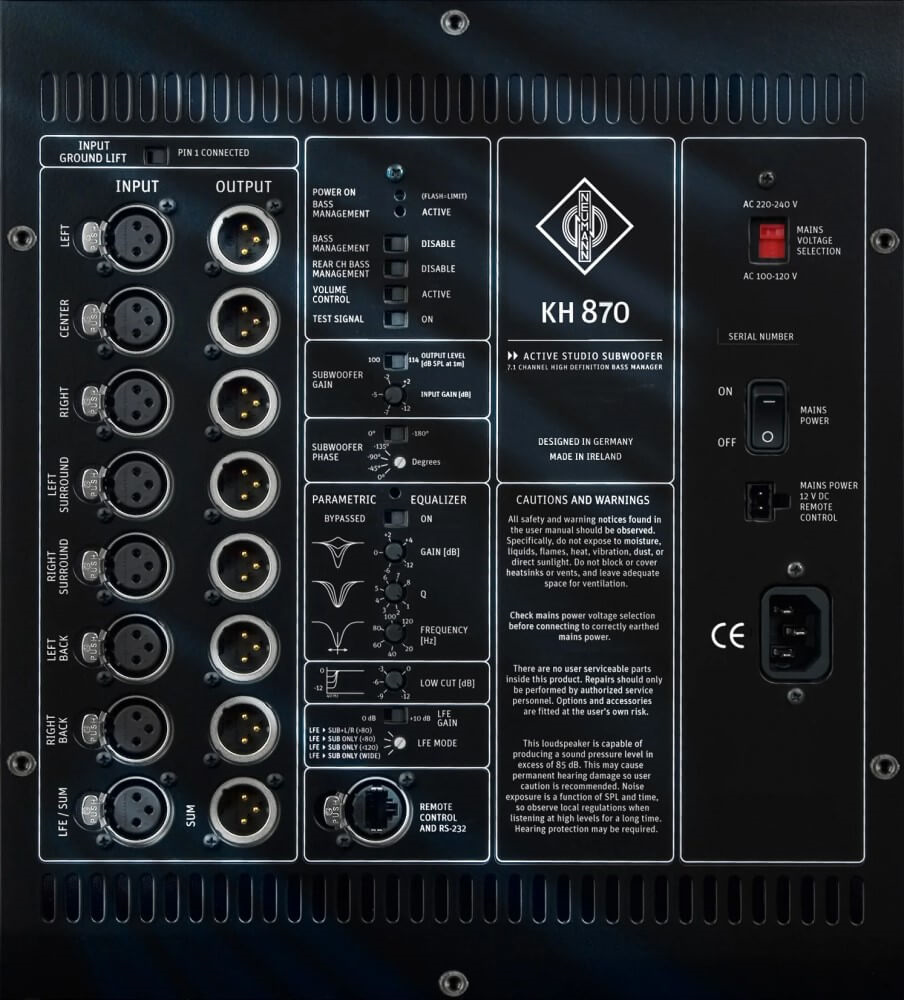

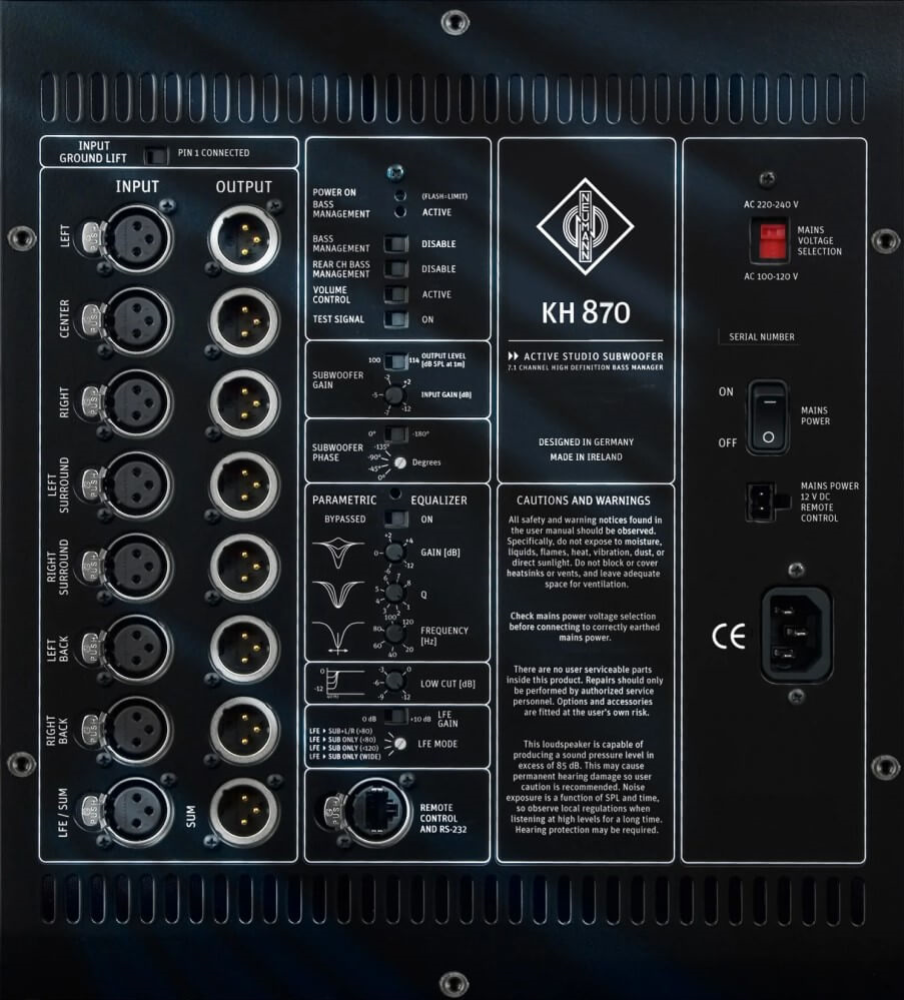

• Inputs
  • Analog Inputs: 8x XLR Electronically Balanced
  • Input Impedance: >13kO
  • Max. Input Level: +19dBu
• Outputs
  • Analog Outputs: 8x XLR Electronically Balanced
• Common Mode Rejection Ratio (CMRR): >56dB @ 15kHz
• Volume Control: NRC 1 hardware remote or RS-232
• Volume Control Range - Resolution: 118 dB, 0.25 dB
• Analog Dynamic Range - THD+N: 119dB(A), <0.001% (-100dB)
• Input Gain Control (Sensitivity): +2 - 12dB
• Crossover
  • Frequency: 80Hz
  • Slope: 24dB/Oct, 4th Order
• Protection Circuitry: Peak and Thermo Limiters
• Output Power Woofer Amplifier (THD+N with Limiter Deactivated: 10%): 400W
• Cabinet
  • Material: Wood Cabinet, Aluminum Electronics Panel
  • Cabinet Surface Finish: Painted, Metallic Anthracite (RAL 7021)/Black (RAL 9005)

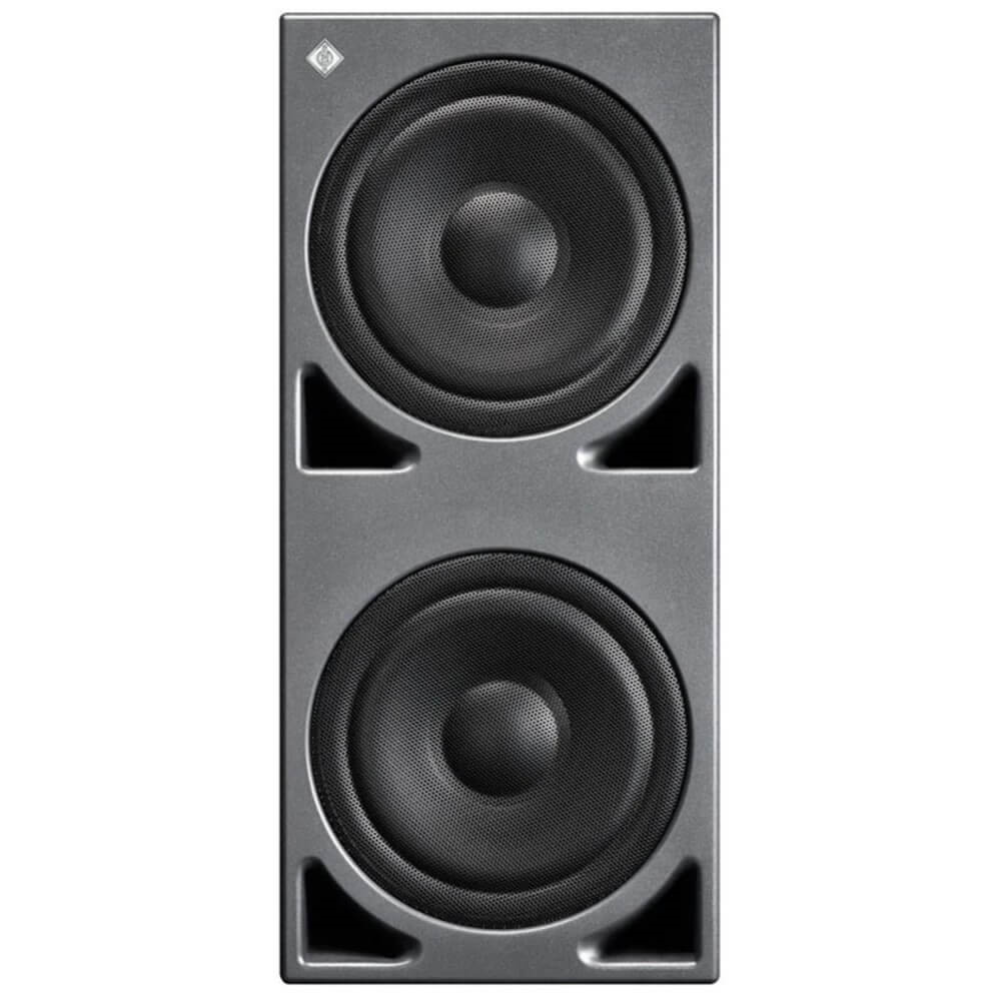

• Woofer: 2 x 265 mm (10") with Magnetic Shielding and Protecting Black Metal Grille
• Mounting Points: 35mm Flange on Top Panel
• Power
  • Mains Power Supply: 220-240V/100-120V (switchable), 50/60Hz
  • Power Consumption (Full Output): 550W
• Dimensions
  • 735mm (H) x 330mm (W) x 645mm (D)
  • 45.5kg
