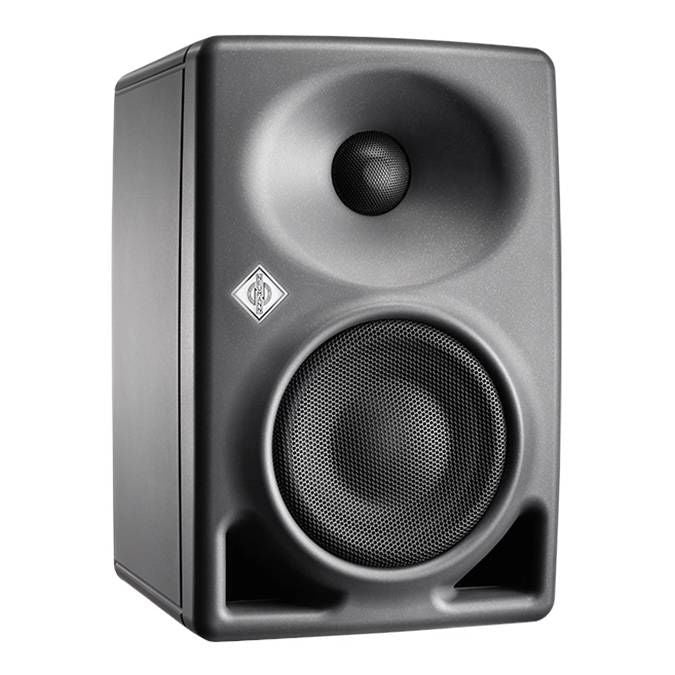

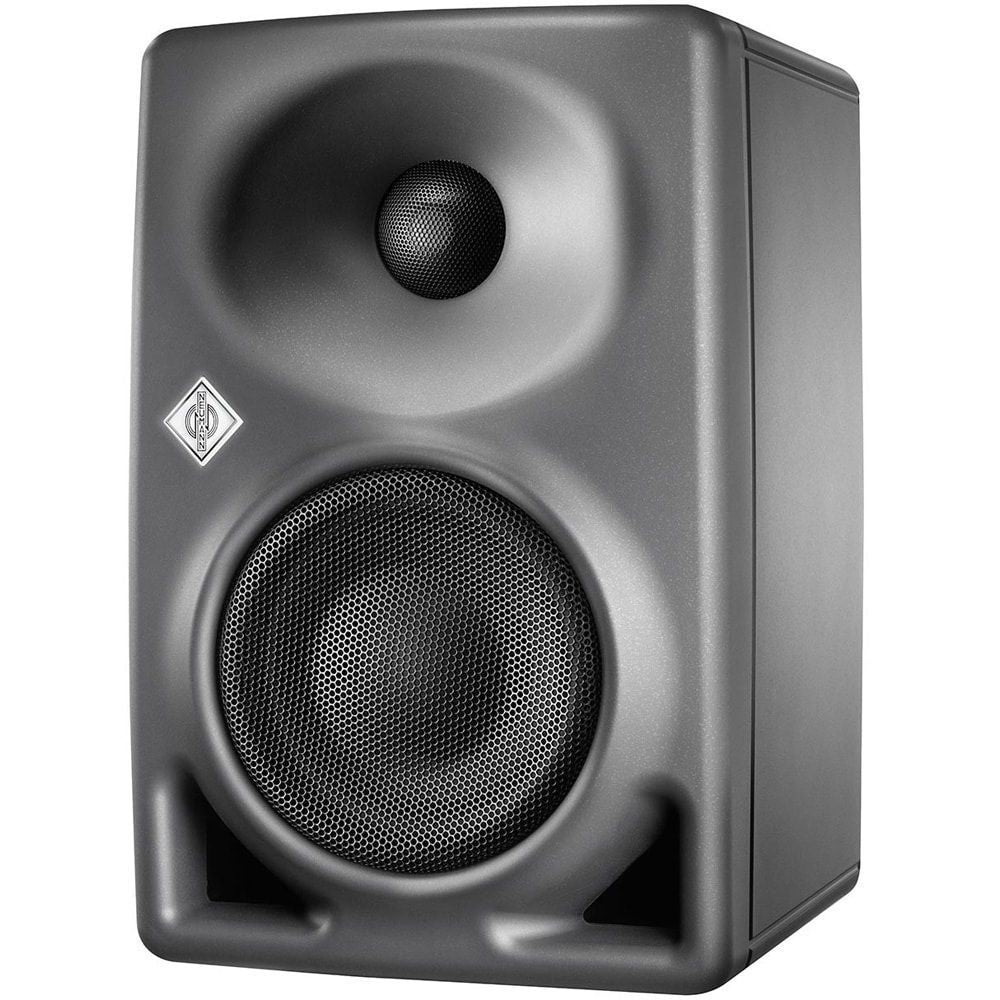

Neumann KH 80DSP 4 inch Studio Monitor Speaker - Single

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.

Features

• New DSP-engine optimizes output to achieve reference class sound
• Mathematically modeled dispersion to deliver excellent detail in any surroundings
• Optional tools for room alignment, configuration und control

Specifications

Acoustical

• -6 dB free field frequency response: 53 Hz … 22 kHz, ± 6 dB
• -3 dB free field frequency response: 57 Hz … 21 kHz, ± 3 dB
• Pass band free field frequency response: 59 Hz … 20 kHz, ± 2 dB
• Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) bei 10 cm
• Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 102,8 / 108,8 dB SPL

Electronics

• Input: XLR, analog electronically balanced
• Controller design: Digital, active
• Crossover frequency, slopes: 1.8 kHz, 48 dB/oct, 8th order
• Bass amplifier, cont.(peak) output power*: 150 W (130 W)
• Treble amplifier, cont.(peak) output power: 55 W (70 W)
• Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz, with standby

Mechanics

• Drivers: 100 mm (4"), 25 mm (1"), with integrated black metal grilles
• Mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel
• Product dimensions (height x width x depth), mm (inches): 233 x 154 x 194 mm (9 1/8" x 6" x 8 5/8")
• Product weight: 3.5 kg (7 lbs 11 oz)
