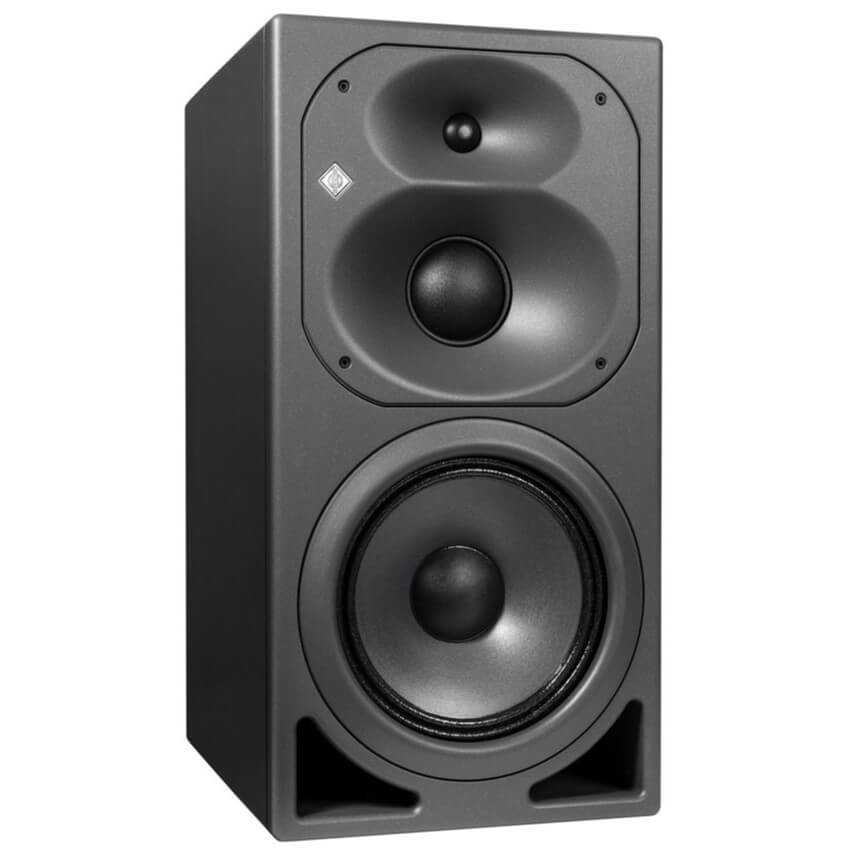

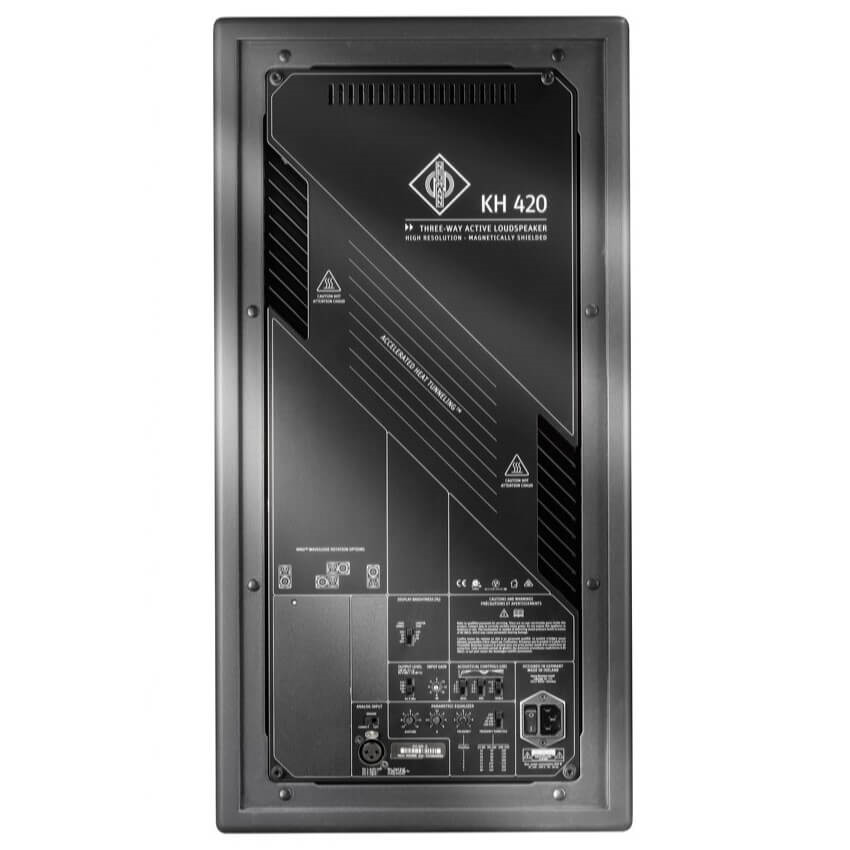

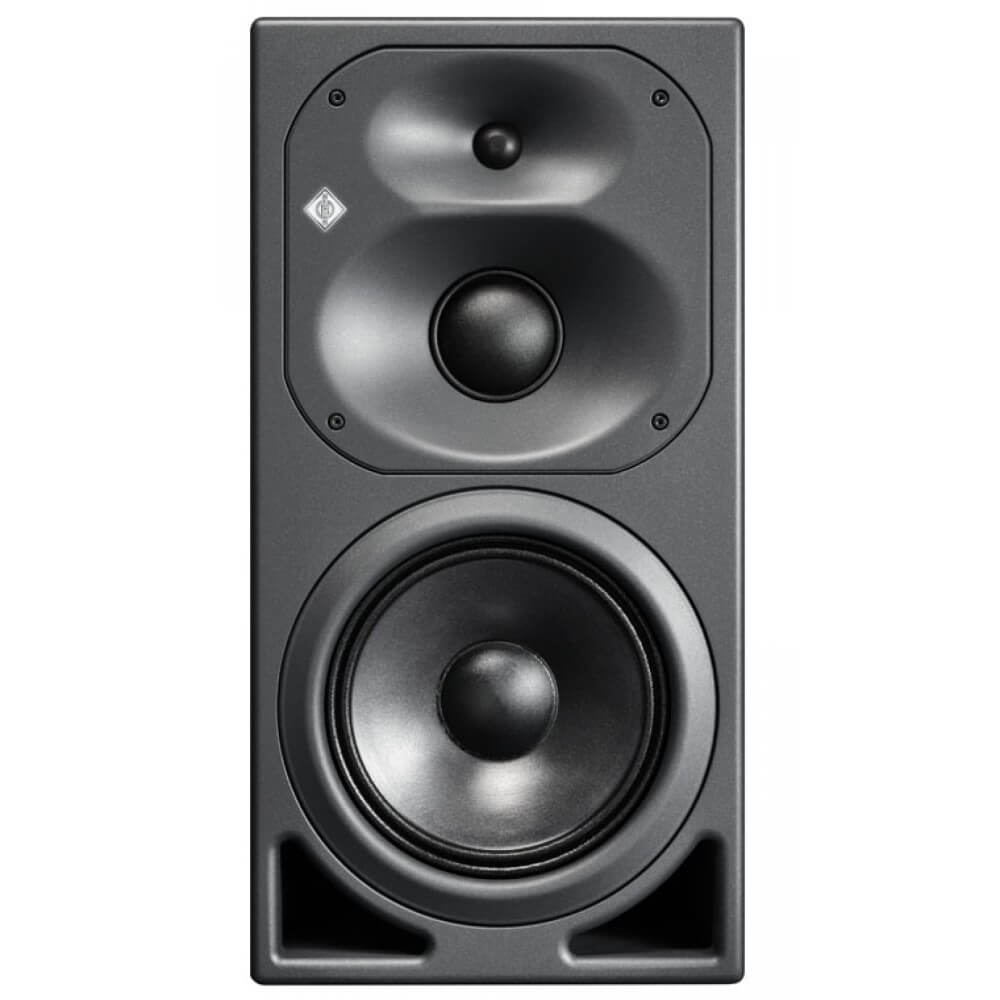

Neumann KH 420 G Powered Three-Way Midfield Studio Monitor

Brand: Neumann

Neumann KH 420 G Powered Three-Way Midfield Studio Monitor

SKU: 505988
$9,699.00
Enquire now
Price Match
  • Rent from

  • $808.25/mth for 12 months interest free

    Fees apply

  • $30–$4000 Pay in 4 interest-free

    Late fees apply

  • $30–$2000 Pay in 4 interest-free

    No fees or interest

Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!

Description

The KH 420 is designed for a working distance of 1.5 to 3m, and handles this space with ease, thanks to huge power reserves and precisely concentrated dispersion. Even in diverse acoustical environments, the KH 420's neutral frequency response maintains clarity in every detail, down to the most subtle nuances. Subtlety is maintained and every sound element can be localized.

The KH 420 is a three-way tri-amplified monitor with thermally protected Class AB amplifiers. Just like the drivers, its Mathematically Modeled Dispersion™ (MMD™) waveguide is engineered for ultimate accuracy. Sound distributed in a precise horizontal manner ensures versatility in the listening position; the narrower vertical dispersion mitigates the negative effects of early reflections, like those from a desk or mixing console. Intentionally designed to be narrower, the KH 420's dispersion guarantees reference sound at greater working distances.

Features
  • Computer-modeled cabinet design using Low Resonance Integral Molding (LRIM™) materials
  • Extraordinary bass depth (26 Hz) with high sound pressure (122.4 dB)
  • Precise dispersion in the midrange and high frequencies
  • As a stereo system with KH 750 DSP and optional tools, controllable and alignable to the room
  • Any KH 420 is "pair matched" to any other KH 420

Best Working Environment: Close to Professional Ears

Designed for midfield applications, the KH 420 is the perfect main monitor in project, music, broadcast and post-production studios for recording, mixing, and mastering applications - and can be freely combined with all other Neumann studio monitors in a multi-channel system.

Ports and High Dynamics: No Longer a Contradiction

With its tri-channel amplifiers, the KH 420 is capable of handling sound pressures of up to 122.4dB, retaining high-fidelity and balanced response across the entire frequency range - right down to 26Hz for an outstanding bass response. Despite the inclusion of ports, there is no “overhang” or audible resonance in the low-end, and the maintains a controlled transient response at every step.

The computer modeled LRIM cabinet construction eliminates standing wave resonance, and mitigates intermodulation distortion in the midrange.

Neumann's proprietary powerful alloy fabric dome reproduces commanding high-end, free of distortion. The midrange is captured by the fabric dome with outstanding precision - it's ultra-light material and powerful neodymium magnet achieve a greater transient response and less distortion compared to other midrange drivers in this class.

The Neumann Philosophy

Developed true to the Neumann philosophy for monitor loudspeakers - every component, shape, signal and wave motion of the KH 420 is a result of this philosophy - no component or form is there without reason. The KH 420 represents exceptionally pristine and balanced sound, and boasts hundreds of features and appointments to achieve this, such as the precisely engineered curvatures of the chassis that reduce edge diffraction, the pistonic output of the bass driver which doesn't encourage harmonic distortion, even with the loudest peaks. Some of these incredible features are obvious in the KH 420, others, Neumann keep close to their chest - but combined, each can be appreciated - a notion that working professionals in studios all over the world can testify to.

Specifications
  • Frequency Response
    • ±6dB: 25Hz - 22kHz
    • ±3dB: 26Hz - 22kHz
  • Self Generated Noise: <20dB(A) SPL
  • THD <0.5%: 95dB SPL
  • Bass Capability - Max. SPL: 116.7dB SPL
  • Max. Long Term SPL: 118dB SPL
  • Max. Output Level (dB SPL): 110.7dB
  • EQ
    • Low Cut: 30Hz, 0 -12dB
    • Parametric EQ - Gain: +4 - 12dB
    • Parametric EQ - Frequency: Bypass, 20Hz - 120Hz
    • Parametric EQ - Q: 1 - 8
  • Phase
    • 45°
    • 90°
    • 135°
    • 0/180°
  • Bass Extension: 17Hz, -6dB
  • Inputs
    • Analog Inputs: 8x XLR Electronically Balanced
    • Input Impedance: >13kΩ
    • Max. Input Level: +19dB
  • Outputs
    • Analog Outputs: 8x XLR Electronically Balanced
  • Common Mode Rejection Ratio (CMRR): >56dB @ 15kHz
  • Volume Control: NRC 1 hardware remote or RS-232
  • Volume Control Range - Resolution: 118 dB, 0.25 dB
  • Analog Dynamic Range - THD+N: 119dB(A), <0.001% (-100dB)
  • Input Gain Control (Sensitivity): +2 - 12dB
  • Crossover
    • Frequency: 80Hz
    • Slope: 24dB/Oct, 4th Order
  • Protection Circuitry: Peak and Thermo Limiters
  • Output Power Woofer Amplifier (THD+N with Limiter Deactivated: 10%): 400W
  • Cabinet
    • Material: Wood Cabinet, Aluminum Electronics Panel
    • Cabinet Surface Finish: Painted, Metallic Anthracite (RAL 7021)/Black (RAL 9005)
  • Woofer: 2 x 265 mm (10") with Magnetic Shielding and Protecting Black Metal Grille
  • Mounting Points: 35mm Flange on Top Panel
  • Power
    • Mains Power Supply: 100-240V (switchable), 50/60Hz
    • Power Consumption (Full Output): 800W
  • Dimensions
    • 735mm (H) x 330mm (W) x 645mm (D)
    • 45.5kg
