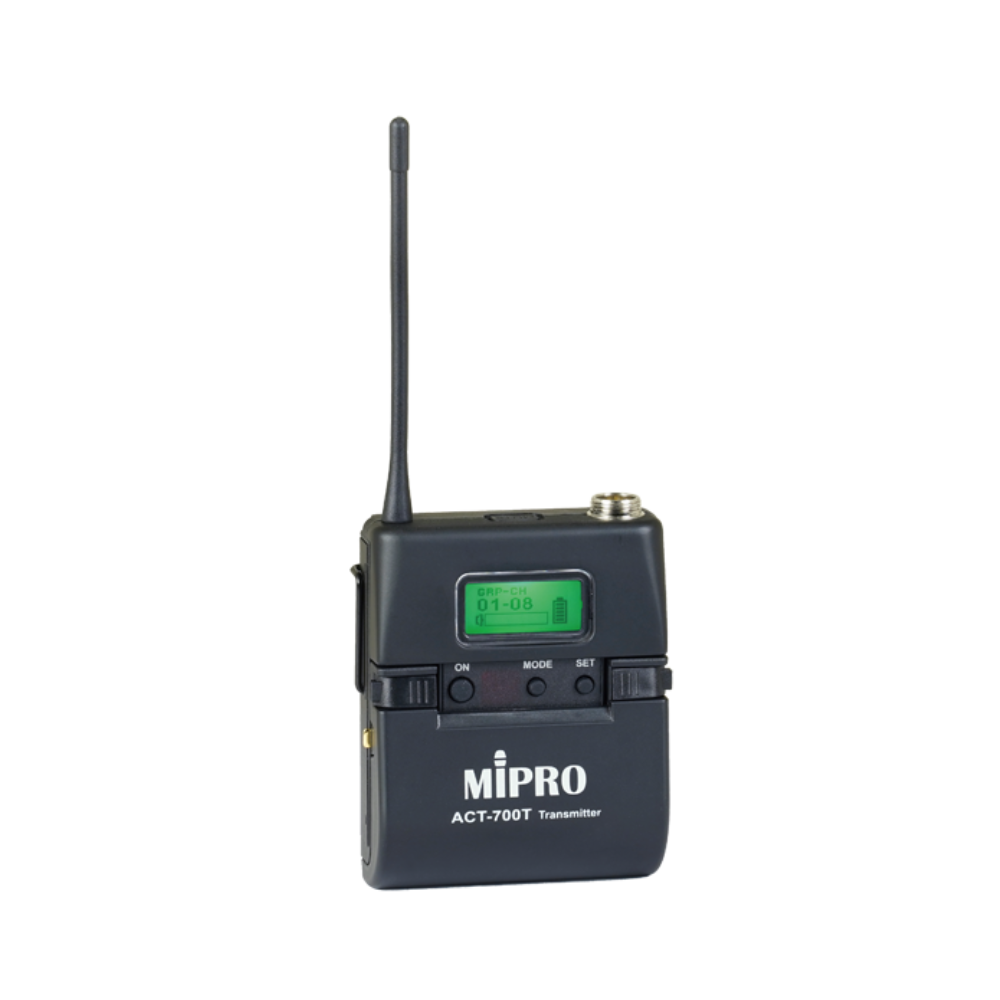

Features Newly designed compact and lightweight housing for easy wearing. The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information, and a lockable power switch prevents the power switch from accidental operation. In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, and button lock modes are also programmable. The world’s first ACT™ function provides precise and rapid frequency sync to the receiver 5 switchable gain levels. Mute button and remote-control jack allow quick setting of MUTE function. The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. An optional slip-in charger (MP-800) is available. A belt clip for easy wearing Specifications Name UHF Analog Wideband Bodypack Transmitter Frequency Range UHF 480 – 934 MHz (country dependent) Bandwidth 72 MHz Display Backlit LCD Mic. Capsule Modules Work with all MIPRO’s lavalier and headworn mics Input Connector MIPRO 4-Pin Mini XLR AF Sensitivity Preset at 0 dB (equal to capsule sensitivity) 5 switchable levels: -12 dB to 12 Db Max. Audio Input 0 dBV RF Power Output 10 mW / 50 mW switchable (country dependent) Spurious Emission < 4 nW Battery One 18500 Li-ion battery or two AA alkaline Charging MP-800 slip-in charger or USB Type-C Dimensions 63 × 80 × 25 mm (W × H × D) Weight Approx. 97 g
