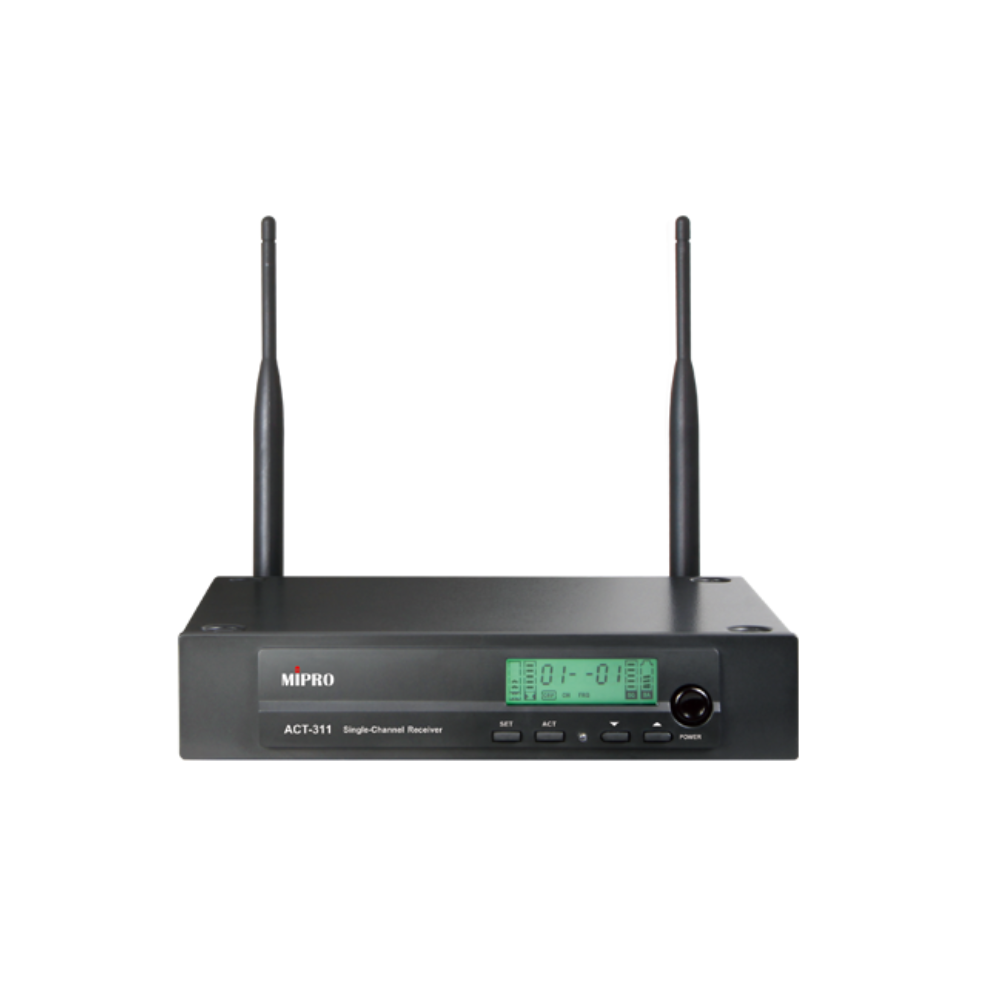

MIPRO ACT311B-6 Wireless Mic Receiver Freq Band 6B

Features • EIA standard 1/2U metal receiver. • Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability. • Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator. • A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds. • Balanced XLR / unbalanced 1/4 audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers. • High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band. • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters. • Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference. • Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference. • Industry’s only RF interference warning indicator for ideal SQ level adjustment. • DC input socket accepts 12~15V power supply. • Matching ACT-32H handheld and ACT-32T bodypack transmitters. Specifications Channel: Single Chassis: EIA Standard 19 1/2U metal chassis Frequency Range: UHF 644-668 MHz Bandwidth: 24 MHz Receiving Mode: CPU-controlled diversity receiving Sensitivity: 10dBµV, at S/N>80dB Frequency Response: 50Hz~18kHz, with high-pass filter Preset Frequencies: 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. Audio Output Adjustment: Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. Maximum Output Level: 2-level Switch: Line & Mic Antenna: Rear Panel, Detachable Power Supply: External AC Adapter, 12~15V DC, 1A Squelch: PiloTone & NoiseLock dual-squelch circuit
