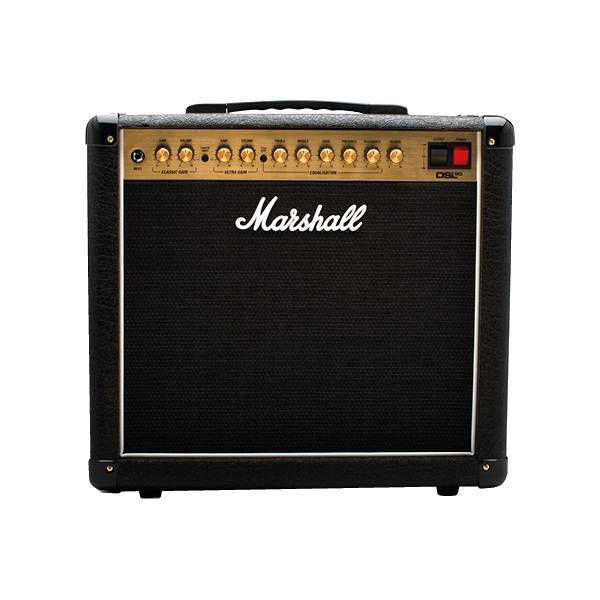

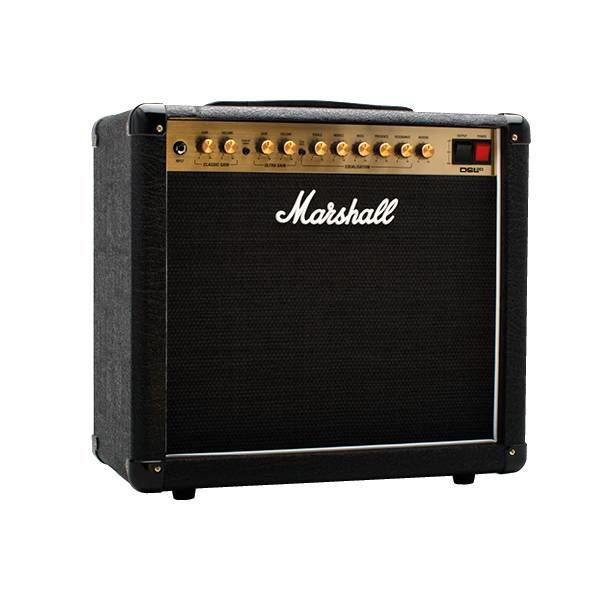

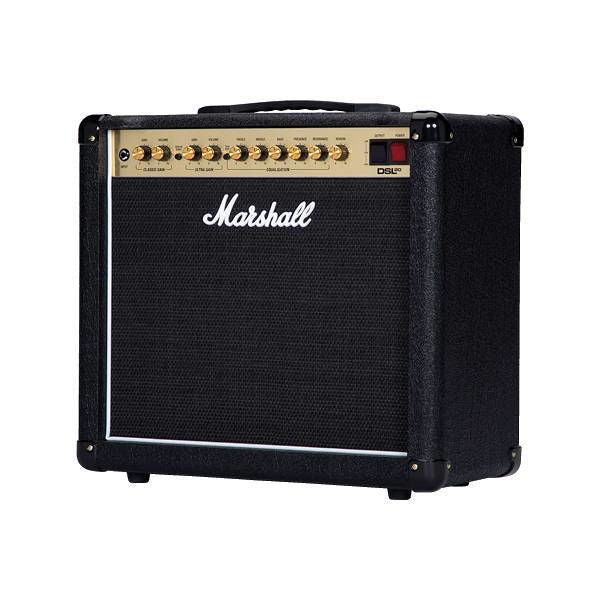

Marshall DSL20C 20W 1x12 Tube Guitar Combo Amplifier

Features

Choose Your Tone
Using the two footswitchable gain channels, reverb, FX loop and tone shift controls you can adapt the sound to suit your style.

Vary The Output
The DSL20 combo has three speaker outlets allowing for a combination of two speakers, the ability to record and a standby function for silent recording meaning it can be taken from the bedroom, to the studio and onto a gig.

Pick Your Environment
Power can be reduced from 20W to 10W without affecting the quality, so you can play wherever you are with confidence.

Emphasise Your EQ
You can have more bite and punch to your tone with the presence function and the resonance will give your sound depth.

Specifications

GENERAL

• Model: DSL20CR
• Range: DSL
• Technology: Valve
• Channels: 2 (Split) "Ultra gain" and "classic gain"

ELECTRONICS

• Output wattage: 20W (with power reduction option, 10W)
• Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), 1 x 3.5mm jack emulated line out
• Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, footswitch
• Controls: Classic gain channel (gain, volume), channel select, ultra gain channel (gain volume), tone shift button, treble, middle, bass, presence, resonance, reverb, low power option (on rear)
• Effects: Digital reverb
• Effects loop: Yes, series, send/return

SPEAKERS

• Speaker configuration: 1x12"
• Speaker model: Celestion Seventy 80 speaker (16Ω, 80w)
• Unit impedance: 16Ω

VALVES

• Preamp valves: 3 x ECC83
• Power amp valves: 2 x EL34

ACCESSORIES

• Footswitch: PEDL-90012 included
• Cable: Detachable power cable included
• Dust cover: M-COVR-00118 (sold separately)

DIMENSIONS (INCLUDING FEET AND HANDLE)

• Weight: 16.3 kg / 36 lbs
• Width: 500 mm / 19.7"
• Height: 470 mm / 16.5"
• Depth: 250 mm / 9.8"
