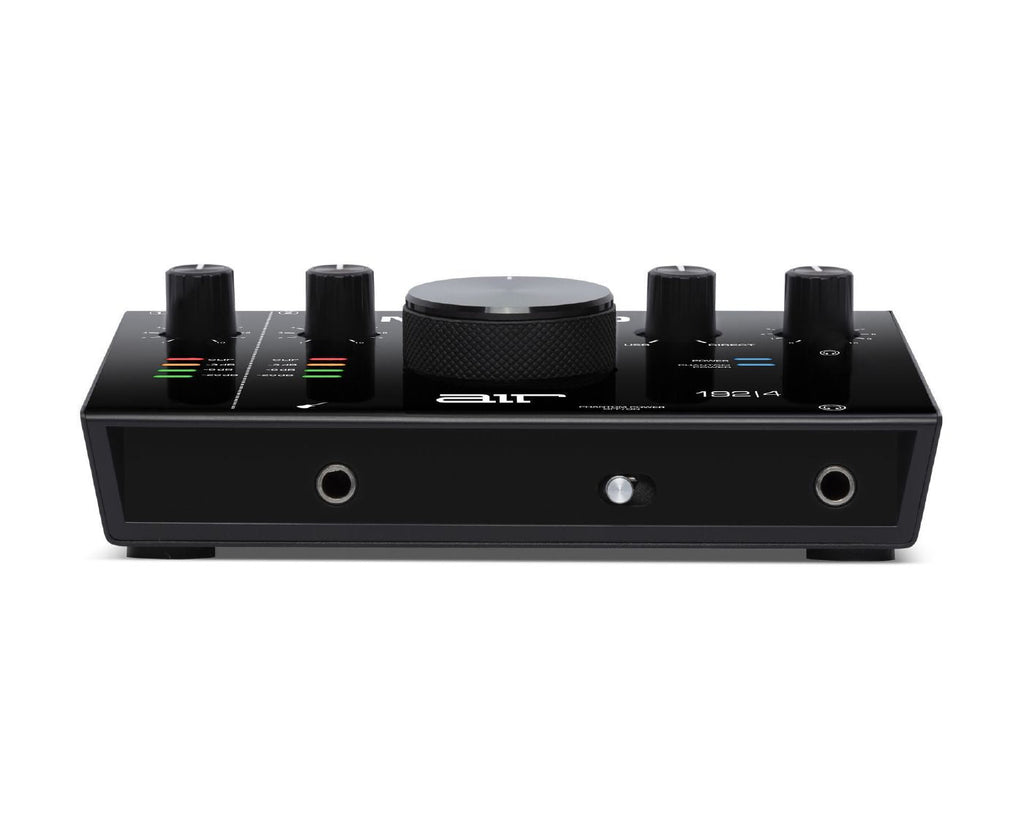

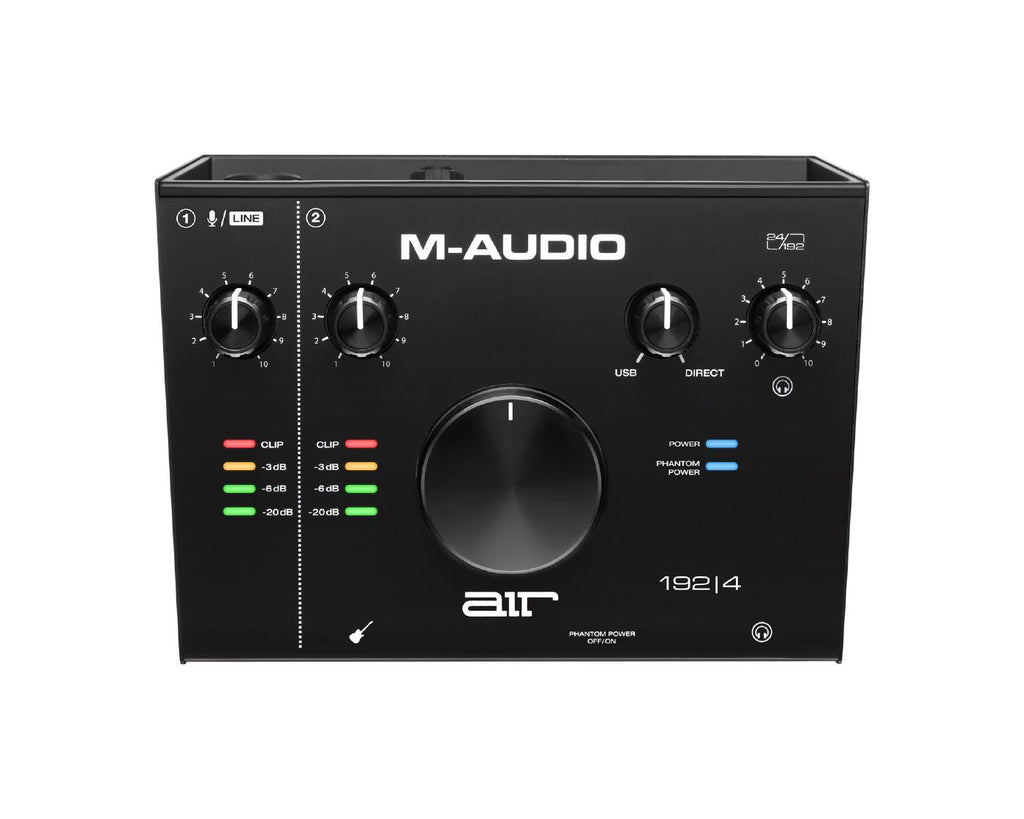

With the AIR 192|4 Vocal Studio Pro, the combination of high-performance hardware and easy-to-use software results in pro-grade audio capture for every recording scenario.
Features
- 24-bit/192kHz resolution for professional recording and monitoring
- Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
- Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in the perfect level
- (1) XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available
- Stereo ¼” outs; ¼” headphone out with independent level control
- Rugged metal chassis; large central control for easy volume adjustment
- USB/Direct knob for balancing between the input signal and the computer signal
- NOVA Black condenser microphone
- HDH40 monitoring headphones
- *Round trip latency is dependent on buffer settings, and computer hardware
What's in the box?
- AIR 192|4
- USB-C-to-USB-C Cable
- USB-C-to-USB-A Cable
- NOVA Black Microphone
- Microphone Carrying Pouch
- XLR Microphone Cable
- Microphone Shock Mount
- Microphone Windscreen
- HDH40 Headphones
- Software Download Cards
- User Guide
- Safety and Warranty Manual
Specifications
Minimum System Requirements
- macOS: 10.8 Class Compliant
- PC: Windows 7, Windows Driver
- Standard USB 2.0 or USB-C Port
NOVA Black Microphone
- TYPE: Back Electret condenser microphone
- ELEMENT: 18 mm pure aluminum diaphragm capsule
- FREQUENCY RESPONSE: 20 Hz – 20 kHz
- SENSITIVITY: -38 dB (0 dB = 1 V/Pa @ 1 kHz)
- RATED IMPEDANCE: 200O
- MAXIMUM SPL: 136 dB
- PHANTOM POWER REQUIRED: +48 V
- S/N RATIO: 77 dB
- CURRENT CONSUMPTION: 3 mA
HDH40 Headphones
- ACOUSTIC DESIGN: Dynamic, Closed
- DRIVER: 40 mm, neodymium
- FREQUENCY RESPONSE: 15 Hz – 22 kHz
- SENSITIVITY: 95 dB ±3 dB
- RATED IMPEDANCE: 32O
- EARPAD: Leatherette
- CABLE LENGTH: 9.8 ft. / 3 m
Mic Input 1 (balanced XLR)
- FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.1 dB)
- DYNAMIC RANGE: 104 dB (A-weighted)
- SIGNAL-TO-NOISE RATIO: 104 dB (+1.0 dBu, A-weighted)
- THD+N: 0.003%
- PREAMP EIN: -128 dBu (max gain, 150 O source, A-weighted)
- MAX INPUT LEVEL: +1.5 dBu
- GAIN RANGE: 55 dB
Line Input 1 (balanced 1/4" [6.35 mm] TRS)
- FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.05 dB)
- SIGNAL-TO-NOISE RATIO: 101 dB (1 kHz, +4 dBu, A-weighted)
- THD+N: 0.003%
- MAX INPUT LEVEL: 16 dBu
- GAIN RANGE: 55 dB
Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
- FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.05 dB)
- DYNAMIC RANGE: 100 dB (A-weighted)
- SIGNAL-TO-NOISE RATIO: 102 dB (+ 4 dBu, A-weighted)
- THD+N: 0.004%
- MAX INPUT LEVEL: 6 dBu
- INPUT IMPEDANCE: 1 MO
- GAIN RANGE: 24 dB
Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
- FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.06 dB)
- DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO: 102 dB (A-weighted)
- THD+N: 0.005%
- MAX OUTPUT LEVEL: +7 dBu (1 kHz, -1 dBFS)
Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
- THD+N: 0.005%
- OUTPUT IMPEDANCE: 10 O
General
- POWER: USB-bus-powered
- DIMENSIONS (WIDTH X DEPTH X HEIGHT): 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
- WEIGHT: 2.0 lbs. 0.9 kg
Watch: Introducing the M-Audio Air 192|4 Vocal Studio Pro
