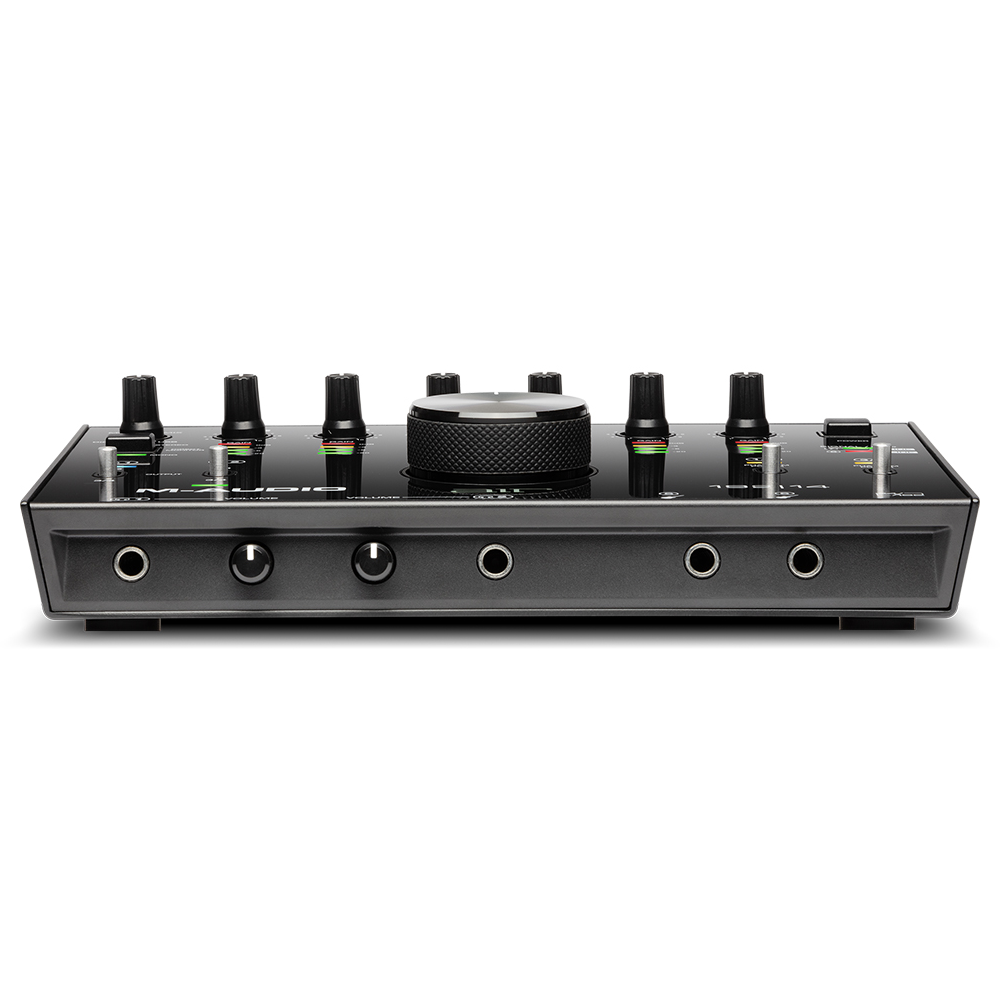

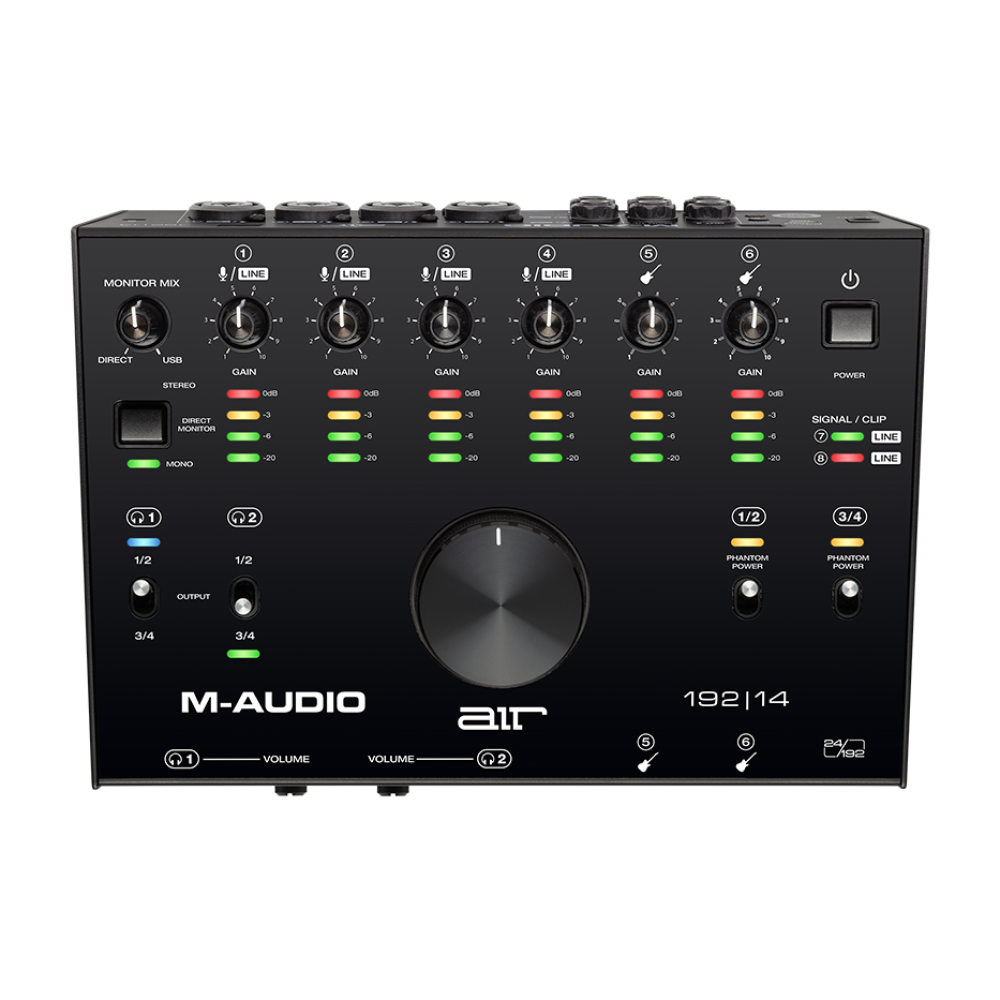

M-Audio AIR 192|14 8-In/4-Out 24/192 USB Audio Interface
1/3
  • M-Audio AIR 192|14 8-In/4-Out 24/192 USB Audio Interface
  • M-Audio AIR 192|14 8-In/4-Out 24/192 USB Audio Interface
  • M-Audio AIR 192|14 8-In/4-Out 24/192 USB Audio Interface
M-Audio AIR 192|14 8-In/4-Out 24/192 USB Audio Interface
sold out

M-Audio AIR 192|14 8-In/4-Out 24/192 USB Audio Interface

$489.00 AUD
Brand: M-Audio
SKU: 46/AIR192X14

or from $10/week with

or Rent from $30/week with
Out of stock

Mega Music Myaree

Out of stock in store

Mega Music Wangara

Out of stock in store

M-Audio AIR 192|14 8-In/4-Out 24/192 USB Audio Interface

Default Title

Mega Music Myaree

Out of stock in store

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Out of stock in store

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236
Description
The AIR 192|14 features (4) XLR+1/4" TRS combo inputs, (2) 1/4" line inputs, and (2) 1/4" instrument inputs with custom-designed gain and impedance levels. and connect directly to your interface for the most accurate reproduction of guitars and basses. It also has MIDI input/output ports, so you can connect external MIDI devices such as external sequencers, drum machines, controllers, etc. Software to Match your Style The AIR 192|14 comes with a software package that includes everything you need to start recording professionally right out of the box. Featuring a powerful DAW for your production needs, AIR 192|14 includes Ableton Live Lite and MPC Beats. Create, record, and share your ideas with the world anytime with this amazing audio and MIDI recording software. Additional features include full effects plugins, virtual instruments, and loop packs to meet all your production needs. Whether you need guitar tone, reverb, or delay; the Revalver, 80 effect plug-ins, and AIR's Creative FX Collection Plus will satisfy your effects needs. The included AIR Virtual Instrument plug-in lets you easily add premium instruments to your songs with virtual drummer, synthesizer, strings, percussion, organ, and piano plug-ins. Hear the Performance Now—Not a Second Later When recording, you want to focus on capturing the perfect moment and bringing out the best in the artist and talent. You don't want to get stuck with "clicks," "pops," or delays. The AIR 192|14 features a high-speed USB connection that minimizes round-trip latency (2.59 ms*) between device and hardware, as well as monitor mix control for direct monitoring of source inputs with zero-latency technology. Connect Anything and Everything The AIR 192|14 features 8 inputs for simultaneously recording up to 8 channels at once to meet all your studio’s recording needs. The (4) dedicated XLR/TRS Mic/Line combo inputs with Crystal Preamps™ and phantom power are perfect for recording a vocals, mic’ing up an acoustic guitar, vintage guitar or bass amp or the core elements of a drum kit. The (2) ¼” dedicated Instrument inputs use specially designed to provide the cleanest signal from your guitar, bass or keyboard, while the (2) ¼” dedicated Line inputs provide a pure uncolored signal for connecting a tube preamp, keyboard, synth or mixer, and MIDI input and output for connecting any of your boutique synth gear. Mix, Monitor and Provide At the center of the AIR 192|14 is a large metal monitor volume knob with inlayed rubberized diamond textured comfort grip for dialing in your studio monitor’s volume, and smoothly referencing your mix at both high and low levels. The monitor and headphone outputs feature a direct mono/stereo switch and direct/USB mix knob. The (2) ¼” headphone outputs have independent volume controls, and source select switches let you create mixes to suit your and your artist’s needs. In addition to the (2) ¼” rear panel monitor outputs, the AIR 192|14 offers an additional (2) ¼” outputs for connecting outboard gear. Crystal™ Preamps, Pristine A/D Converters and Premium Components Our engineers designed the Crystal Preamps to provide engineers, producers and musicians with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192|14 incorporates pristine A/D converters to provide 24-bit resolution digital audio for explosive dynamic range that captures every nuance and subtlety of your performance.

Features

  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
  • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level
  • (4) XLR+¼" TRS combo inputs, (2) ¼” instrument inputs and (2) ¼” line inputs
  • MIDI input/output for connecting virtually any external MIDI gear
  • Stereo ¼” with direct mono/stereo switch; (2) ¼” assignable auxiliary outs
  • (2) ¼” headphone outputs with independent source and level controls
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal *Round trip latency is dependent on buffer settings, and computer hardware
What's included? AIR 192|14 USB-C-to-USB-C Cable USB-C-to-USB-A Cable (2) 1/8" (3.5 mm) to MIDI Adapters Software Download Cards User Guide Safety and Warranty Manual

Specifications

Minimum System Requirements - Standard USB 2.0 or USB-C Port - Windows: 7 (32 or 64 bit) - OSX: 10.8 Mic Inputs 1-4 (balanced XLR) Frequency Response 20 Hz – 20 kHz (+/-0.2 dB) Dynamic Range 113 dB (A-weighted) THD+N:  0.003% Preamp EIN:  -137 dBu (40 O source, A-weighted) -129 dBu (150 O source, unweighted) Max Input Level: +14 dBu Gain Range: 62 dB Line Inputs 1-4 (balanced 1/4" [6.35 mm] TRS) Frequency Response: 20 Hz – 20 kHz (+/-0.1 dB) Dynamic Range: 113 dB (A-weighted) THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS) Max Input Level: +30 dBu Gain Range: 61 dB Inst Inputs 5-6 (unbalanced 1/4" [6.35 mm] TS) Frequency Response: 20 Hz – 20 kHz (+/-0.1 dB) Dynamic Range: 110 dB (A-weighted) THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS) Max Input Level: +16 dBu Input Impedance: ~1 MO Gain Range: 59 dB Fixed Line Inputs 7–8 (balanced 1/4" TRS) Dynamic Range: 113 dB (A-weighted) THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS) Frequency Response: 20 Hz – 20 kHz (+/-0.1 dB) Max Input Level +17 dBu Line Outputs 1–2 (balanced 1/4" TRS) Dynamic Range: 112 dB (A-weighted) THD+N: 0.002% (1 kHz, -1 dBFS) Frequency Response: 20 Hz – 20 kHz (+/-0.2 dB) Max Output Level: +17 dBu Fixed Line Outputs 3–4 (balanced 1/4" TRS) Dynamic Range: 113 dB (A-weighted) THD+N: 0.002% (1 kHz, -1 dBFS) Frequency Response: 20 Hz – 20 kHz (+/-0.2 dB) Max Output Level: +17 dBu Headphone Outputs (stereo 1/4") Dynamic Range: 111 dB (A-weighted, 32 O load) THD+N 0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 O load) FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.2 dB) MAXIMUM POWER DELIVERED 160mW (<1% THD, 32 O load) MAXIMUM OUTPUT LEVEL +15 dBu (unloaded) IMPEDANCE RANGE 32 O – 600 O General Other Connectors: - (1) 1/8” (3.5 mm) MIDI input - (1) 1/8” (3.5 mm) MIDI output - (1) USB Type-C port - (1) Power adapter input Power Adapter: 12 VAC, 2 A, center-positive (included) Product Dimensions: (WIDTH X DEPTH X HEIGHT) 10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm) Product Weight: 3.9 lbs. 1.8 kg
