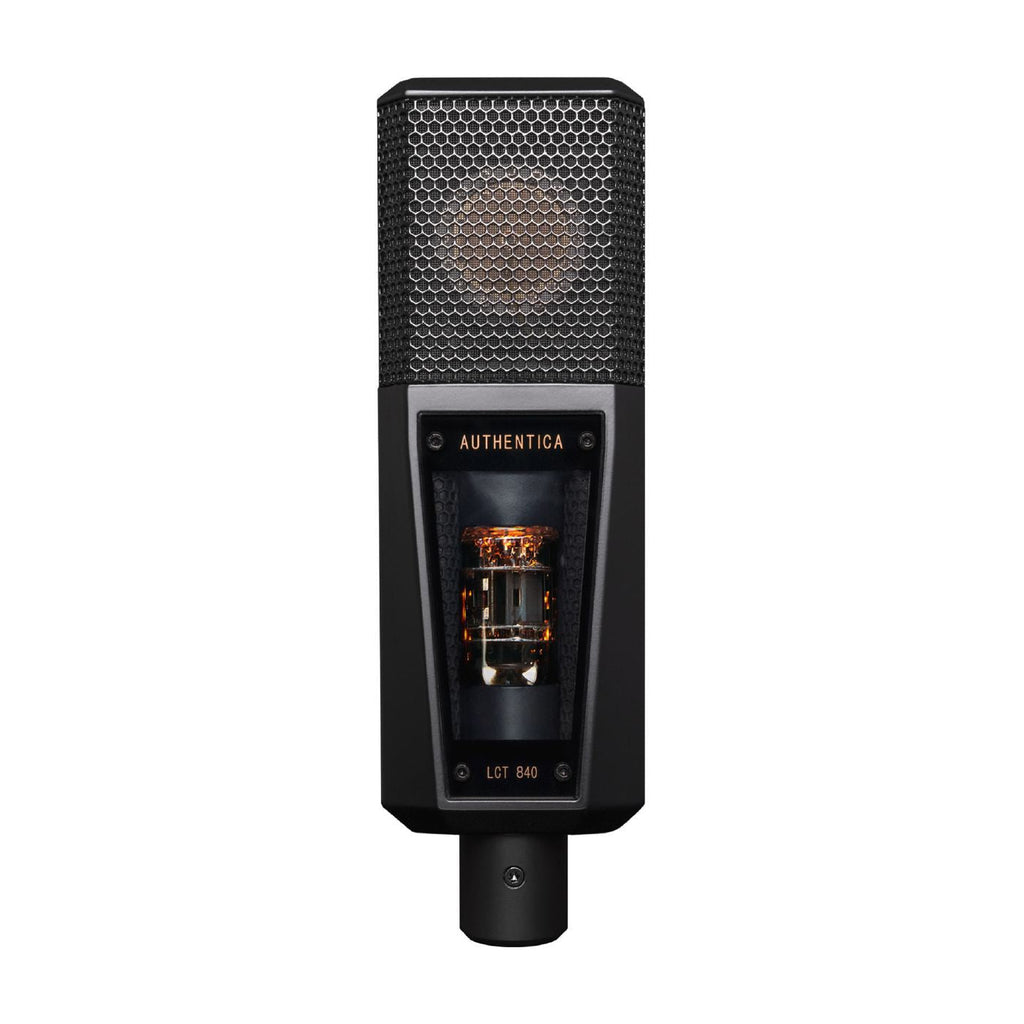

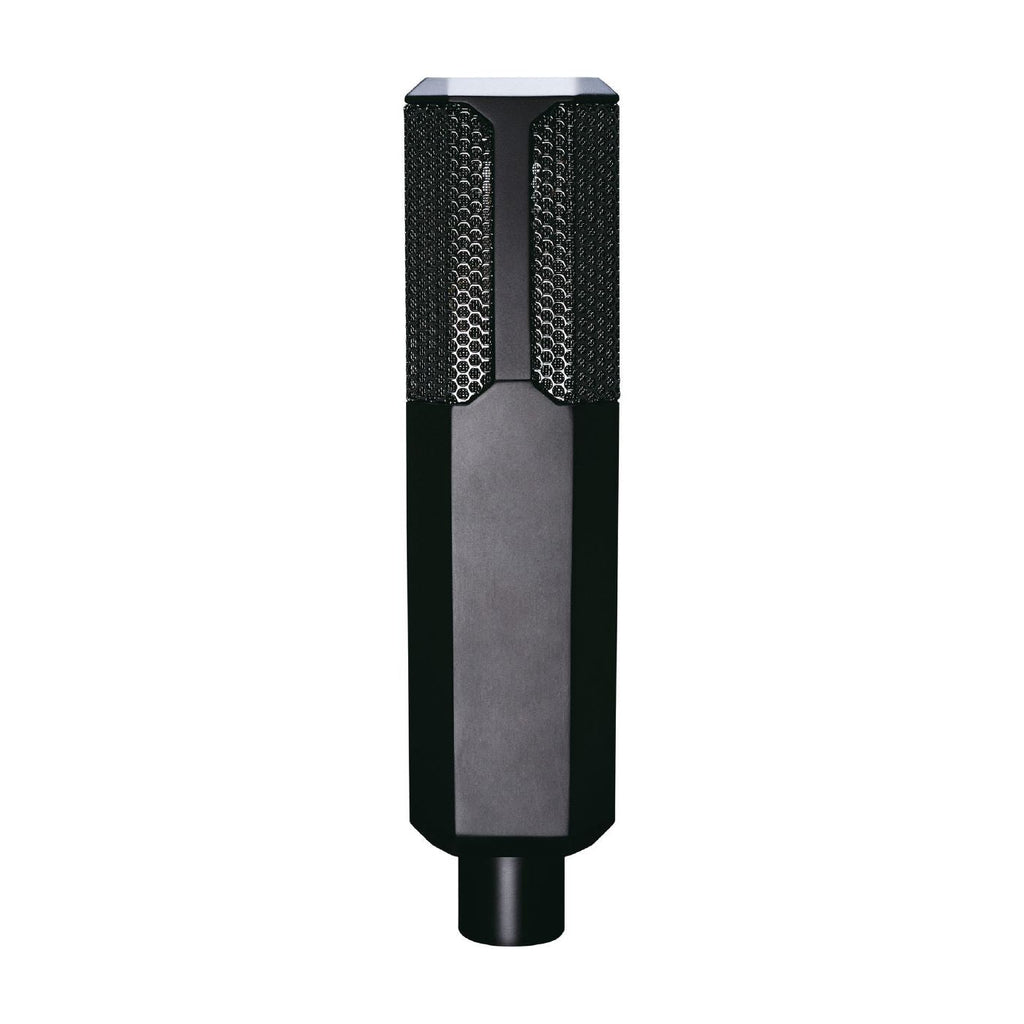

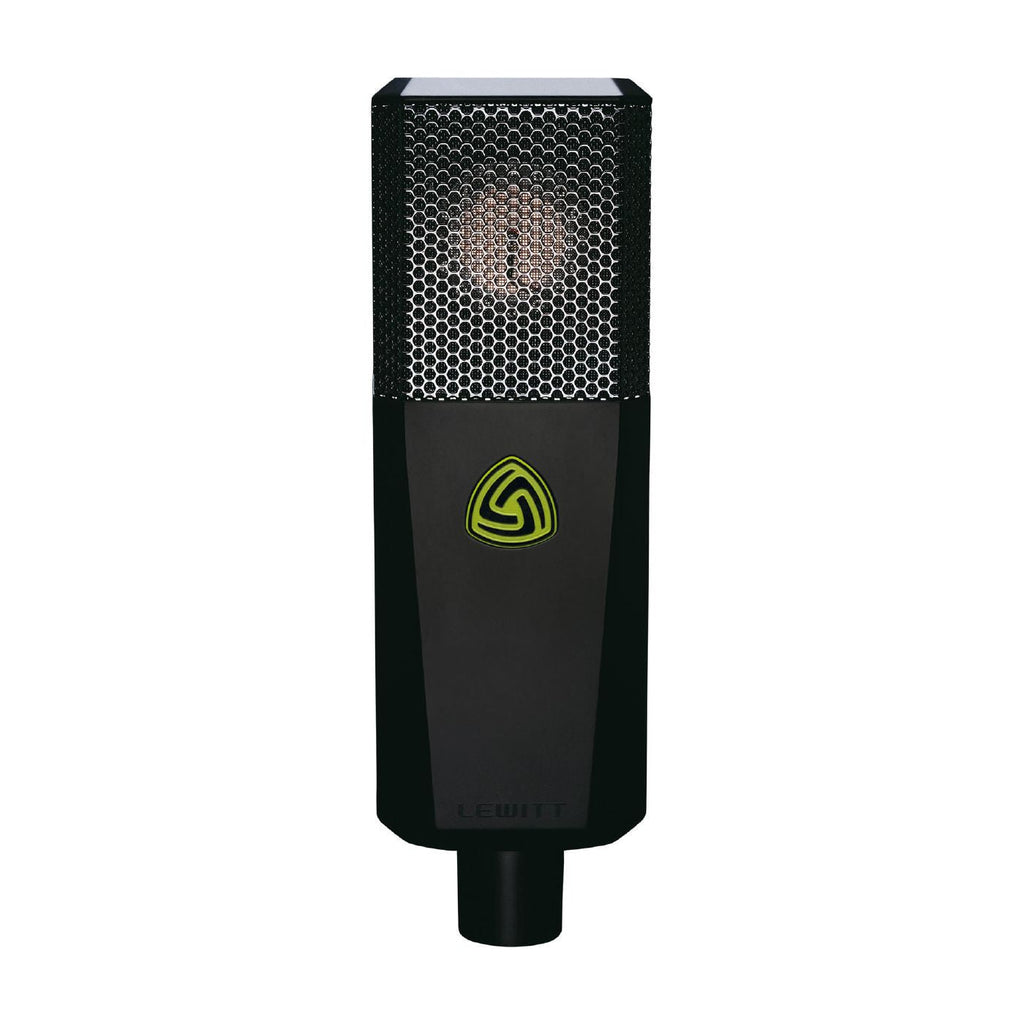

Lewitt LCT840 Large Diaphragm Tube Sound Microphone

The dual triode 12AX7 tube delivers comforting sound with smooth high frequencies, while still preserving the ability to cut through the mix.

Low self-noise and high dynamic range exemplify how the LCT 840 is classic design brought into the present.

The externally polarized dual-diaphragm 1″ capsule captures every nuance of your performance thanks to its 3-micron-thin, gold-layered, low-mass diaphragms. It handles everything from vocals to full orchestras.

Warmth and precision in all situations. The LCT 840 is fully devoted to warm tube sound. We use a dual triode 12AX7 tube to create that warm and comforting sound with smooth high frequencies while still preserving the ability to cut through the mix.

Features

• 1" multi-pattern tube microphone
• Full-bodied tube sound with smooth high-end
• Classic tube sound with modern technology
• 12AX7 tube
• Remote control and power supply in one
• Multi-pattern design

Specifications

• Type: Condenser, externally polarized
• Acoustical operating principle: Pressure gradient transducer
• Transducer Ø: 25.4 mm, 1 in
• Polar pattern: Omni, wide cardioid, cardioid, supercardioid, figure-8
• Frequency range: 20 ... 20,000 Hz
• Sensitivity:

  • 23 mV/Pa, -33 dBV/Pa (cardioid)
  • 20 mV/Pa, -34 dBV/Pa (omni)
  • 23 mV/Pa, -33 dBV/Pa (figure-8)
• Equivalent noise level: 9 dB (A)
• Max. SPL for 0.5 % THD: 139 dBSPL, 0 dB pre-attenuation
• Signal / noise ratio: 85 dB (A)
• Dynamic range: 130 dB (A)
• Pre-attenuation pad:

  • 0 dB
  • -10 dB
  • -20 dB
• Low-cut filter:

  • linear
  • 40 Hz (12 dB/oct)
  • 300 Hz (6 dB/oct)
• Internal impedance: 200 Ω
• Rated load impedance: 1,000 Ω
• PSU - supply voltage

  • 230 V, 50 Hz
  • 110 V, 60 Hz
• Current consumption: 170 mA
• Connector: Gold plated 11-pin XLR
• Microphone dimensions: 192 x 60 x 46 mm, 7.5 x 2.4 x 1.8 in
• Microphone net weight: 662 g, 23.3 oz
