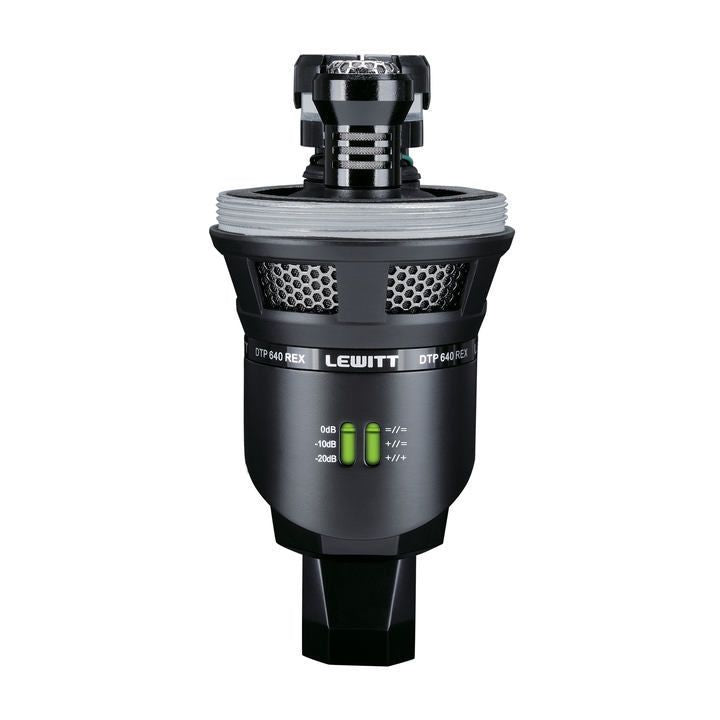

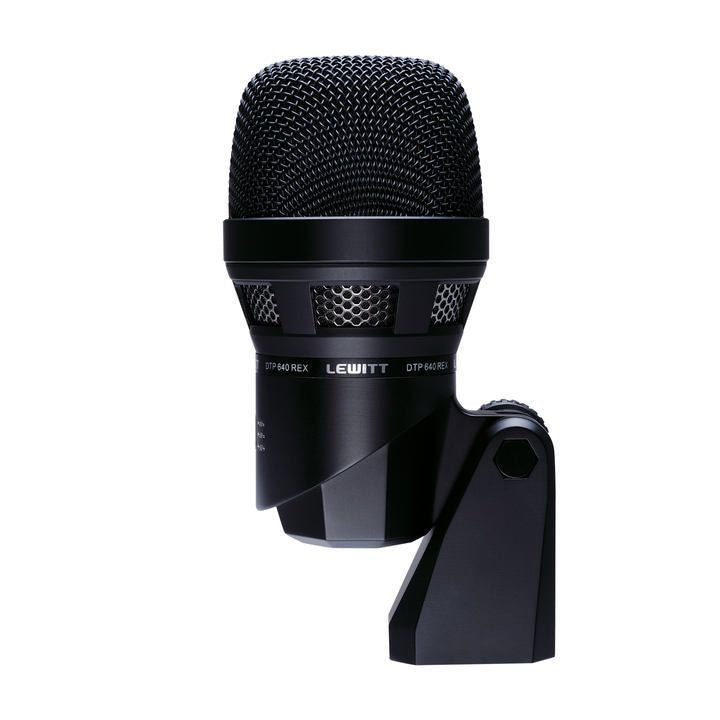

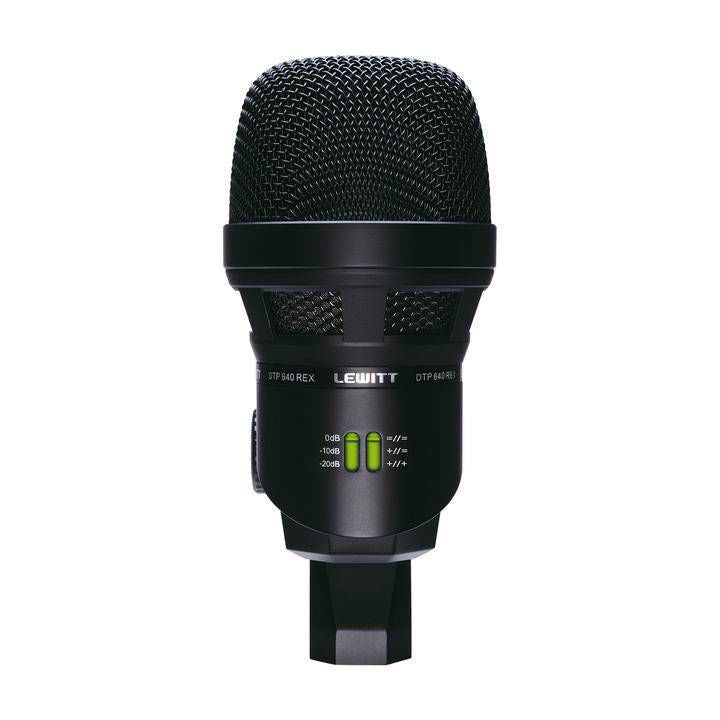

Lewitt DTP640REX Low Frequency Dual Condenser/ Dynamic Kick Drum Microphone

It consists out of two phase-aligned capsules, a condenser and a dynamic one. You can switch between three sounds for more flexibility for studio and live applications. Unique sound for bass drums and other bass-heavy instruments. We put two phase-aligned microphones in a single housing.  The dynamic side ensures accurate attack reproduction of the kick drum, while the condenser element captures the drum's low end. Each element has a dedicated output. This enables you to shape the kick drum sound in unique ways. Features Dual-element instrument microphone Dynamic and condenser capsule in one housing Separate outputs for both capsules For kick drum and other bass-heavy sources Three switchable sound characteristics Cardioid polar pattern Specifications Type: Dynamic, moving coil, Condenser, permanently polarized Acoustical operating principle: Pressure gradient transducer Transducer Ø: 31.7 mm, 1.25 in Transducer Ø: 22.4 mm, 0.88 in Polar pattern: Cardioid Frequency range (dynamic): 20 ... 16,000 Hz Frequency range (condenser): 20 ... 20,000 Hz Sensitivity, = // = FFR: 0.4 mV/Pa (-69 dBV), dynamic 2 mV/Pa (-54 dBV), condenser Sensitivity, + // = Dynamic EFR: 0.4 mV/Pa, -69 dBV/Pa, dynamic 2 mV/Pa, -54 dBV/Pa, condenser Sensitivity, + // + Dual EFR: Condenser and dynamic matched at 1 mV/Pa, -60 dBV Equivalent noise level: 28 dB (A) Max. SPL for 0.5 % THD: 150 dBSPL, 0 dB pre-attenuation Dynamic range of mic. amp. (condenser): 122 dB Pre-attenuation pad: 0 dB -10 dB -20 dB Rated impedance dynamic: 500 O Rated impedance condenser: 200 O Supply voltage: 48 V ± 4 V Current consumption: 2 mA Connector: Gold plated 3-pin and 5-pin XLR Cable: 1.5 m (4.95’) dual shielded Y-cable, 5-pin XLR into two 3-pin XLRs Microphone dimensions: 71 dia. x 158 mm, 2.8 dia. x 6.2 in Microphone net weight: 755 g, 27.3 oz
