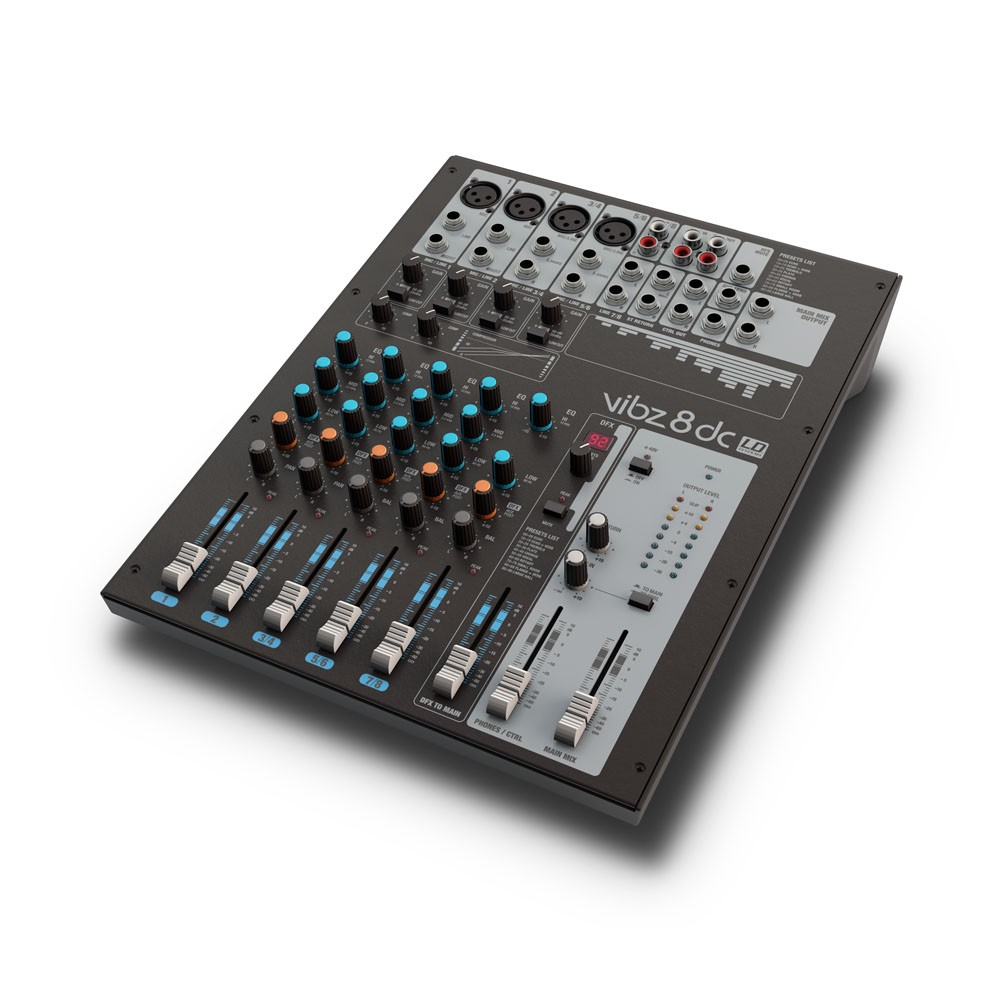

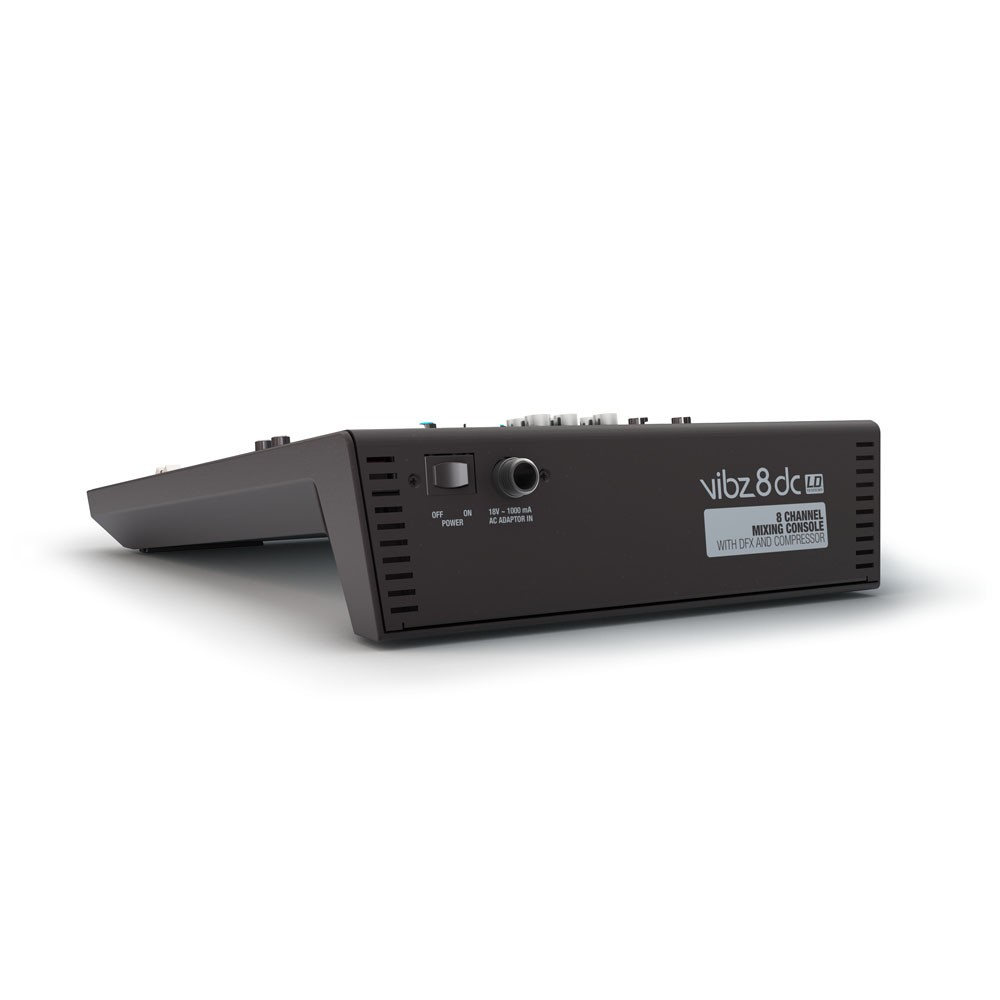

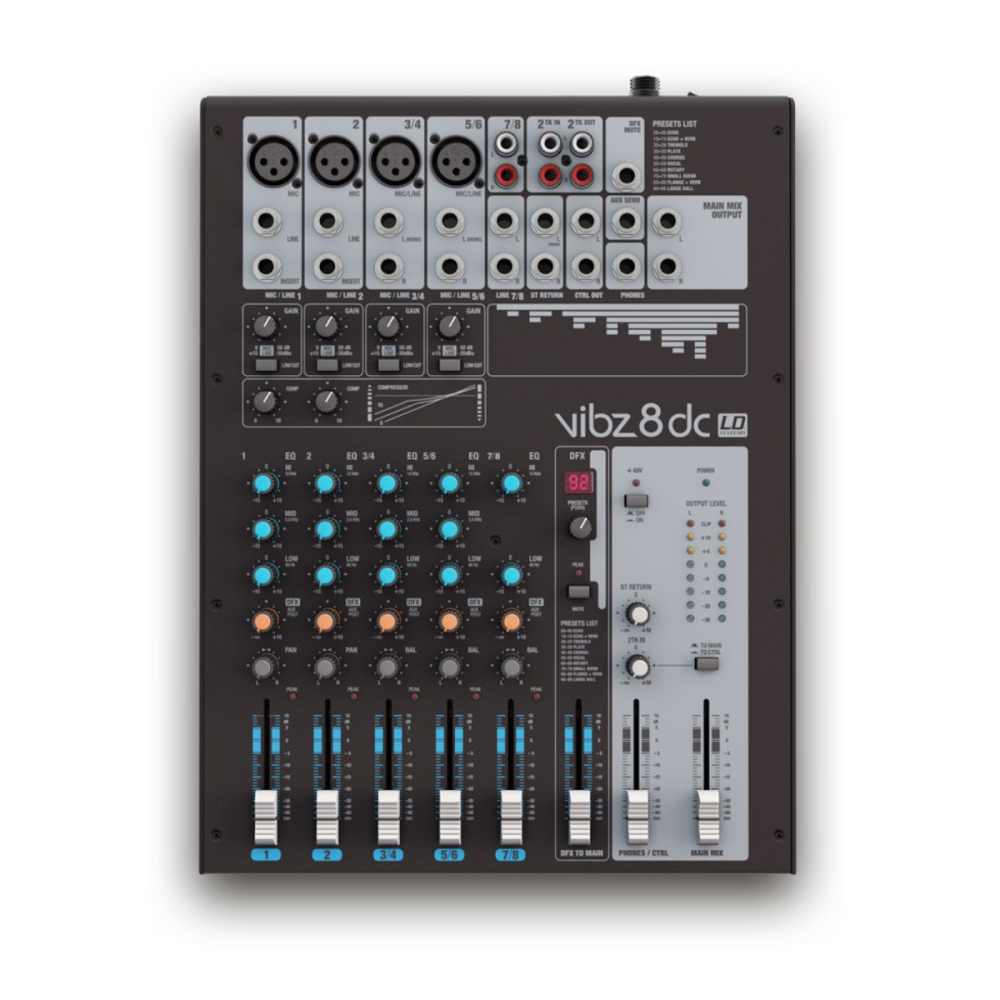

LD Sytems LDVIBZ8DC 8 Channel PA Mixer with DFX

The microphone channels can be switched to line level and are equipped with high-quality preamps and bass reduction, two of which also feature inserts for separate signal processing. For effective sound adjustment, the VIBZ 8 features a high-precision 3-band EQ with practically selectable mids. The mixer's master section features an effects loop, an adjustable monitor output and a headphone jack. The VIBZ 8 also features inputs and outputs for recording and playback devices and impresses with its exceptional ease of use and transparent, detailed sound. It is ideal for small bands, installations, home recording and use as a sub-mixer. An external power supply is included for secure mounting to the mixer. Accessories include a foot switch for the effects section and an adapter for mounting the VIBZ 8 on a microphone stand. Features 8-channel mixer with 100 digital effects presets 4 microphone channels and 3 stereo line inputs Effective 3-band EQ Sliding adjustable compressor Master, Monitor and headphone outputs Securely fastening external power supply Specifications General Product type: Mixers Type: Live Channels: 8 Mono Channels Mono Mic and Line Input Channels: 4 Mono Mic input connectors: 6.3 mm TRS, XLR Channel Inserts: 2 Channel Insert Connectors: 6.3 mm TRS Mono Mic Input Type: Electronically balanced Mono Mic Input Frequency Range: 10 - 45000 Hz Amplification Range mono Mic Input: 0 - 50 dB Mono Mic Input Input THD-N: 0.0058% Mono Mic Input Impedance: 4k Ohm(s) Mono Mic Input S/N Ratio: 113 dB Mono Line Input Type: Electronically balanced Mono Line Input Frequency Range: 10 - 45000 Hz Amplification Range mono Line Input: 0 - 50 dB Mono Line Input Input THD-N: 0.0045 % Mono Line Input Impedance: 21k Ohm(s) Mono Line Input S/N Ratio: 113 dB Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz Mono Channel Equalizer Mid: +/- 15 dB @ 2500 Hz Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor (channel 1+2), Gain, Low Cut (75 Hz), pan Phantom power: 48 V DC switchable Stereo Channels Stereo Line Input Channels: 3 Stereo Line Input Connectors: 6.3 mm TRS Stereo Line Input Type: Unbalanced Stereo Line Input Frequency Range: 10 - 45000 Hz Amplification Range stereo Line Input: 0 - 50 dB Stereo Line Input Input THD-N: 0.0045 % Stereo Line Input Impedance: 3,7k Ohm(s) Stereo Line Input S/N Ratio: 116 dB Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz Stereo channel equalizer mids: +/- 15 dB @ 2500 Hz Stereo channel equalizer bass: +/- 15 dB @ 80 Hz Controls Stereo Line Input Channels: 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Balance, Channel Volume, Gain, Low Cut Main Section AUX / Effects Send Channels: 1 AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced Stereo AUX Return Channels: 1 x stereo Stereo AUX Return Connectors: 2 x 6.3 mm TRS Stereo Tape Out Channel: 1 x stereo Stereo Tape Out Connectors: 2 x RCA (Cinch) Stereo Tape In Channel: 1 x stereo Stereo Tape In Connenctors: 2 x RCA (Cinch) Unbalanced stereo Main Outputs: 1 Unbalanced stereo Main Output Connections: 6.3 mm TRS Unbalanced Stereo Main Out Impedance: 120 Ohm(s) Max. Unbalanced Stereo Main Out Level: 20 dBu Stereo Control Room Out: 1 Stereo Control Room Out Connectors: 6.3 mm TRS Headphones ouput: 1 Headphones outputs: 6.3 mm TRS Digital Effects Processor: Yes, 24-bit AD/DA Resolution Number of Presets: 100 Footswitch Connector DFX Mute: 6.3 mm TRS Main section controls: DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume Indicators: 8-segment Level Meter, Channel Peak, DFX Peak / Mute, Phantom Power, Power Power supply: 18V DC - 1 A, External PSU, 230 V Width: 265 mm Height: 78 mm Depth: 352 mm Weight: 2,3 kg
