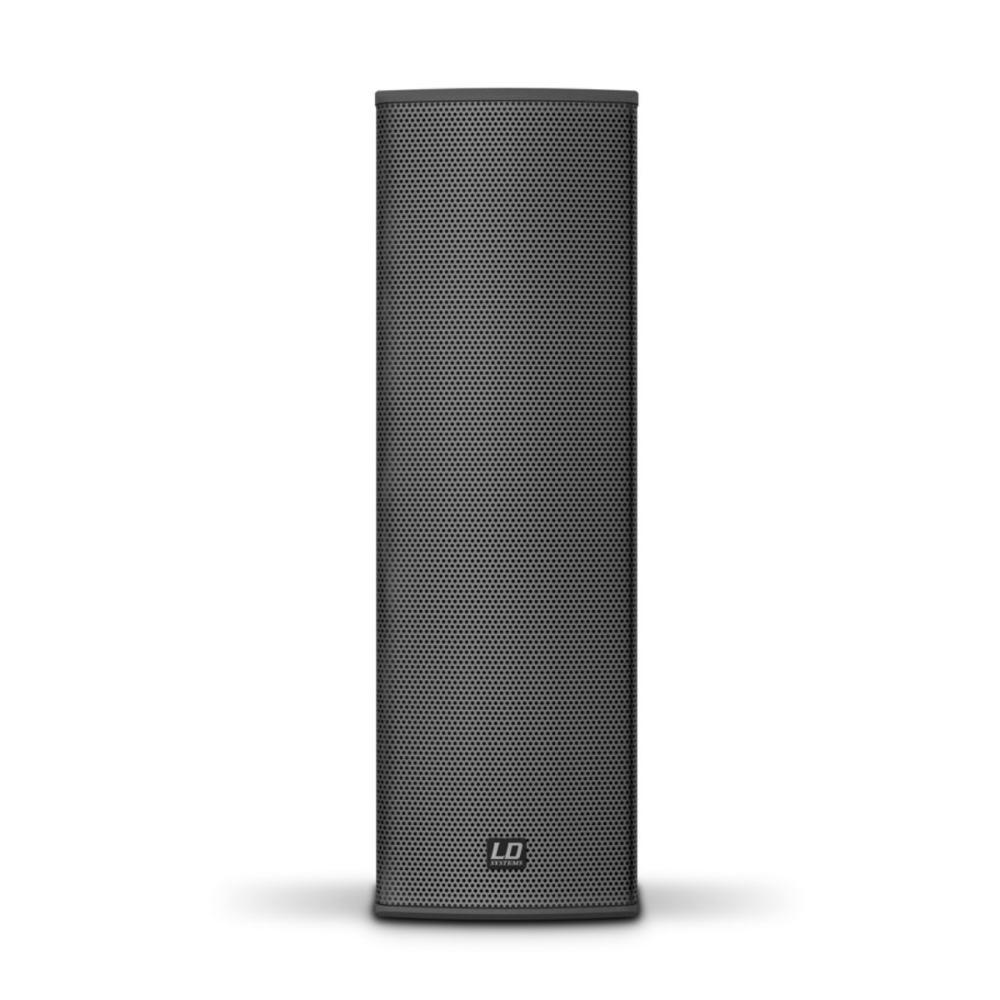

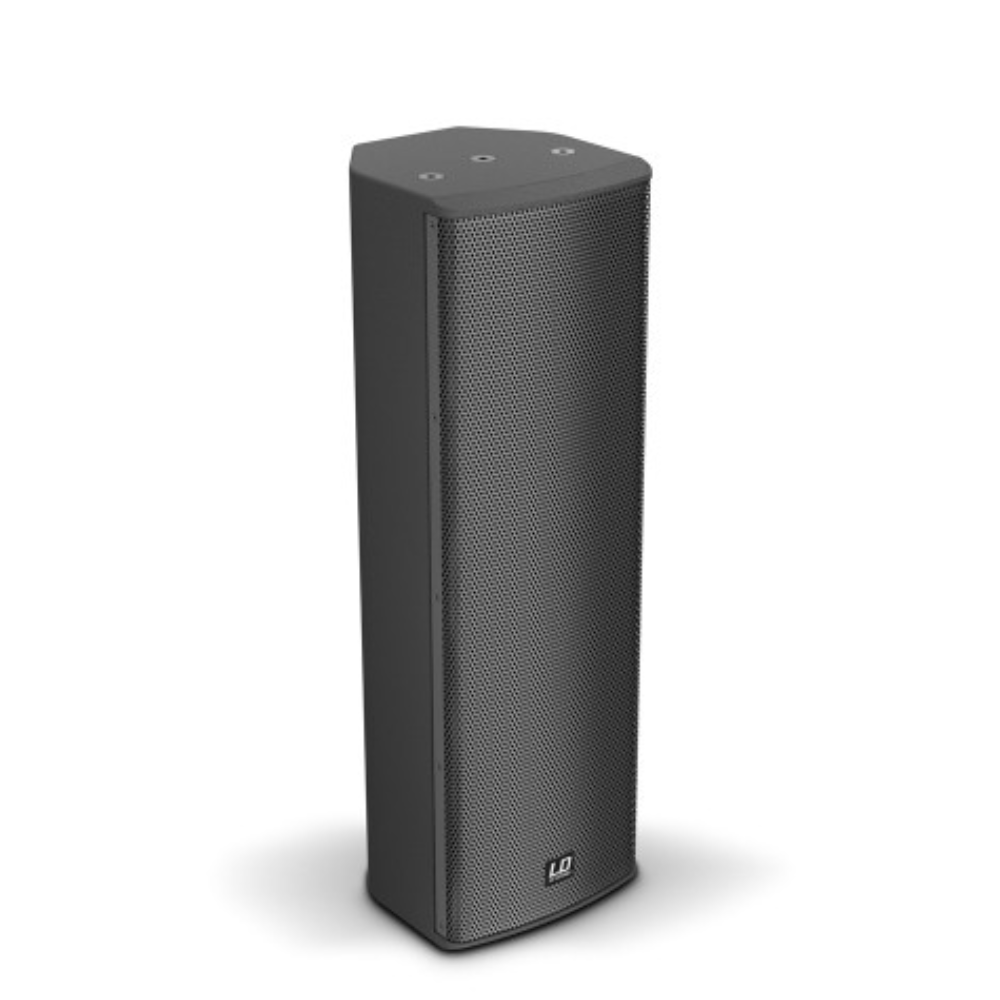

LD Systems SAT 262G2 Passive Speaker

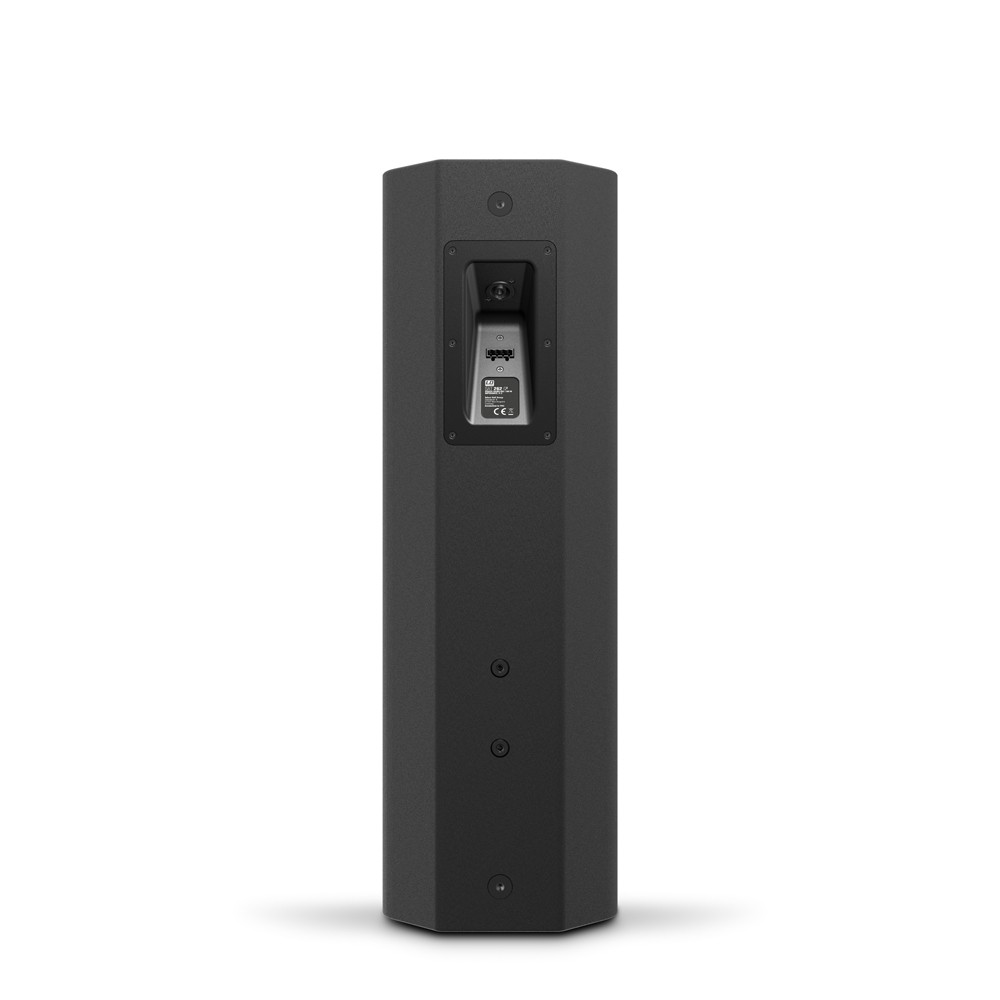

The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65–19 kHz with a permanent load capacity of 180 watts. The reflex casing made of 12 mm MDF has four M8 mounting holes. The inputs are a speakON-compatible socket and a terminal block, while an additional terminal block serves as an output for convenient parallel connection. Special wall holders are available as an accessory to facilitate wall mounting. The SAT 262 G2 is available in black (Art. No. LDSAT262G2) or white textured finish (Art. No. LDSAT262G2W). Features Passive 2-way bass-reflex installation speaker 180 W permanent load capacity 116 dB maximum sound-level pressure 2 x 6.5 custom woofer and a 1” Celestion tweeter driver Rotating CD horn with 80° x 60° dispersion For vertical or horizontal use speakON-compatible and terminal block input 4 x M8 mounting holes Shock-resistant front grille for optimum speaker protection Extensive range of smart accessories for installation Available in black or white Specifications Product type: Installation Loudspeakers Type: Wall-mounted Loudspeaker Low/mid Woofer dimensions: 2 x 6.5 Woofer dimensions (mm): 2 x 165.1 mm Woofer magnet: Ferrite Woofer brand: Custom-made Woofer voice coil (mm): 38.1 mm Horn: CD Horn HF driver dimensions: 1 HF driver dimention (mm): 25.4 mm HF driver magnet: Ferrite HF driver brand: Celestion HF driver voice coil: 1 HF driver voice coil: 25.4 mm Dispersion (H x V):L 80 x 60 ° Load rating (RMS): 180 W Peak power: 360 W Frequency response: 65 - 19000 SPL (1W/1m): 93 dB Max. SPL: 116 dB Impedance: 8 Ohm(s) Protection circuits: HF Driver Loudspeaker inputs: 2 Speaker input connections: Speakon compatible, Terminal block Loudspeaker outputs: 1 Speaker output connections: Terminal block Speakers per amplifier channel (DSP44/45K): 4 Cabinet material: 12 mm MDF Cabinet surface: texture paint Cabinet colour: Black Cabinet construction: Bass Reflex Product Dimensions: Width: 200 mm Height: 630 mm Depth: 205 mm Weight: 9,8 kg
